0-42 — FUEL PUMP AND PIPE (#80945) — 32 parça

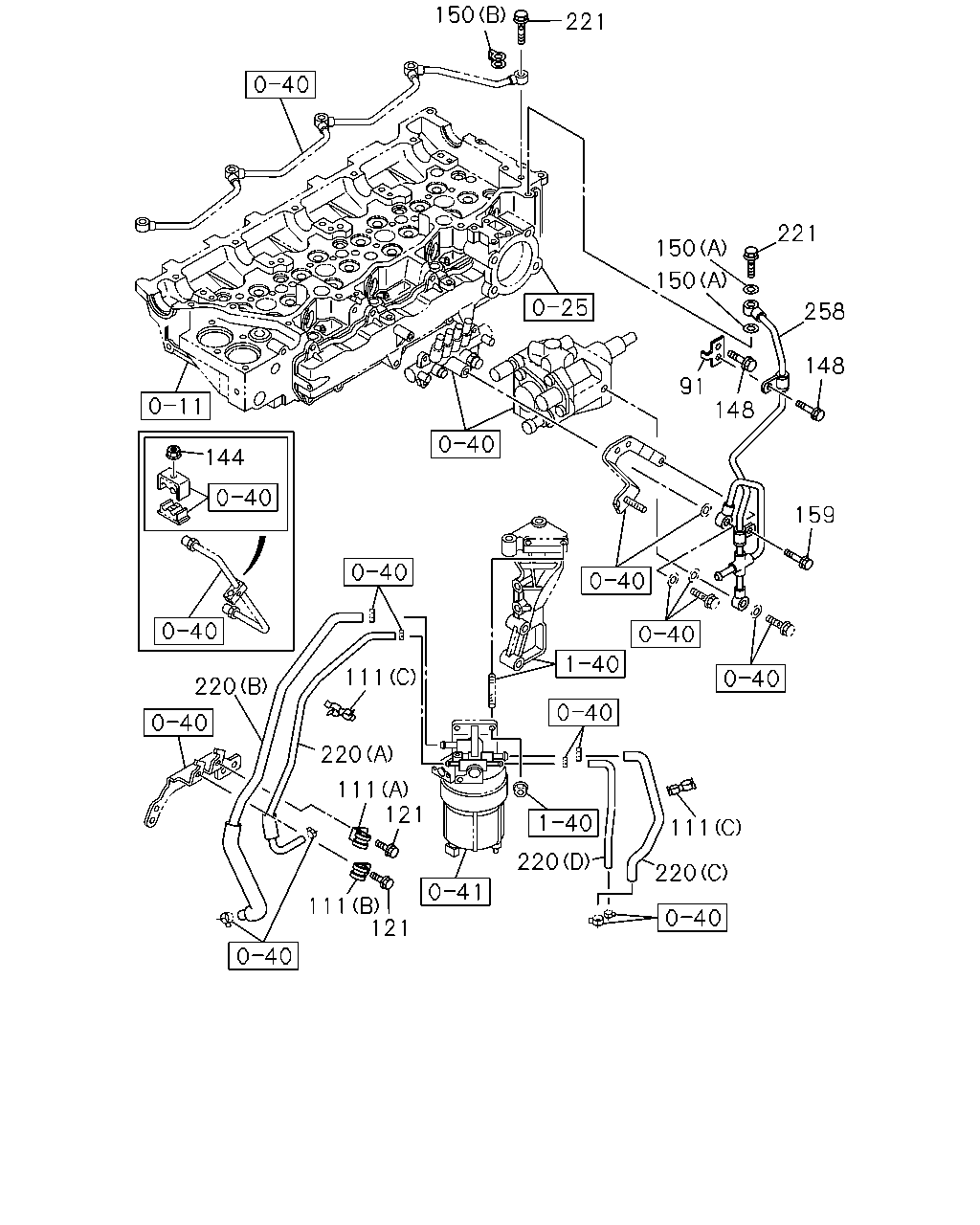

150 221 221 150 150 258 148 91 148 144 159 111 220 220 111 121 111 220 220 111 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
91	03.162 BRACKET; FUEL PIPE TO INL MANIF EURO2 SPECIFICATION(NT2)	8-98033-979-0	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE 03.342 (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE (B) ID=19 L=24	1-09701-259-0	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE 02.589 (C) ID=13 & 16.5	8-94169-028-0	03	1	1111-	●	●
121	03.162 BOLT; CLIP 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1111-	●	●
144	03.162 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	01	1	1111-	●	●
148	03.162 BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1111-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1111-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1111-	●	●
159	03.162 BOLT; CLIP EURO2 SPECIFICATION(NT2) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1111-	●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2) (A)	8-98172-558-0	01	1	1111-	●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2) (B)	8-98172-559-1	01	1	1111-	●	●
220	03.163 HOSE; FUEL (C)	8-98172-555-2	01	1	1111-	●	●
220	03.163 HOSE; FUEL (D)	8-98172-557-1	01	1	1111-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1111-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION(NT2)	8-98055-815-1	01	1	1111-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5 SPECIFICATION(NT5)	8-98089-667-0	01	1	1111-	●	●

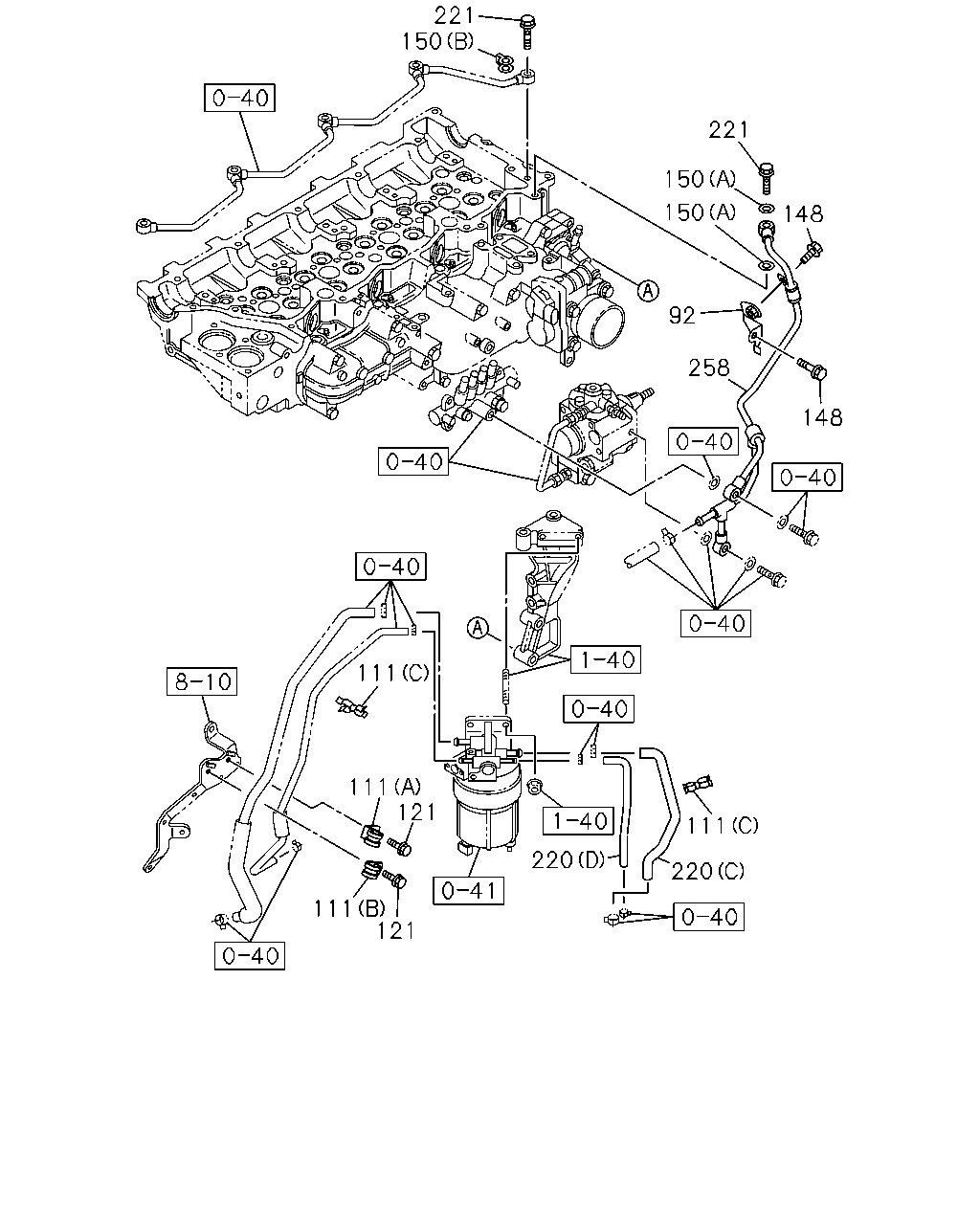

221 150 221 150 150 148 92 258 148 111 111 121 111 220 220 111 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE EURO5 SPECIFICATION(NT5)	8-98045-008-1	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE 03.342 (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE (B) ID=19 L=24	1-09701-259-0	01	1	1111-	●	●
111	03.162 CLIP; FUEL PIPE 02.589 (C) ID=13 & 16.5	8-94169-028-0	03	1	1111-	●	●
121	03.162 BOLT; CLIP 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1111-	●	●
148	03.162 BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1111-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1111-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1111-	●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2) (A)	8-98172-558-0	01	1	1111-	●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2) (B)	8-98172-559-1	01	1	1111-	●	●
220	03.163 HOSE; FUEL (C)	8-98172-555-2	01	1	1111-	●	●
220	03.163 HOSE; FUEL (D)	8-98172-557-1	01	1	1111-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1111-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO2 SPECIFICATION(NT2)	8-98055-815-1	01	1	1111-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5 SPECIFICATION(NT5)	8-98089-667-0	01	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
