0-40 — FUEL INJECTION SYSTEM (#80943) — 190 parça

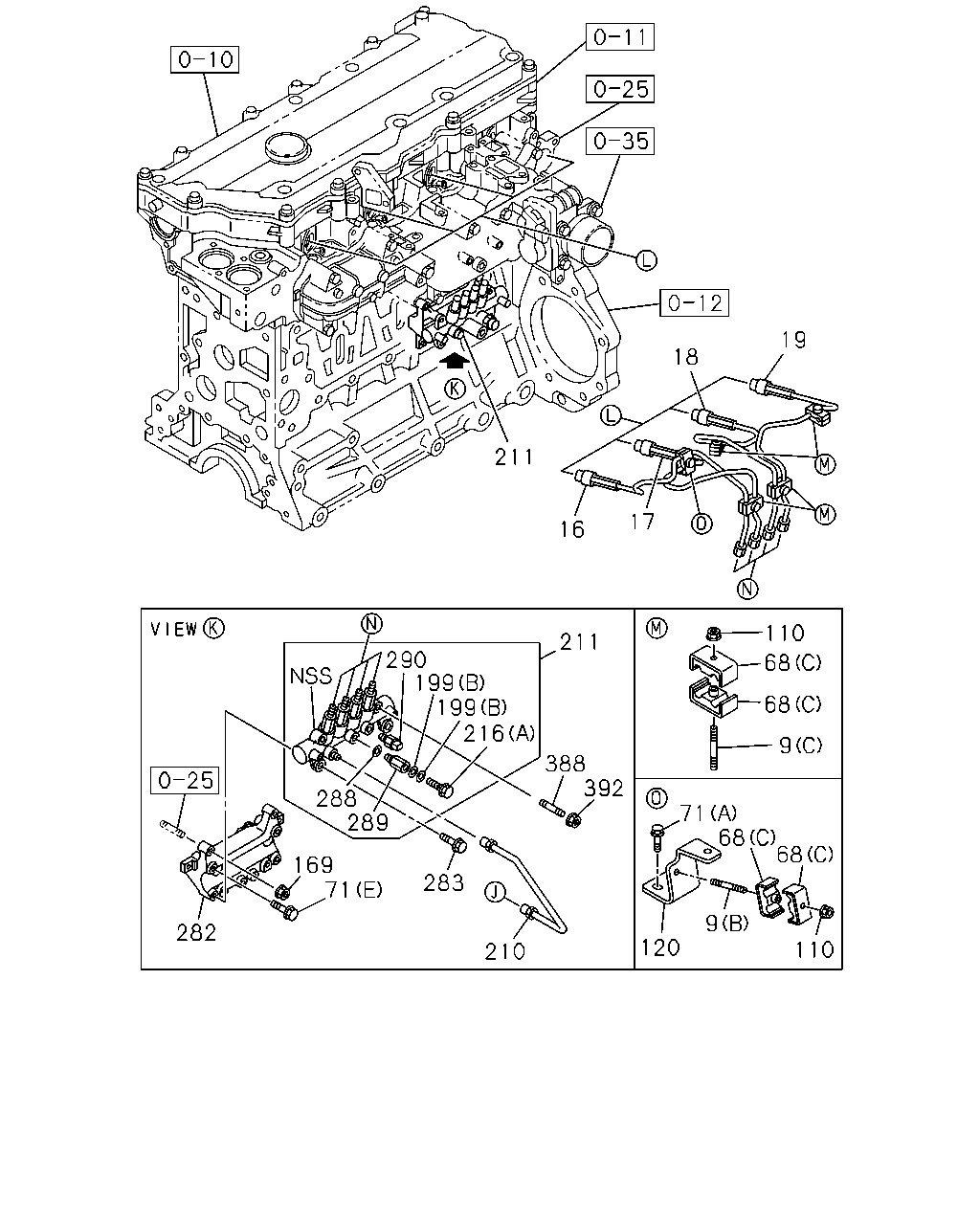

çizim 62968
19 18 211 17 16 110 211 290 199 199 216 68 68 9 388 392 288 289 71 68 68 169 71 283 9 282 120 110 210
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1111- ● ●
9 03.340 STUD; CLIP
EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1111- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1111- ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98185-344-0 01 1 1111-1404 ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98298-606-0 01 1 1502- ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98185-352-0 01 1 1111-1404 ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98271-218-0 01 1 1405-1502 ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98298-628-0 01 1 1503- ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98185-345-0 01 1 1111-1404 ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98298-607-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98185-353-0 01 1 1111-1404 ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98271-219-0 01 1 1405-1502 ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98298-629-0 01 1 1503- ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98185-346-0 01 1 1111-1404 ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98298-608-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98185-354-0 01 1 1111-1404 ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98271-220-0 01 1 1405-1502 ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98298-630-0 01 1 1503- ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98185-347-0 01 1 1111-1404 ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98298-609-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98185-355-0 01 1 1111-1404 ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98271-221-0 01 1 1405-1502 ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98298-631-0 01 1 1503- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1111- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1111- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1111-1405 ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
68 03.162 CLIP; INJ PIPE
EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1111-1405 ● ●
68 03.162 CLIP; INJ PIPE
EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 02 1 1111- ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1111- ● ●
110 03.330 NUT; CLIP
EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1111- ● ●
110 03.330 NUT; CLIP
EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 05 1 1111- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1111- ● ●
169 03.890 NUT; BRKT
EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1111-1312 ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1111- ● ●
210 03.330 PIPE; INJ,C/R
EURO2 SPECIFICATION(NT2) 		8-97376-779-0 01 1 1111- ● ●
210 03.330 PIPE; INJ,C/R
EURO5 SPECIFICATION(NT5) 		8-98087-940-0 01 1 1111- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1111- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1111- ● ●
282 03.163 BRACKET; COMMON RAIL
EURO2 SPECIFICATION(NT2) 		8-98157-115-0 01 1 1111- ● ●
282 03.163 BRACKET; COMMON RAIL
EURO5 SPECIFICATION(NT5) 		8-98106-661-1 01 1 1111- ● ●
283 03.330 BOLT; COMMON RAIL
EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE 		0-28050-825-0 01 1 1111- ● ●
283 03.330 BOLT; COMMON RAIL
EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1111- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1111- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1111- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1111- ● ●
388 03.332 STUD; RAIL
EURO5 SPECIFICATION(NT5) 03.278 M8X35 L=53 		0-49140-835-0 02 1 1111- ● ●
392 03.330 NUT; RAIL ASM
EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●

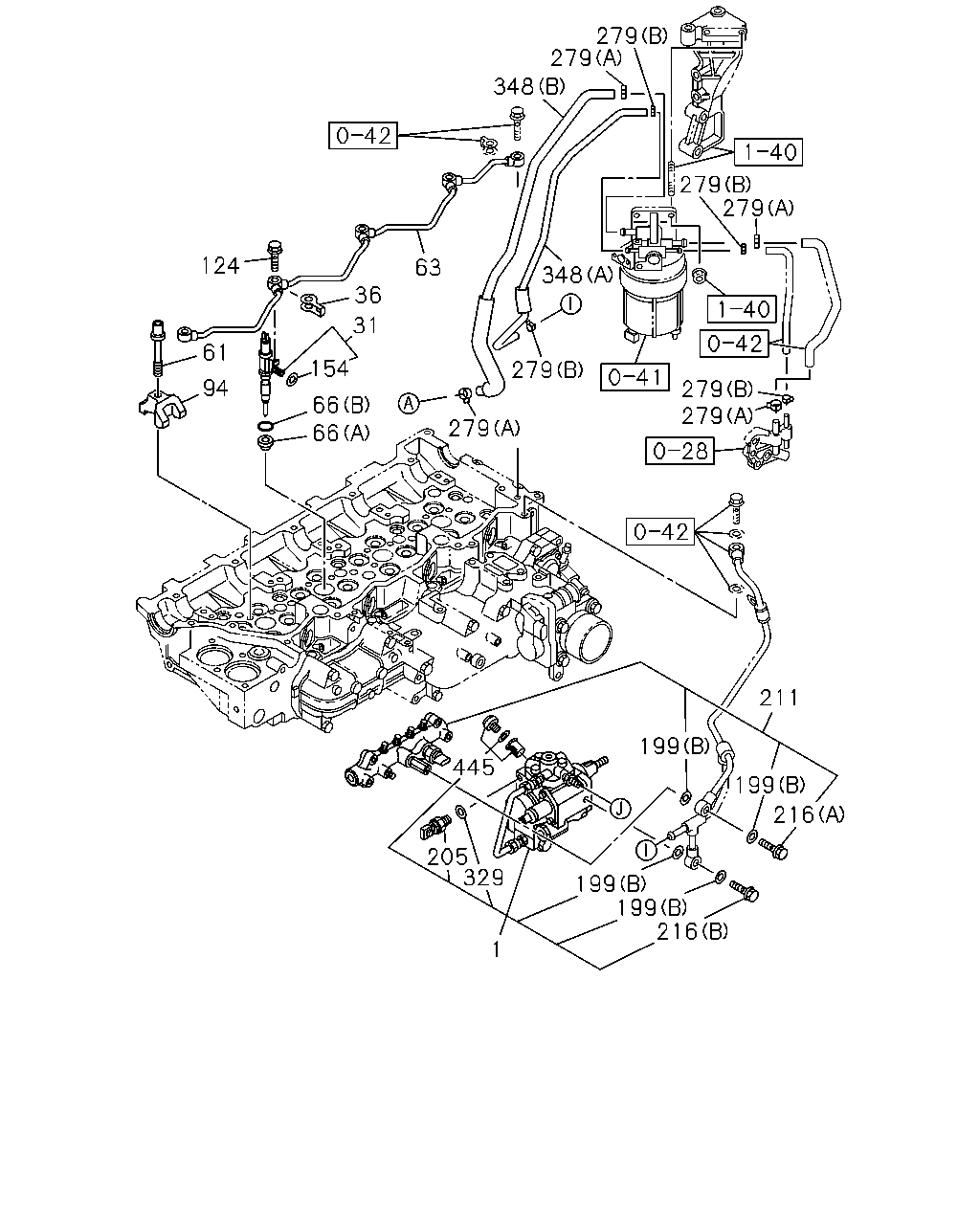

çizim 63175
279 279 279 279 279 279 279 279 63 36 124 61 94 154 66 66 348 348 211 199 216 199 199 199 216 1 329 205 445 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1111- ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1111- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1111- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1111- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1111- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1111- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1111- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1111- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1111- ● ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1111-1312 ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1111- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1111- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1111- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1111- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1111- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 04 1 1111- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1111-1201 ● ●
348 03.163 HOSE; FUEL
EURO5 SPECIFICATION(NT5) (A) 		8-98173-967-1 01 1 1111- ● ●
348 03.163 HOSE; FUEL
EURO5 SPECIFICATION(NT5) (B) 		8-98173-968-1 01 1 1111- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1111- ● ●

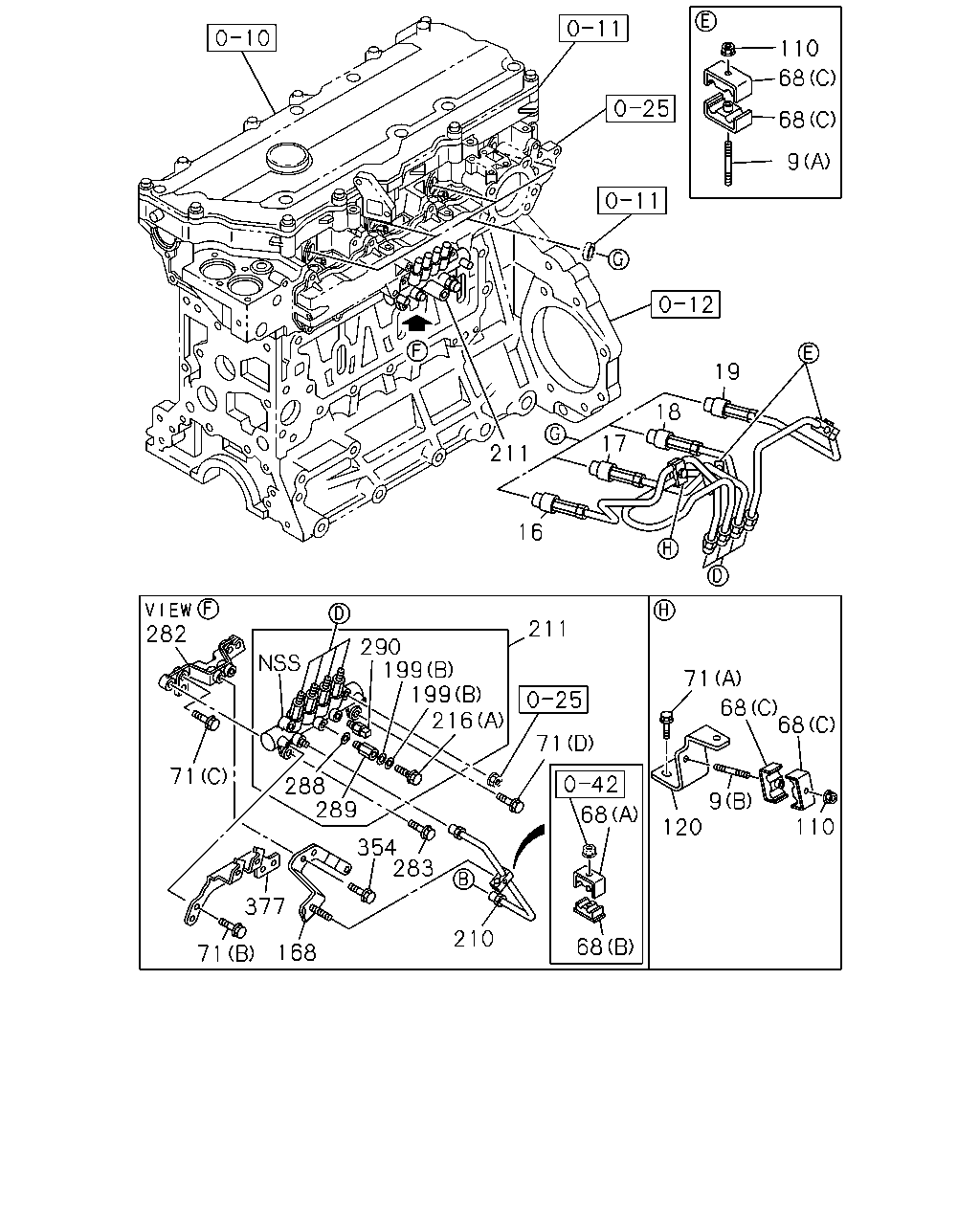

çizim 63372
110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 288 289 71 9 120 68 110 354 283 377 210 68 168 71
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1111- ● ●
9 03.340 STUD; CLIP
EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38 		0-41010-630-0 04 1 1111- ● ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1111- ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98185-344-0 01 1 1111-1404 ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1
EURO2 SPECIFICATION(NT2) 		8-98298-606-0 01 1 1502- ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98185-352-0 01 1 1111-1404 ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98271-218-0 01 1 1405-1502 ● ●
16 03.330 PIPE; INJ NO.1
EURO5 SPECIFICATION(NT5) 		8-98298-628-0 01 1 1503- ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98185-345-0 01 1 1111-1404 ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2
EURO2 SPECIFICATION(NT2) 		8-98298-607-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98185-353-0 01 1 1111-1404 ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98271-219-0 01 1 1405-1502 ● ●
17 03.330 PIPE; INJ NO.2
EURO5 SPECIFICATION(NT5) 		8-98298-629-0 01 1 1503- ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98185-346-0 01 1 1111-1404 ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3
EURO2 SPECIFICATION(NT2) 		8-98298-608-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98185-354-0 01 1 1111-1404 ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98271-220-0 01 1 1405-1502 ● ●
18 03.330 PIPE; INJ NO.3
EURO5 SPECIFICATION(NT5) 		8-98298-630-0 01 1 1503- ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98185-347-0 01 1 1111-1404 ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4
EURO2 SPECIFICATION(NT2) 		8-98298-609-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98185-355-0 01 1 1111-1404 ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98271-221-0 01 1 1405-1502 ● ●
19 03.330 PIPE; INJ NO.4
EURO5 SPECIFICATION(NT5) 		8-98298-631-0 01 1 1503- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1111- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1111- ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1111-1405 ● ●
68 03.162 CLIP; INJ PIPE
EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
68 03.162 CLIP; INJ PIPE
EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19 		8-98039-293-0 10 1 1111-1405 ● ●
68 03.162 CLIP; INJ PIPE
EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 1111- ● ●
71 03.162 BOLT; BRKT
EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 02 1 1111- ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1111- ● ●
110 03.330 NUT; CLIP
EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1111- ● ●
110 03.330 NUT; CLIP
EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 05 1 1111- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1111- ● ●
168 03.890 BRACKET; FUEL PIPE
EURO2 SPECIFICATION(NT2) 		8-98072-403-0 01 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1111-1312 ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1111- ● ●
210 03.330 PIPE; INJ,C/R
EURO2 SPECIFICATION(NT2) 		8-97376-779-0 01 1 1111- ● ●
210 03.330 PIPE; INJ,C/R
EURO5 SPECIFICATION(NT5) 		8-98087-940-0 01 1 1111- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1111- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1111- ● ●
282 03.163 BRACKET; COMMON RAIL
EURO2 SPECIFICATION(NT2) 		8-98157-115-0 01 1 1111- ● ●
282 03.163 BRACKET; COMMON RAIL
EURO5 SPECIFICATION(NT5) 		8-98106-661-1 01 1 1111- ● ●
283 03.330 BOLT; COMMON RAIL
EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE 		0-28050-825-0 01 1 1111- ● ●
283 03.330 BOLT; COMMON RAIL
EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1111- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1111- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1111- ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1111- ● ●
354 03.163 BOLT; FUEL PIPE
EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1111- ● ●
377 03.332 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) 		8-98172-648-0 01 1 1111- ● ●

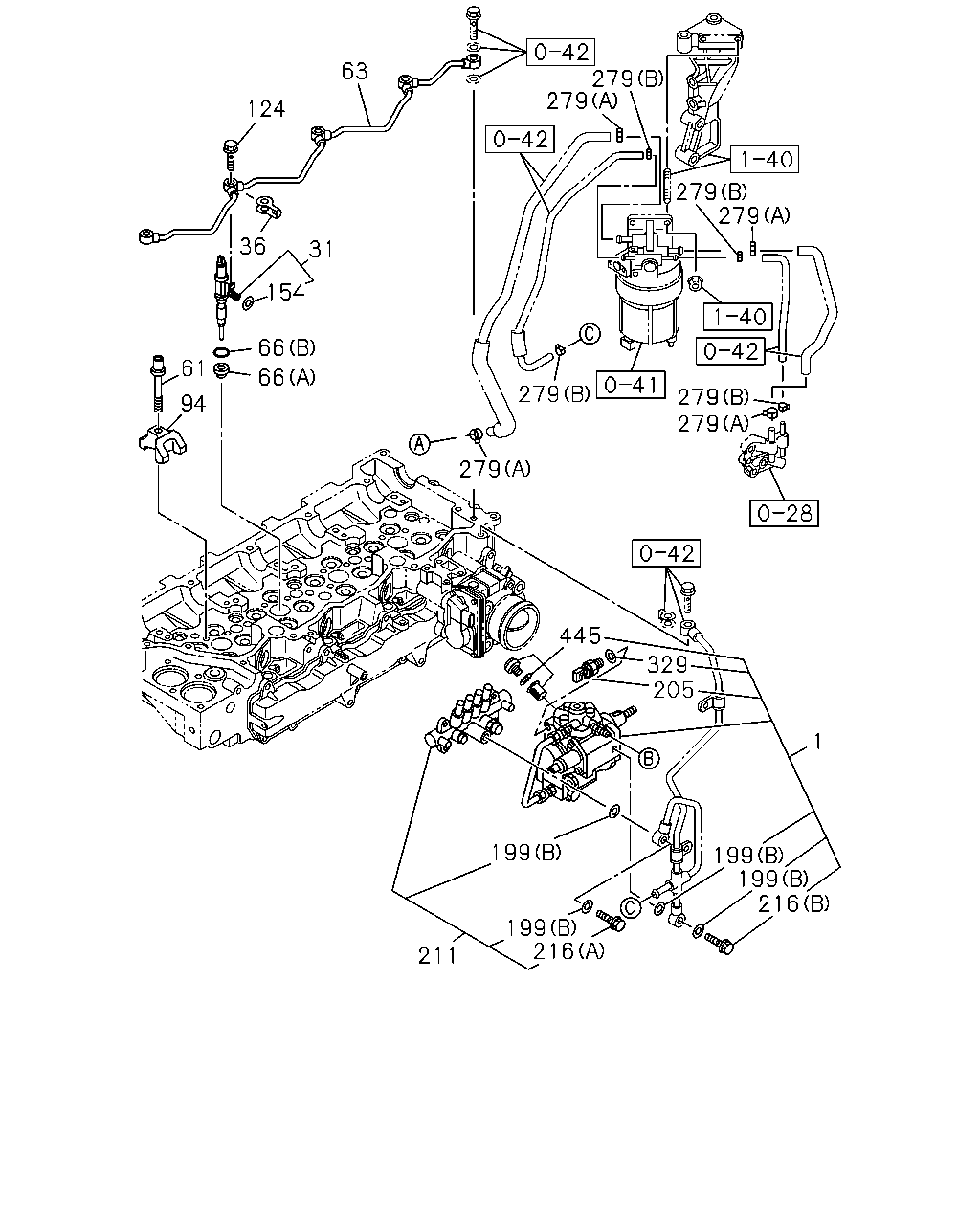

çizim 63389
279 279 279 279 279 279 279 279 63 124 36 31 154 66 66 94 61 445 329 205 1 199 199 216 216 199 199 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1111- ● ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1111- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1111- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1111- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1111- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1111- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1111- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1111- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1111- ● ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1111-1312 ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1111- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1111- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1111- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1111- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1111- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 04 1 1111- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1111-1201 ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1111- ● ●

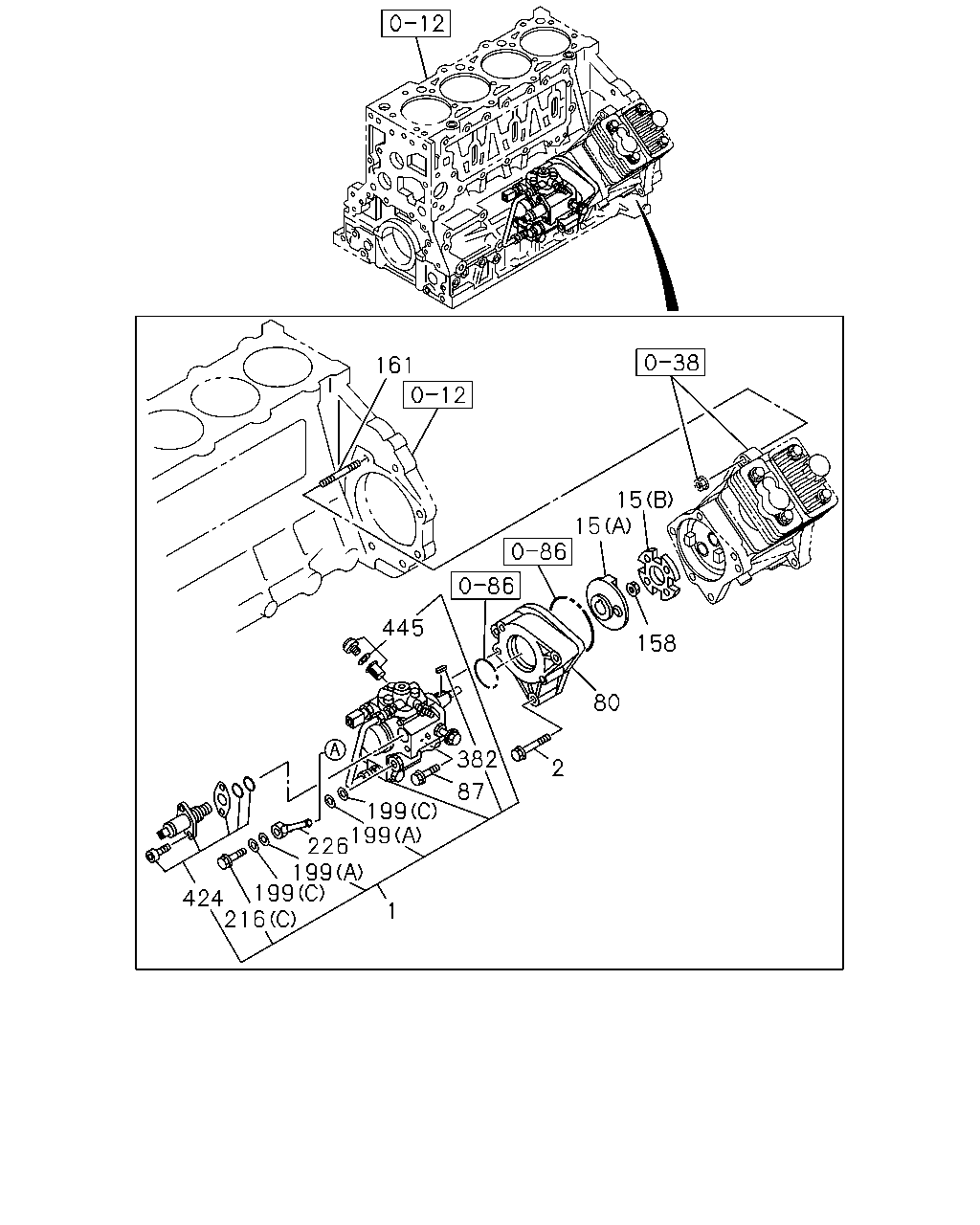

çizim 183383
161 15 15 158 80 2 1 382 87 199 199 226 199 199 216 424 445
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1111- ● ●
2 03.330 BOLT; INJ PUMP
00.685 M10X60 FLANGE 		0-28051-060-0 03 1 1111- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1111- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1111- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1111- ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1111- ● ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 1111- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1111-1312 ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1111- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1111- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1111- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1111- ● ●
226 03.163 PIPE; FUEL 8-98185-140-0 01 1 1111- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1111-1201 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1111- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
