Isuzu WW
▶
TRUCKS
▶
NQR
▶
51391 - NQR BUS A/BRAKE RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#80914) — 46 parça
◀

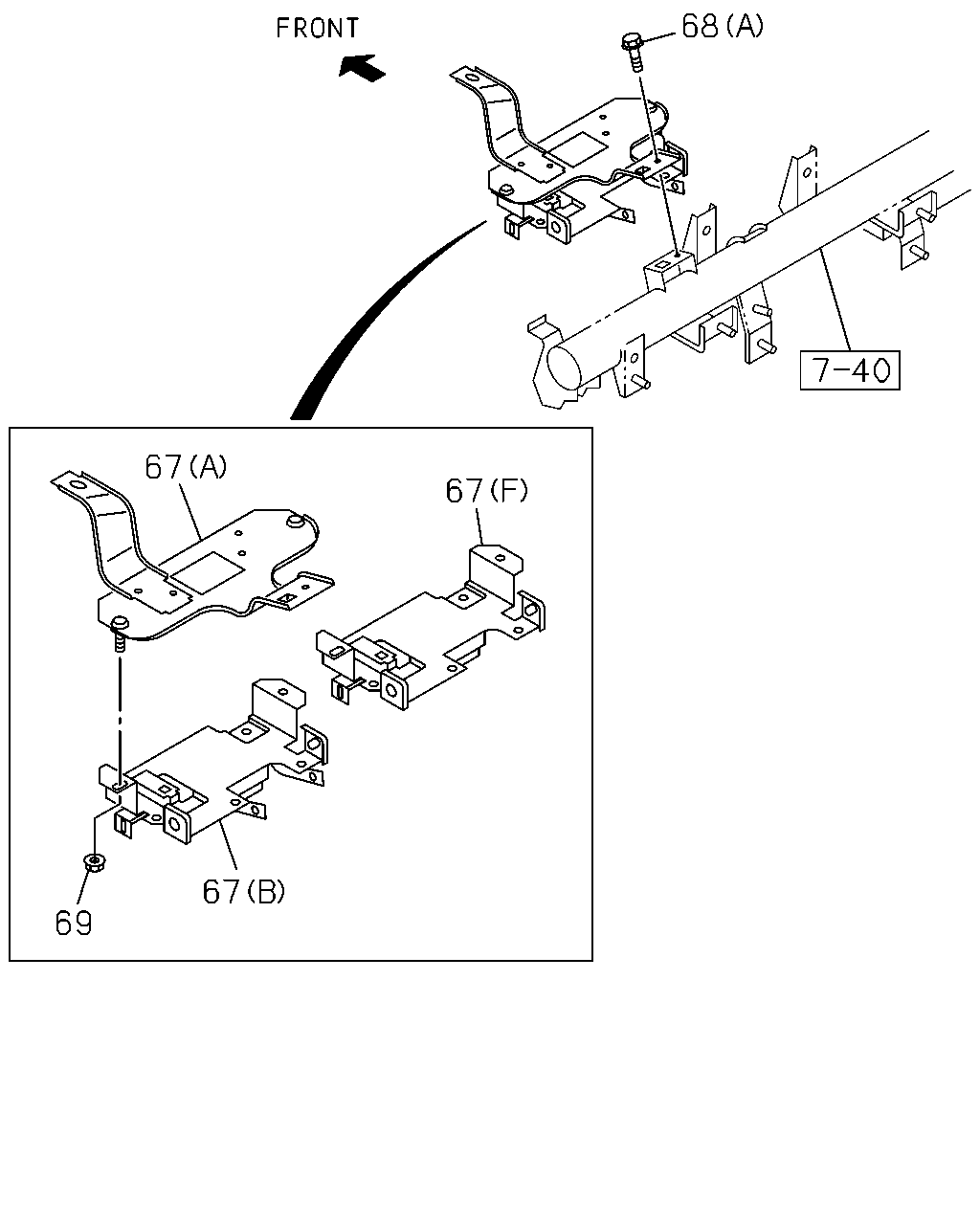

[826A] NO.1 EXC.4 WHEEL ANTI LOCK BRAKE (13 parça)

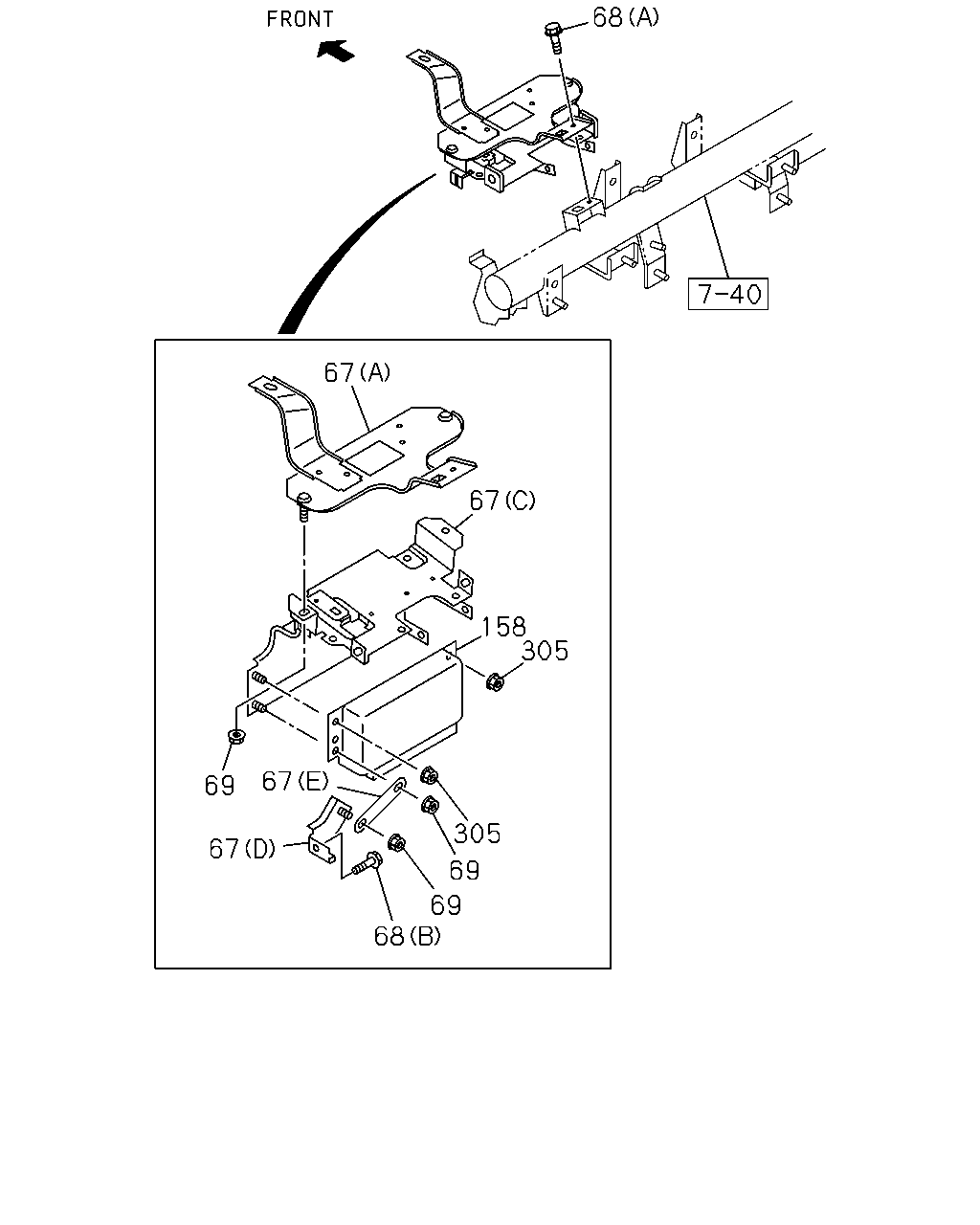

[826A] NO.2 4 WHEEL ANTI LOCK BRAKE (15 parça)
[826A] NO.4 (10 parça)
[826A] NO.3 (4 parça)
[826A] NO.5 (4 parça)
▶
68
67
67
67
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98202-989-0
01
1
1111-
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98182-307-0
01
1
1111-
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (E)
8-98182-309-1
01
1
1111-
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
1111-
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98022-206-2
01
1
1111-1111
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98203-057-0
01
1
1112-1207
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98217-377-0
01
1
1208-1212
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98237-555-0
01
1
1301-1404
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98217-377-0
01
1
1405-
68
02.500 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 (B) M6X25 FLANGE
0-28650-625-0
01
1
1111-
68
02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE
0-28450-612-0
01
1
1111-
69
02.458 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
68
67
67
158
305
67
69
305
67
69
69
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98202-989-0
01
1
1111-
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98182-307-0
01
1
1111-
67
03.887 BRACKET; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (E)
8-98182-309-1
01
1
1111-
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
1111-
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98022-206-2
01
1
1111-1111
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98203-057-0
01
1
1112-1207
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98217-377-0
01
1
1208-1212
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98237-555-0
01
1
1301-1404
67
03.887 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F)
8-98217-377-0
01
1
1405-
68
02.500 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 (B) M6X25 FLANGE
0-28650-625-0
01
1
1111-
68
02.500 BOLT; BRKT
00.206 (A) M6X12 FLANGE
0-28450-612-0
01
1
1111-
69
02.458 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
158
02.510 CONTROLLER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98201-274-0
01
1
1111-
305
08.915 NUT; CONT UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE
0-91180-106-0
02
1
1111-

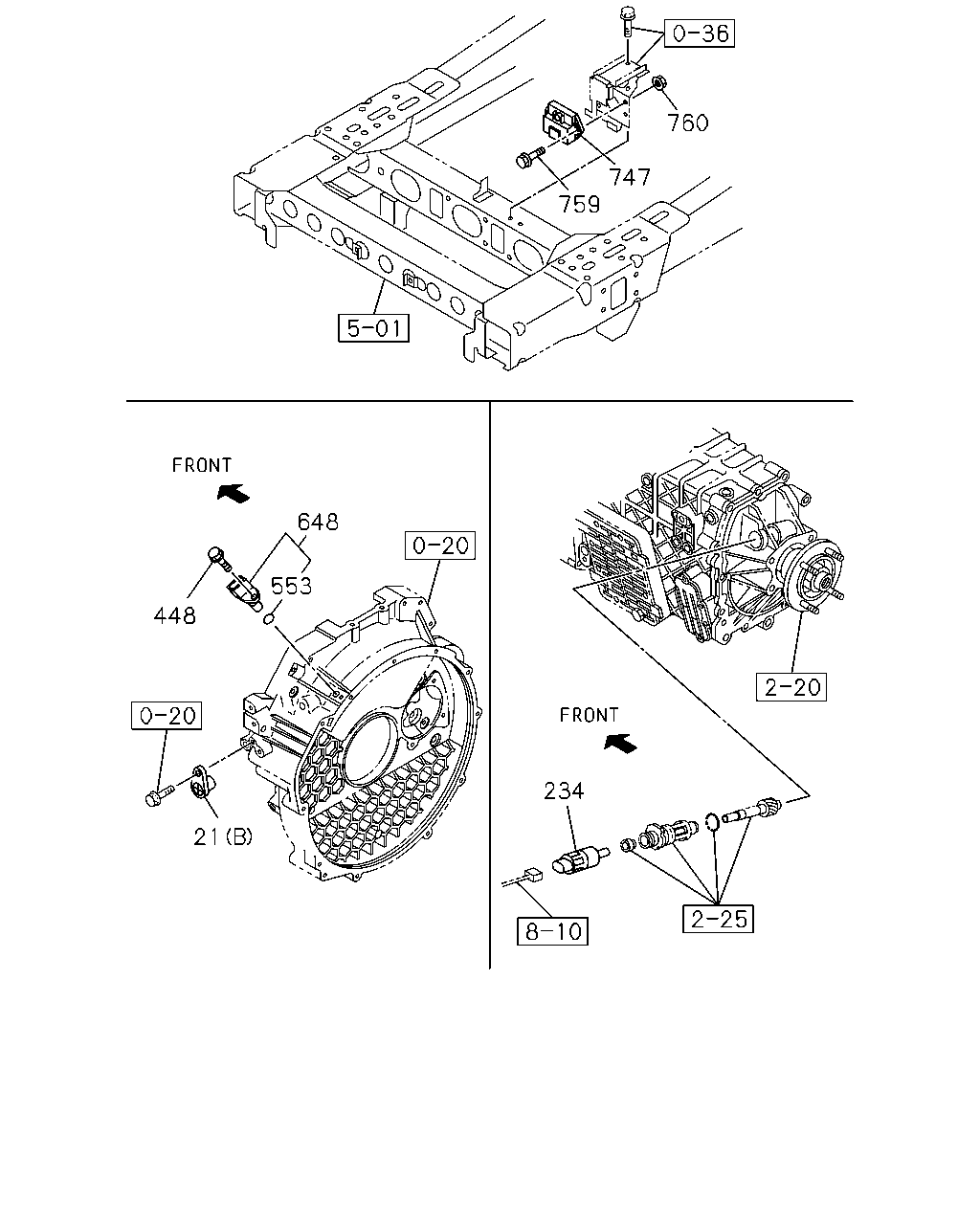

760
747
759
648
553
448
234
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
09.744 COVER; HOLE
EURO5 SPECIFICATION(NT5) 09.748 (B)
8-97101-974-0
01
1
1111-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
01
1
1111-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
02
1
1111-
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1111-
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1111-
553
02.500 GASKET
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
1111-
648
03.682 SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1111-
747
02.510 CONTROL UNIT; TURBOCHARGER
EURO5 SPECIFICATION(NT5)
8-98162-807-0
01
1
1111-
759
04.115 BOLT; CONT MODULE,TURBOCHARGER
EURO5 SPECIFICATION(NT5) 03.162 M6X20 FLANGE
0-28650-620-0
02
1
1111-
760
04.115 NUT; CONT MODULE,TURBOCHARGER
EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
1
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
1111-
21
09.744 COVER; HOLE
EURO5 SPECIFICATION(NT5) 09.748 (B)
8-97101-974-0
01
1
1111-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
01
1
1111-
21
09.744 COVER; HOLE
16.081 (A)
8-98025-954-1
02
1
1111-
300
695
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
300
02.500 BOLT; CONT UNIT BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1111-1111
300
02.500 BOLT; CONT UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE
0-28650-825-0
02
1
1111-
695
03.887 BRACKET; CONT UNIT,ABS
8-98177-904-0
01
1
1111-1111
695
03.887 BRACKET; CONT UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98177-904-1
01
1
1111-
