Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#80913) — 21 parça

315

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	315	09.277 RELAY; EXH BRAKE CONT EXC. EURO5 SPECIFICATION(NT5) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1111-

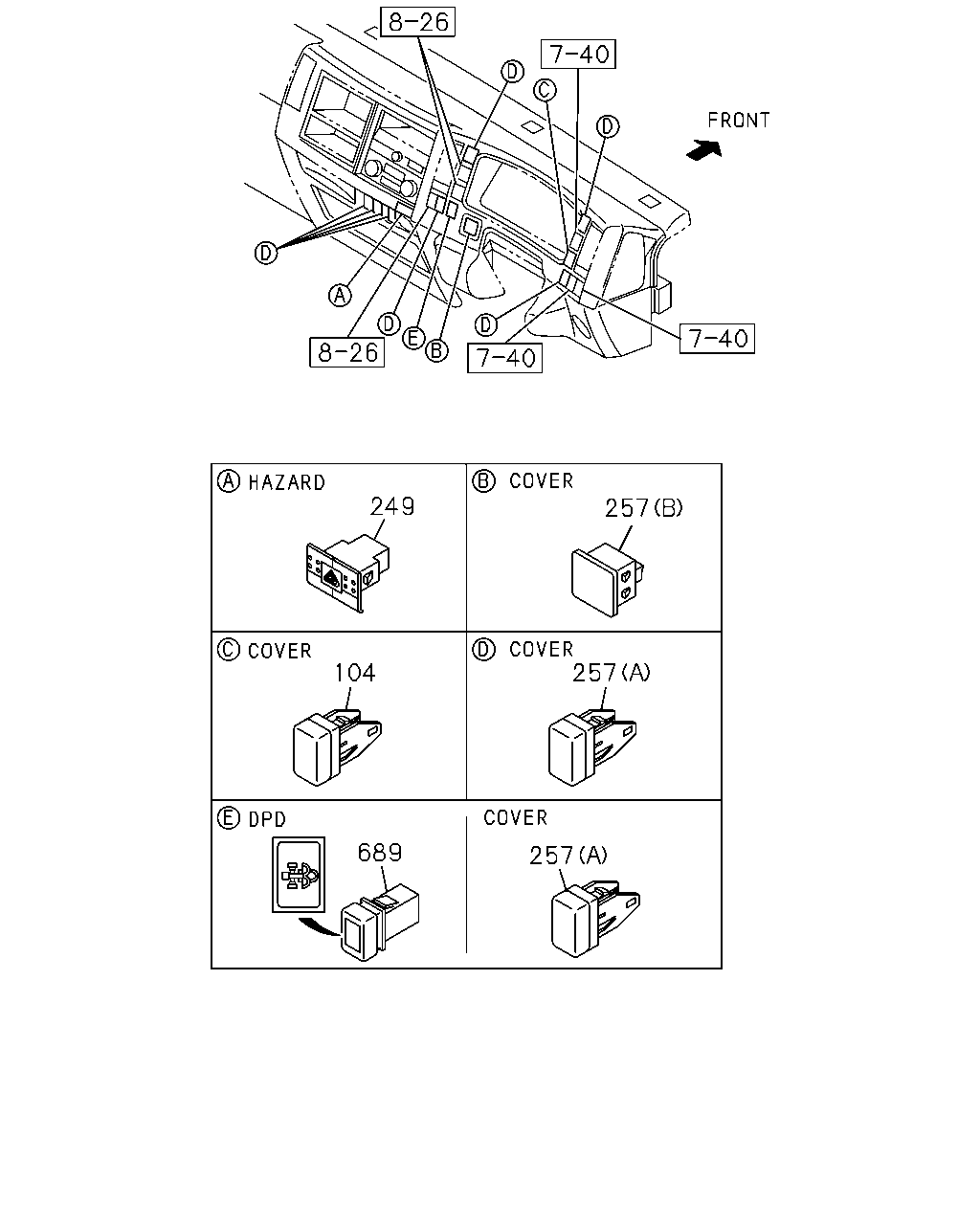

249 257 257 104 689 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	09.778 COVER; SW HOLE,FOG LAMP 16.081	8-98025-954-1	01	1	1111-
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1111-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	05	1	1111-
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	1111-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1111-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1111-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1111-
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	1111-
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	1111-

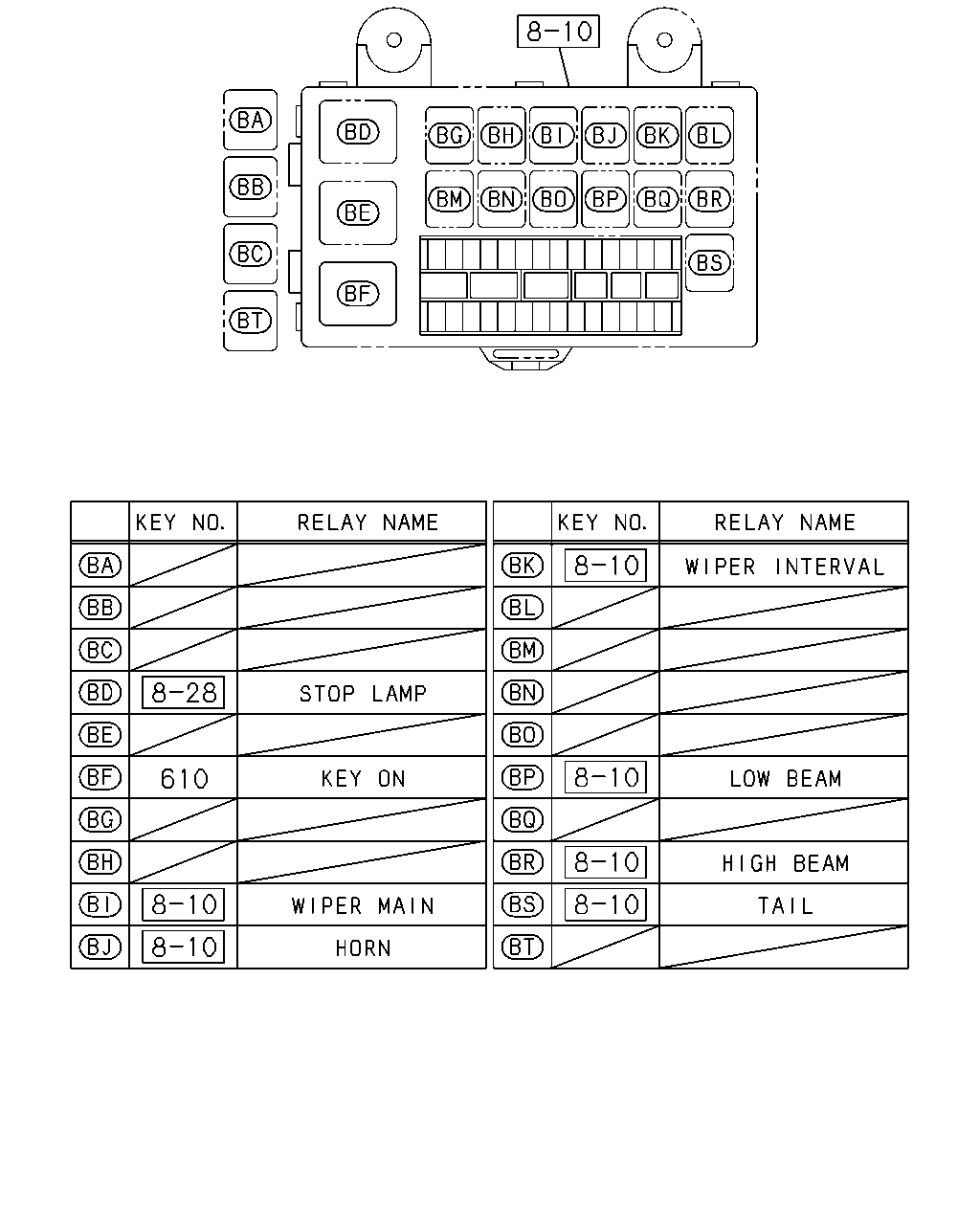

610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1111-1205
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1206-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1206-

1 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.895 SWITCH; COMB	8-98069-993-2	01	1	1111-1310
1	02.895 SWITCH; COMB	8-98243-728-0	01	1	1311-
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1111-
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1111-

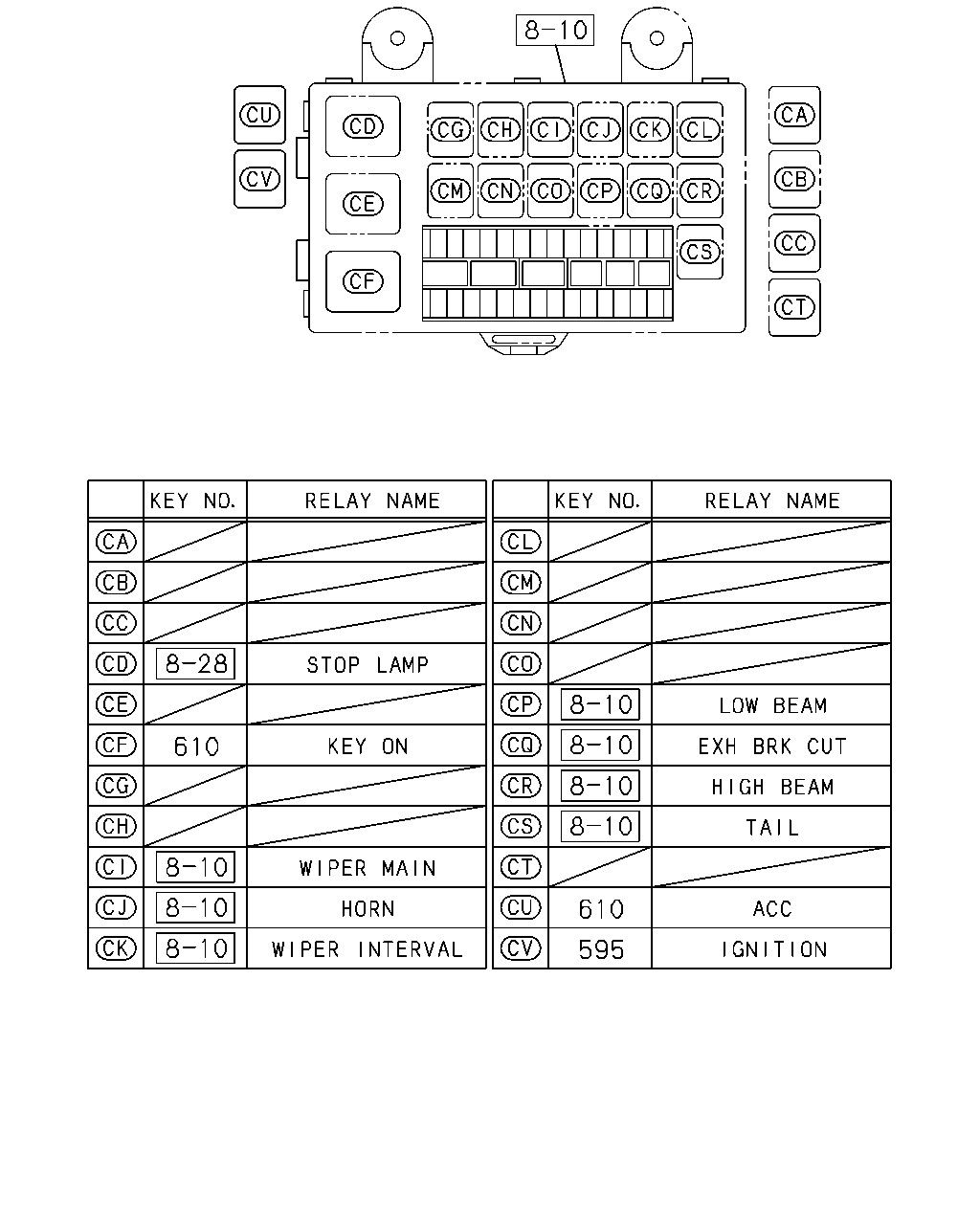

610 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1206-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1111-1205
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1206-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1206-
