Isuzu WW
▶
TRUCKS
▶
NQR
▶
51391 - NQR BUS A/BRAKE RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#80912) — 18 parça
◀

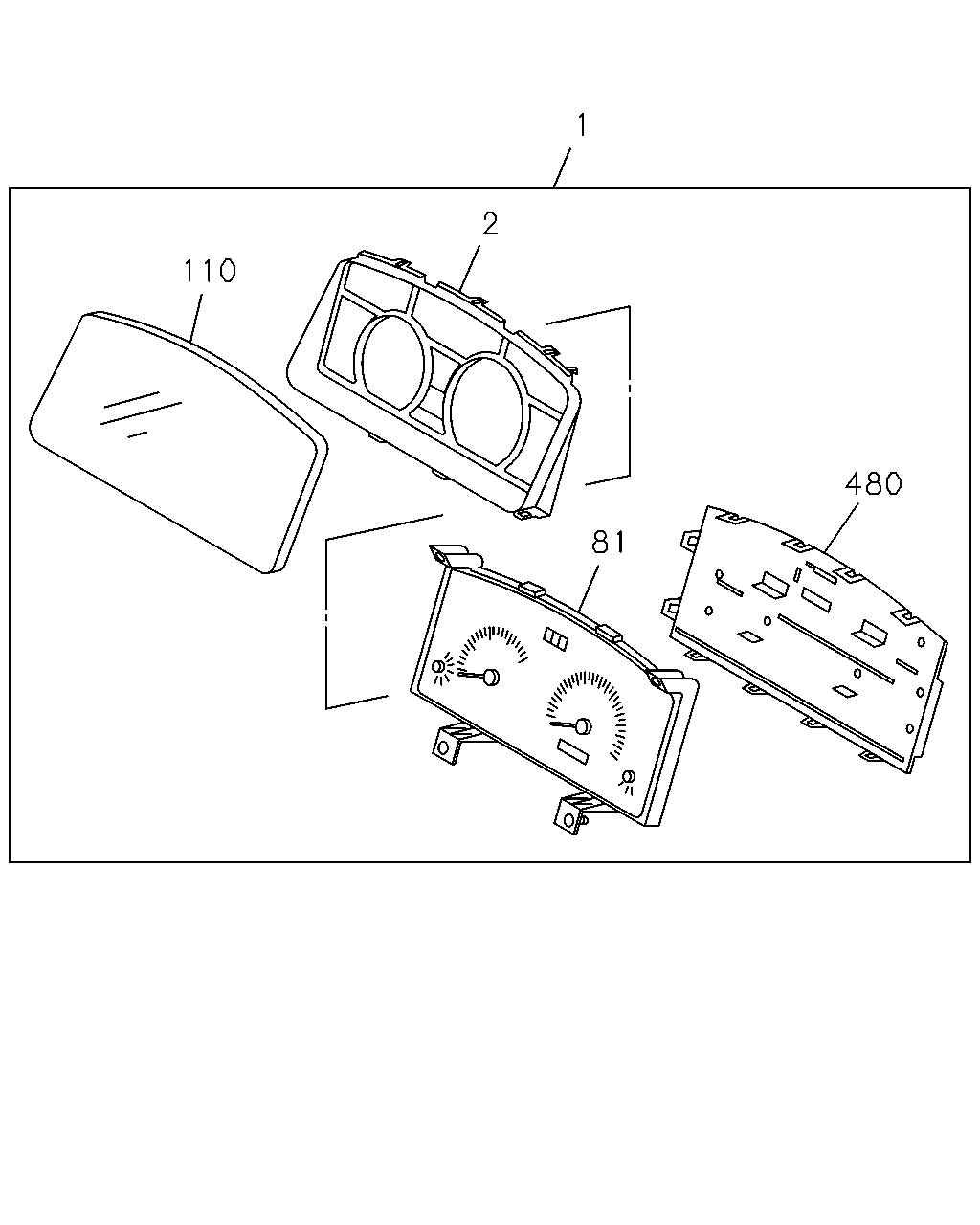

[821A] COMPONENT (7 parça)

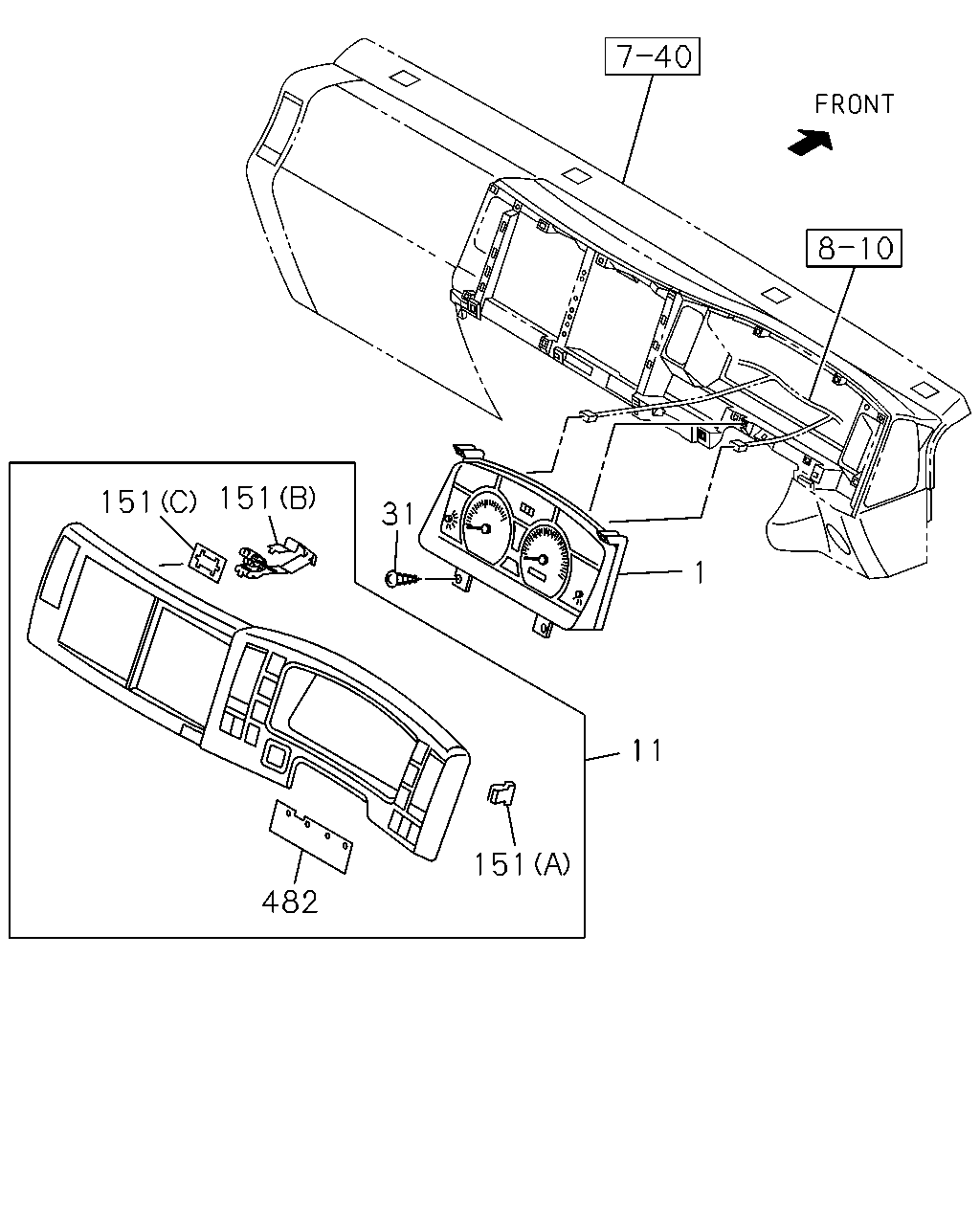

[821A] FIXING (11 parça)
▶
1
2
110
480
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1>
8-98171-929-0
01
1
1111-
1
09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>
8-98171-927-0
01
1
1111-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
1111-
81
09.735 METER SUB ASM
SPEEDOMETER MILE<UC1>
8-98183-881-0
01
1
1111-
81
09.735 METER SUB ASM
EXC. SPEEDOMETER MILE<UC1>
8-98183-879-0
01
1
1111-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
1111-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
1111-
151
151
31
1
11
151
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1>
8-98171-929-0
01
1
1111-
1
09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>
8-98171-927-0
01
1
1111-
11
09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY
8-97418-532-1
01
1
1111-
11
09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY
8-97405-350-6
01
1
1111-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1111-1212
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A)
8-98021-271-0
12
1
1111-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B)
8-98152-030-0
01
1
1111-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C)
8-98152-031-0
01
1
1111-
151
09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A)
8-98021-271-0
13
1
1111-
482
09.772 SEAL; CLUSTER METER
8-98116-842-0
01
1
1111-
