◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51391 - NQR BUS A/BRAKE RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#80910) — 137 parça

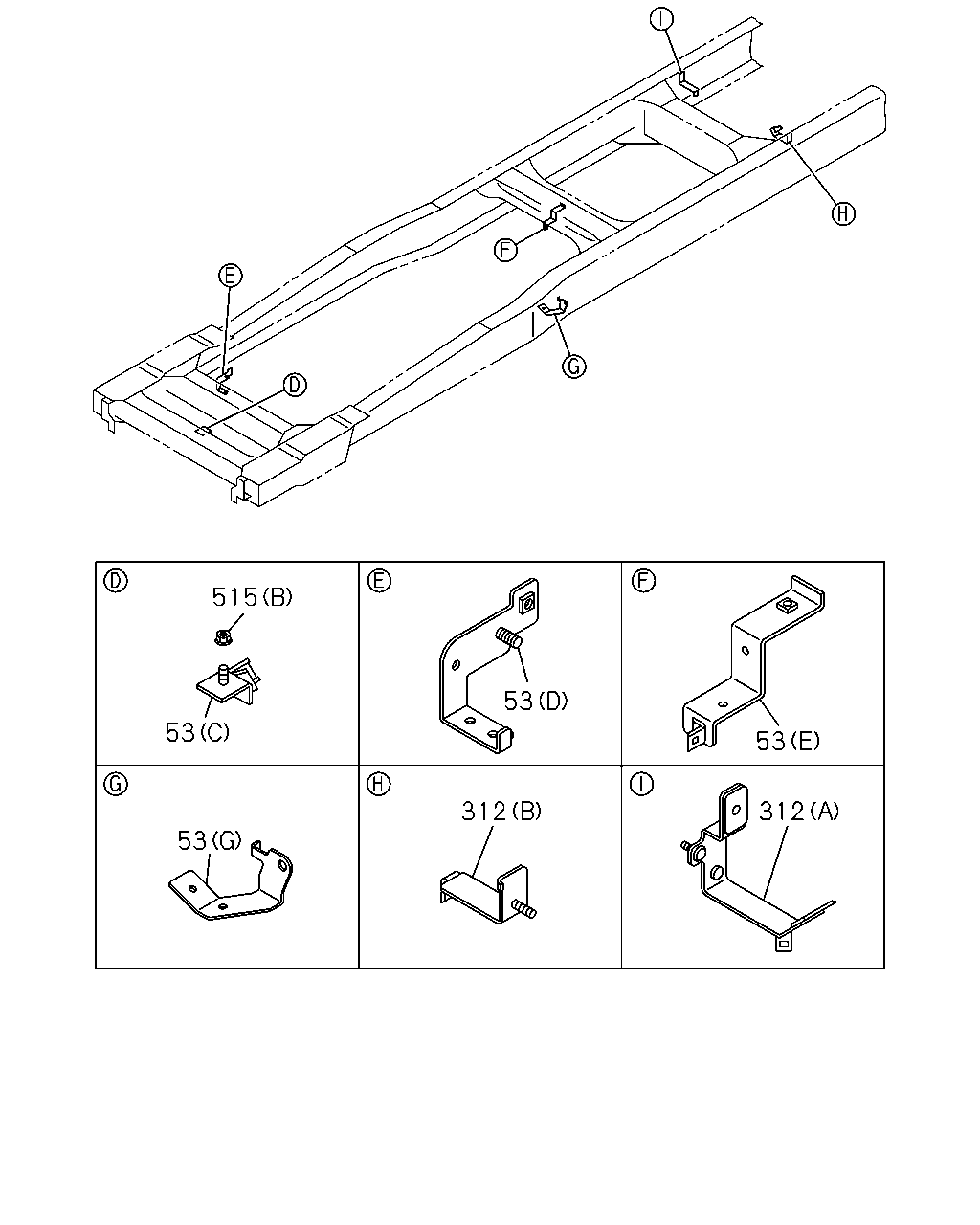

çizim 136615
515 53 53 53 312 312 53
BalonParca AdiParca NoAdetTipApplied Date
53 02.483 BRACKET; HARNESS
02.559 (F) 		8-98052-804-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1111-
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(D) 		8-98077-503-1 01 1 1111-
53 02.483 BRACKET; HARNESS
(E) 		8-98077-504-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(B) 		8-98084-590-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(G) 		8-98130-669-1 01 1 1111-
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-98202-866-0 01 1 1111-
312 02.559 BRACKET; CLIP HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98202-865-0 01 1 1111-
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1111-
515 02.559 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1111-
515 02.559 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1111-

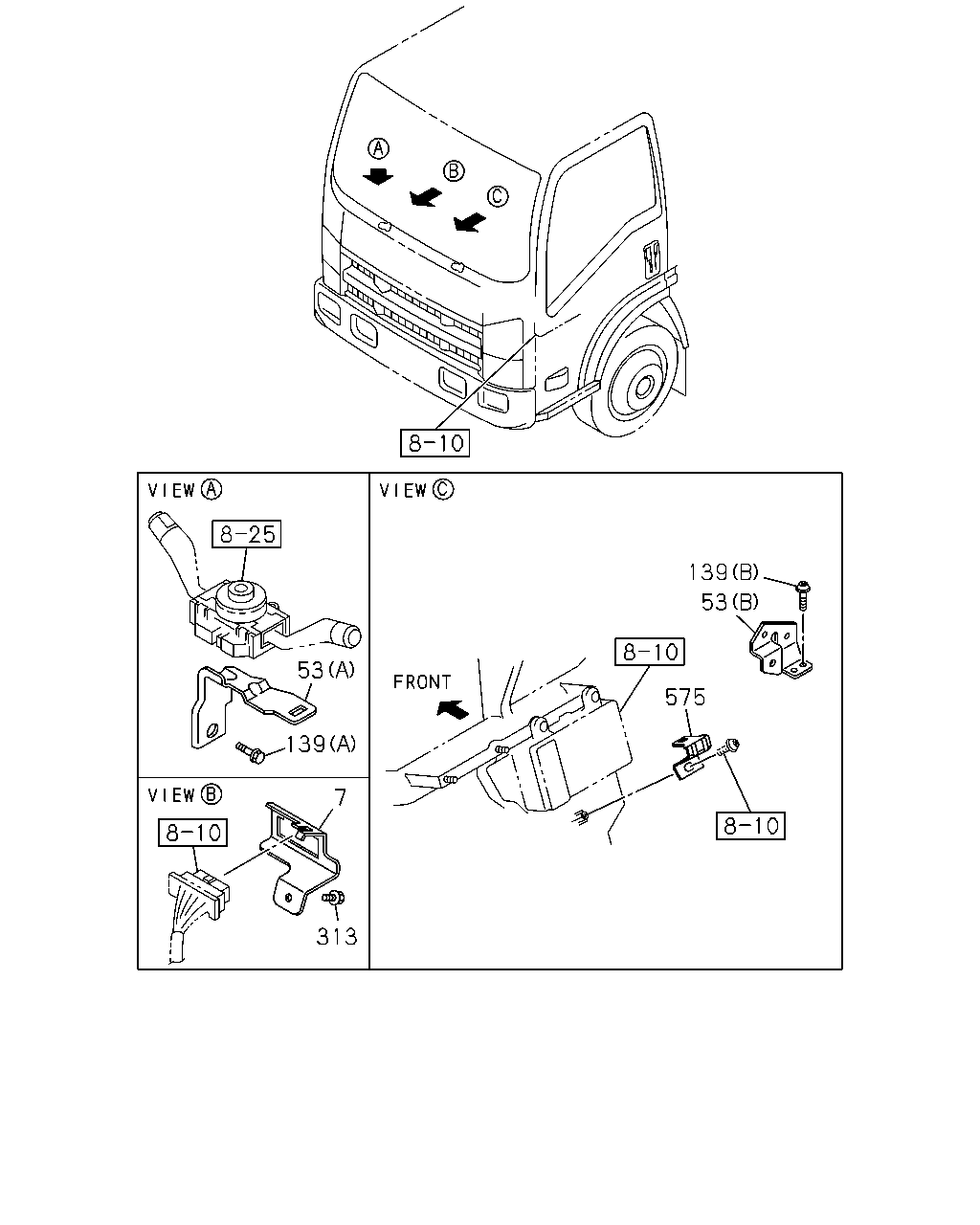

çizim 137052
139 53 53 575 139 7 313
BalonParca AdiParca NoAdetTipApplied Date
7 02.559 BRACKET; CONNECTOR 8-98043-070-1 01 1 1111-
53 02.483 BRACKET; HARNESS
02.559 (F) 		8-98052-804-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1111-
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(D) 		8-98077-503-1 01 1 1111-
53 02.483 BRACKET; HARNESS
(E) 		8-98077-504-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(B) 		8-98084-590-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(G) 		8-98130-669-1 01 1 1111-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1111-
139 02.559 BOLT; BRKT
16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
139 02.559 BOLT; BRKT
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1111-
575 02.559 BRACKET; FUSE BOX 8-98042-656-2 01 1 1111-
çizim 137361
483 483 483 483 483 572 483 483 513 48 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 02.559 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 1111-
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 02 1 1111-
16 02.559 CLIP; HARNESS
02.343 (C) ID=10 & 16 		8-94413-325-0 01 1 1111-
16 02.559 CLIP; HARNESS
(E) ID=14-20 		8-97061-603-0 02 1 1111-
16 02.559 CLIP; HARNESS
03.483 (A) 		8-97101-436-0 01 1 1111-
48 02.559 CLIP; FRAME HARNESS
EURO5 SPECIFICATION(NT5) (B) ID=20 		8-94241-972-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=20 		8-94241-972-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47 		5-09700-319-0 03 1 1111-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (C) T=4.5 & 9 		8-97371-947-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) T=4.5 & 9 		8-97371-947-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (D) T=5.5 		8-97371-951-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=5.5 		8-97371-951-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47 		5-09700-319-0 05 1 1111-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) (D) T=5.5 		8-97371-951-0 03 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=5.5 		8-97371-951-0 03 1 1508-
48 02.559 CLIP; FRAME HARNESS
03.483 (E) L=450 		1-09707-142-1 01 1 1111-1201
48 02.559 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2) 03.483 (E) L=450 		1-09707-142-1 01 1 1202-
48 02.559 CLIP; FRAME HARNESS
03.430 (F) ID=10 & 16.5 		8-94424-440-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (I) ID=21 L=24 		8-98019-191-0 01 1 1302-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (D) ID=19 L=60 		0-95235-896-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (B) ID=28 L=40 		1-09701-261-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 01.152 (C) L=36 		8-94224-891-1 03 1 1111-1301
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 01.152 (C) L=36 		8-94224-891-1 02 1 1302-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 03.671 (E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) 01.152 (C) L=36 		8-94224-891-1 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (G) ID=33 L=30 		8-97619-250-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (H) ID=12 		8-98170-218-0 01 1 1111-
513 02.559 TAPE; SOFT,HARNESS
130X80 		8-97304-373-0 01 1 1111-
572 02.559 CLIP; HARNESS,SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> ID=11 L=20 		0-95235-035-0 02 1 1111-
çizim 137692
14 48 16 14 16 102 102 16 488 22 483 483 48 102 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
14 02.559 CLIP; BAND,HARNESS
GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140 		5-09707-031-1 01 1 1502-
14 02.559 CLIP; BAND,HARNESS
EURO5 SPECIFICATION(NT5) 09.242 (A) L=150 		8-97355-273-0 03 1 1111-
16 02.559 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 1111-
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 02 1 1111-
16 02.559 CLIP; HARNESS
02.343 (C) ID=10 & 16 		8-94413-325-0 01 1 1111-
16 02.559 CLIP; HARNESS
(E) ID=14-20 		8-97061-603-0 02 1 1111-
16 02.559 CLIP; HARNESS
03.483 (A) 		8-97101-436-0 01 1 1111-
22 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) L=302 		8-98205-948-0 01 1 1111-1203
48 02.559 CLIP; FRAME HARNESS
EURO5 SPECIFICATION(NT5) (B) ID=20 		8-94241-972-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=20 		8-94241-972-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47 		5-09700-319-0 03 1 1111-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (C) T=4.5 & 9 		8-97371-947-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) T=4.5 & 9 		8-97371-947-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (D) T=5.5 		8-97371-951-0 01 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=5.5 		8-97371-951-0 01 1 1508-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (A) ID=14 L=47 		5-09700-319-0 05 1 1111-
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) (D) T=5.5 		8-97371-951-0 03 1 1111-1507
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=5.5 		8-97371-951-0 03 1 1508-
48 02.559 CLIP; FRAME HARNESS
03.483 (E) L=450 		1-09707-142-1 01 1 1111-1201
48 02.559 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2) 03.483 (E) L=450 		1-09707-142-1 01 1 1202-
48 02.559 CLIP; FRAME HARNESS
03.430 (F) ID=10 & 16.5 		8-94424-440-0 01 1 1111-
102 02.559 CLIP; BAND
EURO2 SPECIFICATION(NT2) 04.342 (B) L=197 		1-83574-032-0 03 1 1111-
102 02.559 CLIP; BAND
EURO2 SPECIFICATION(NT2) 03.162 (A) L=140 		5-09707-031-1 03 1 1111-
102 02.559 CLIP; BAND
EURO5 SPECIFICATION(NT5) 04.342 (B) L=197 		1-83574-032-0 01 1 1111-
102 02.559 CLIP; BAND
EURO5 SPECIFICATION(NT5) 03.162 (A) L=140 		5-09707-031-1 04 1 1111-
102 02.559 CLIP; BAND
EURO5 SPECIFICATION(NT5) (C) L=152 		8-98132-426-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (I) ID=21 L=24 		8-98019-191-0 01 1 1302-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (D) ID=19 L=60 		0-95235-896-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) (B) ID=28 L=40 		1-09701-261-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 01.152 (C) L=36 		8-94224-891-1 03 1 1111-1301
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 01.152 (C) L=36 		8-94224-891-1 02 1 1302-
483 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) 03.671 (E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) 01.152 (C) L=36 		8-94224-891-1 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (G) ID=33 L=30 		8-97619-250-0 01 1 1111-
483 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) (H) ID=12 		8-98170-218-0 01 1 1111-
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 1111-
çizim 138022
150 313 481 139 150 481 86 480 529 480 377 377 386 386 516 139 24 294 577 515 552 24 515 552
BalonParca AdiParca NoAdetTipApplied Date
24 02.559 NUT; HARNESS
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1111-1409
24 02.559 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410-
24 02.559 NUT; HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1111-
86 02.559 BOLT; CLIP BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1111-
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1111-
139 02.559 BOLT; BRKT
16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
139 02.559 BOLT; BRKT
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
150 02.343 BOLT; CLIP
EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1111-
150 02.343 BOLT; CLIP
EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE 		0-28050-816-0 03 1 1111-
150 02.343 BOLT; CLIP
EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1111-
294 02.559 NUT
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 1111-
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1111-
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1111-
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1111-
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1111-
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1111-
480 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1111-
480 02.483 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1111-
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 1111-
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1111-
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1111-
515 02.559 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1111-
515 02.559 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1111-
516 02.559 BOLT; HARNESS
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1111-
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1111-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1111-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-
552 02.483 NUT; BRKT,HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1111-
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111-

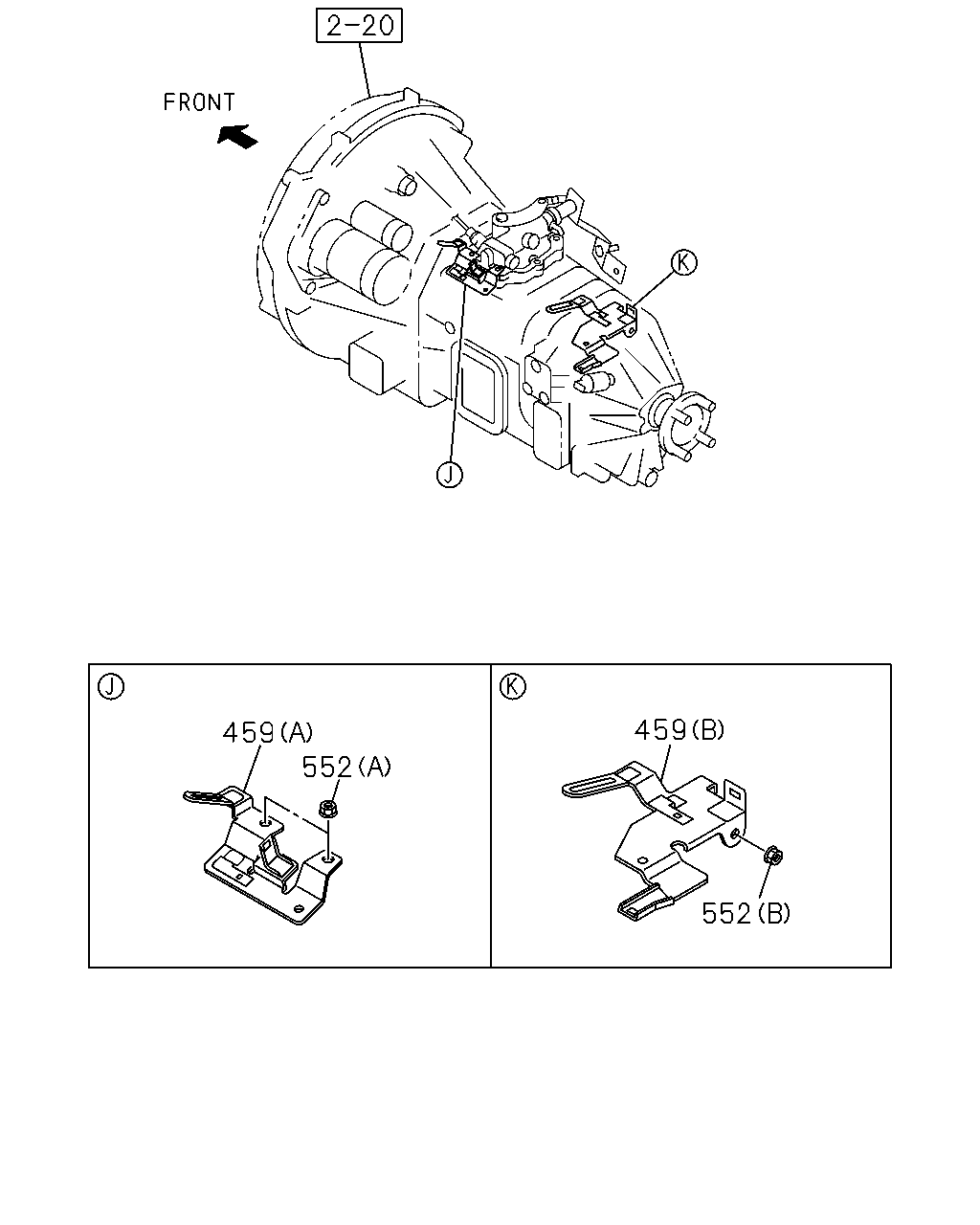

çizim 183297
459 459 552 552
BalonParca AdiParca NoAdetTipApplied Date
459 02.483 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 1111-
459 02.483 BRACKET; SUPPORT,HARNESS
(B) 		8-98196-974-0 01 1 1111-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1111-
552 02.483 NUT; BRKT,HARNESS
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-
552 02.483 NUT; BRKT,HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1111-

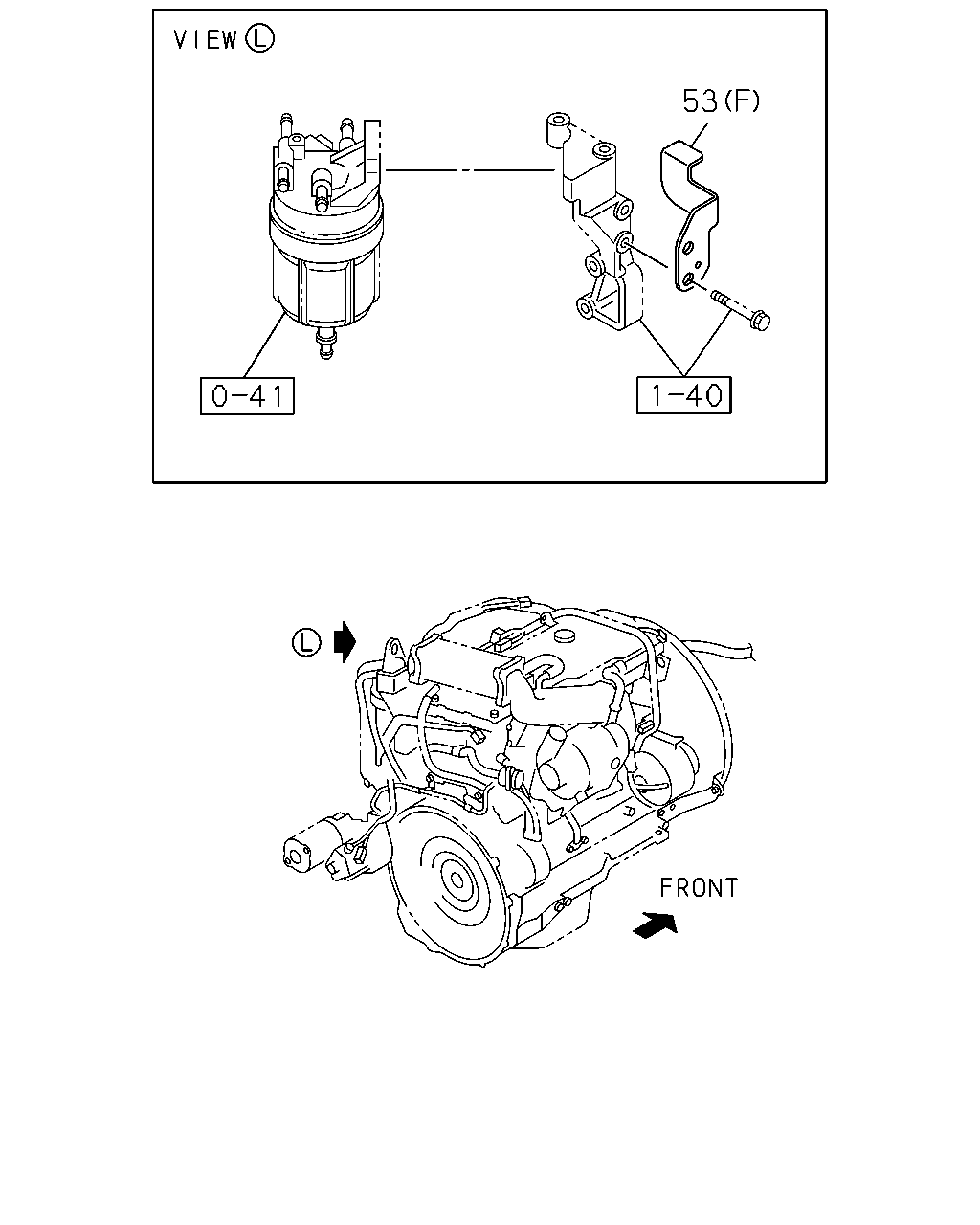

çizim 183299
53
BalonParca AdiParca NoAdetTipApplied Date
53 02.483 BRACKET; HARNESS
02.559 (F) 		8-98052-804-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1111-
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(D) 		8-98077-503-1 01 1 1111-
53 02.483 BRACKET; HARNESS
(E) 		8-98077-504-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(B) 		8-98084-590-0 01 1 1111-
53 02.483 BRACKET; HARNESS
(G) 		8-98130-669-1 01 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
