◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51391 - NQR BUS A/BRAKE RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#80909) — 144 parça

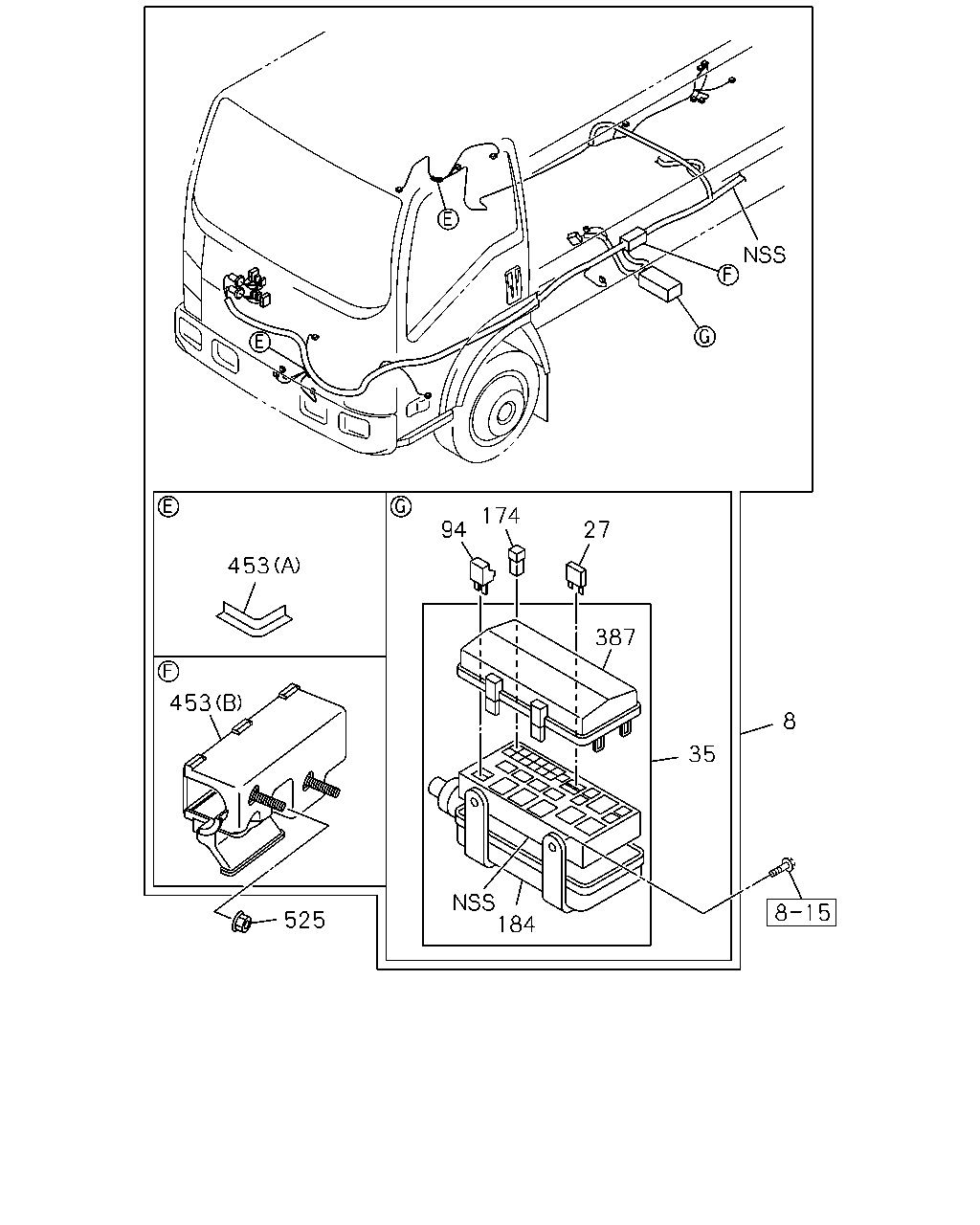

çizim 136238
174 94 27 453 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) 		8-98198-791-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) 		8-98293-684-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) 		8-98198-753-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) 		8-98293-692-0 01 1 1410-1507
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98293-692-0 01 1 1508-
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-792-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-685-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1111-
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1111-
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1111-
35 02.530 BOX; RELAY & FUSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-763-0 01 1 1111-1507
35 02.530 BOX; RELAY & FUSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 		8-98030-763-0 01 1 1111-1507
35 02.530 BOX; RELAY & FUSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98030-763-0 01 1 1508-
35 02.530 BOX; RELAY & FUSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) 		8-98030-763-0 01 1 1508-
94 02.483 DIODE; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BLACK 2P-1.5A 		8-94422-639-1 AR 1 1111-1507
94 02.483 DIODE; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1111-1507
94 02.483 DIODE; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) BLACK 2P-1.5A 		8-94422-639-1 01 1 1508-
94 02.483 DIODE; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) BLACK 2P-1.5A 		8-94422-639-1 01 1 1508-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1111-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1111-
184 02.559 COVER; RELAY & FUSE BOX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-766-0 01 1 1111-1507
184 02.559 COVER; RELAY & FUSE BOX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 		8-98030-766-0 01 1 1111-1507
184 02.559 COVER; RELAY & FUSE BOX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98030-766-0 01 1 1508-
184 02.559 COVER; RELAY & FUSE BOX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) 		8-98030-766-0 01 1 1508-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1111-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94417-716-0 03 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) (A) 		8-94417-716-0 03 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94417-716-0 03 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) (A) 		8-94417-716-0 03 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98031-620-1 01 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) (B) 		8-98031-620-1 01 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98031-620-1 01 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) (B) 		8-98031-620-1 01 1 1508-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1111-
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-

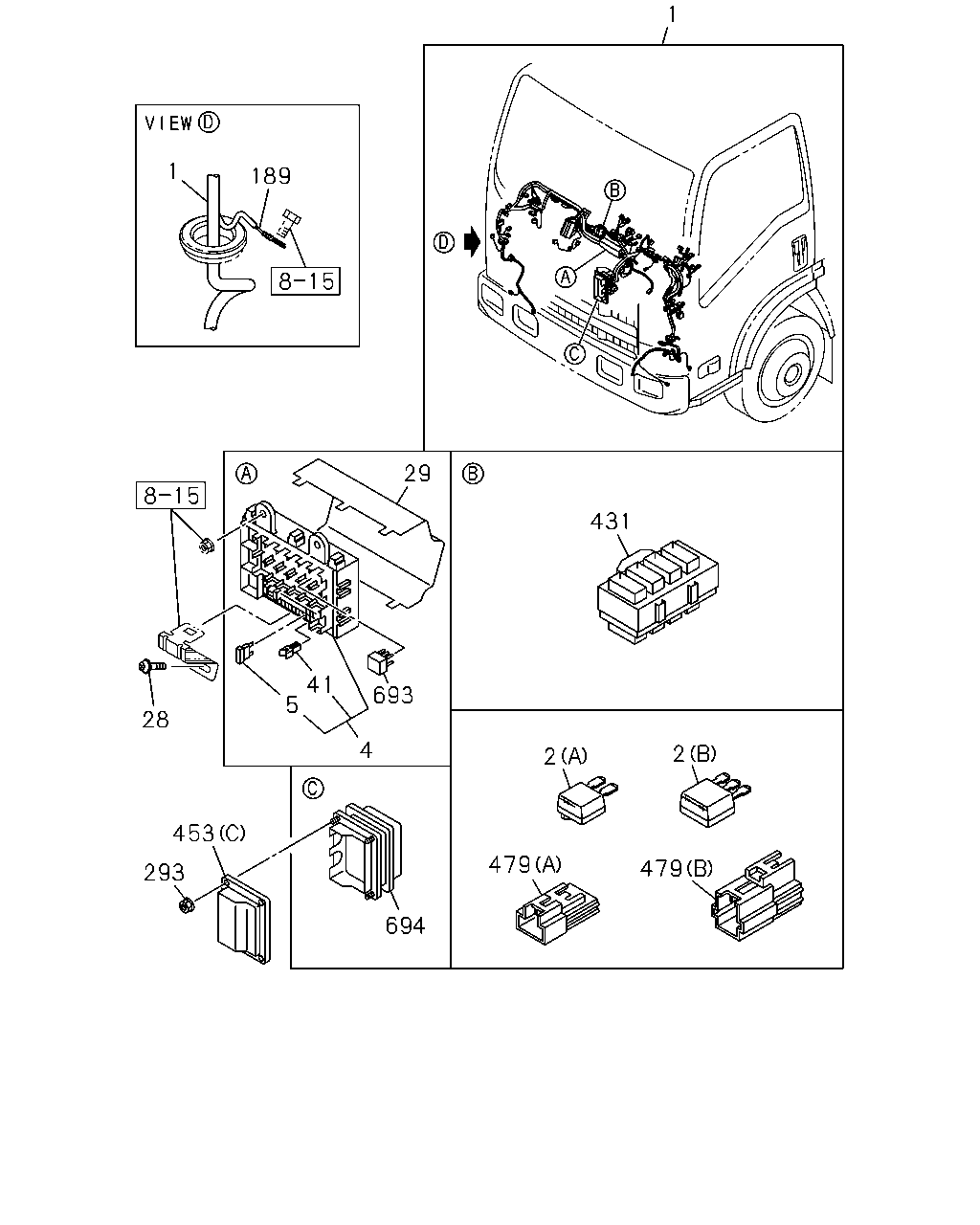

çizim 136536
1 1 189 29 431 41 5 693 28 4 2 2 453 479 479 293 694
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-158-1 01 1 1111-1205
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-961-0 01 1 1206-1305
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 		8-98210-961-0 01 1 1306-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, CATALYSIS CONTROL WITH DPD(8JM) 		8-98182-157-1 01 1 1111-1112
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-157-1 01 1 1201-1205
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1206-1305
1 02.480 HARNESS; CAB
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1306-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1111-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1111-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1111-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1111-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1111-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1111-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1111-
189 02.480 HARNESS; EXT 8-98179-553-0 01 1 1111-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1111-
431 02.530 CONNECTOR; JOINT 8-98046-206-0 01 1 1111-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94417-716-0 03 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) (A) 		8-94417-716-0 03 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-94417-716-0 03 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) (A) 		8-94417-716-0 03 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98031-620-1 01 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) (B) 		8-98031-620-1 01 1 1111-1507
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98031-620-1 01 1 1508-
453 02.483 PROTECTOR; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) (B) 		8-98031-620-1 01 1 1508-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1111-
479 02.530 CAP; CONNECTOR
(A) 		8-98108-678-0 01 1 1111-
479 02.530 CAP; CONNECTOR
(B) 		8-98108-679-0 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1111-

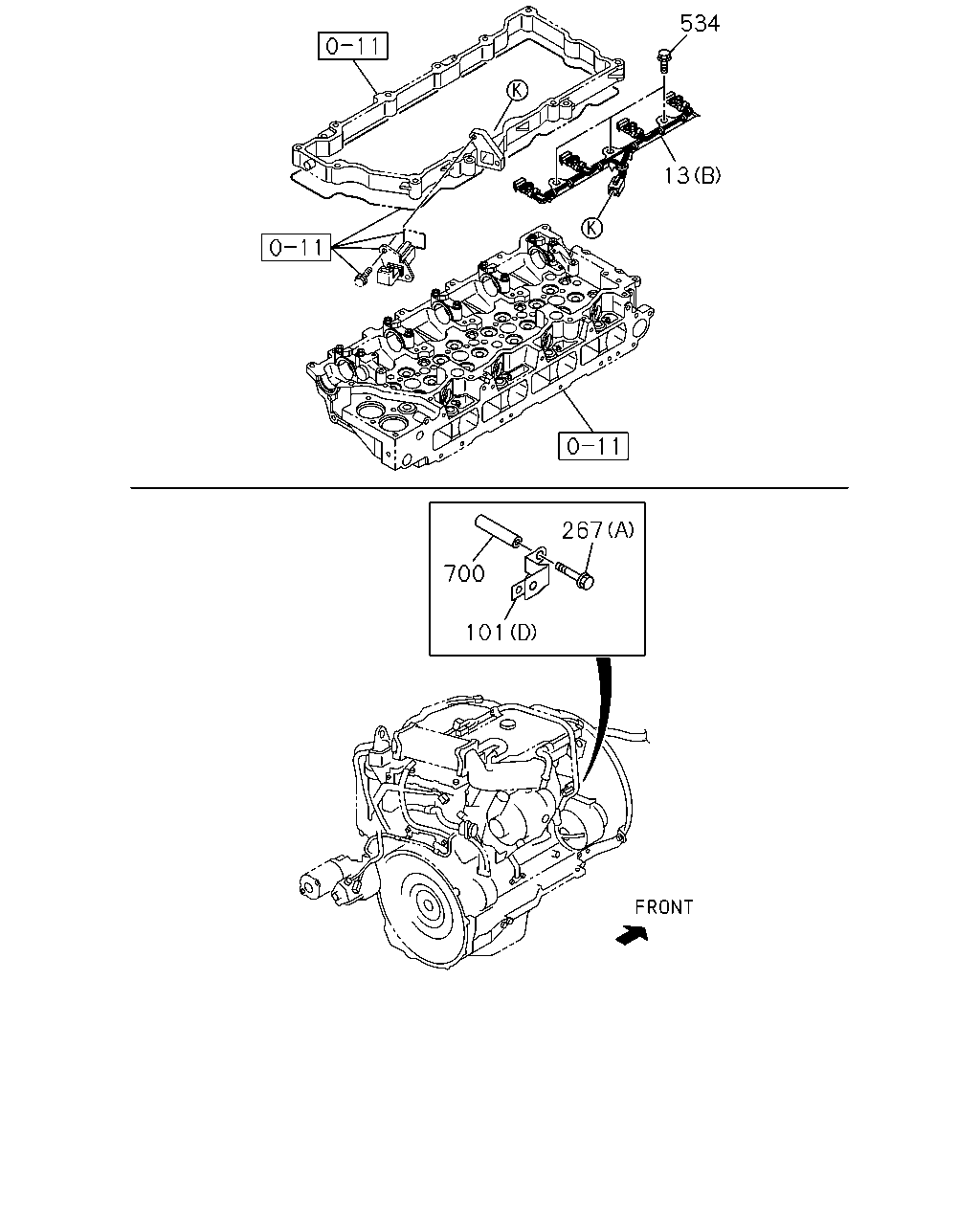

çizim 136903
534 13 267 700 101
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
EURO2 SPECIFICATION(NT2) (A) 		8-98171-252-4 01 1 1111-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1111-
13 02.525 HARNESS; ENG
EURO5 SPECIFICATION(NT5) (A) 		8-98173-500-8 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98196-428-0 01 1 1111-1111
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98208-521-0 01 1 1112-1507
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		8-98208-521-0 01 1 1508-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1111-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
267 02.483 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-1507
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1508-
267 02.483 BOLT; BRKT
03.275 (D) M8X25 FLANGE 		0-28050-825-0 01 1 1111-1301
267 02.483 BOLT; BRKT
09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1111-
534 02.483 BOLT
00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1111-
700 02.483 TUBE; DISTANCE
L=105 		8-98084-726-0 01 1 1111-

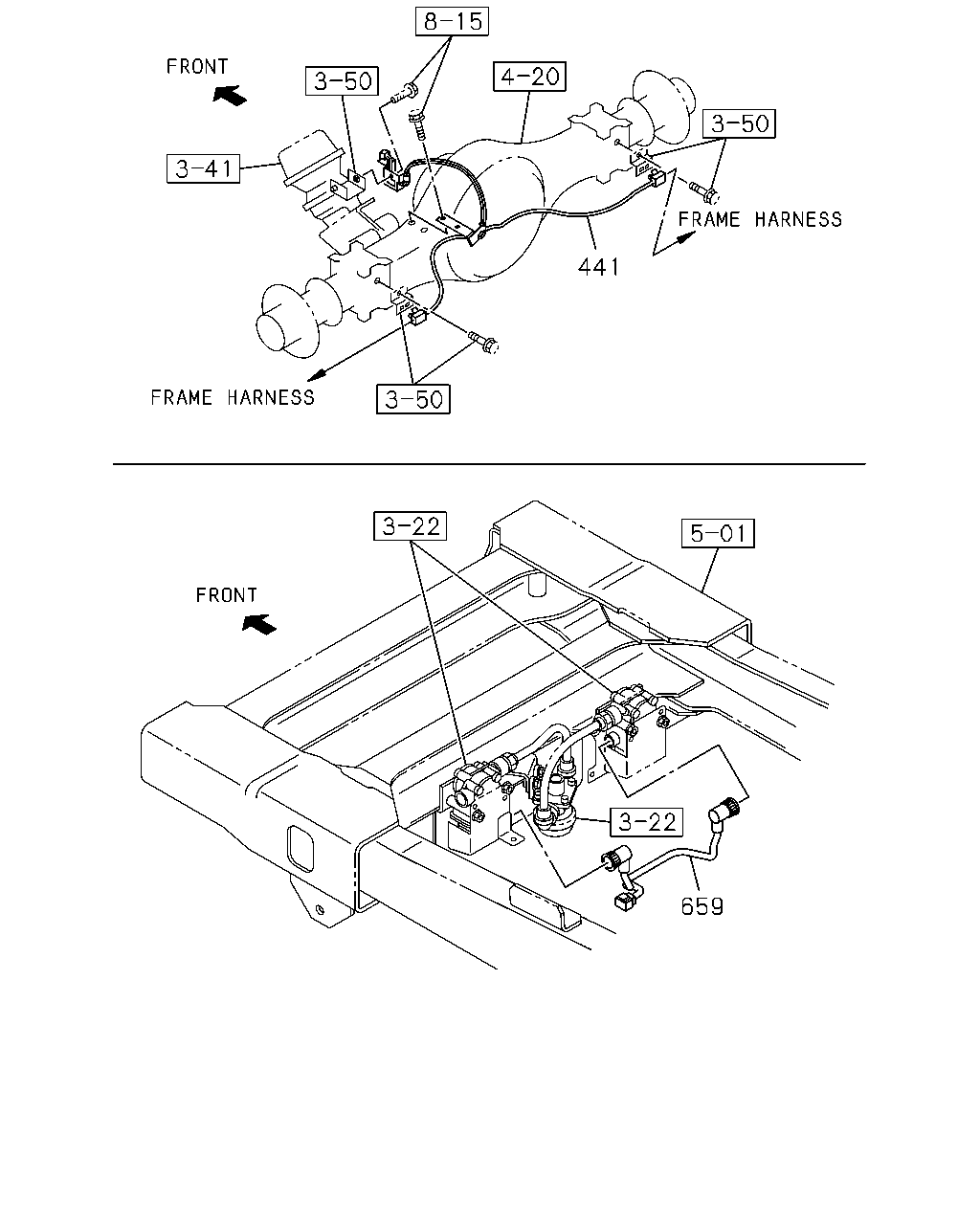

çizim 136946
441 659
BalonParca AdiParca NoAdetTipApplied Date
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-121-2 01 1 1111-
659 02.480 HARNESS; EXT,BRAKE VALVE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-762-2 01 1 1111-

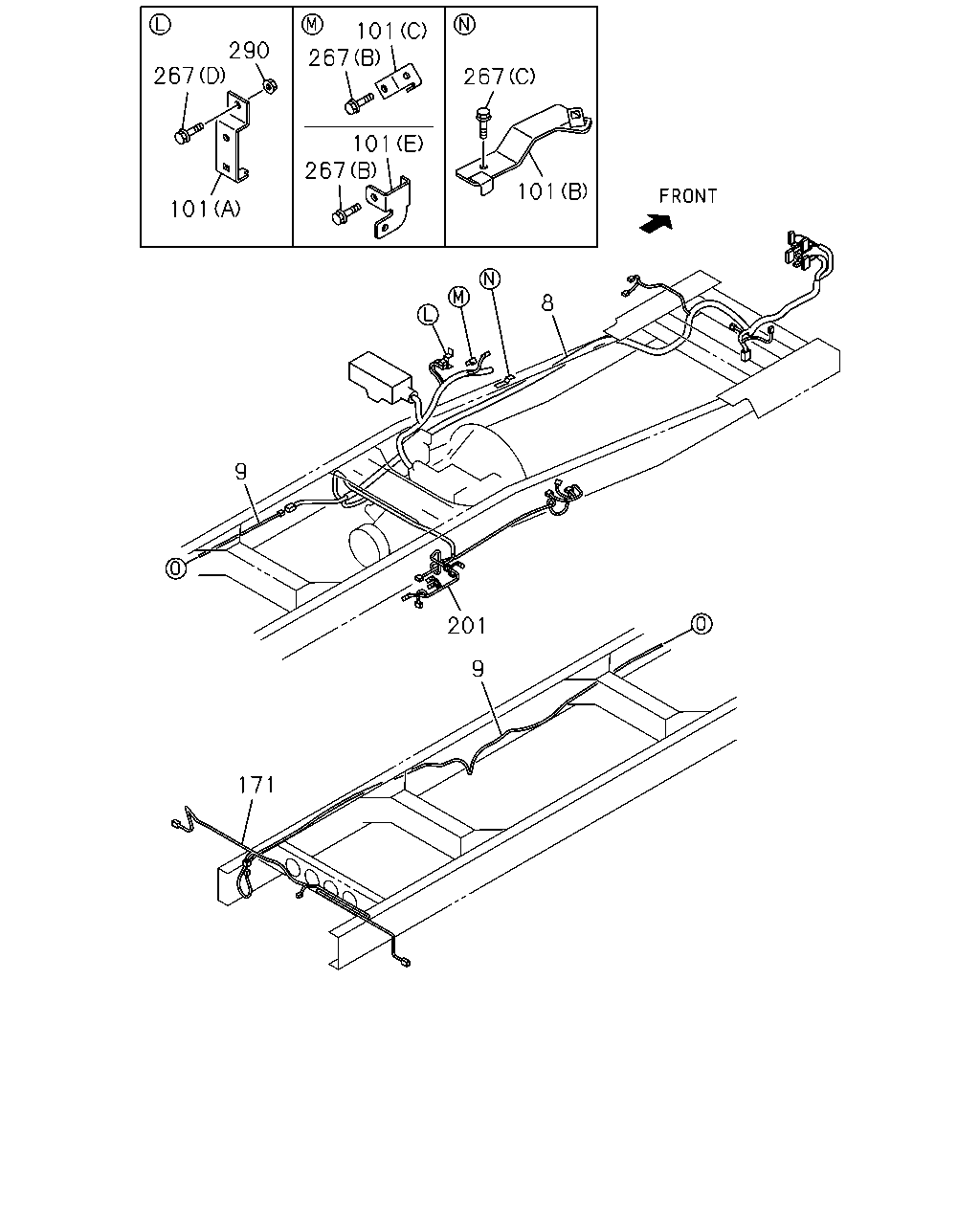

çizim 136952
101 267 290 267 267 101 267 101 101 8 9 201 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) 		8-98198-791-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) 		8-98293-684-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) 		8-98198-753-2 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) 		8-98293-692-0 01 1 1410-1507
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 		8-98293-692-0 01 1 1508-
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-792-1 01 1 1111-1409
8 02.480 HARNESS; FRAME,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-685-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-801-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-799-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-805-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-803-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-808-3 01 1 1111-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-807-3 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1111-
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98196-428-0 01 1 1111-1111
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98208-521-0 01 1 1112-1507
101 02.483 BRACKET; HARNESS CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		8-98208-521-0 01 1 1508-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1111-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1111-1507
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1508-
201 02.480 HARNESS; AIR TANK 8-98198-761-2 01 1 1111-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1111-
267 02.483 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-1507
267 02.483 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1508-
267 02.483 BOLT; BRKT
03.275 (D) M8X25 FLANGE 		0-28050-825-0 01 1 1111-1301
267 02.483 BOLT; BRKT
09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1111-
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-

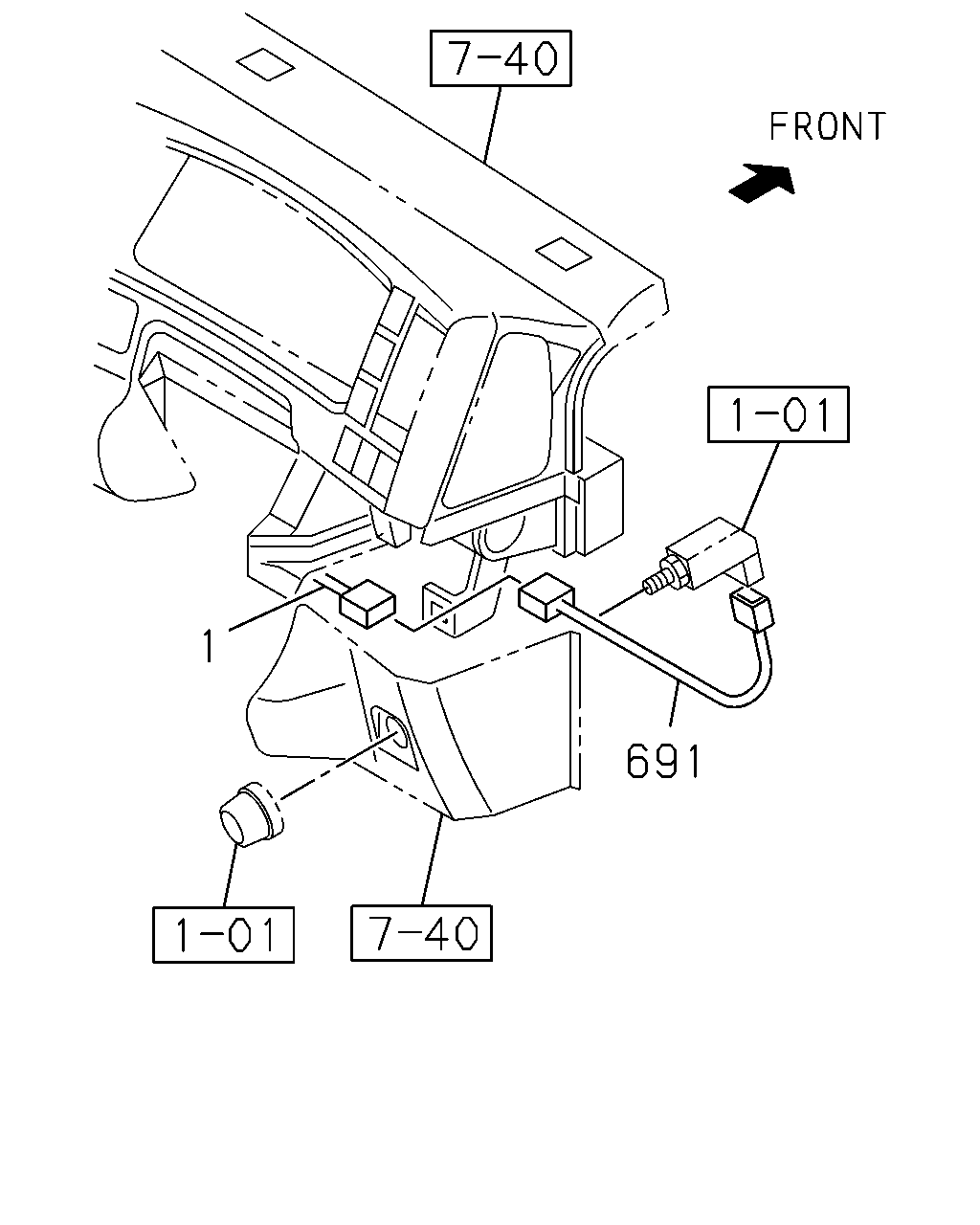

çizim 183294
691 1
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-158-1 01 1 1111-1205
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-961-0 01 1 1206-1305
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) 		8-98210-961-0 01 1 1306-
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, CATALYSIS CONTROL WITH DPD(8JM) 		8-98182-157-1 01 1 1111-1112
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-157-1 01 1 1201-1205
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1206-1305
1 02.480 HARNESS; CAB
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-960-0 01 1 1306-
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 1111-

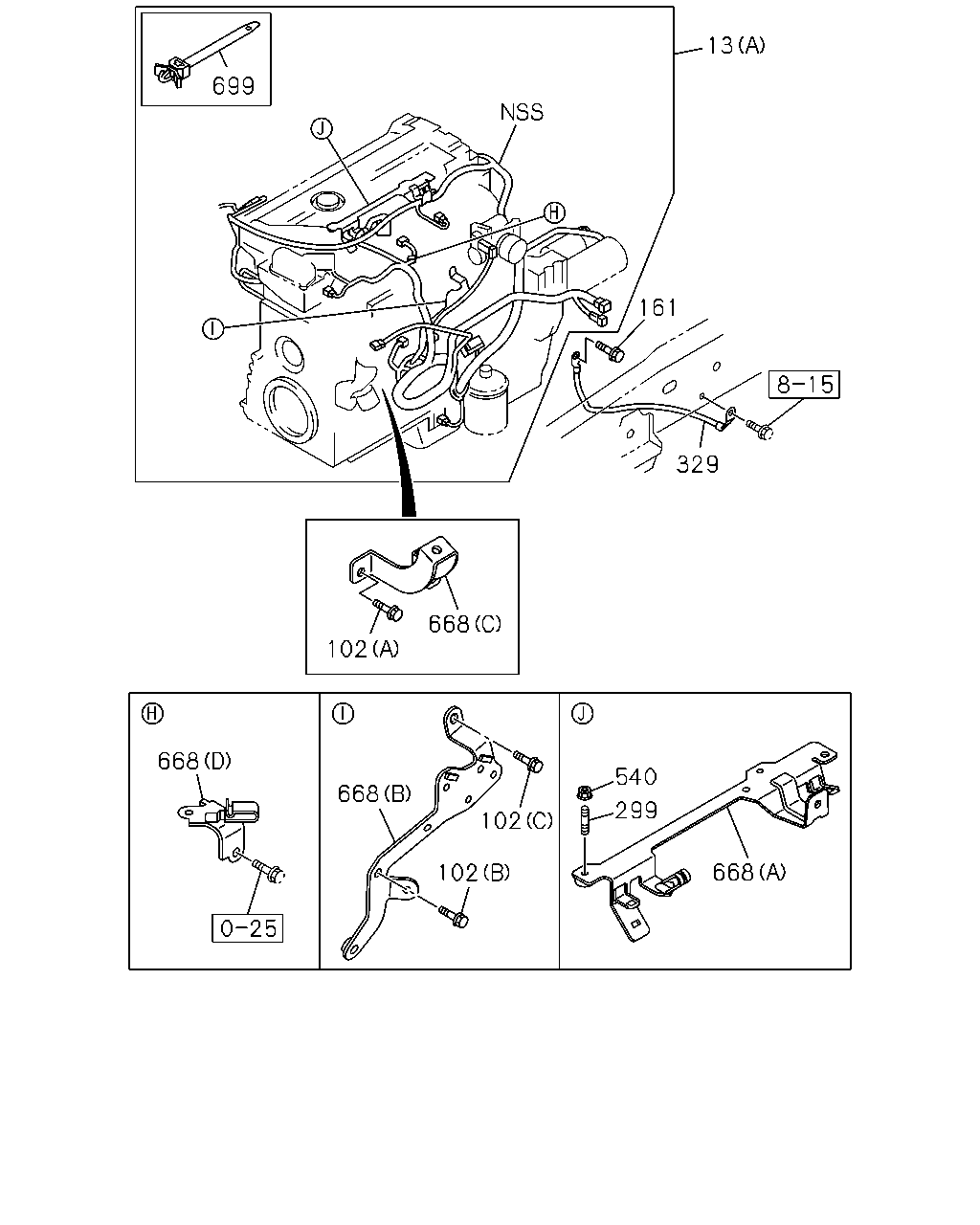

çizim 183295
668 299 540 102 102 668 668 102 668 329 161 13 699
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
EURO2 SPECIFICATION(NT2) (A) 		8-98171-252-4 01 1 1111-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1111-
13 02.525 HARNESS; ENG
EURO5 SPECIFICATION(NT5) (A) 		8-98173-500-8 01 1 1111-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO2 SPECIFICATION(NT2) 00.029 (A) M10X16 FLANGE 		0-28151-016-0 02 1 1111-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO5 SPECIFICATION(NT5) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1111-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EURO5 SPECIFICATION(NT5) 00.724 (C) M8X16 FLANGE 		0-28060-816-0 01 1 1111-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1111-
299 02.559 STUD; BRKT
EURO2 SPECIFICATION(NT2) 01.062 M6X18 L=27 		0-41010-618-0 02 1 1111-
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1111-
540 02.483 NUT; BRKT FIX
EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1111-
668 02.559 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) (A) 		8-98061-805-2 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) (C) 		8-98172-859-1 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (D) 		8-98061-780-0 01 1 1111-
668 02.559 BRACKET; HARNESS
EURO5 SPECIFICATION(NT5) (B) 		8-98172-873-1 01 1 1111-
699 02.559 CLIP; ENG HARNESS
EURO2 SPECIFICATION(NT2) L=146.2 		8-98052-677-0 02 1 1111-
699 02.559 CLIP; ENG HARNESS
EURO5 SPECIFICATION(NT5) L=146.2 		8-98052-677-0 01 1 1111-

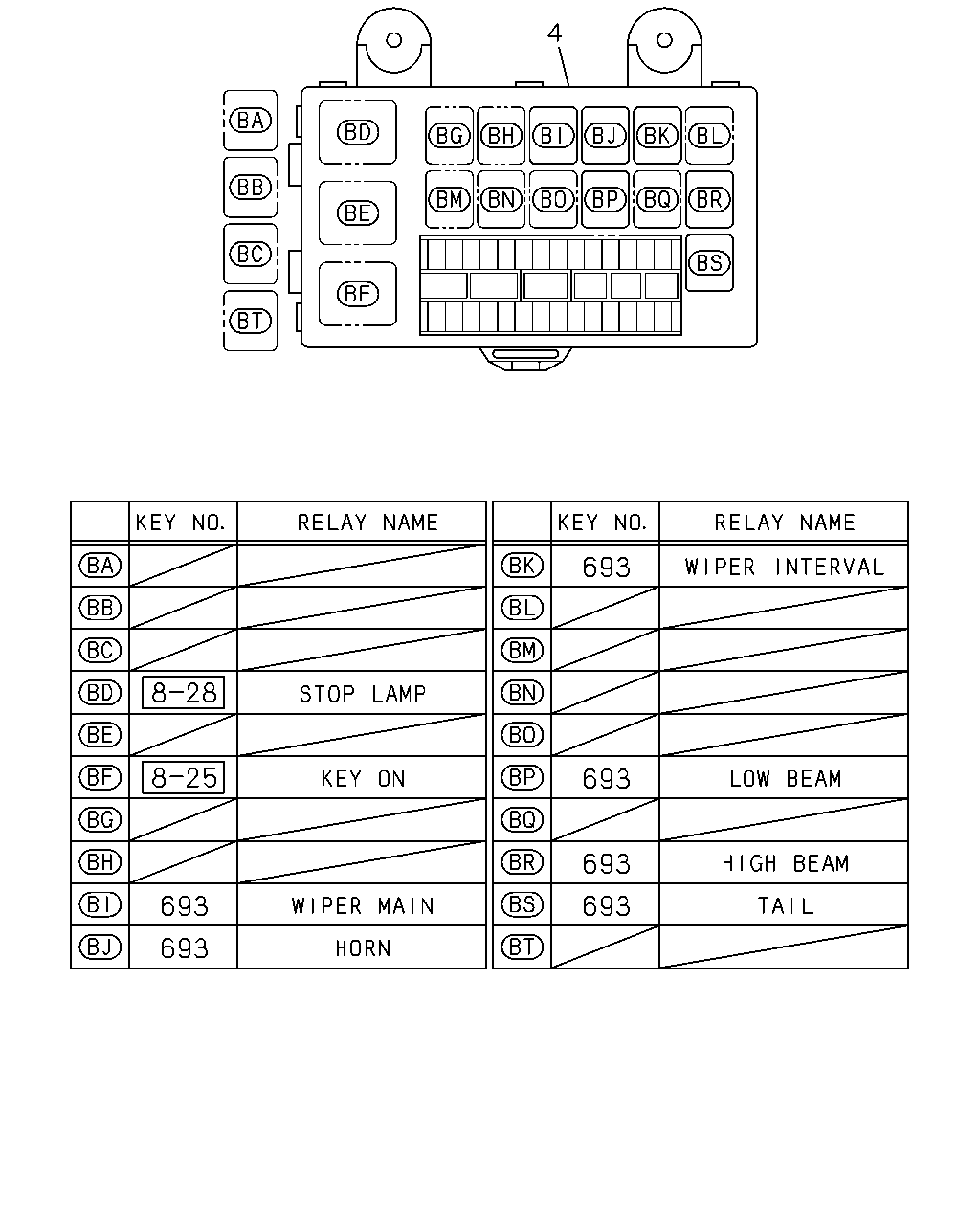

çizim 183300
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-

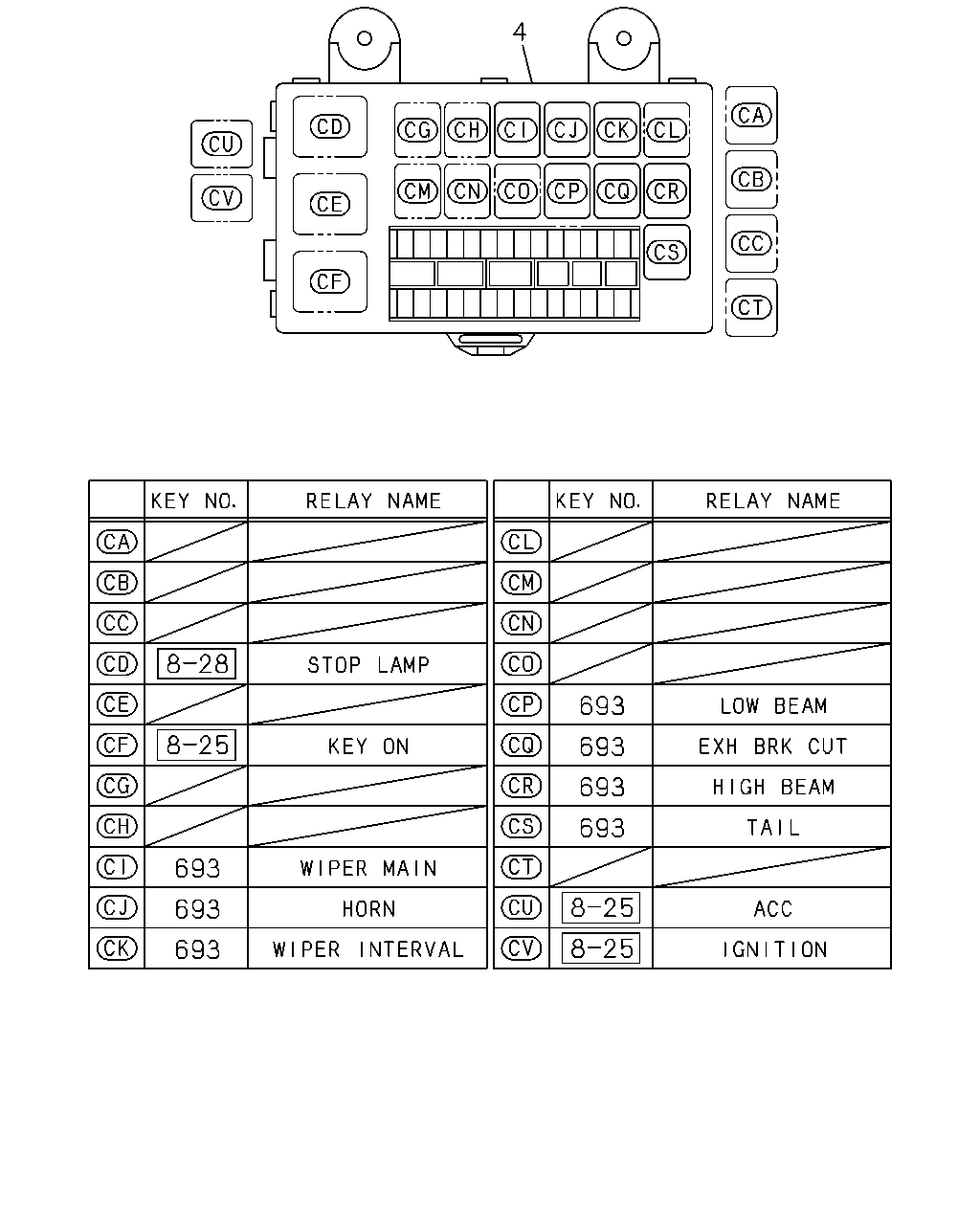

çizim 284341
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1111-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
