◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#8090) — 185 parça

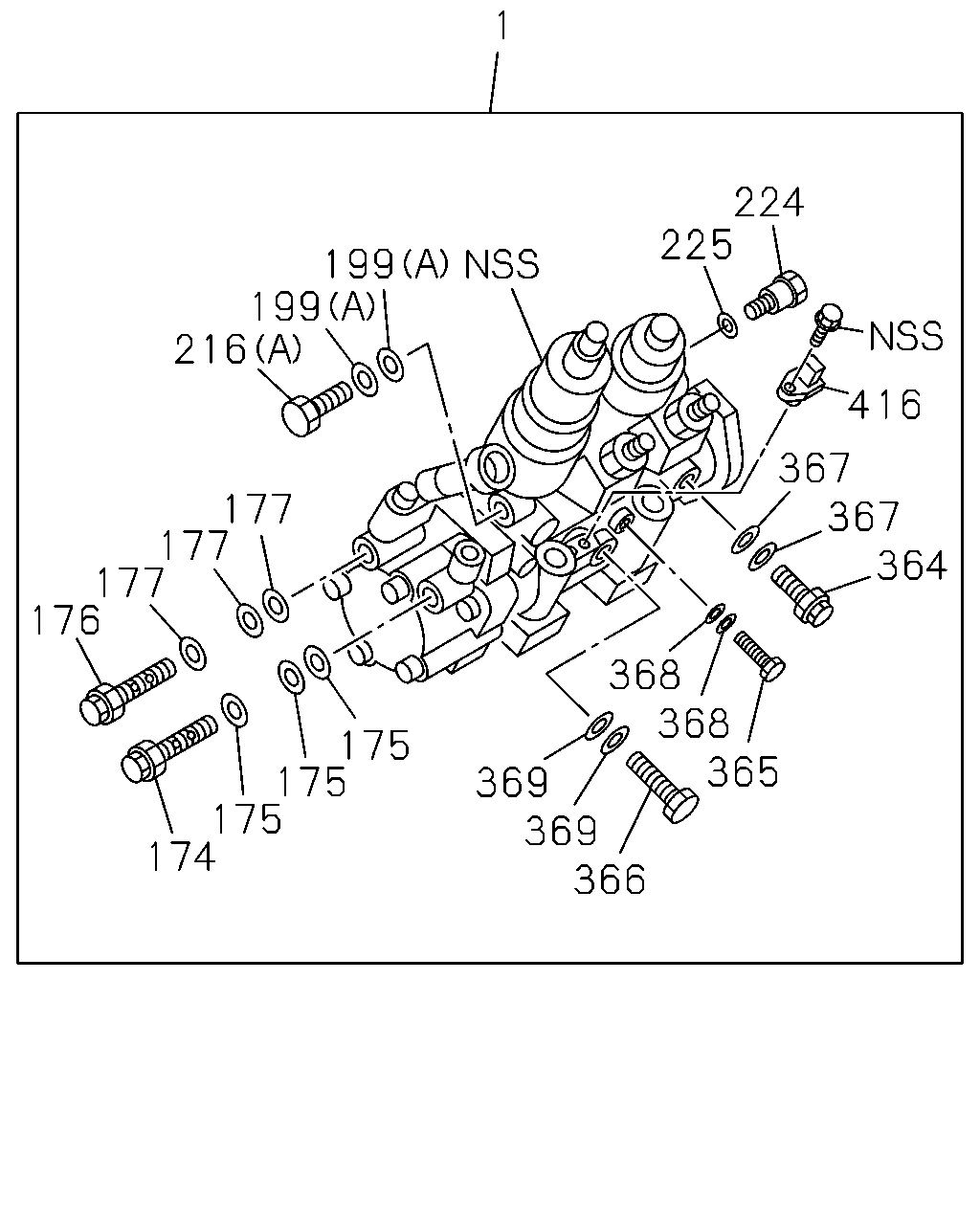

çizim 76969
1 224 225 199 199 216 416 367 367 364 177 177 177 176 368 368 365 175 175 175 174 369 369 366
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 1-15619-499-0 01 1 0211- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-501-0 03 1 0211- ● ●
176 BOLT; EYE,FEED PUMP 1-15619-498-0 01 1 0211- ● ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-501-0 03 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0211- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 0211- ● ●
225 GASKET; PLUG 1-15619-502-0 01 1 0211- ● ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 0211- ● ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 0211- ● ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 0211- ● ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 0211- ● ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-503-0 02 1 0211- ● ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 0211- ● ●
416 SENSOR; POSITION,PUMP 8-97174-899-0 01 1 0211- ● ●
çizim 77005
31 32 37 38 39 40 143 140 44 138 141 43 140 142 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ●
32 HOLDER ASM; NOZZLE 8-94395-990-1 06 1 0005-0210 ●
33 NOZZLE; INJ 8-94395-988-0 06 1 0005-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 0005-0210 ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-010-0 06 1 0005-0210 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 06 1 0005-0210 ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 06 1 0005-0210 ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 06 1 0005-0210 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 1-15341-004-0 06 1 0005-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 06 1 0005-0210 ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 06 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0005-0210 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0005-0210 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-006-0 06 1 0005-0210 ●
142 SPACER; PUSH ROD 1-15339-093-0 06 1 0005-0210 ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 06 1 0005-0210 ●

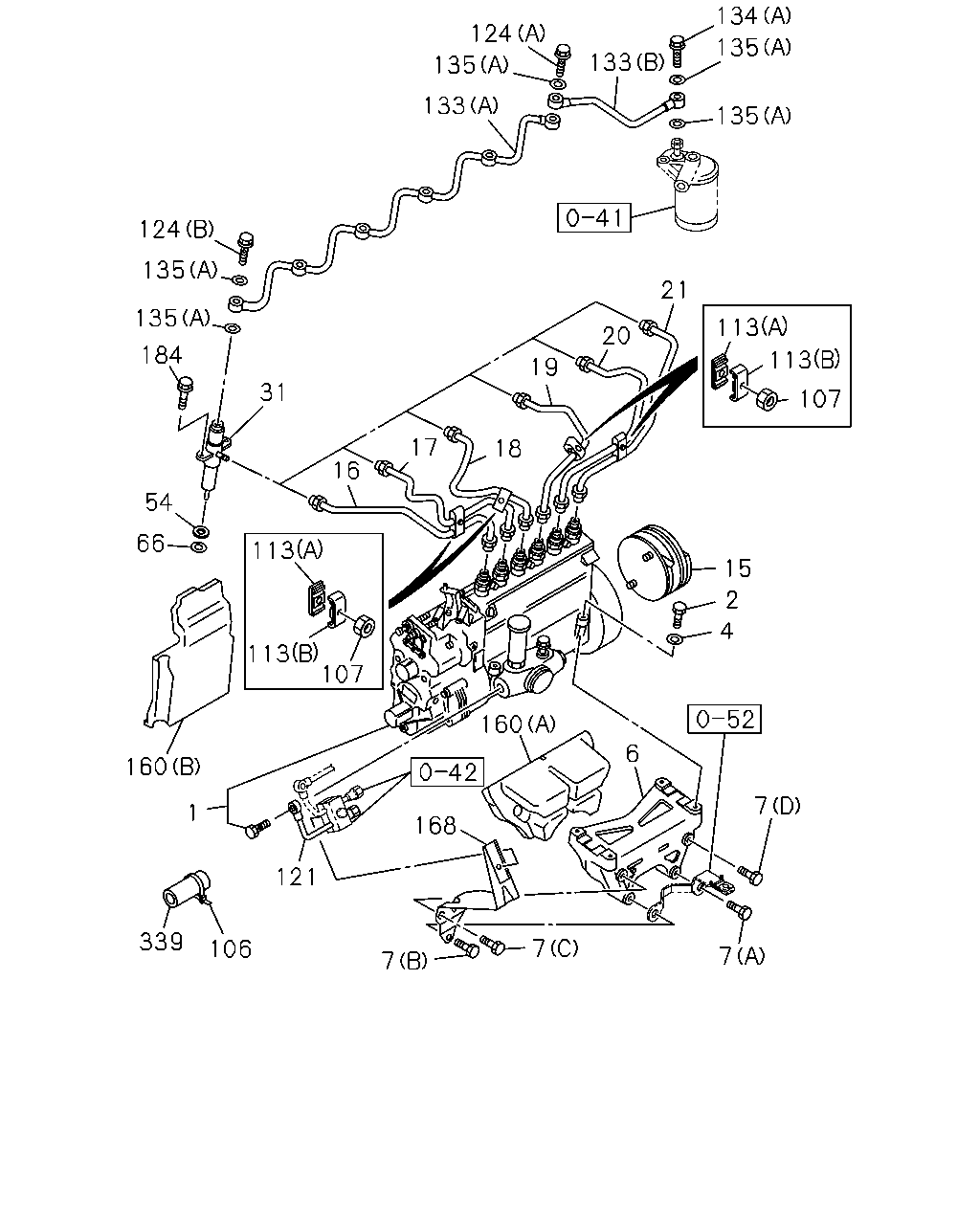

çizim 102846
134 124 135 133 135 133 135 124 135 21 135 113 20 184 113 19 31 107 17 18 6 54 66 113 15 2 4 113 107 160 6 160 7 1 168 121 339 7 106 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0512 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 0005-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28181-080-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(F) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
21 PIPE; INJ NO.6 8-94394-147-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0005-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
106 CLIP; INJ PIPE
L=140 		5-09707-031-1 01 1 0005-0106 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0005-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-773-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X30 FLANGE 		1-09675-039-1 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005-0210 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ●
160 SPACER; INJ PUMP
(B) 		8-94390-169-0 01 1 0005-0210 ●
160 SPACER; INJ PUMP
(A) 		8-94395-673-1 01 1 0005-0210 ●
168 BRACKET; FUEL PIPE 8-94390-772-0 01 1 0005-0210 ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28080-840-0 12 1 0005-0210 ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0005-0210 ●

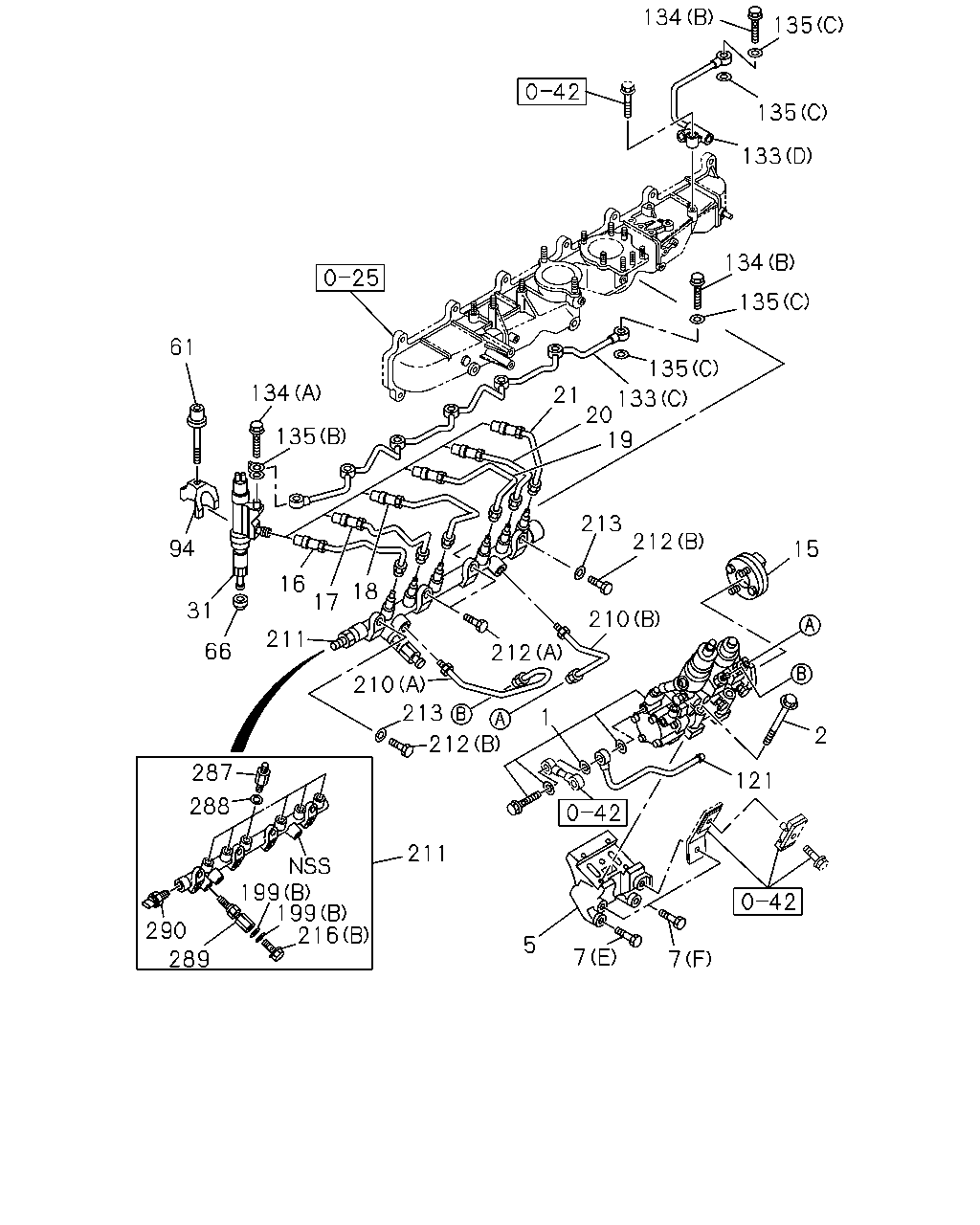

çizim 103443
134 135 135 133 134 135 61 135 134 21 133 20 19 135 213 212 94 15 16 18 17 31 210 211 66 212 210 213 1 212 2 287 121 288 211 199 199 216 290 5 7 289 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-333-0 01 1 0005-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-714-6 01 1 0211- ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0005-0210 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 0211-0512 ● ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ● ●
5 BRACKET; INJ PUMP 8-94390-661-0 01 1 0211- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X60 FLANGE 		0-28181-060-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28181-060-0 03 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(E) M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(D) M10X80 FLANGE 		0-28181-080-0 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(F) M10X100 FLANGE 		0-28181-000-0 02 1 0211-0512 ● ●
7 BOLT; INJ PUMP BRKT
(F) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0005-0210 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 0005-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94391-467-0 01 1 0211- ● ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 0005-0210 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 0211- ● ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 0005-0210 ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 0211- ● ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 0005-0210 ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 0211- ● ●
19 PIPE; INJ NO.4 8-94394-145-0 01 1 0005-0210 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 0211- ● ●
20 PIPE; INJ NO.5 8-94394-146-0 01 1 0005-0210 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 0211- ● ●
21 PIPE; INJ NO.6 8-94394-147-0 01 1 0005-0210 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 0211-0412 ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0501- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 0005-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0909 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 0211-0410 ● ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0607- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-773-0 01 1 0005-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 0211- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94390-071-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94391-311-0 01 1 0211-1206 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-98203-705-1 01 1 1207- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94390-178-0 01 1 0005-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF
(D) 		8-94391-356-1 01 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 01 1 0005-0210 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0211- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 15 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0909- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0211-0908 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 0909- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 0211- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0211- ● ●
210 PIPE; INJ,C/R
(A) 		8-94390-824-3 01 1 0211- ● ●
210 PIPE; INJ,C/R
(B) 		8-94390-825-3 01 1 0211- ● ●
211 RAIL ASM; COMMON 8-97601-512-2 01 1 0211- ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28085-813-0 02 1 0211-0512 ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28055-813-0 02 1 0601- ● ●
212 BOLT; RAIL ASM
(B) M8X130 		1-09000-200-1 02 1 0211- ● ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		9-09160-608-0 02 1 0211-0605 ● ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		0-91610-608-0 02 1 0606- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0211- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0211- ● ●
287 DAMPER; FUEL FLOW 8-97601-514-0 06 1 0211- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0211- ● ●
289 LIMITER; FUEL PRESS 8-97602-325-0 01 1 0211- ● ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0211- ● ●
çizim 103536
31 154 52
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 8-94392-261-4 06 1 0211- ● ●
31 NOZZLE ASM; INJ 8-94395-696-3 06 1 0005-0210 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0211- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0211-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
