◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#8089) — 106 parça

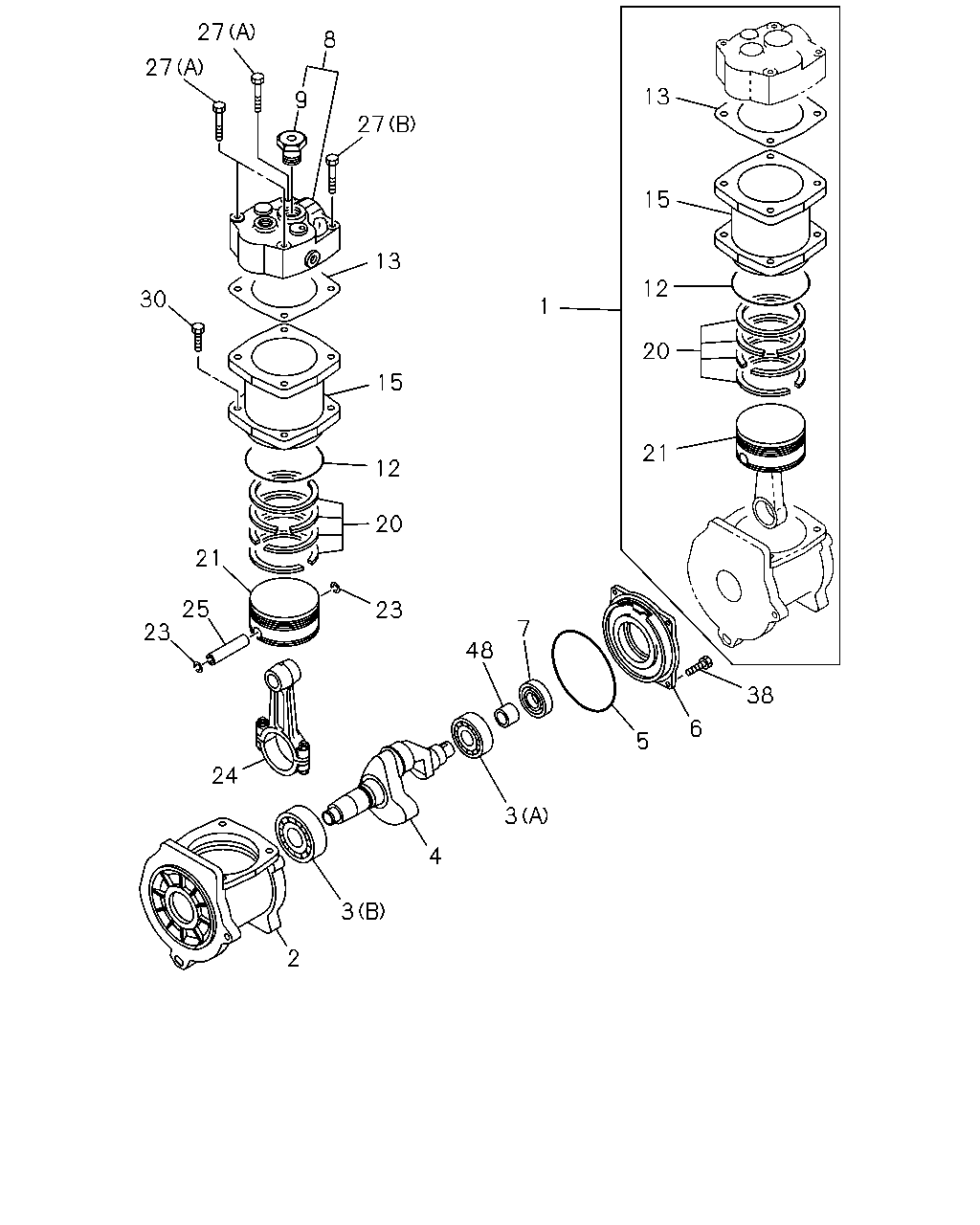

çizim 76475
27 8 27 13 9 27 15 13 12 30 1 20 15 21 12 20 21 25 23 7 23 48 38 6 5 24 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-076-0 01 1 0901- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211- ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(B) 		1-19177-009-0 01 1 0211- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		1-19177-010-0 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0211- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0211- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211- ● ●
13 GASKET; AIR CMPR 8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR 1-09623-626-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0211- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0211-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0211-0812 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0211- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0211-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0211- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0211- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211- ● ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211- ● ●

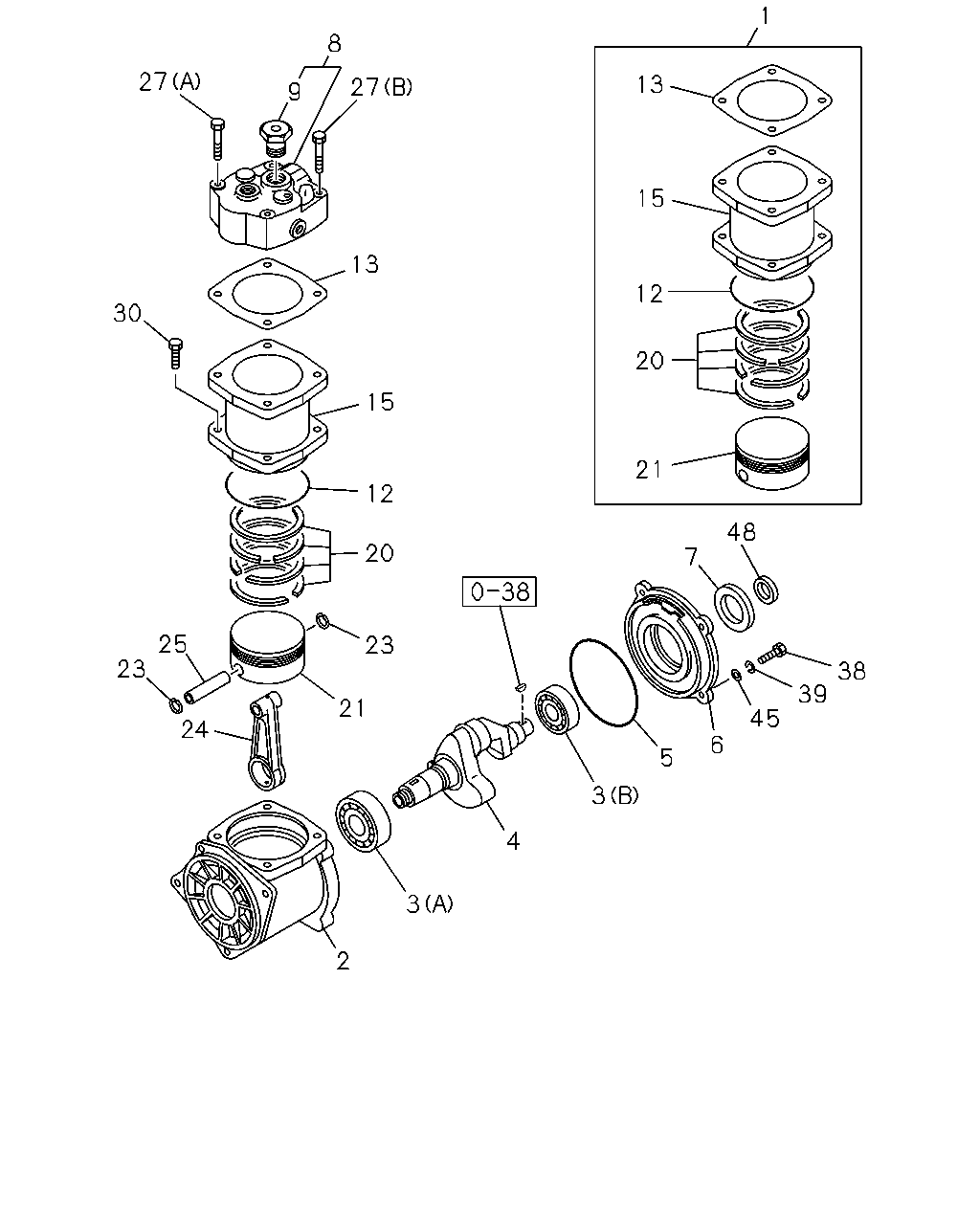

çizim 77004
1 8 27 13 27 9 15 13 12 30 20 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINER KIT; CYL,AIR CMPR 1-19163-053-2 01 1 0005-0210 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0211-0812 ● ●
1 LINER KIT; CYL,AIR CMPR 1-19163-076-0 01 1 0901- ● ●
2 CRANKCASE; AIR CMPR 1-19151-266-1 01 1 0005-0210 ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0211- ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(B) 		1-19177-009-0 01 1 0211- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0005-0210 ●
3 BEARING; AIR CMPR
(A) 		1-19177-010-0 01 1 0211- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-048-1 01 1 0005-0210 ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0211- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0005-0210 ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0211- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-058-1 01 1 0005-0210 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0211- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-19158-026-0 01 1 0005-0210 ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0211- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-052-1 01 1 0005-0210 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-055-0 01 1 0211-0812 ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0901- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0005-0210 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0211- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0005-0210 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0211- ● ●
13 GASKET; AIR CMPR 8-98112-947-0 01 1 0211- ● ●
13 GASKET; AIR CMPR 1-09623-626-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 0005-0210 ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0211- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0005-0210 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0211-0812 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0005-0210 ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0211-0812 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0005-0210 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0211-0812 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0005-0210 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0211- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0005-0210 ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0211-0812 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901- ● ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0005-0210 ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0211- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0005-0210 ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0211- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0005-0210 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0211- ● ●
38 BOLT; COVER FIX 9-81385-023-0 04 1 0005-0210 ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0211- ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0005-0210 ●
45 WASHER; PL,COVER FIX,AIR CMPR
ID=8.4 		9-09160-508-0 04 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-014-0 01 1 0005-0210 ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
