4-50 — FRONT SUSPENSION (#80888) — 71 parça

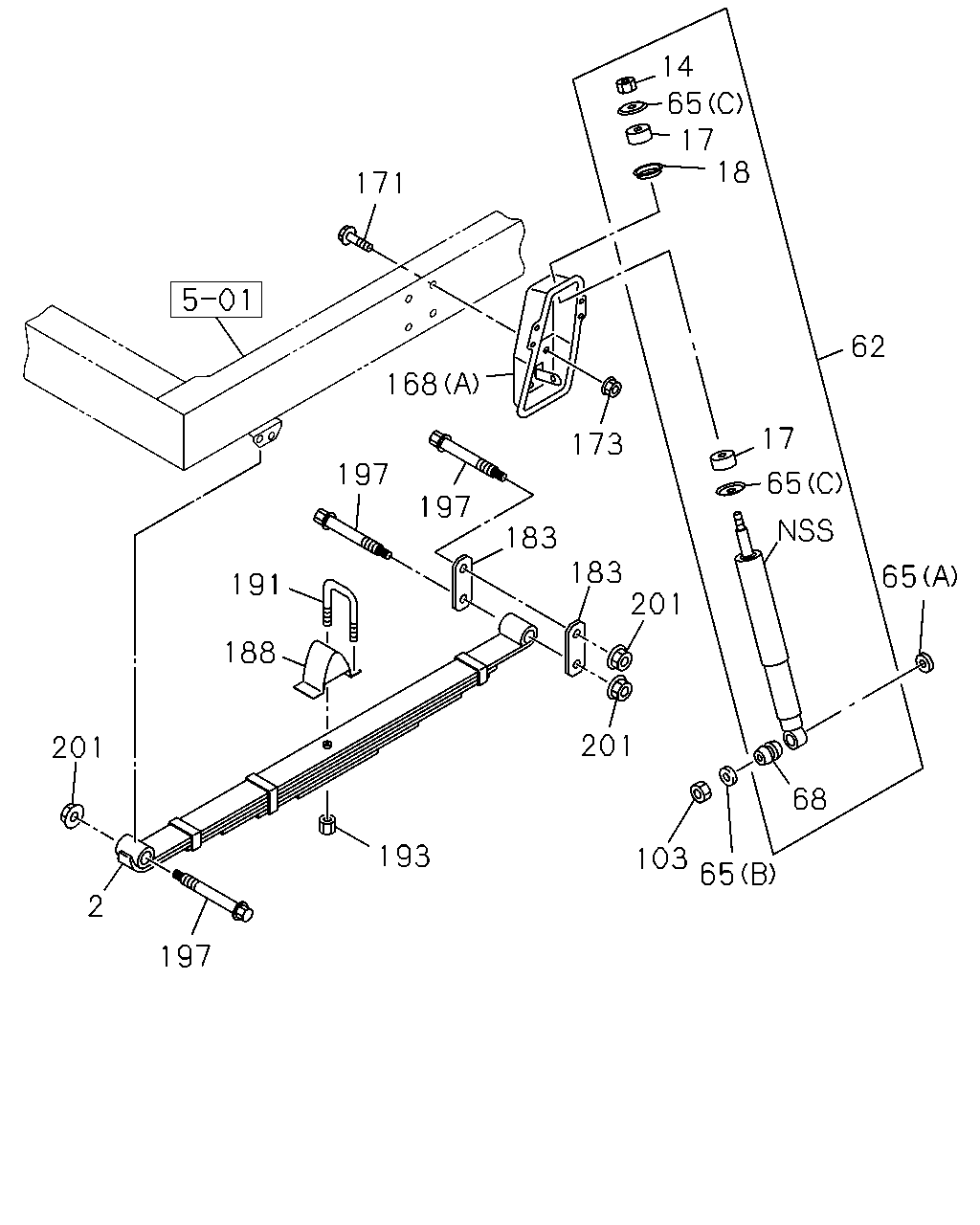

çizim 124349
14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 193 103 65 2 197
BalonParca AdiParca NoAdetTipApplied Date
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-545-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-546-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1111-
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1111-
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1111-
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1111-
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98154-636-0 02 1 1111-
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1111-
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1111-
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1111-
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1111-
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-665-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-666-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98180-785-1 01 1 1111-1111
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98180-785-1 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98180-786-1 01 1 1111-1111
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98180-786-1 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98139-556-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98139-557-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-553-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-554-0 01 1 1111-
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111-
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111-
171 07.395 BOLT; S/ABS BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111-
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1111-
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1111-
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1111-
191 07.417 U-BOLT; FRT SPR
L=165 		9-51171-075-1 04 1 1111-
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1111-
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1111-
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1111-
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1111-
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1111-

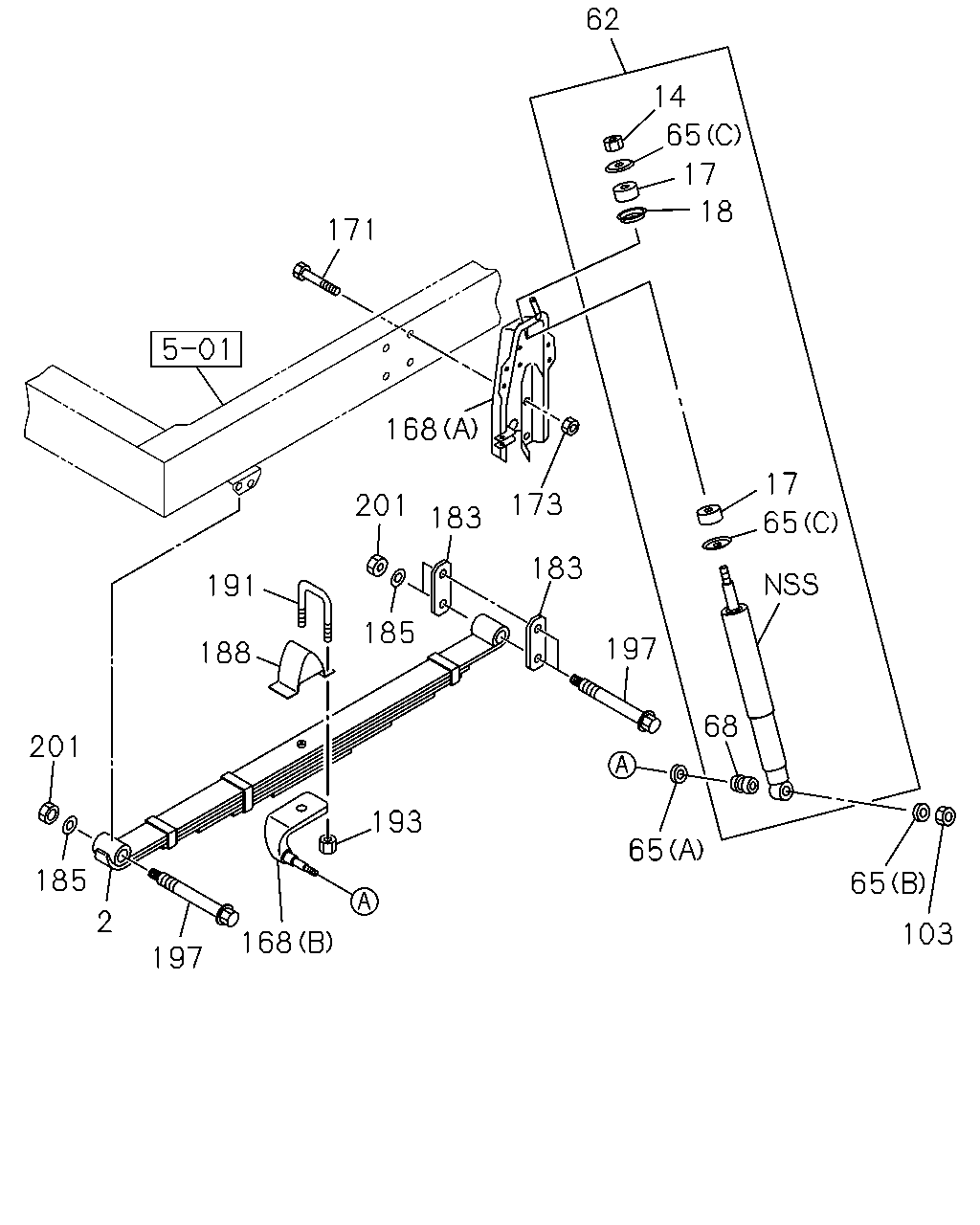

çizim 124754
62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197
BalonParca AdiParca NoAdetTipApplied Date
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-545-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-546-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1111-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1111-
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1111-
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1111-
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1111-
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98154-636-0 02 1 1111-
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1111-
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1111-
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1111-
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1111-
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-665-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-666-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98180-785-1 01 1 1111-1111
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98180-785-1 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98180-786-1 01 1 1111-1111
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98180-786-1 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98139-556-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98139-557-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-553-0 01 1 1111-
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-554-0 01 1 1111-
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111-
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111-
171 07.395 BOLT; S/ABS BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111-
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1111-
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1111-
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1111-
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1111-
191 07.417 U-BOLT; FRT SPR
L=165 		9-51171-075-1 04 1 1111-
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1111-
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1111-
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1111-
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1111-
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1111-
