Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#8088) — 231 parça

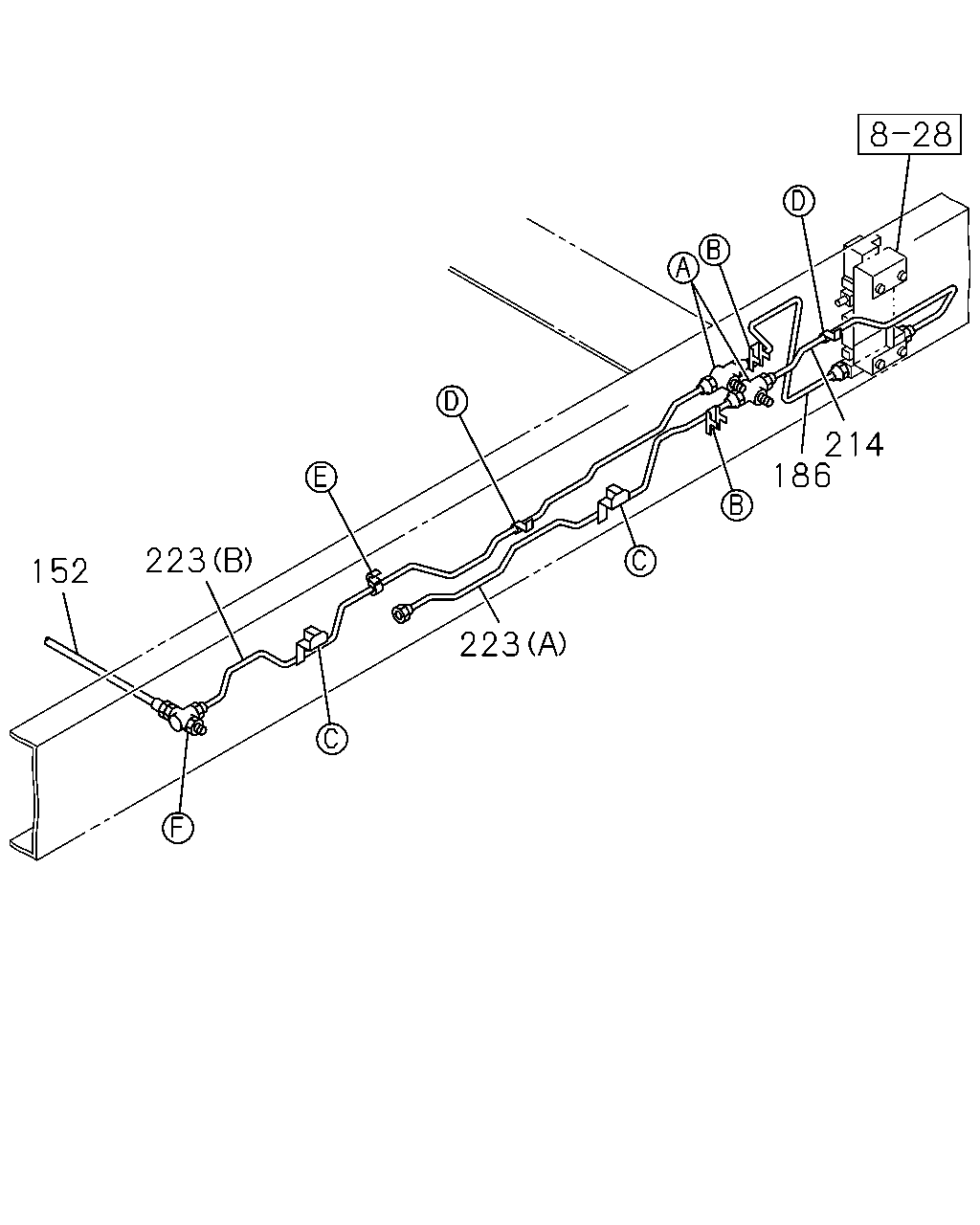

214 186 223 152 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0007-0210	●
152	HOSE; FLEX FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) L=540	1-09363-736-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) ENGINE REAR PTO(SV1) L=660	1-09363-719-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=620	1-09363-770-0	01	1	0007-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FSS ALL(FS****)	1-49117-098-0	01	1	0005-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-477-0	01	1	0005-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FTS ALL(FT****) MLD7Q M/T(X5K)	1-49122-348-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FSS ALL(FS****) L=565 SERVICED BY L=600	1-47428-809-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-476-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FTS ALL(FT****) MLD7Q M/T(X5K) L=1410 SERVICED BY L=1500	1-47428-819-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FSS ALL(FS****) (A)	1-49122-498-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FSS ALL(FS****) (B)	1-49122-504-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B)	1-49116-478-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A)	1-49117-183-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD7Q M/T(X5K) (A)	1-49122-346-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD7Q M/T(X5K) (B)	1-49122-508-0	01	1	0005-0210	●

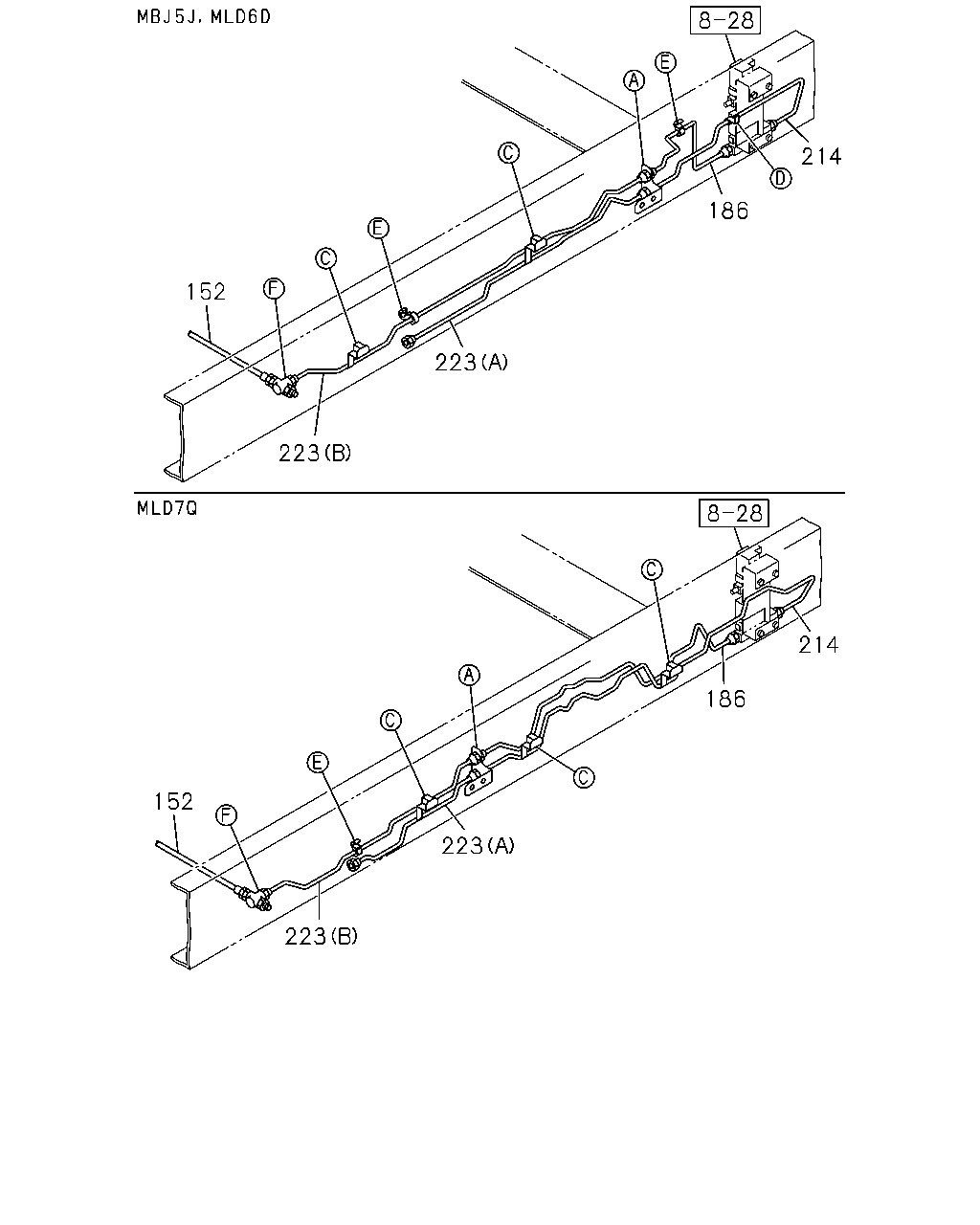

214 186 152 223 223 214 186 152 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0007-0210	●
152	HOSE; FLEX FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) L=540	1-09363-736-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) ENGINE REAR PTO(SV1) L=660	1-09363-719-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=620	1-09363-770-0	01	1	0007-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FSS ALL(FS****)	1-49117-098-0	01	1	0005-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-477-0	01	1	0005-0210	●
186	PIPE; AIR,MAG VLV TO FLEX HOSE FTS ALL(FT****) MLD7Q M/T(X5K)	1-49122-348-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FSS ALL(FS****) L=565 SERVICED BY L=600	1-47428-809-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-49116-476-0	01	1	0005-0210	●
214	PIPE; AIR,UNION TO MAG VLV FTS ALL(FT****) MLD7Q M/T(X5K) L=1410 SERVICED BY L=1500	1-47428-819-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FSS ALL(FS****) (A)	1-49122-498-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FSS ALL(FS****) (B)	1-49122-504-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B)	1-49116-478-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A)	1-49117-183-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD7Q M/T(X5K) (A)	1-49122-346-0	01	1	0005-0210	●
223	PIPE; AIR,UNION TO UNION FTS ALL(FT****) MLD7Q M/T(X5K) (B)	1-49122-508-0	01	1	0005-0210	●

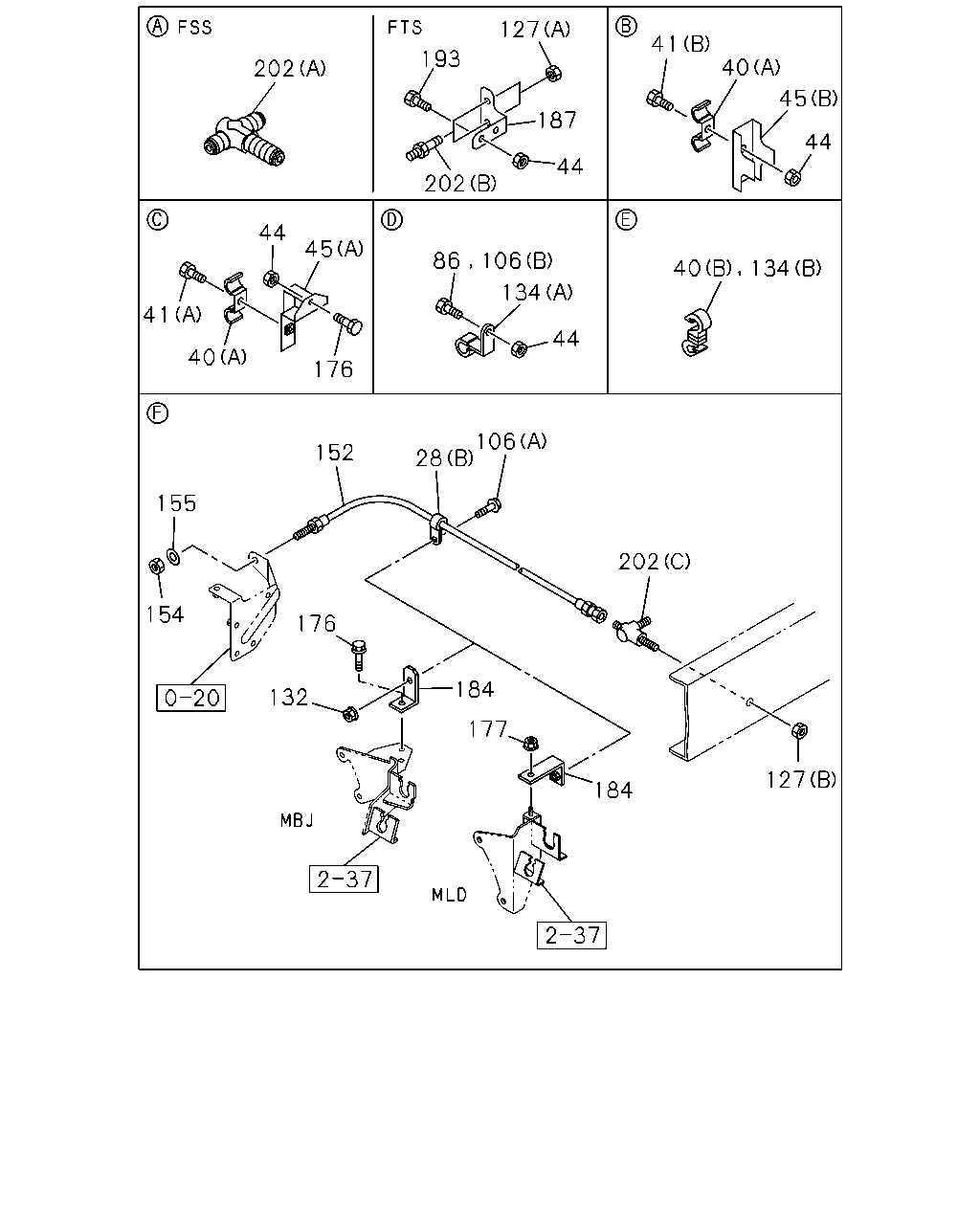

127 41 193 40 202 45 187 44 44 202 44 45 86 106 40 134 134 41 44 40 176 106 28 152 155 202 154 176 184 132 177 127 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-0210	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0211-		●	●
28	CLIP; HOSE,AIR CMPR (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●
40	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0005-0210	●
40	CLIP; AIR PIPE FTS ALL(FT****) MLD6D M/T(X5Q) (B) ID=6.35 & 6.35	1-09709-273-1	01	1	0005-0210	●
40	CLIP; AIR PIPE FSS ALL(FS****) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0005-0210	●
40	CLIP; AIR PIPE FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0005-0210	●
40	CLIP; AIR PIPE FTS ALL(FT****) MLD7Q M/T(X5K) (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0005-0210	●
40	CLIP; AIR PIPE FTS ALL(FT****) MLD7Q M/T(X5K) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0005-0210	●
41	BOLT; CLIP FSS ALL(FS****) (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
41	BOLT; CLIP FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
41	BOLT; CLIP FSS ALL(FS****) (B) M8X40 FLANGE	0-28680-840-0	02	1	0005-0210	●
41	BOLT; CLIP FTS ALL(FT****) MLD7Q M/T(X5K) (A) M8X16 FLANGE	0-28080-816-0	03	1	0005-0210	●
44	NUT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
44	NUT FSS ALL(FS****) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
44	NUT FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
44	NUT FTS ALL(FT****) MLD7Q M/T(X5K) M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
45	BRACKET; CLIP (A) M8 W/NUT	1-47475-439-2	02	1	0005-0210	●
45	BRACKET; CLIP FSS ALL(FS****) (B)	1-47475-427-1	01	1	0005-0210	●
45	BRACKET; CLIP FTS ALL(FT****) MLD7Q M/T(X5K) (B)	1-47475-427-1	01	1	0005-0210	●
45	BRACKET; CLIP FTS ALL(FT****) MLD7Q M/T(X5K) (A) M8 W/NUT	1-47475-439-2	03	1	0005-0210	●
86	BOLT; CLIP FSS ALL(FS****) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
106	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
106	BOLT; CLIP FSS ALL(FS****) (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
106	BOLT; CLIP FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●
127	NUT; UNION (B) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
127	NUT; UNION FTS ALL(FT****) (A) M12	9-09840-280-0	02	1	0005-0210	●
132	NUT; CLIP FSS ALL(FS****) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
134	CLIP; AIR PIPE FSS ALL(FS****) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0210	●
134	CLIP; AIR PIPE FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0210	●
134	CLIP; AIR PIPE FSS ALL(FS****) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0005-0210	●
134	CLIP; AIR PIPE FSS ALL(FS****) (B) ID=6.35 & 6.35	1-09709-273-1	02	1	0005-0210	●
134	CLIP; AIR PIPE FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) ID=6.35 & 6.35	1-09709-273-1	02	1	0005-0210	●
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0005-0006	●
152	HOSE; FLEX FSS ALL(FS****) ENGINE REAR PTO(SV1) L=580	1-09363-692-0	01	1	0007-0210	●
152	HOSE; FLEX FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) L=540	1-09363-736-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) ENGINE REAR PTO(SV1) L=660	1-09363-719-0	01	1	0005-0210	●
152	HOSE; FLEX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=620	1-09363-770-0	01	1	0007-0210	●
154	NUT; FLEX HOSE FIX M12	9-09840-280-0	01	1	0005-0210	●
155	WASHER; LK,FLEX HOSE FIX ID=12.2	9-09150-512-0	01	1	0005-0210	●
176	BOLT; BRKT FIX FSS ALL(FS****) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●
176	BOLT; BRKT FIX FSS ALL(FS****) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
176	BOLT; BRKT FIX FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
176	BOLT; BRKT FIX FTS ALL(FT****) MLD7Q M/T(X5K) M8X20 FLANGE	0-28680-820-0	03	1	0005-0210	●
176	BOLT; BRKT FIX FTS ALL(FT****) MLD7Q M/T(X5K) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210	●
177	NUT; BRKT FIX FTS ALL(FT****) M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
184	BRACKET; FLEX HOSE FSS ALL(FS****)	1-47478-892-0	01	1	0005-0210	●
184	BRACKET; FLEX HOSE FTS ALL(FT****)	1-47478-891-0	01	1	0005-0210	●
187	BRACKET; AIR PIPE FTS ALL(FT****)	1-47477-657-0	01	1	0005-0210	●
193	BOLT; BRKT FTS ALL(FT****) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●
202	UNION; AIR PIPE (C) M12 2WAY	1-09654-059-2	01	1	0005-0210	●
202	UNION; AIR PIPE FSS ALL(FS****) (A) M12 2WAY	1-09654-234-2	02	1	0005-0210	●
202	UNION; AIR PIPE FTS ALL(FT****) (B) M12 L=66.5	9-09223-306-1	02	1	0005-0210	●

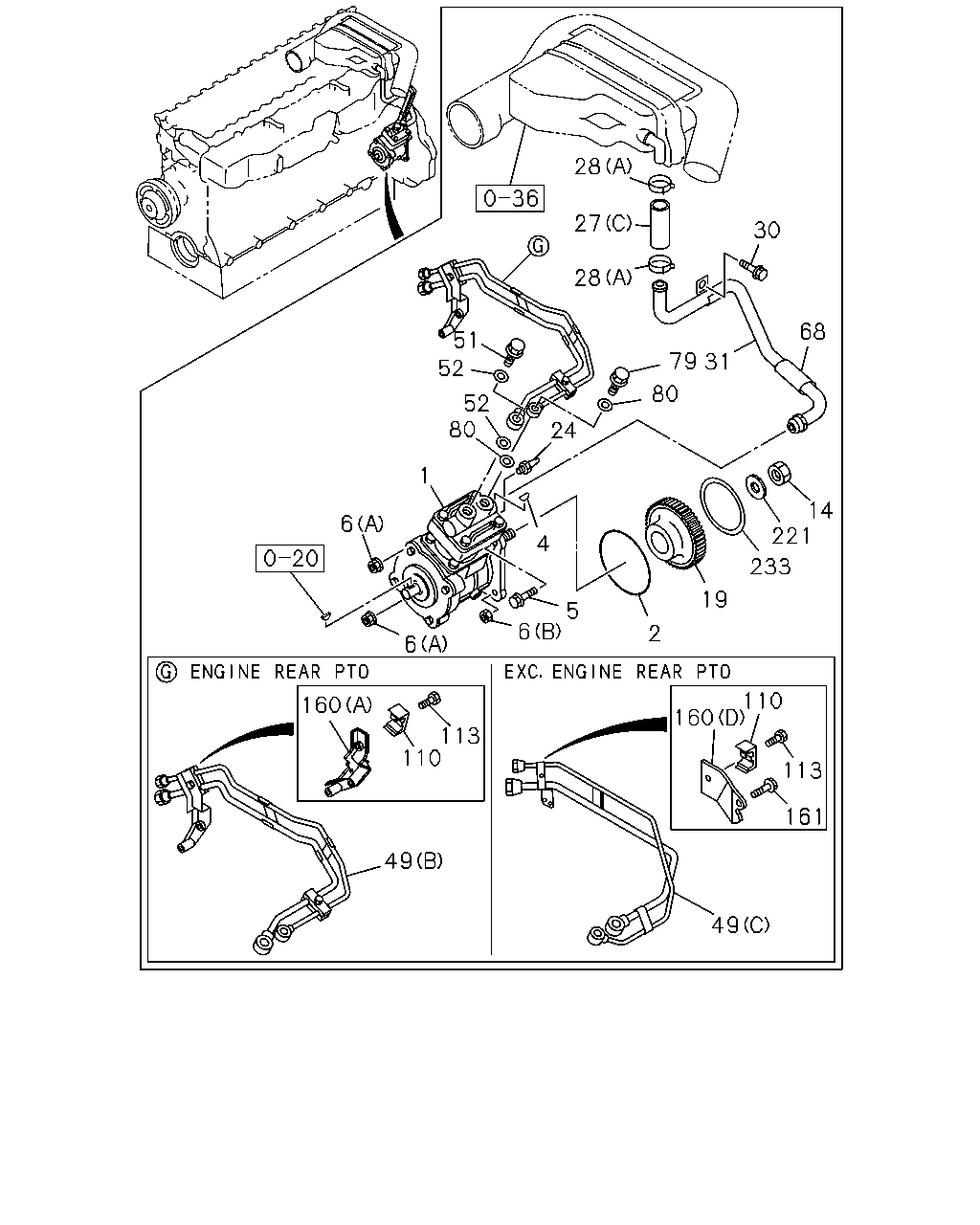

28 27 30 28 68 51 52 80 52 80 24 1 14 221 6 4 233 19 5 6 2 6 110 160 160 113 110 113 161 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0211-		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-		●	●
5	BOLT; AIR CMPR FIX FSS ALL(FS****) M12X95 FLANGE	8-94396-485-1	01	1	0005-0210	●
5	BOLT; AIR CMPR FIX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) M12X95 FLANGE	8-94396-485-1	01	1	0005-0210	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110	0-28186-211-0	01	1	0211-0512		●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110 FLANGE	0-28156-211-0	01	1	0601-		●	●
5	BOLT; AIR CMPR FIX FTS ALL(FT****) ENGINE REAR PTO(SV1) M12X153	1-09020-054-1	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512		●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94394-967-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	8-94395-085-0	01	1	0005-0210	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-0210	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0211-		●	●
28	CLIP; HOSE,AIR CMPR (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0211-0512		●	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (A)	8-94390-192-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94391-376-3	01	1	0211-		●	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (A)	8-94395-087-2	01	1	0005-0210	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	8-97600-184-1	01	1	0211-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0211-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-		●	●
68	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0211-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1)	8-94393-037-0	01	1	0211-		●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1)	8-94393-090-0	01	1	0211-		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28050-640-0	01	1	0601-		●	●
160	BRACKET; AIR PIPE FSS ALL(FS****) ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-97602-561-0	01	1	0211-		●	●
160	BRACKET; AIR PIPE FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE FTS ALL(FT****) ENGINE REAR PTO(SV1) (A)	8-94394-372-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-372-0	01	1	0211-		●	●
160	BRACKET; AIR PIPE FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (C)	8-94393-091-0	01	1	0005-0210	●
161	BOLT; BRKT,AIR PIPE FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-		●	●
233	RING; FRICTION	8-94390-562-0	01	1	0211-0311		●	●
233	RING; FRICTION	8-97603-297-0	01	1	0312-		●	●

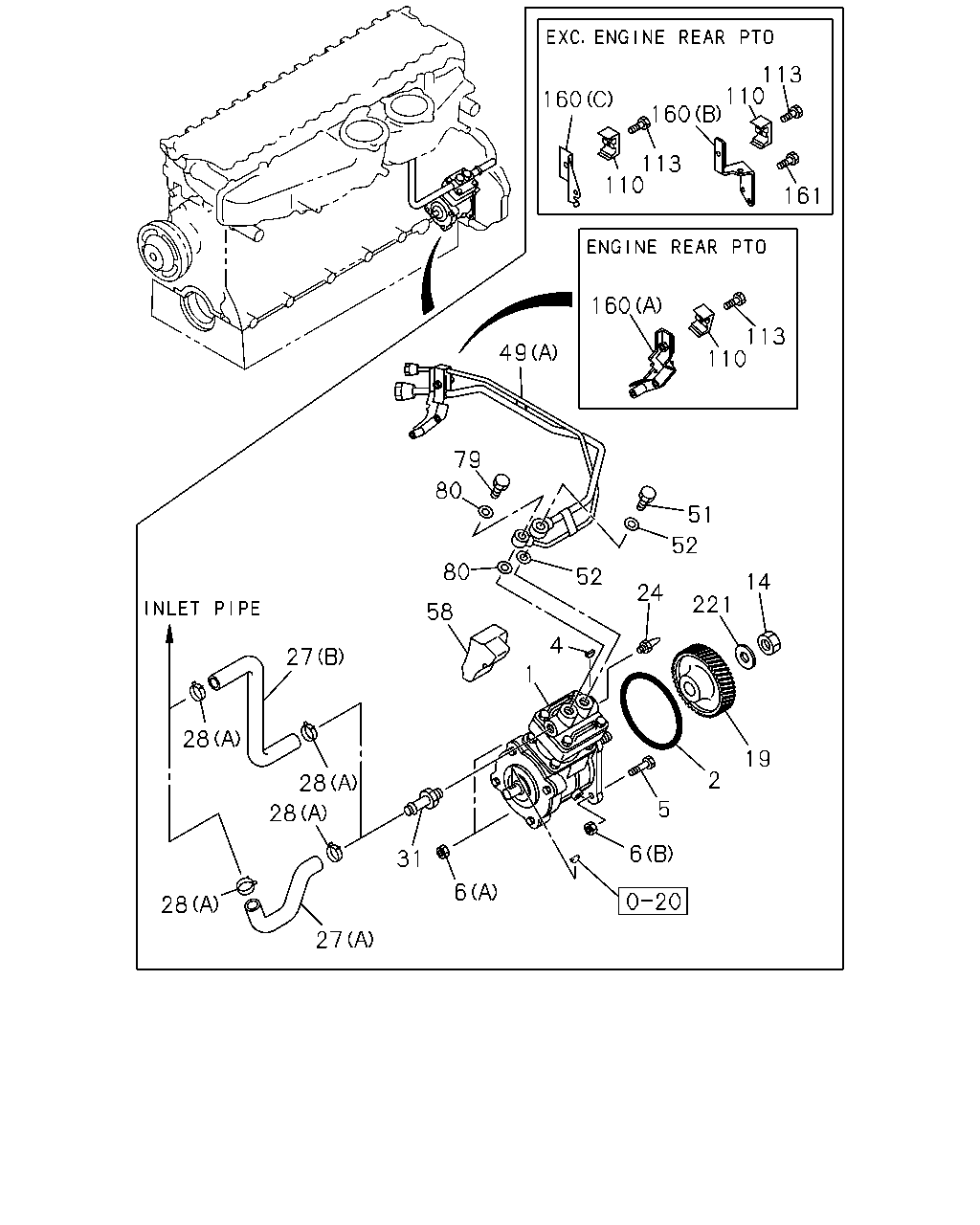

113 110 160 160 113 110 161 160 113 110 49 79 80 51 52 80 52 14 24 221 58 4 27 1 28 19 2 28 5 28 6 31 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-704-2	01	1	0211-		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0211-		●	●
5	BOLT; AIR CMPR FIX FSS ALL(FS****) M12X95 FLANGE	8-94396-485-1	01	1	0005-0210	●
5	BOLT; AIR CMPR FIX FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) M12X95 FLANGE	8-94396-485-1	01	1	0005-0210	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110	0-28186-211-0	01	1	0211-0512		●	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1) M12X110 FLANGE	0-28156-211-0	01	1	0601-		●	●
5	BOLT; AIR CMPR FIX FTS ALL(FT****) ENGINE REAR PTO(SV1) M12X153	1-09020-054-1	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0211-0512		●	●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0211-		●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	8-94394-967-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION (C) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0211-		●	●
27	HOSE; AIR CMPR,SUCTION FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	8-94395-085-0	01	1	0005-0210	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0005-0210	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0211-		●	●
28	CLIP; HOSE,AIR CMPR (B) ID=13 L=20	9-09525-235-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-859-1	01	1	0211-		●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (A)	8-94390-192-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	8-94391-376-3	01	1	0211-		●	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (A)	8-94395-087-2	01	1	0005-0210	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	8-97600-184-1	01	1	0211-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0211-1404		●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-		●	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0005-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0005-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1)	8-94393-037-0	01	1	0211-		●	●
110	CLIP; AIR PIPE ENGINE REAR PTO(SV1)	8-94393-090-0	01	1	0211-		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28050-640-0	01	1	0601-		●	●
160	BRACKET; AIR PIPE FSS ALL(FS****) ENGINE REAR PTO(SV1) (A)	8-94394-371-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-97602-561-0	01	1	0211-		●	●
160	BRACKET; AIR PIPE FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (B)	8-94394-569-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE FTS ALL(FT****) ENGINE REAR PTO(SV1) (A)	8-94394-372-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (A)	8-94394-372-0	01	1	0211-		●	●
160	BRACKET; AIR PIPE FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (C)	8-94393-091-0	01	1	0005-0210	●
161	BOLT; BRKT,AIR PIPE FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0211-		●	●

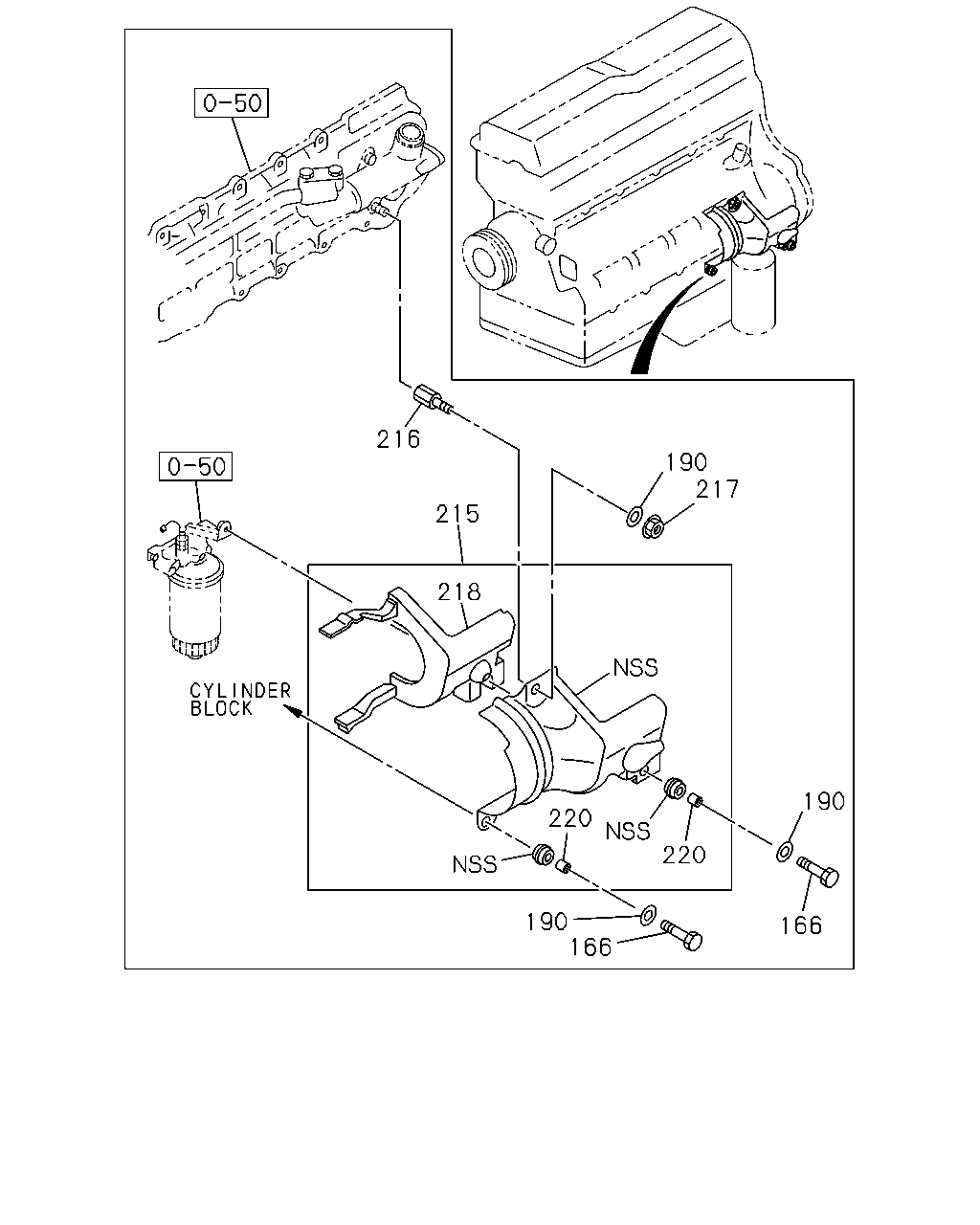

216 190 217 215 218 190 220 220 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0005-0210	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0005-0210	●
216	SPACER; COVER	8-94394-990-1	01	1	0005-0210	●
217	NUT; COVER M10	9-09110-410-0	01	1	0005-0210	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0005-0210	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0005-0210	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
