Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#80872) — 169 parça

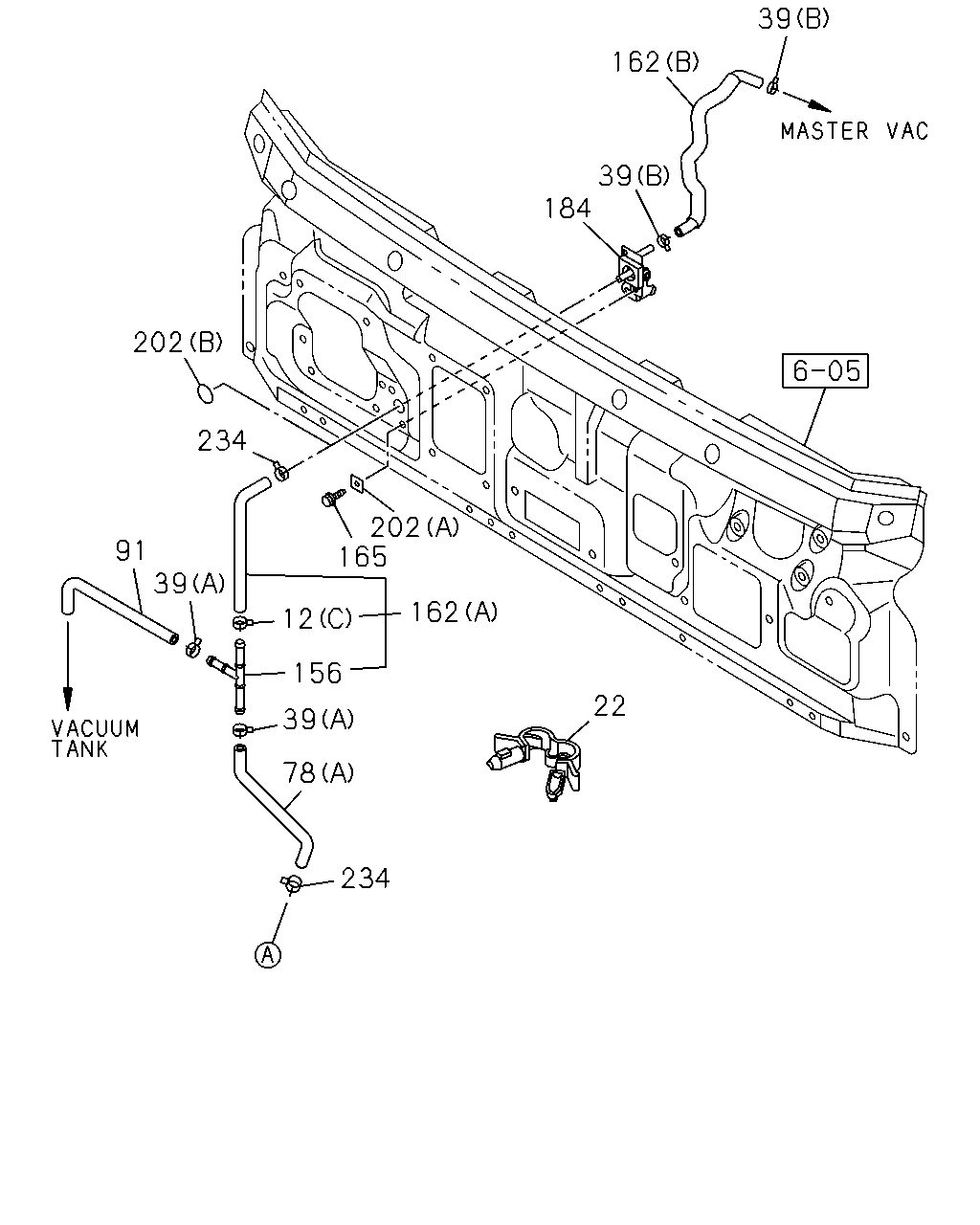

39 162 39 184 202 234 202 165 91 39 162 12 156 22 39 78 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
22	04.681 CLIP; HOSE,VAC TANK POWER ASSIST CLUTCH(S2T) 02.559 ID=13-18 L=18	1-09709-291-0	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (A) ID=16	8-98008-098-0	02	1	1111-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (A) ID=16	8-97329-628-0	02	1	1206-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98182-126-1	01	1	1111-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98186-035-1	01	1	1111-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1111-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1111-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1111-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1111-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	02	1	1111-

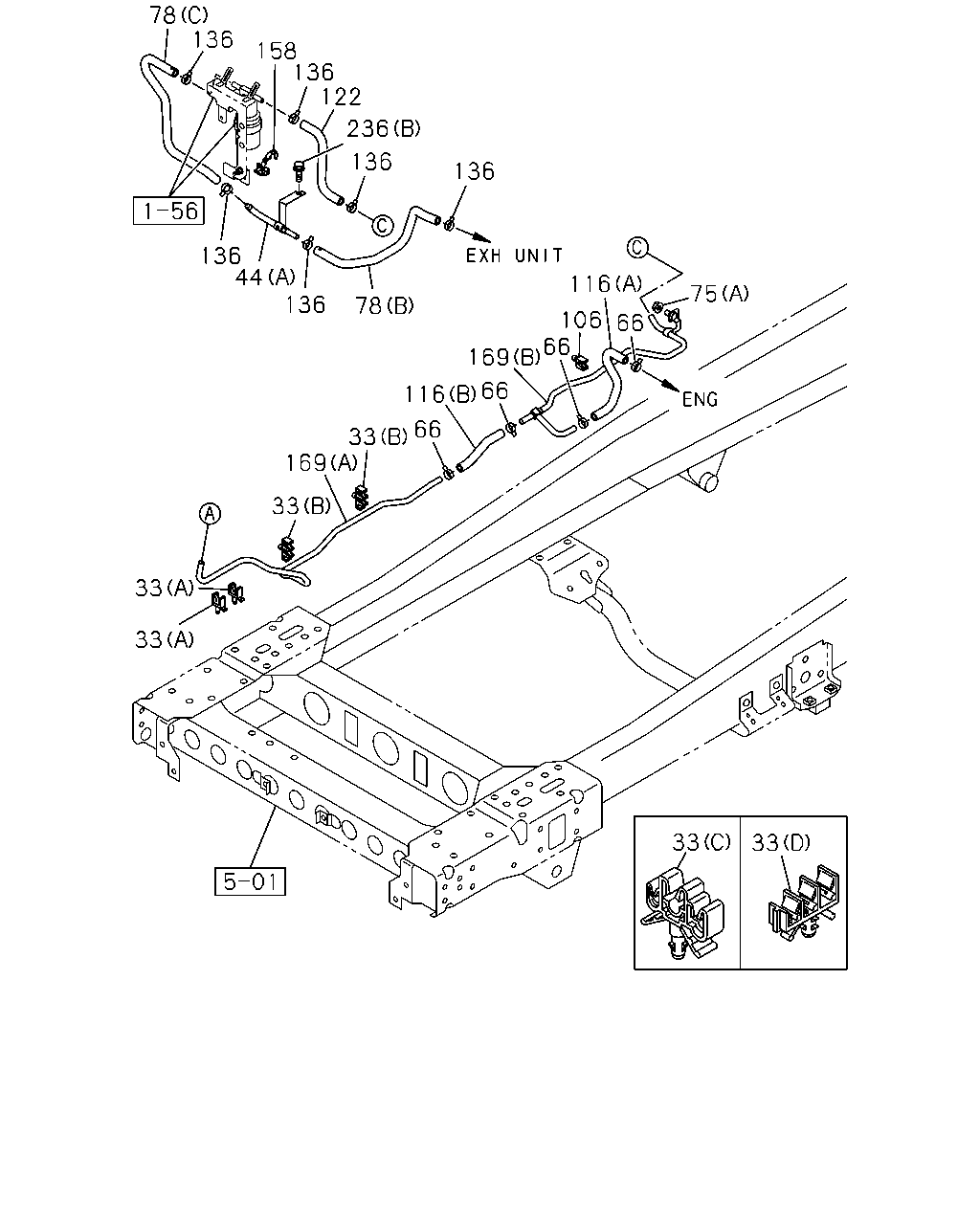

78 136 158 136 122 236 136 136 136 44 136 116 75 78 106 66 169 66 116 66 66 33 169 33 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
106	04.930 CLIP; PIPE EURO2 SPECIFICATION(NT2) ID=10 H=40	8-94462-219-0	02	1	1111-
106	04.930 CLIP; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) ID=10 H=40	8-94462-219-0	03	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (B) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (G)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98178-974-4	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-965-4	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-

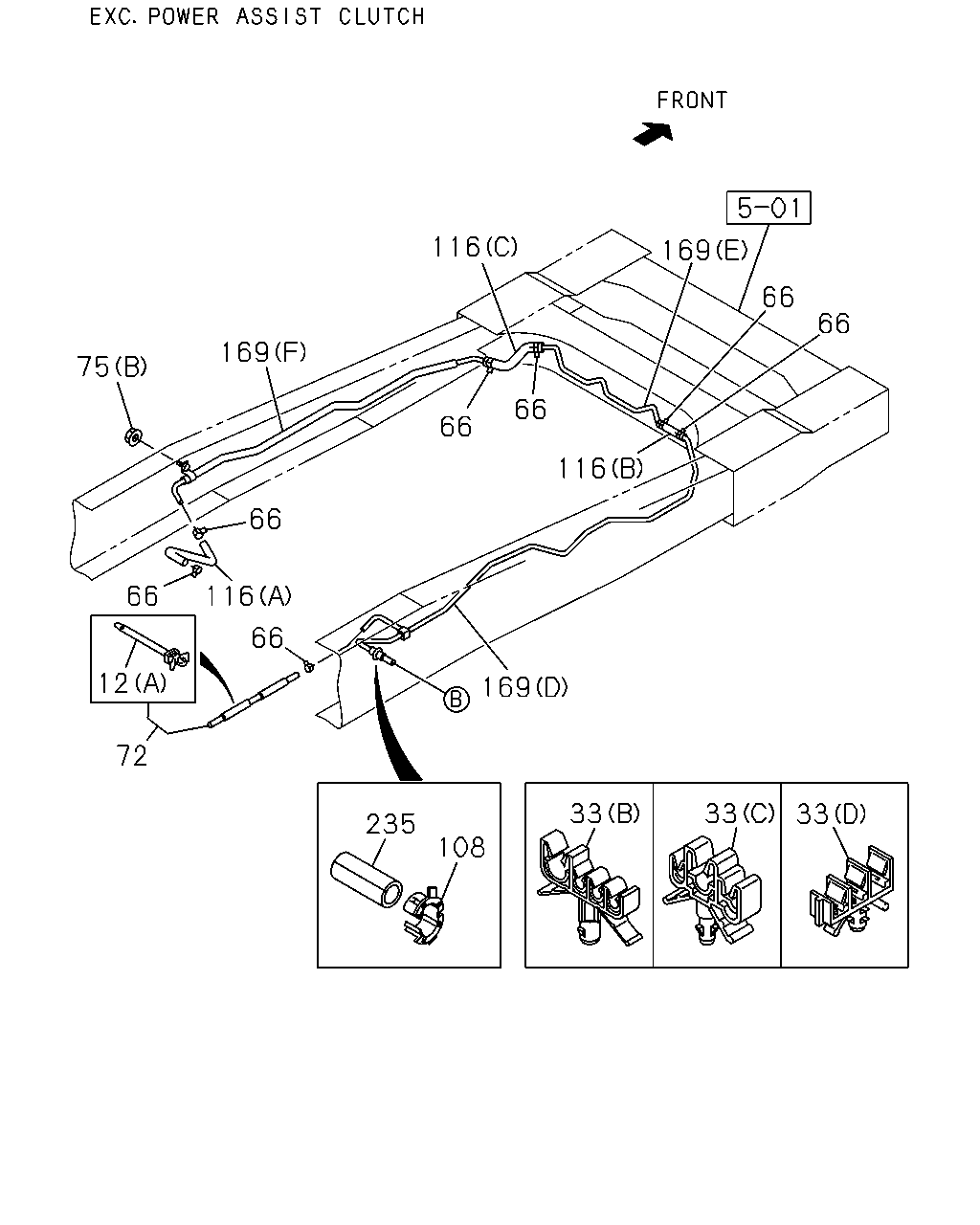

116 169 66 66 169 75 66 66 116 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2)	8-98201-857-1	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (B) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (G)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98178-974-4	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-965-4	01	1	1111-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-

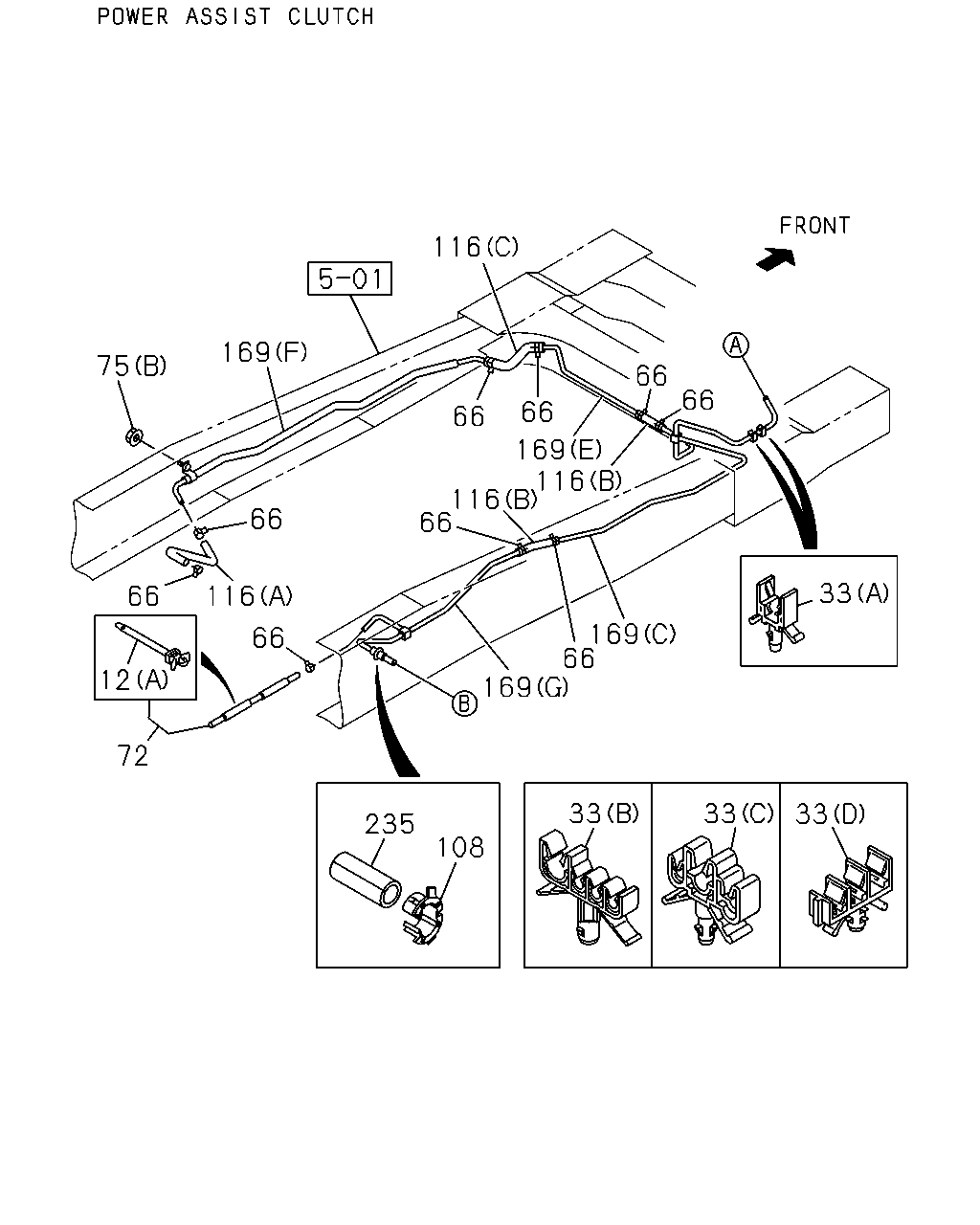

116 169 75 66 66 66 66 169 116 116 66 66 33 116 66 169 66 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	06	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2)	8-98201-857-1	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1509
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (B) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	1510-
116	04.931 HOSE; VAC,M/VAC (A)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (B) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-910-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (F)	8-98180-913-2	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (G)	8-98180-964-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (C)	8-98181-471-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98181-501-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98178-974-4	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (A)	8-98181-470-3	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-965-4	01	1	1111-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-

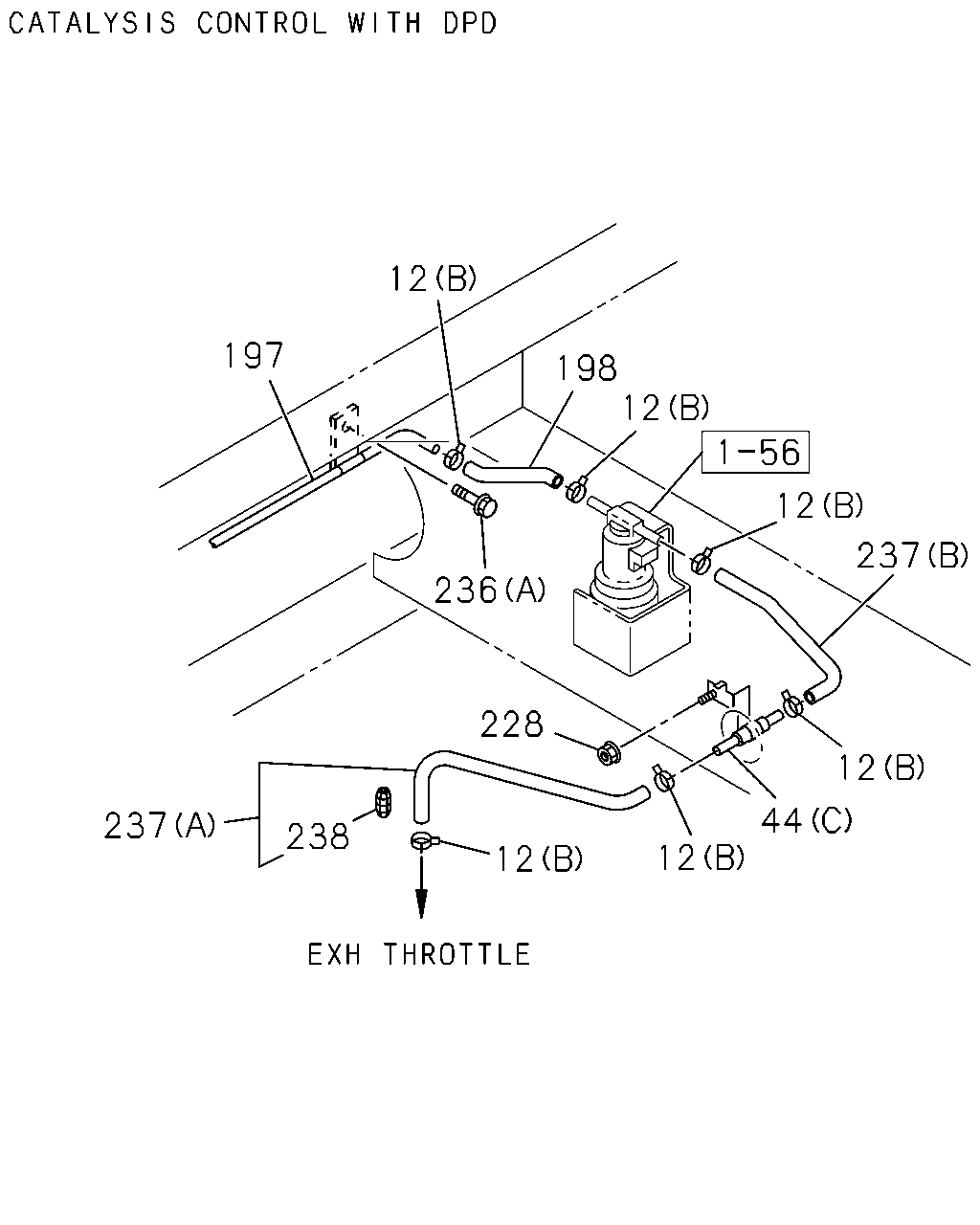

12 197 198 12 12 237 236 228 12 44 12 237 238 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98179-118-4	01	1	1111-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1111
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98206-671-0	01	1	1111-
228	04.930 NUT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97378-771-0	01	1	1111-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-785-1	01	1	1111-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	02	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
