Isuzu WW
▶
TRUCKS
▶
NQR
▶
51391 - NQR BUS A/BRAKE RHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#80870) — 11 parça
◀

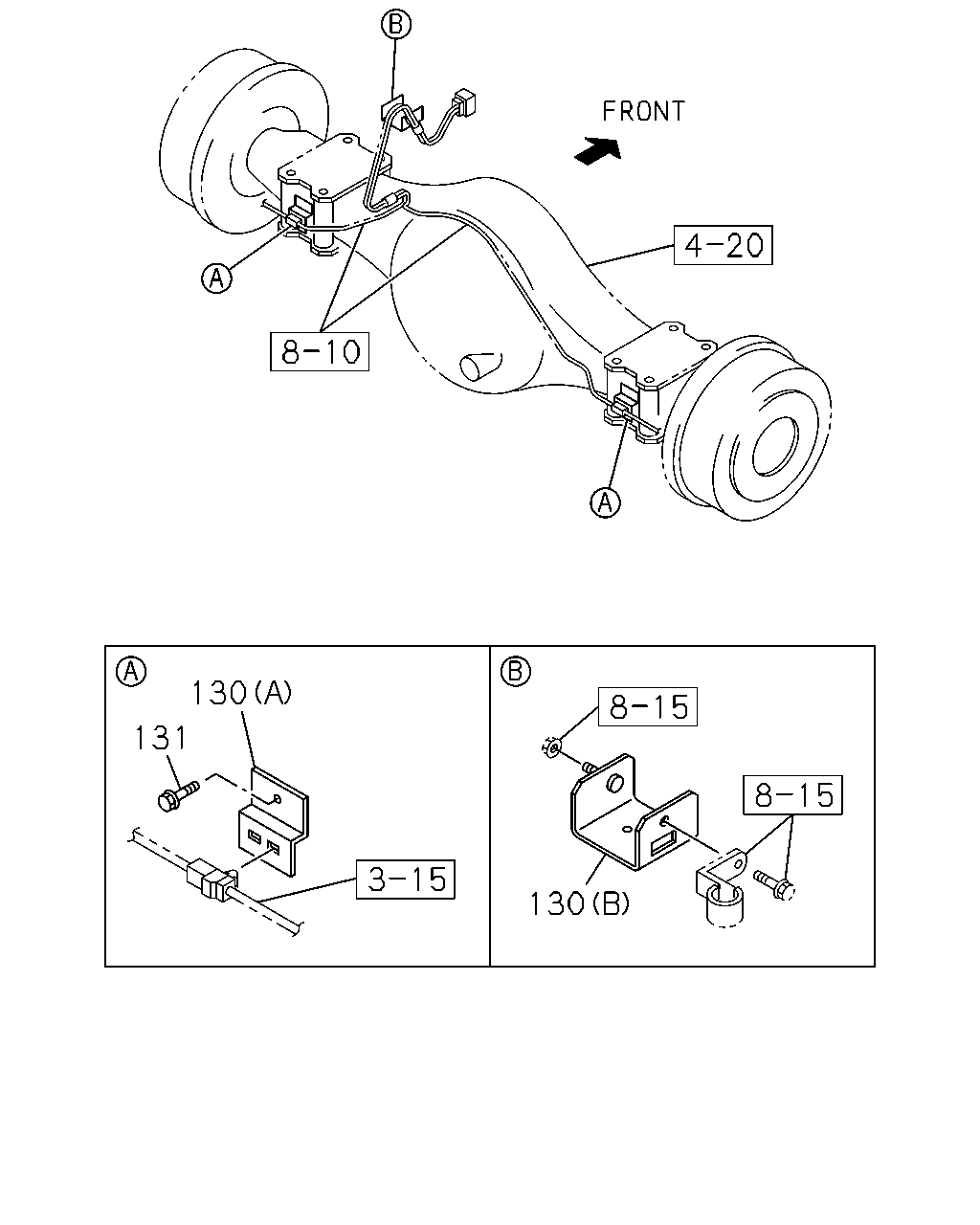

[350A] FRAME SIDE;REAR (3 parça)

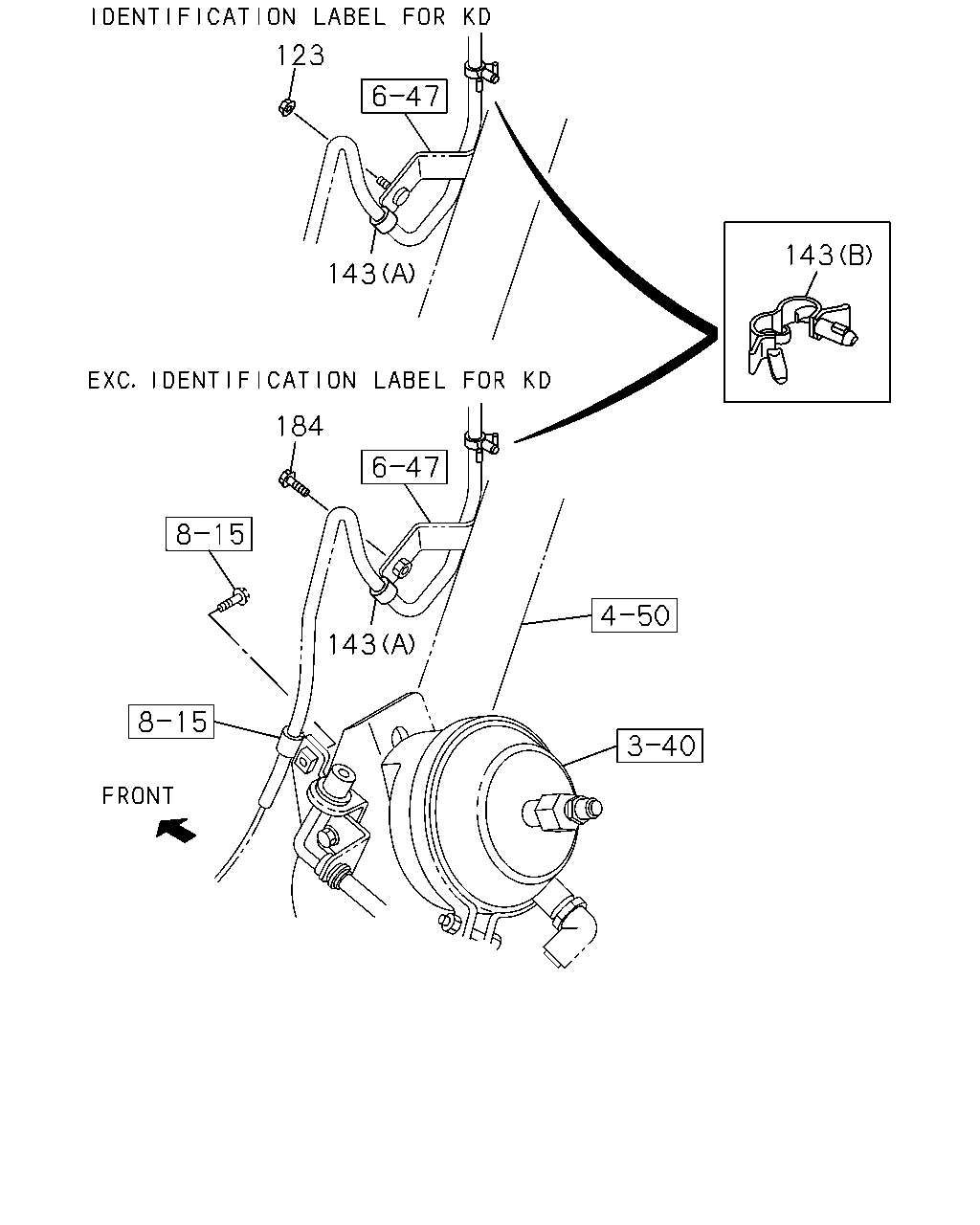

[350A] FRAME SIDE;FRONT (5 parça)

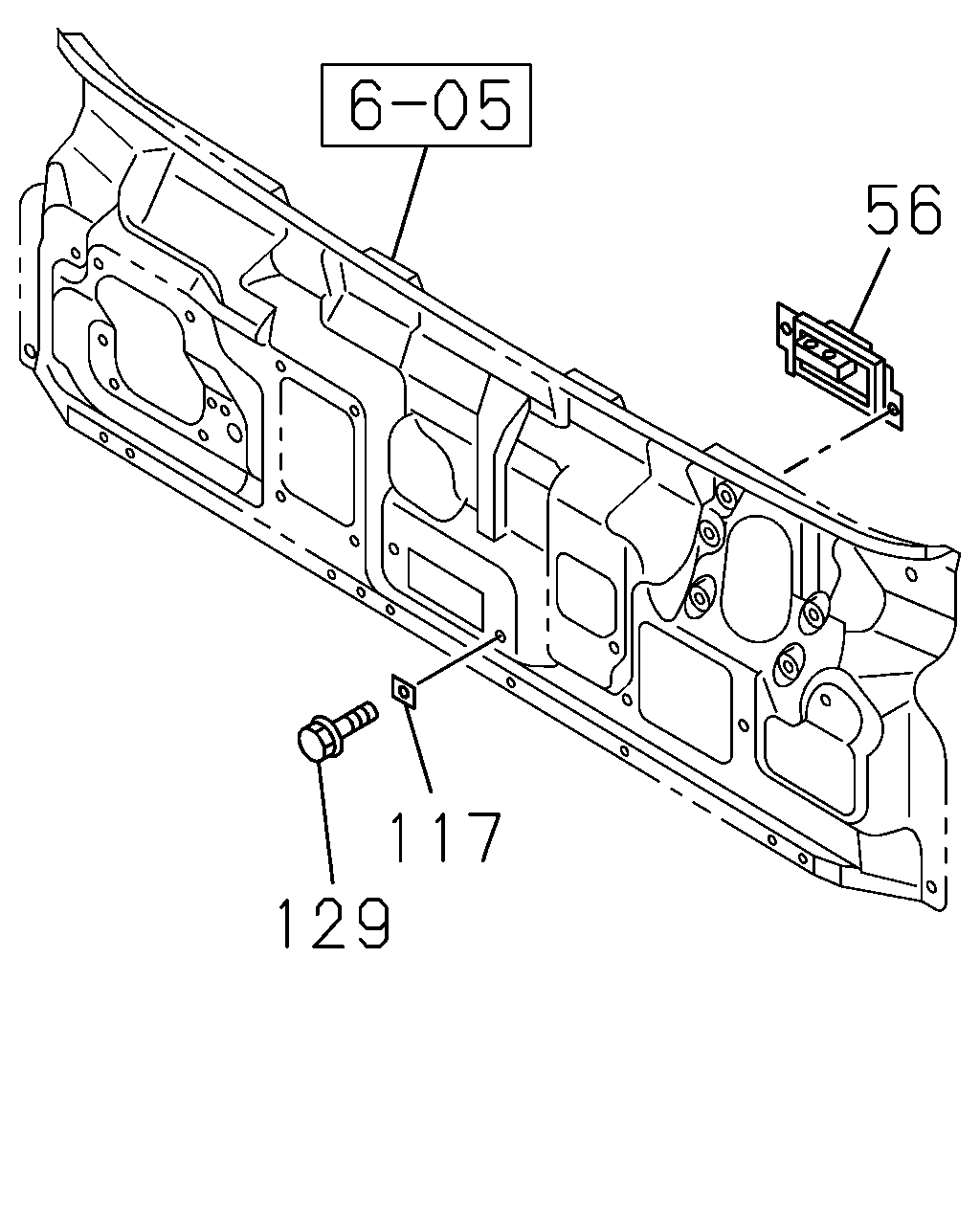

[350A] CAB SIDE (3 parça)
▶
130
131
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97080-060-2
02
1
1111-
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98182-120-1
01
1
1111-
131
04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE
0-28050-812-0
02
1
1111-
123
143
143
184
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
123
04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 M8 FLANGE
0-91180-108-0
02
1
1112-
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (A) ID=11 L=20
0-95235-035-0
02
1
1111-
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) ID=5-12 L=14.5
1-09987-221-0
02
1
1111-
184
04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1111-1111
184
04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1112-
56
117
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
04.686 BRACKET; UNION,BRK
8-98169-733-1
01
1
1111-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
1111-
129
04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
