1 |

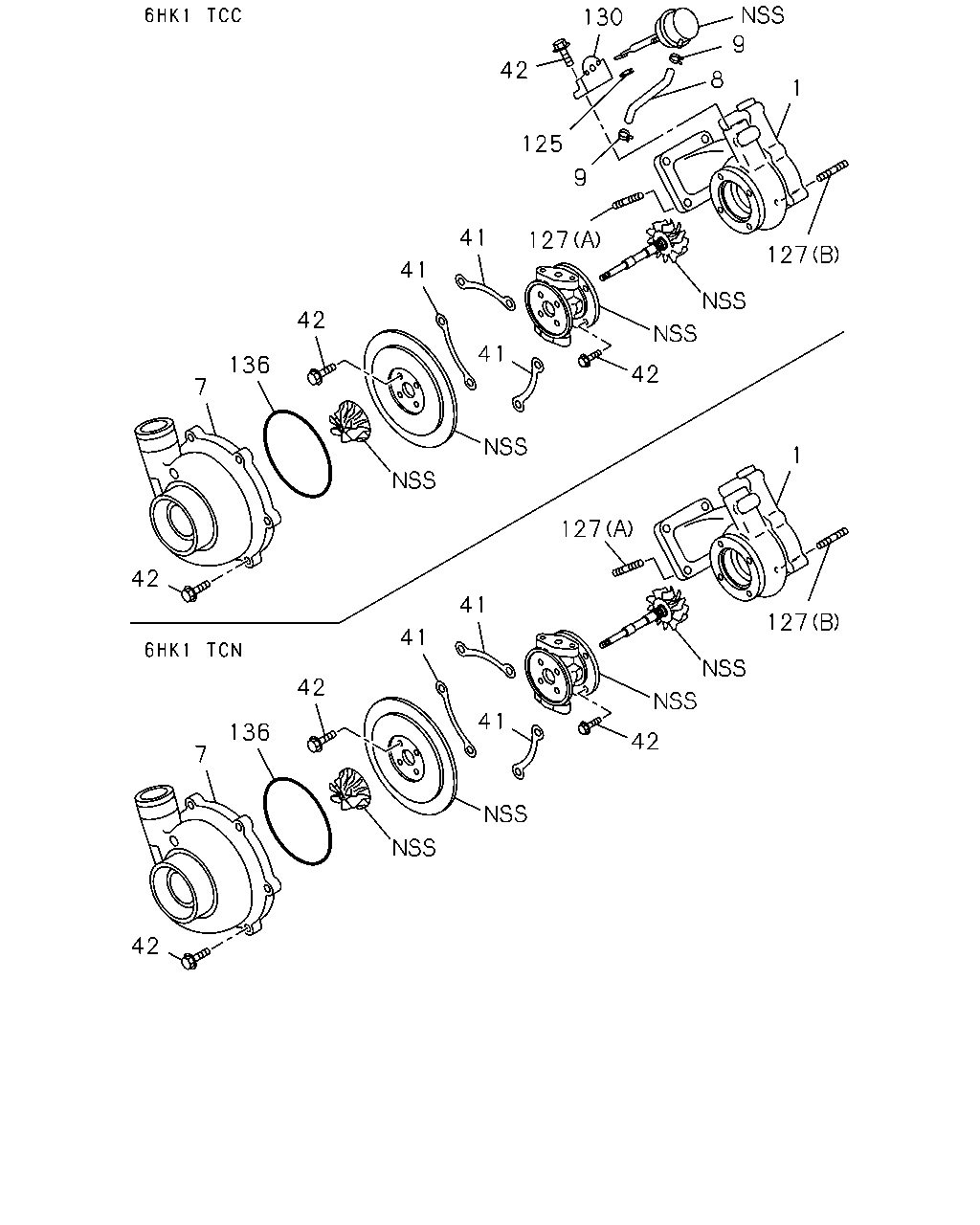

HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14415-110-0 |
01 |
1 |
- |
| |
1 |
HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 8-94390-640-1
|
1-14415-111-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14414-109-0 |
01 |
1 |
- |
| |
7 |
HOUSING; BLOWER,TURBOCHARGER
ASM PART: B = 8-94390-640-1
|
1-14414-110-0 |
01 |
1 |
- |
| |
8 |
HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14419-133-0 |
01 |
1 |
- |
| |
9 |
CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14419-134-0 |
02 |
1 |
- |
| |
41 |
PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-639-2, B = 8-94390-640-1,
C = 8-97602-809-0
|
1-14419-151-0 |
03 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14419-150-0 |
16 |
1 |
- |
| |
42 |
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: B = 8-94390-640-1
|
1-14419-150-0 |
14 |
1 |
- |
| |
125 |
RING; SNAP,CONT LINK
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14419-108-0 |
01 |
1 |
- |
| |
127 |
STUD; TURBOCHARGER
(A) ASM PART: A = 8-94390-639-2, B = 8-94390-640-1,
C = 8-97602-809-0
|
1-14419-137-0 |
02 |
1 |
- |
| |
127 |
STUD; TURBOCHARGER
(B) ASM PART: A = 8-94390-639-2, B = 8-94390-640-1,
C = 8-97602-809-0
|
1-14419-141-0 |
01 |
1 |
- |
| |
130 |
BRACKET; ACTUATOR,TURBO
ASM PART: A = 8-94390-639-2, C = 8-97602-809-0
|
1-14419-152-0 |
01 |
1 |
- |
| |
136 |
GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-94390-639-2, B = 8-94390-640-1,
C = 8-97602-809-0
|
1-14459-064-0 |
01 |
1 |
- |
