Isuzu WW
▶
TRUCKS
▶
NQR
▶
51391 - NQR BUS A/BRAKE RHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#80869) — 74 parça
◀

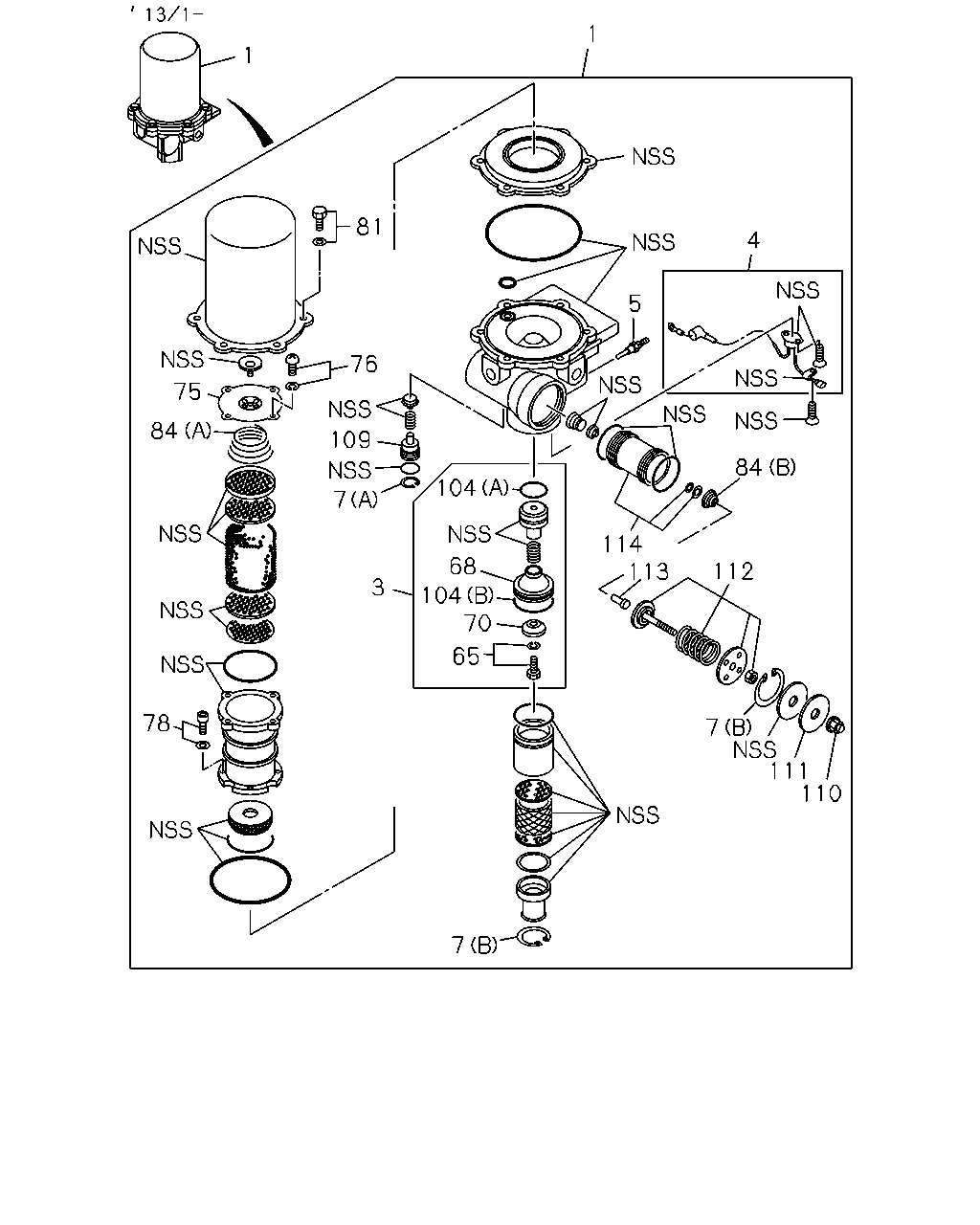

[346A] COMPONENT;AIR DRYER(NO.1) (30 parça)

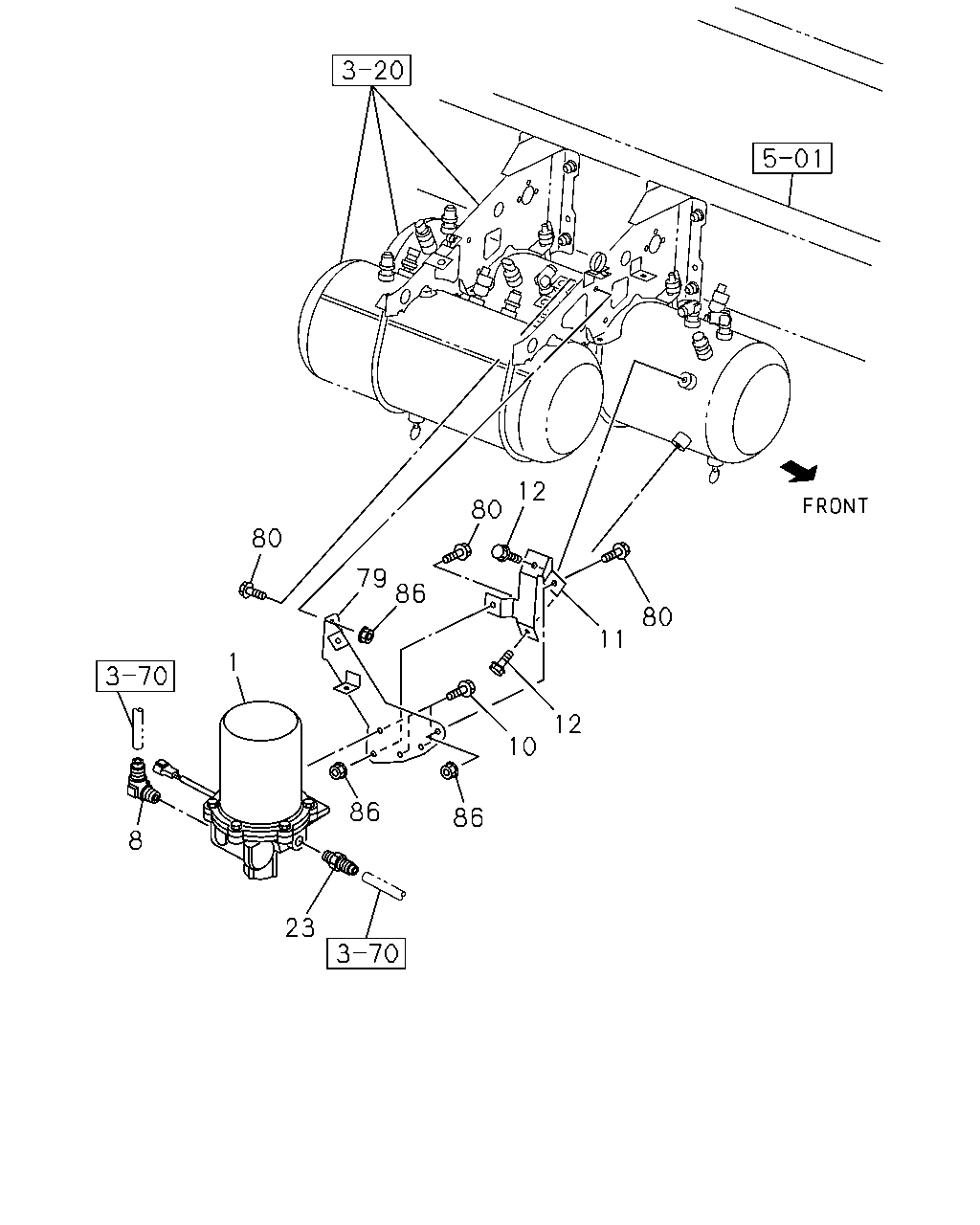

[346A] FIXING;AIR DRYER (11 parça)

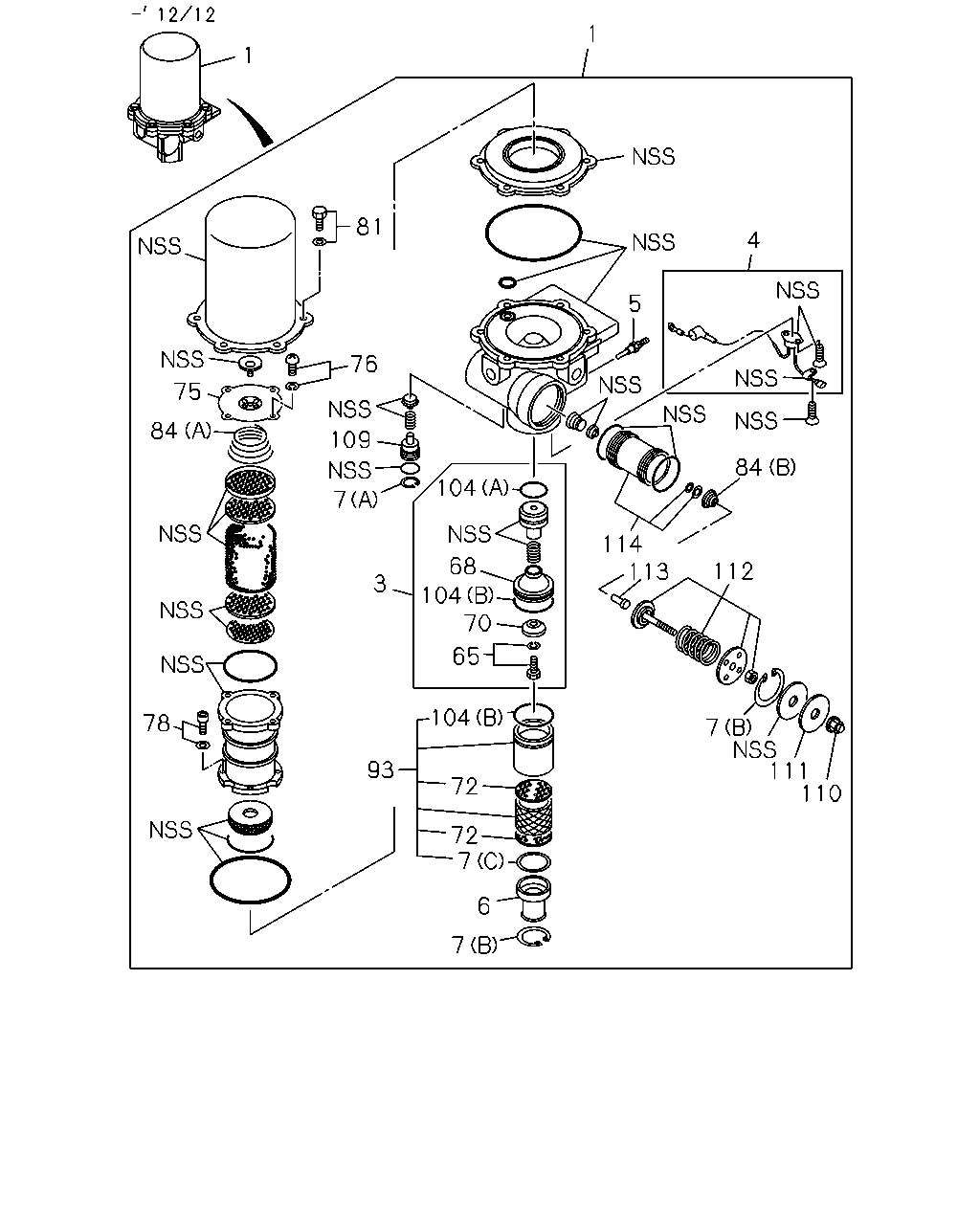

[346A] COMPONENT;AIR DRYER(NO.2) (27 parça)

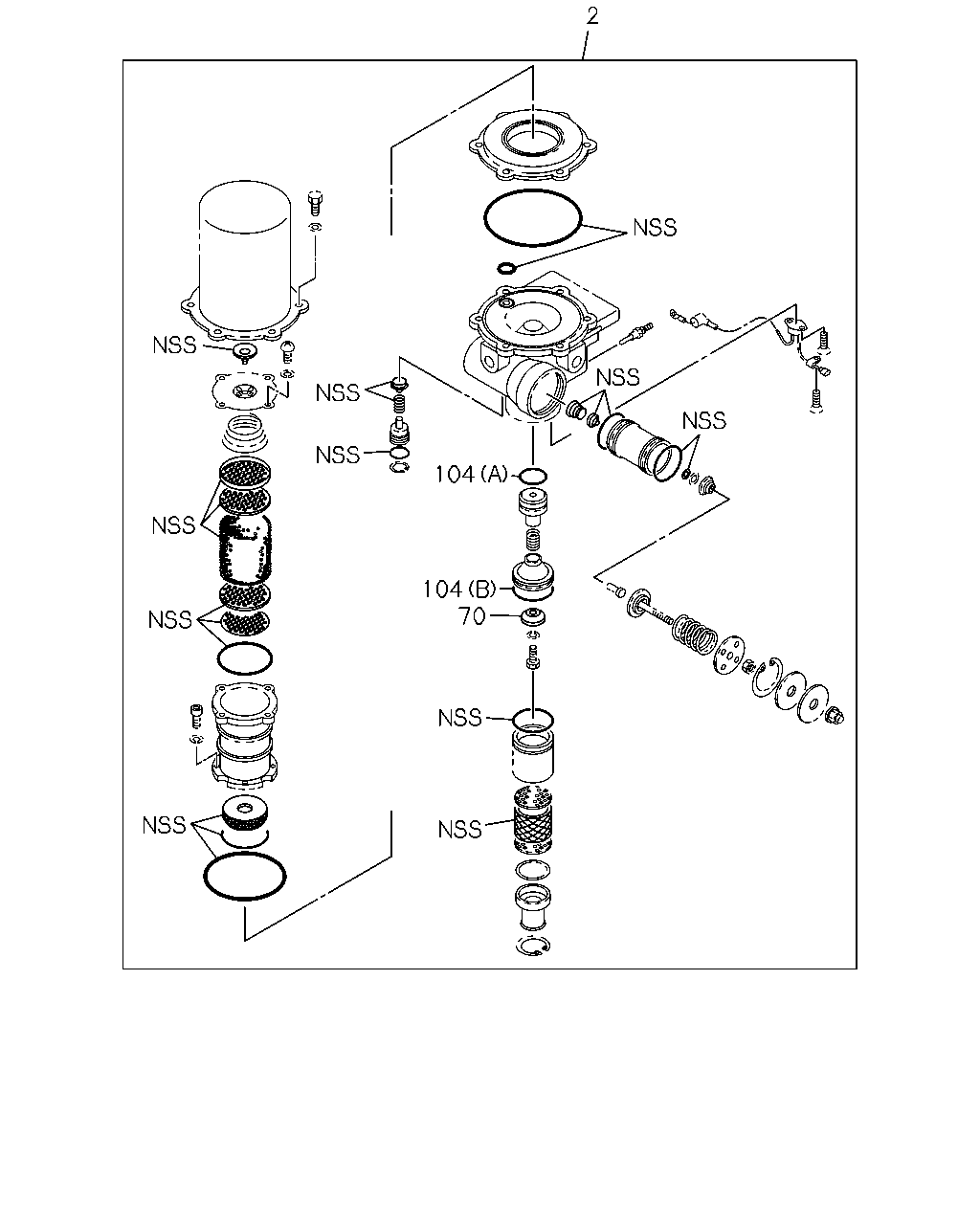

[346A] REPAIR KIT;AIR DRYER (6 parça)
▶
1
1
4
5
84
112
7
111
110
113
114
81
76
109
7
3
93
104
68
104
70
65
104
72
72
7
6
7
75
84
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.846 DRYER; AIR
8-98172-322-0
01
1
1111-1212
1
04.846 DRYER; AIR
8-98225-700-0
01
1
1301-
3
04.846 PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1111-1212
3
04.846 PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1301-
4
04.846 THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
1111-
5
04.846 HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1111-
6
04.846 COVER; EXH,AIR DRYER
1-48199-519-0
01
1
1111-1212
7
04.846 RING; SNAP,AIR DRYER
(C)
1-48199-154-0
01
1
1111-1212
7
04.846 RING; SNAP,AIR DRYER
(B)
1-48199-520-0
02
1
1111-
7
04.846 RING; SNAP,AIR DRYER
(A)
1-48199-529-0
01
1
1111-
65
04.846 BOLT; PURGE VLV
1-48199-517-0
01
1
1111-
68
04.846 BODY; VALVE
1-48199-515-0
01
1
1111-
70
04.846 VALVE; AIR DRYER
1-48199-504-0
01
1
1111-
72
04.846 PLATE; FILTER,AIR DRYER
1-48199-550-0
02
1
1111-1212
75
04.846 COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1111-
76
04.846 BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1111-
78
04.846 BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1111-
81
04.846 BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1111-
84
04.846 SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1111-
84
04.846 SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1111-
93
04.846 SILENCER; AIR DRYER
1-48199-518-0
01
1
1111-1212
104
04.846 GASKET
(A)
1-48199-495-0
01
1
1111-1212
104
04.846 GASKET
(A)
8-98226-321-0
01
1
1301-
104
04.846 GASKET
(B)
1-48199-496-0
02
1
1111-
109
04.846 STOPPER; CHECK VALVE
1-48199-539-0
01
1
1111-
110
04.846 NUT; CAP
1-48199-527-0
01
1
1111-
111
04.846 PLATE; GOVERNOR
1-48199-526-0
01
1
1111-
112
04.846 SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1111-
113
04.846 STEM; EXHAUST
1-48199-522-0
01
1
1111-
114
04.846 PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1111-
12
80
80
79
86
80
11
1
12
10
86
86
8
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.846 DRYER; AIR
8-98172-322-0
01
1
1111-1212
1
04.846 DRYER; AIR
8-98225-700-0
01
1
1301-
8
04.846 CONNECTOR; OUT,AIR DRYER
04.642 DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1111-
10
04.846 BOLT; AIR DRYER
09.171 M10X25 FLANGE
0-28051-025-0
03
1
1111-
11
04.846 BRACKET; AIR DRYER
8-98176-286-2
01
1
1111-
12
04.846 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1111-
23
04.846 CONNECTOR; AIR TANK
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1111-
79
04.846 BRACKET; AIR DRYER
8-98176-285-3
01
1
1111-
80
04.846 BOLT; BRKT
00.029 M10X25 FLANGE
0-28651-025-0
03
1
1111-1111
80
04.846 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
03
1
1111-
86
04.846 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
1111-
1
1
81
76
109
7
3
75
84
78
7
65
70
104
68
104
5
4
84
114
113
112
7
111
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.846 DRYER; AIR
8-98172-322-0
01
1
1111-1212
1
04.846 DRYER; AIR
8-98225-700-0
01
1
1301-
3
04.846 PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1111-1212
3
04.846 PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1301-
4
04.846 THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
1111-
5
04.846 HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1111-
7
04.846 RING; SNAP,AIR DRYER
(C)
1-48199-154-0
01
1
1111-1212
7
04.846 RING; SNAP,AIR DRYER
(B)
1-48199-520-0
02
1
1111-
7
04.846 RING; SNAP,AIR DRYER
(A)
1-48199-529-0
01
1
1111-
65
04.846 BOLT; PURGE VLV
1-48199-517-0
01
1
1111-
68
04.846 BODY; VALVE
1-48199-515-0
01
1
1111-
70
04.846 VALVE; AIR DRYER
1-48199-504-0
01
1
1111-
75
04.846 COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1111-
76
04.846 BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1111-
78
04.846 BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1111-
81
04.846 BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1111-
84
04.846 SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1111-
84
04.846 SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1111-
104
04.846 GASKET
(A)
1-48199-495-0
01
1
1111-1212
104
04.846 GASKET
(A)
8-98226-321-0
01
1
1301-
104
04.846 GASKET
(B)
1-48199-496-0
02
1
1111-
109
04.846 STOPPER; CHECK VALVE
1-48199-539-0
01
1
1111-
110
04.846 NUT; CAP
1-48199-527-0
01
1
1111-
111
04.846 PLATE; GOVERNOR
1-48199-526-0
01
1
1111-
112
04.846 SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1111-
113
04.846 STEM; EXHAUST
1-48199-522-0
01
1
1111-
114
04.846 PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1111-
2
104
104
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.846 REPAIR KIT; AIR DRYER
8-98206-119-0
01
1
1111-1212
2
04.846 REPAIR KIT; AIR DRYER
8-98226-324-0
01
1
1301-
70
04.846 VALVE; AIR DRYER
1-48199-504-0
01
1
1111-
104
04.846 GASKET
(A)
1-48199-495-0
01
1
1111-1212
104
04.846 GASKET
(A)
8-98226-321-0
01
1
1301-
104
04.846 GASKET
(B)
1-48199-496-0
02
1
1111-
