2-25 — SPEEDOMETER DRIVEN GEAR (#80852) — 11 parça

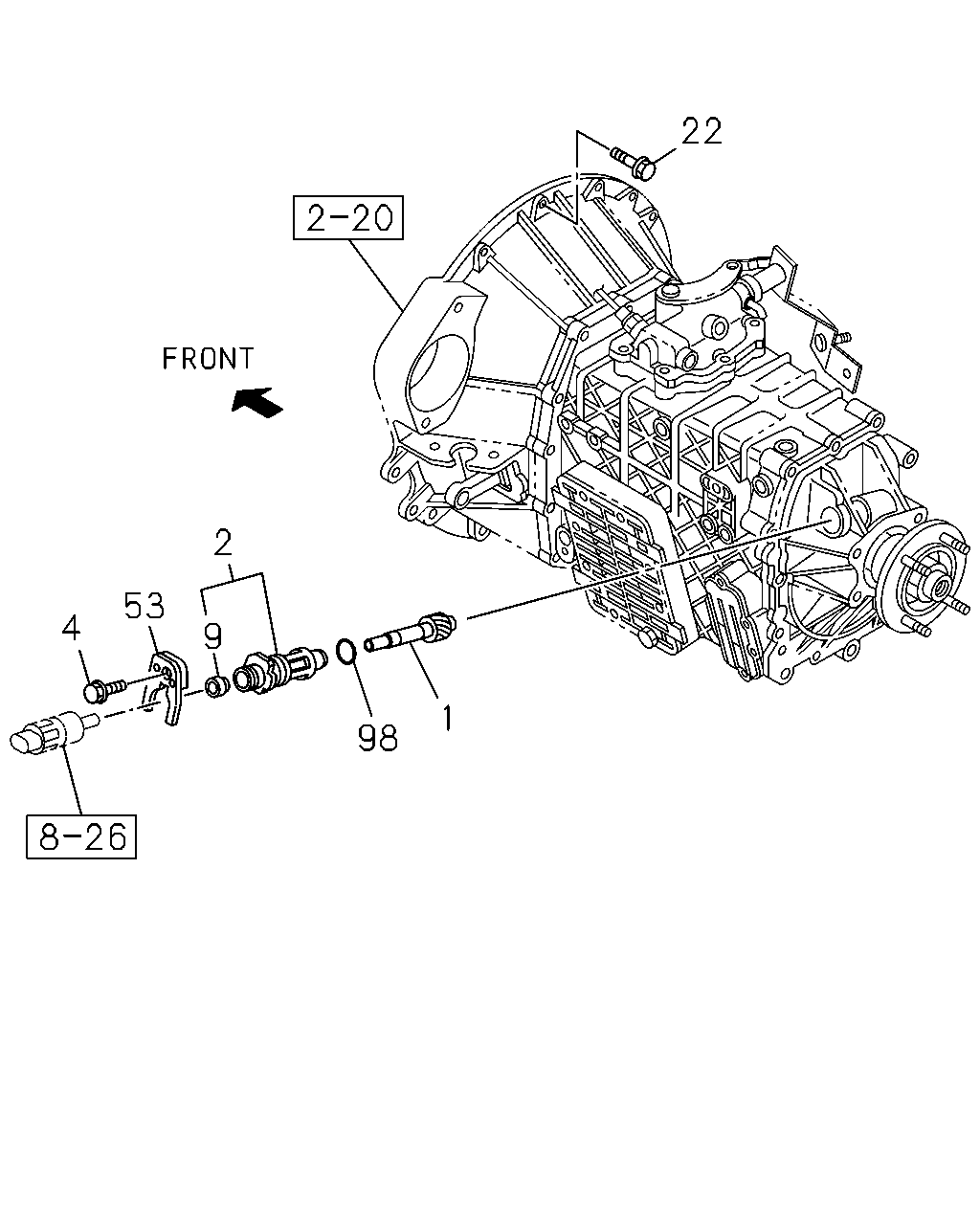

çizim 183347
22 2 53 4 9 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) Z=10 		8-97253-579-1 01 1 1111-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) Z=12 		8-97253-563-1 01 1 1111-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) MARK "10,11,16,17" 		8-97253-124-0 01 1 1111-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1111-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1111-
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1111-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1111-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1111-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1111-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1111-
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 1111-
