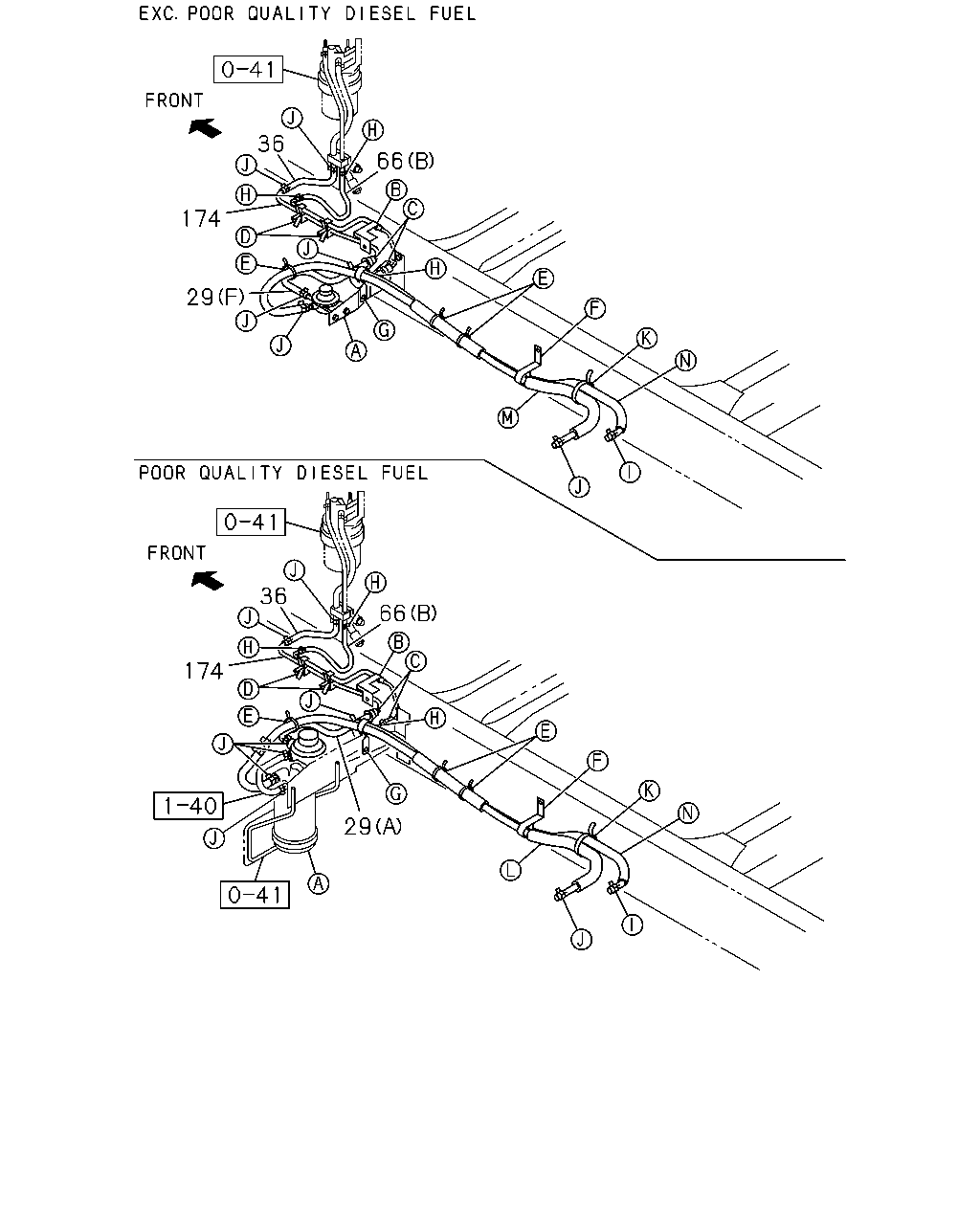

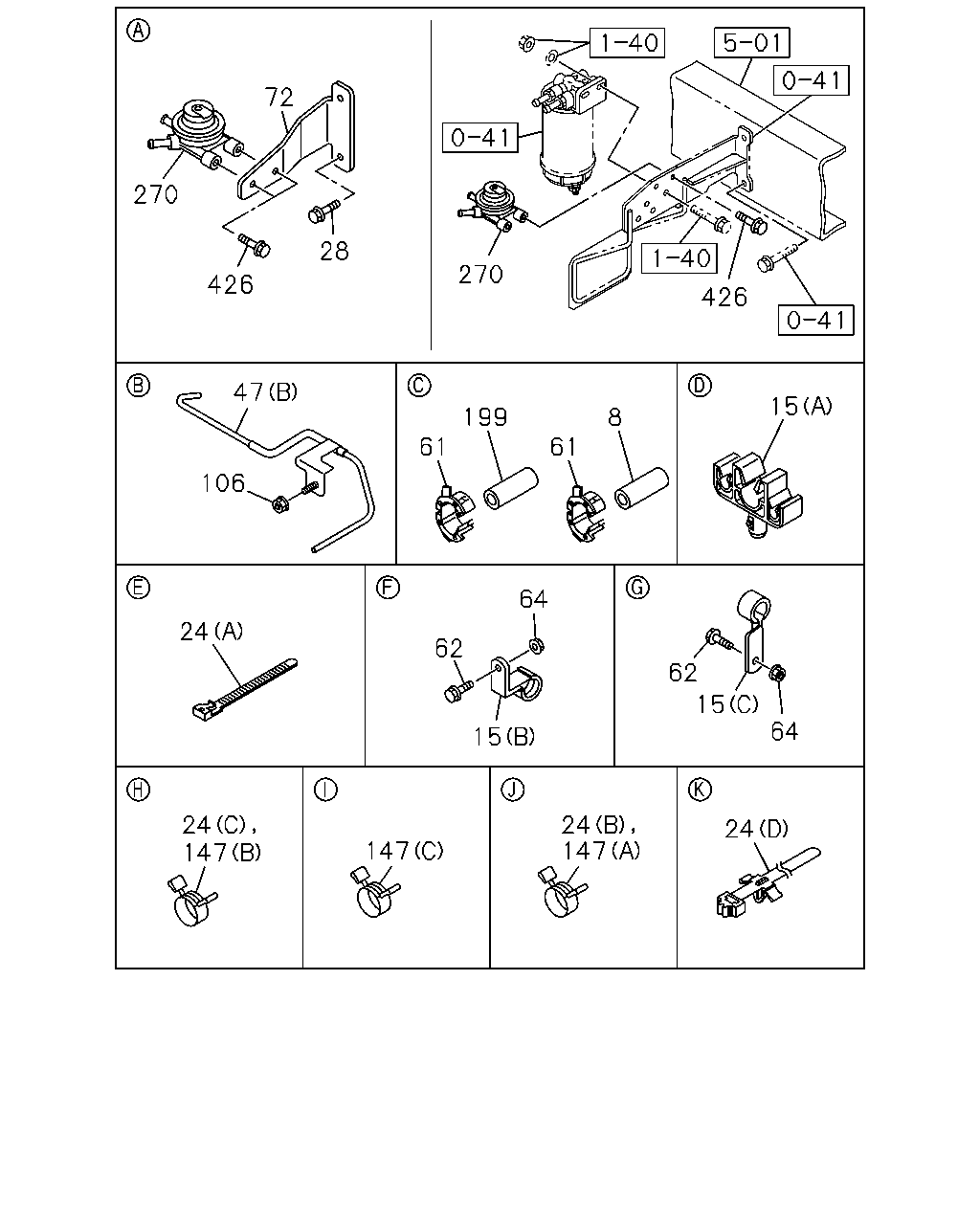

1-41 — FUEL PIPING; CHASSIS (#80840) — 88 parça

72 270 28 270 426 426 47 15 199 8 61 61 106 64 24 62 62 15 64 15 24 147 24 147 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	1111-
15	03.162 CLIP; FUEL PIPE (A)	8-98153-939-1	02	1	1111-
15	03.162 CLIP; FUEL PIPE FUEL TANK 100 LITTER<N02> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1111-1204
15	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL(KF0) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1205-1507
15	03.162 CLIP; FUEL PIPE FUEL TANK 100 LITTER<N02> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1508-
15	03.162 CLIP; FUEL PIPE 02.559 (C) ID=28 L=60	1-09700-585-1	01	1	1111-
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1111-
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	1111-
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> 02.559 (D) L=170.3	1-09987-182-0	01	1	1111-1509
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 140 LITTER<N19> 02.559 (D) L=170.3	1-09987-182-0	01	1	1510-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1111-
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	01	1	1111-
24	03.162 CLIP; FUEL HOSE FUEL TANK 140 LITTER<N19> 02.559 (A) L=250	5-09707-030-1	01	1	1111-1111
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 4100MM(41W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-1204
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1205-1403
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1404-
47	03.163 PIPE; FUEL,RETURN (B)	8-98094-092-0	01	1	1111-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1111-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	1111-
62	03.162 BOLT; CLIP FIX FUEL TANK 140 LITTER<N19> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-
62	03.162 BOLT; CLIP FIX FUEL TANK 100 LITTER<N02> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1507
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1507
62	03.162 BOLT; CLIP FIX FUEL TANK 100 LITTER<N02> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-
64	03.162 NUT; CLIP FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
64	03.162 NUT; CLIP FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1507
64	03.162 NUT; CLIP FUEL TANK 100 LITTER<N02> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 4100MM(41W) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1111-1204
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1205-1403
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1404-
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	05	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	05	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	03	1	1111-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1111-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	1111-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1111-

147 311 147 29 29 147 147 311 311 147 147 29 147 311 147 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (B)	8-98099-508-2	01	1	1111-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98099-502-0	01	1	1111-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (D)	8-98177-619-0	01	1	1111-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98177-876-2	01	1	1111-
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98037-758-0	01	1	1111-
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98177-620-1	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	05	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (A) ID=16	8-98008-098-0	02	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (A) ID=16	8-98008-098-0	04	1	1111-1509
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	05	1	1510-
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1111-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	03	1	1111-
311	03.163 JOINT; HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	01	1	1111-1509
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>	8-97353-668-0	01	1	1111-1509
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19>	8-97353-668-0	02	1	1510-
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19>	8-97353-668-0	02	1	1111-1509
311	03.163 JOINT; HOSE POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>	8-97353-668-0	01	1	1510-
311	03.163 JOINT; HOSE FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	01	1	1510-

66 124 47 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	03.163 PIPE; FUEL,RETURN (B)	8-98094-092-0	01	1	1111-
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02> (A)	8-98094-133-2	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19> (A)	8-98177-621-0	01	1	1111-
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1111-
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1111-

66 36 174 29 36 66 174 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02> (B)	8-98099-508-2	01	1	1111-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (A)	8-98099-502-0	01	1	1111-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 140 LITTER<N19> (D)	8-98177-619-0	01	1	1111-
29	03.163 HOSE; FUEL FUEL TANK 100 LITTER<N02> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98177-876-2	01	1	1111-
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98037-758-0	01	1	1111-
29	03.163 HOSE; FUEL FUEL TANK 140 LITTER<N19> EXC. POOR QUALITY DIESEL FUEL(KF0) (E)	8-98177-620-1	01	1	1111-
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2)	8-98171-618-0	01	1	1111-
36	03.163 HOSE; FUEL,FILTER TO TANK EURO5 SPECIFICATION(NT5)	8-98034-028-1	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 100 LITTER<N02> (A)	8-98094-133-2	01	1	1111-
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 140 LITTER<N19> (A)	8-98177-621-0	01	1	1111-
174	03.163 PIPE; FUEL,FEED,FRT	8-98158-899-0	01	1	1111-
