Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#80837) — 282 parça

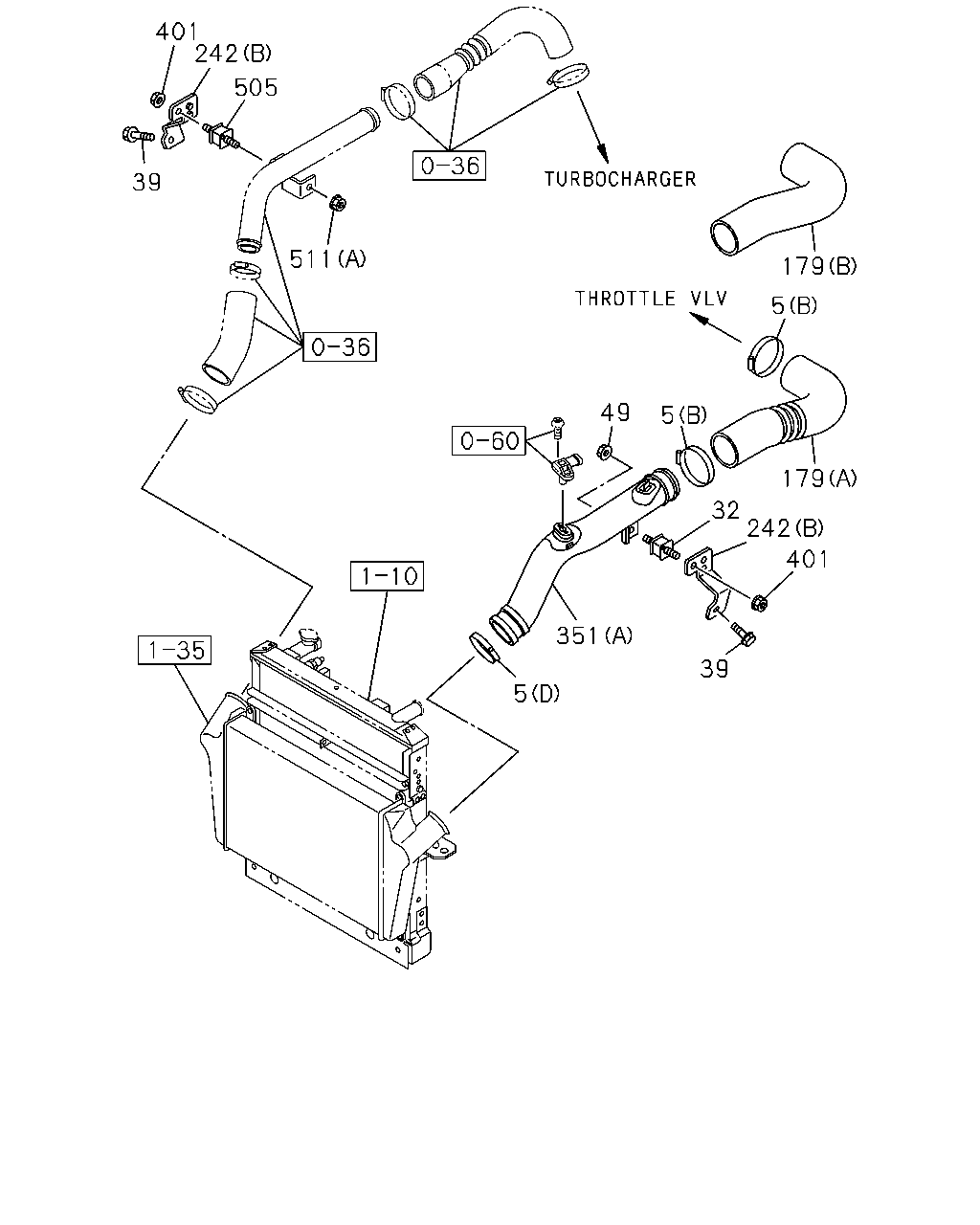

401 242 505 39 511 179 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-1202
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1203-1308
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-1202
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1111-
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-
179	03.417 HOSE; AIR INT EURO2 SPECIFICATION(NT2) (A)	8-98114-719-0	01	1	1111-
179	03.417 HOSE; AIR INT EURO5 SPECIFICATION(NT5) (B)	8-98117-928-2	01	1	1111-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (I)	8-98202-506-0	01	1	1203-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (E)	8-98179-375-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT 03.317 (G)	8-98036-825-0	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (H)	8-98036-826-0	02	1	1111-1202
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (F)	8-98179-401-0	01	1	1111-1202
351	03.407 DUCT; AIR (B)	8-98202-502-0	01	1	1203-
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1111-
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1111-
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-

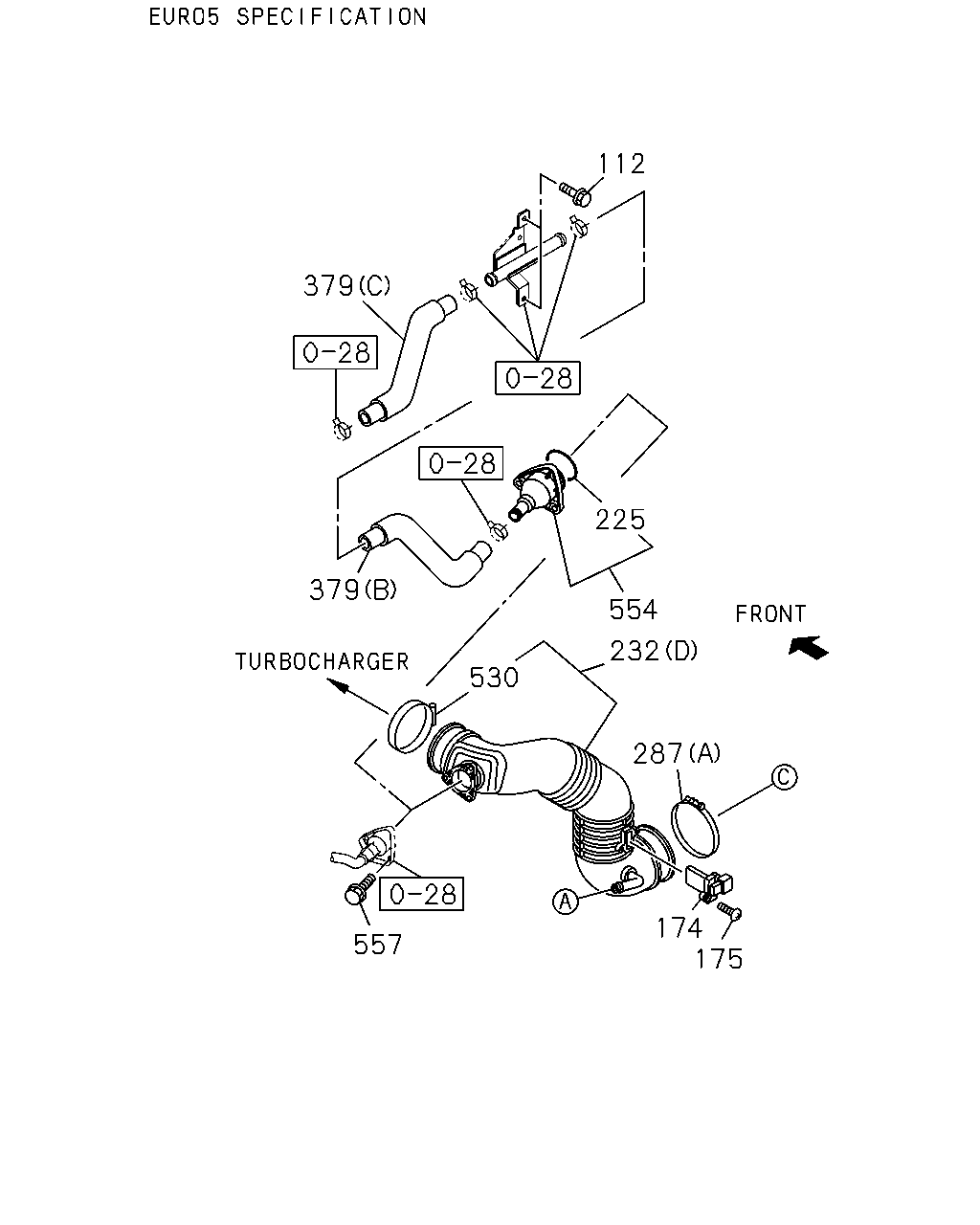

112 379 379 530 225 554 232 287 174 175 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1111-
174	03.682 SENSOR; AIR FLOW CONT EURO5 SPECIFICATION(NT5)	8-97601-967-0	01	1	1111-
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO5 SPECIFICATION(NT5) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1111-
225	03.417 GASKET; AIR PIPE EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1202
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1203-1308
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) (B)	8-98175-752-0	01	1	1309-
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (D)	8-98281-174-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1309-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1111-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
530	03.407 CLAMP; AIR DUCT EURO5 SPECIFICATION(NT5) ID=77-99	1-09707-141-0	01	1	1407-
554	04.439 FLANGE; PIPE,PCV EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1111-
557	03.403 BOLT; HOSE CLIP EURO5 SPECIFICATION(NT5) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1111-

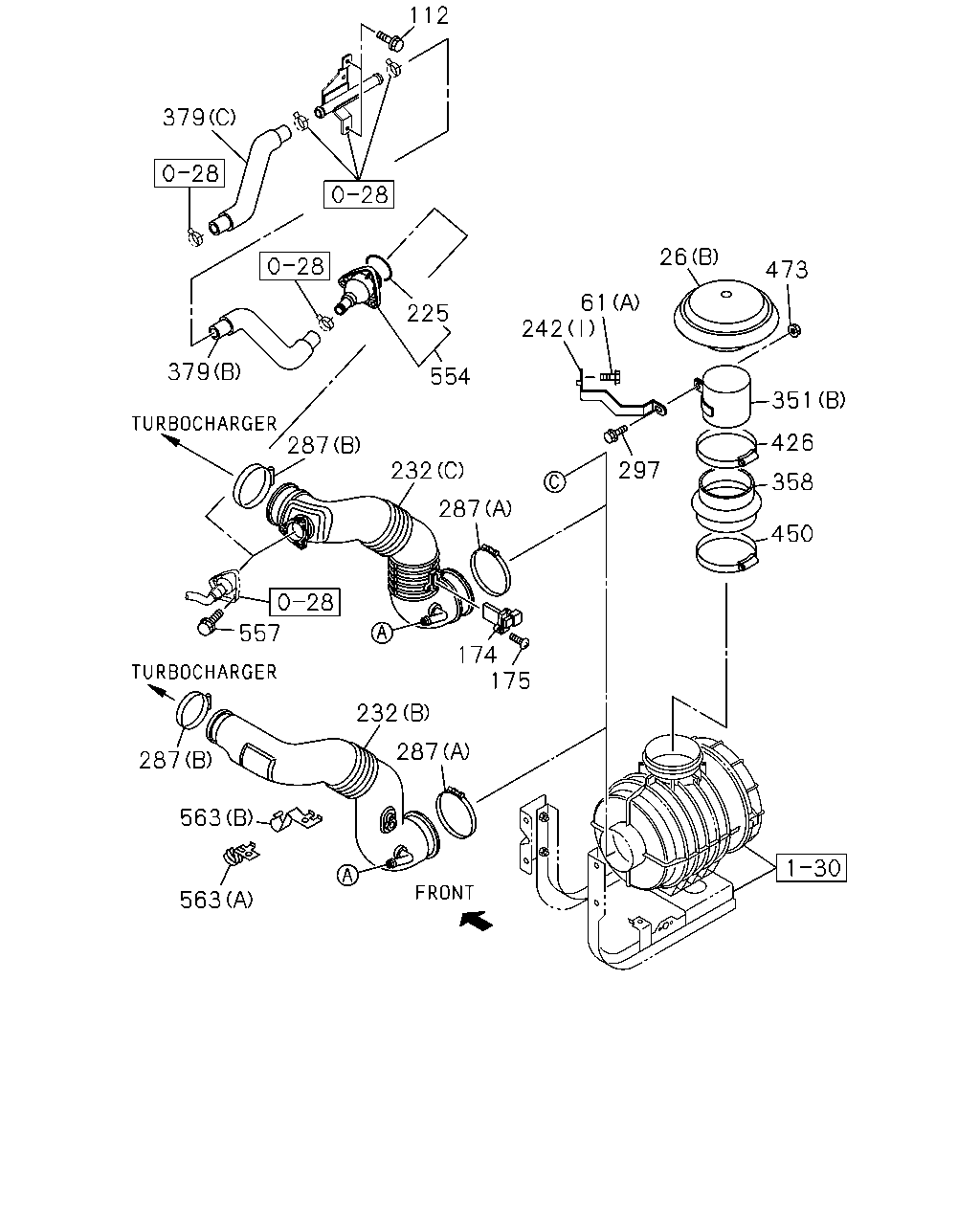

112 379 379 225 554 242 61 26 473 351 426 358 450 297 287 232 287 557 287 563 563 287 232 175 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1111-1202
26	03.417 DUCT; AIR INT (B) W/CLAMP	1-14219-171-0	01	1	1203-
61	03.417 BOLT; BRKT,AIR DUCT 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1203-
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1111-
174	03.682 SENSOR; AIR FLOW CONT EURO5 SPECIFICATION(NT5)	8-97601-967-0	01	1	1111-
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO5 SPECIFICATION(NT5) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1111-
225	03.417 GASKET; AIR PIPE EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1202
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1203-1308
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) (B)	8-98175-752-0	01	1	1309-
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (D)	8-98281-174-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1309-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (I)	8-98202-506-0	01	1	1203-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (E)	8-98179-375-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT 03.317 (G)	8-98036-825-0	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (H)	8-98036-826-0	02	1	1111-1202
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (F)	8-98179-401-0	01	1	1111-1202
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
297	03.417 BOLT; DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1203-
351	03.407 DUCT; AIR (B)	8-98202-502-0	01	1	1203-
351	03.407 DUCT; AIR (A)	8-98105-722-1	01	1	1111-
358	03.417 HOSE; RUBBER,PIPE TO PIPE	8-98202-543-0	01	1	1203-
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1111-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
426	03.417 CLIP; DUCT 03.407 ID=104-142	1-09707-155-0	01	1	1203-
450	03.417 CLAMP; HOSE 03.407 ID=130-169	1-09707-157-0	01	1	1203-
473	03.417 NUT; DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1203-
554	04.439 FLANGE; PIPE,PCV EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1111-
557	03.403 BOLT; HOSE CLIP EURO5 SPECIFICATION(NT5) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.750 (A)	8-98030-387-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98090-587-0	01	1	1111-

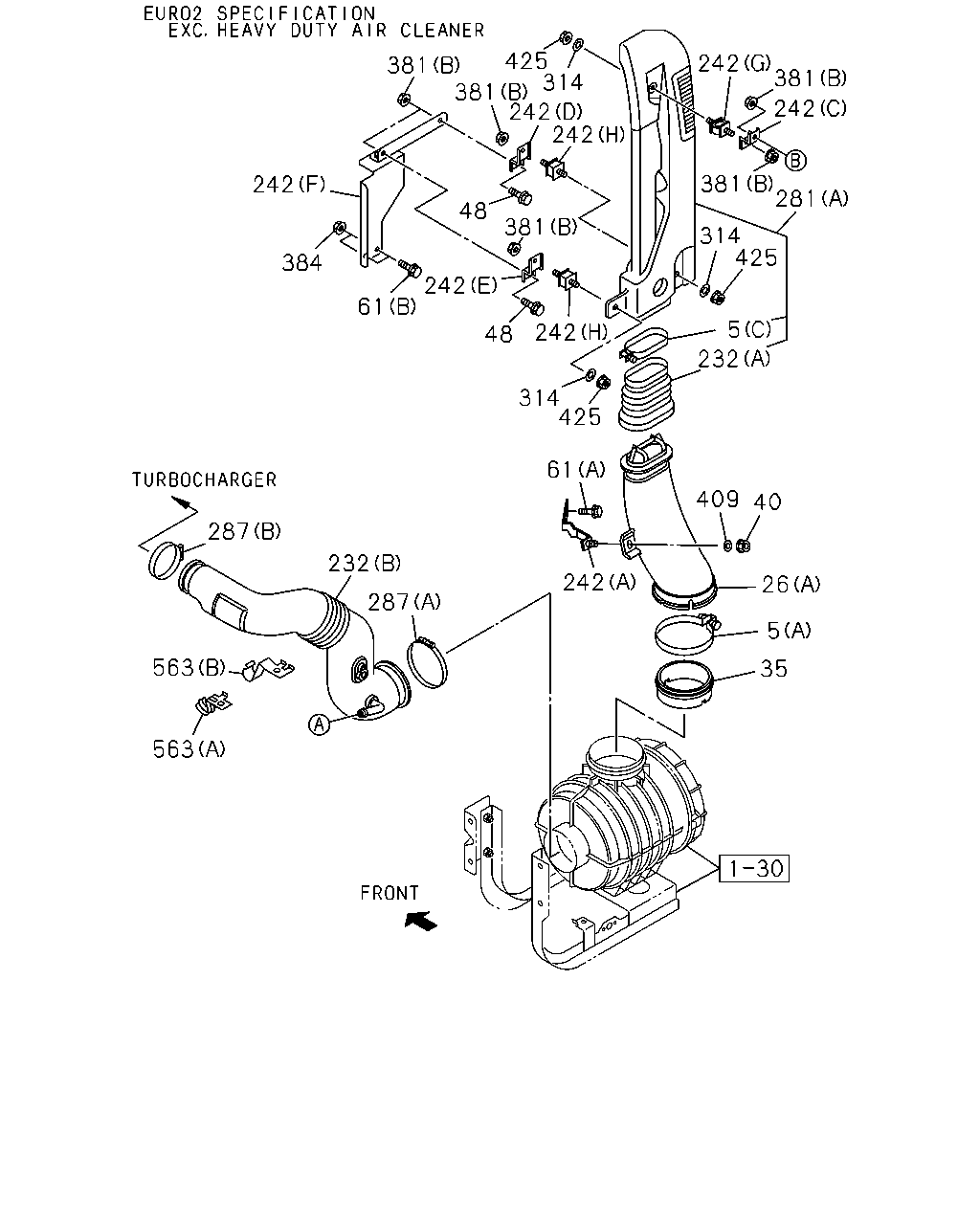

425 314 381 381 242 242 242 381 242 242 381 281 48 242 314 425 384 381 61 5 242 48 232 314 425 61 409 40 287 232 242 26 287 5 35 563 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-1202
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1203-1308
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-1202
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1111-1202
26	03.417 DUCT; AIR INT (B) W/CLAMP	1-14219-171-0	01	1	1203-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-1202
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-1202
48	03.417 BOLT; AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1203-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1202
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1203-1308
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) (B)	8-98175-752-0	01	1	1309-
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (D)	8-98281-174-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1309-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (I)	8-98202-506-0	01	1	1203-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (E)	8-98179-375-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT 03.317 (G)	8-98036-825-0	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (H)	8-98036-826-0	02	1	1111-1202
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (F)	8-98179-401-0	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-4	01	1	1111-1308
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT EURO5 SPECIFICATION(NT5) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-1	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1309-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	06	1	1111-1202
384	03.417 NUT; AIR INT DUCT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1202
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-1202
425	03.417 CUSHION; BRKT TO DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1111-1202
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.750 (A)	8-98030-387-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98090-587-0	01	1	1111-

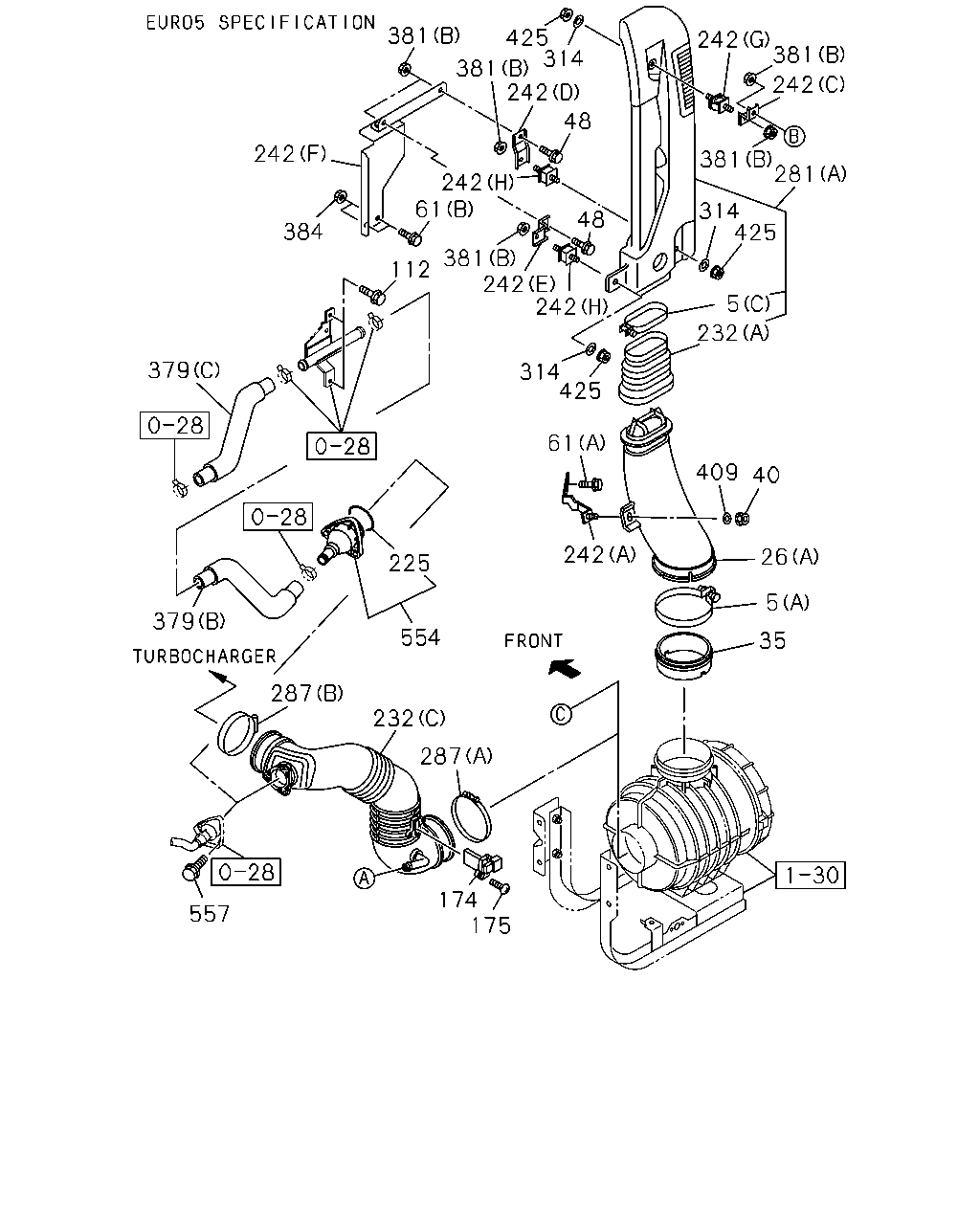

425 314 242 381 381 381 242 242 242 381 281 242 48 381 314 425 384 242 61 5 242 48 232 314 425 61 409 40 287 232 242 26 287 5 563 35 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-1202
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1203-1308
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-1202
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1111-1202
26	03.417 DUCT; AIR INT (B) W/CLAMP	1-14219-171-0	01	1	1203-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-1202
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-1202
48	03.417 BOLT; AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1203-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1202
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1203-1308
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) (B)	8-98175-752-0	01	1	1309-
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (D)	8-98281-174-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1309-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (I)	8-98202-506-0	01	1	1203-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (E)	8-98179-375-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT 03.317 (G)	8-98036-825-0	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (H)	8-98036-826-0	02	1	1111-1202
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (F)	8-98179-401-0	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-4	01	1	1111-1308
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT EURO5 SPECIFICATION(NT5) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-1	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1309-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	06	1	1111-1202
384	03.417 NUT; AIR INT DUCT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1202
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-1202
425	03.417 CUSHION; BRKT TO DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1111-1202
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) FRIGID ZONE(YL3) 01.750 (A)	8-98030-387-0	01	1	1111-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2) EXC. FRIGID ZONE(YL3) (B)	8-98090-587-0	01	1	1111-

425 381 314 381 242 48 242 381 242 381 281 314 425 5 232 425 314 242 242 48 381 112 61 242 384 242 379 379 287 225 554 242 61 409 26 5 35 175 174 557 287 232 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1111-1202
5	03.407 CLIP; AIR DUCT HEAVY DUTY AIR CLEANER<K46> (C) D=101.6	9-09915-502-1	01	1	1203-1308
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1111-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1111-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1111-1202
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1111-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1111-
26	03.417 DUCT; AIR INT (A)	8-98025-626-0	01	1	1111-1202
26	03.417 DUCT; AIR INT (B) W/CLAMP	1-14219-171-0	01	1	1203-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1111-1202
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-1202
48	03.417 BOLT; AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 04.338 (B) M8X20 FLANGE	0-28050-820-0	02	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1111-1202
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1203-
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-
112	03.417 BOLT; CLIP EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1111-
174	03.682 SENSOR; AIR FLOW CONT EURO5 SPECIFICATION(NT5)	8-97601-967-0	01	1	1111-
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO5 SPECIFICATION(NT5) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1111-
225	03.417 GASKET; AIR PIPE EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1111-
232	03.417 HOSE; CONN (A)	8-98082-535-0	01	1	1111-1202
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98082-535-0	01	1	1203-1308
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98175-753-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98175-752-0	01	1	1111-1308
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) (B)	8-98175-752-0	01	1	1309-
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98175-749-0	01	1	1111-1402
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (C)	8-98272-695-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO5 SPECIFICATION(NT5) (D)	8-98281-174-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> (A)	8-98231-785-0	01	1	1309-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (I)	8-98202-506-0	01	1	1203-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (E)	8-98179-375-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1111-
242	03.417 BRACKET; AIR DUCT 03.317 (G)	8-98036-825-0	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (H)	8-98036-826-0	02	1	1111-1202
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1111-1202
242	03.417 BRACKET; AIR DUCT (F)	8-98179-401-0	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-4	01	1	1111-1308
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98000-230-4	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT EURO5 SPECIFICATION(NT5) EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98080-929-1	01	1	1111-1202
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (B)	8-98101-995-5	01	1	1309-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75	8-98133-349-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79	1-09707-136-0	01	1	1111-
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=75-95	8-98133-357-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=77-99	1-09707-141-0	01	1	1111-1406
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=112	9-09915-074-1	01	1	1111-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1111-1202
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1111-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
381	03.417 NUT; BRKT,AIR DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	06	1	1111-1202
384	03.417 NUT; AIR INT DUCT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1202
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-1202
425	03.417 CUSHION; BRKT TO DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1111-1202
554	04.439 FLANGE; PIPE,PCV EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1111-
557	03.403 BOLT; HOSE CLIP EURO5 SPECIFICATION(NT5) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1111-

424 511 379 357 357 159 357 379 357 48 568 127 113 381 288 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	03.417 BOLT; AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1111-1202
64	03.417 BOLT; BRKT,AIR DUCT 03.890 M10X30 FLANGE	0-28051-030-0	01	1	1111-1202
113	03.402 BOLT; RESONATOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-1202
127	03.417 NUT; RESONATOR 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-1202
159	03.417 BOLT; AIR PIPE 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1111-
288	03.417 BRACKET; DUCT	8-98181-938-1	01	1	1111-1202
357	03.417 CLIP; RUBBER HOSE 01.153 ID=24	8-98025-921-0	04	1	1111-
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1111-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1111-
379	03.675 HOSE; RUBBER EURO5 SPECIFICATION(NT5) FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1111-
381	03.417 NUT; BRKT,AIR DUCT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-1202
381	03.417 NUT; BRKT,AIR DUCT (B) M8 W/LK WASHER	8-97581-234-0	06	1	1111-1202
424	03.417 PIPE; AIR,INL	8-98180-496-2	01	1	1111-
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-
568	02.277 BRACE; RESONATOR,ACL	8-98181-936-0	01	1	1111-1202

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
