0-32 — WATER PIPING; ENGINE (#8083) — 45 parça

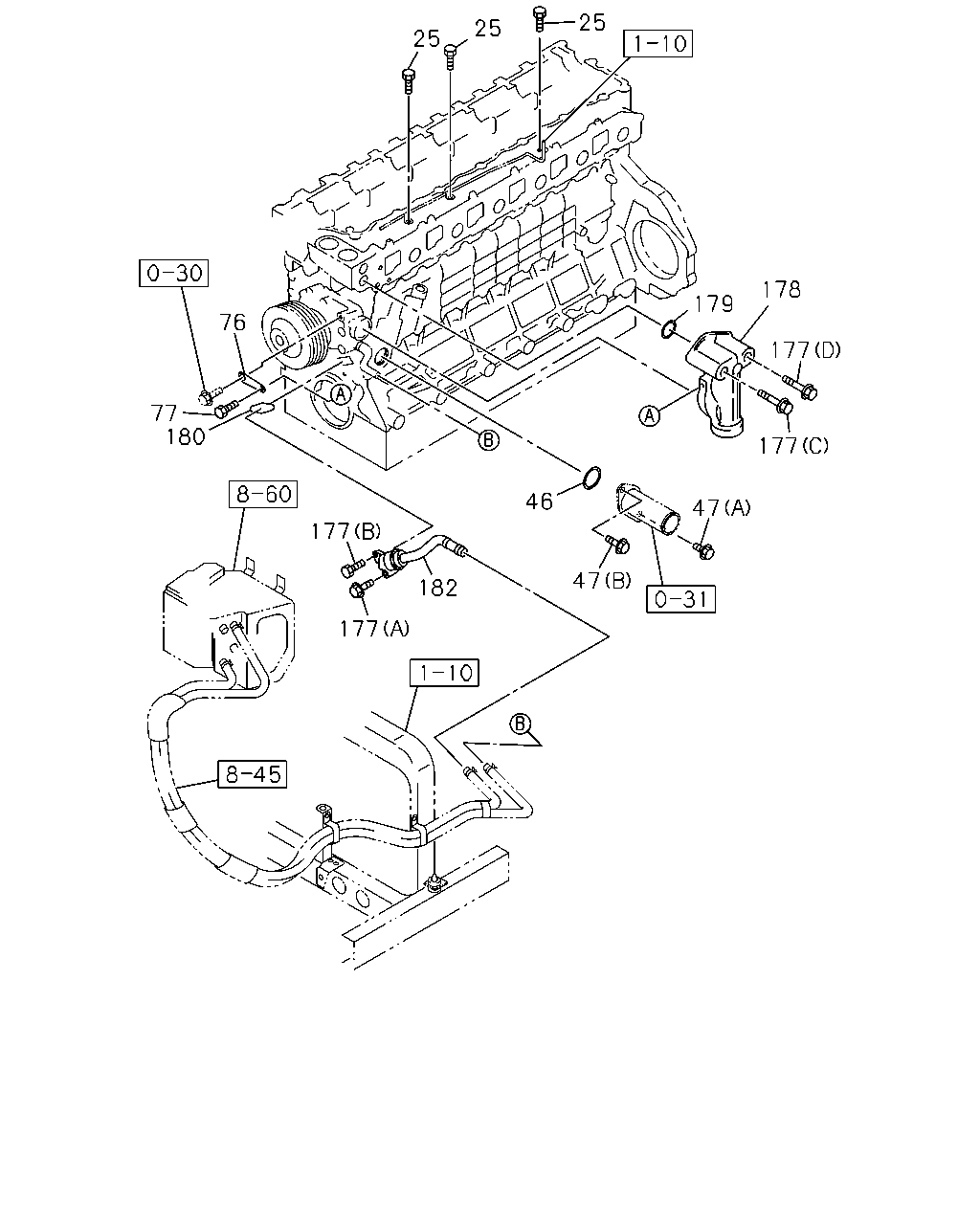

çizim 76587
25 25 25 178 179 76 177 77 180 177 46 47 177 47 182 177
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 03 1 0005-0210 ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512 ● ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0005-0210 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0211- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 0005-0210 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 0211-0512 ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0005-0210 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0211- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0005-0210 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0211-0512 ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0210 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 0211-0512 ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0005-0210 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0211- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0005-0210 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0211- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-2 01 1 0005-0210 ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 0211- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0005-0210 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0211-1408 ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0005-0210 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0211- ● ●
182 DUCT; WATER,HTR 8-94396-724-4 01 1 0005-0210 ●
182 DUCT; WATER,HTR 8-94394-348-5 01 1 0211- ● ●
çizim 76883
91 91 90 90 91 91 91 91 90 91 91 90 89 92 89 92
BalonParca AdiParca NoAdetTipApplied Date A B C
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-94395-178-1 01 1 0005-0210 ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-94391-114-0 01 1 0211- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0005-0210 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0211- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0005-0210 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0211-1312 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 08 1 1401- ● ●
92 PIPE; WATER,AIR CMPR,OUT
(A) 		8-94395-742-1 01 1 0005-0210 ●
92 PIPE; WATER,AIR CMPR,OUT
(B) 		8-94391-115-0 01 1 0211-0306 ● ●
92 PIPE; WATER,AIR CMPR,OUT
(B) 		8-97603-477-0 01 1 0307- ● ●
