Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#80819) — 190 parça

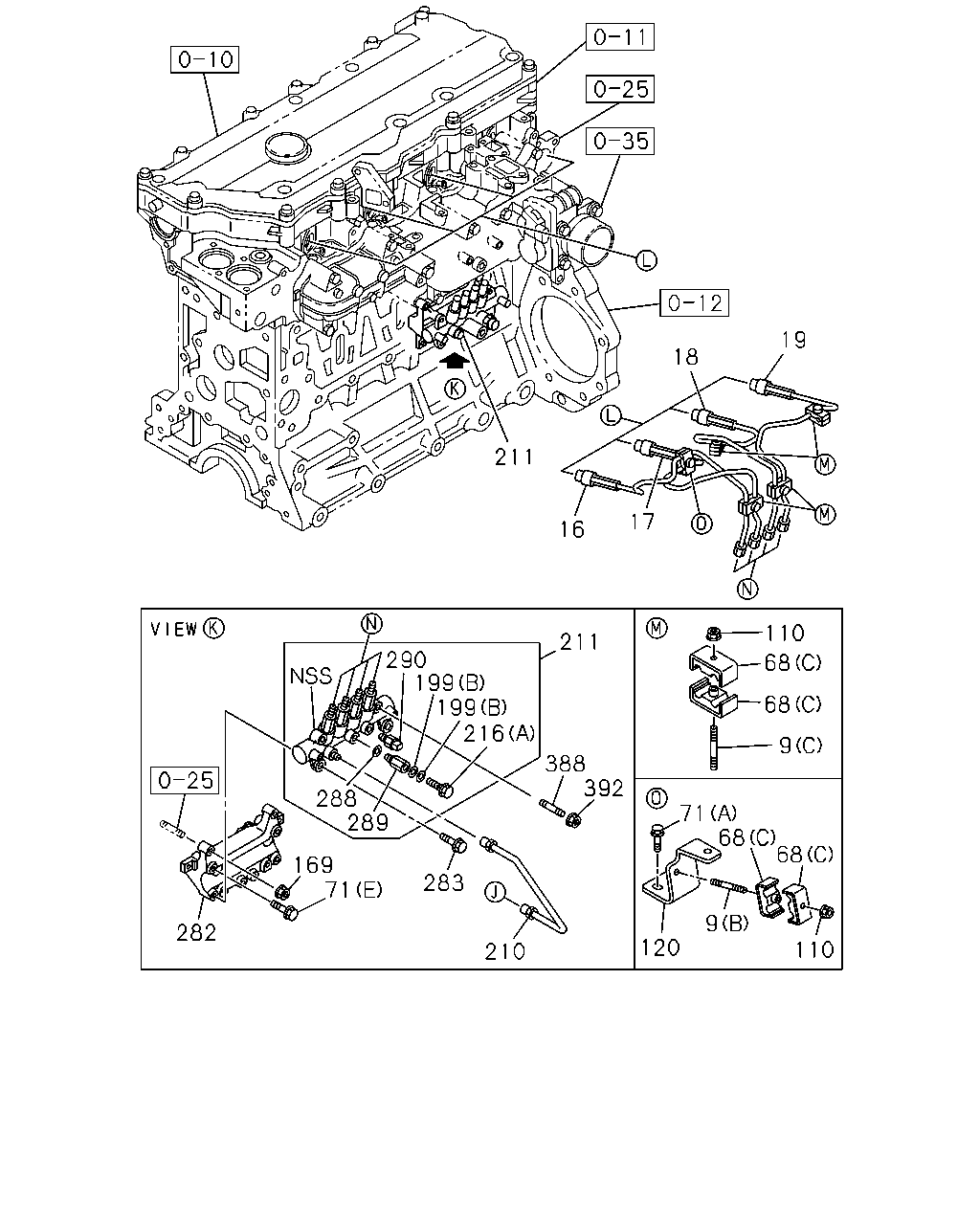

19 18 211 17 16 110 211 290 199 199 216 68 68 9 388 392 288 289 71 68 68 169 71 283 9 282 120 110 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1111-
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1111-
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1111-
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98185-344-0	01	1	1111-1404
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98271-202-0	01	1	1405-1501
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98298-606-0	01	1	1502-
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98185-352-0	01	1	1111-1404
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98271-218-0	01	1	1405-1502
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98298-628-0	01	1	1503-
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98185-345-0	01	1	1111-1404
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98271-203-0	01	1	1405-1501
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98298-607-0	01	1	1502-
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98185-353-0	01	1	1111-1404
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98271-219-0	01	1	1405-1502
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98298-629-0	01	1	1503-
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98185-346-0	01	1	1111-1404
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98271-204-0	01	1	1405-1501
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98298-608-0	01	1	1502-
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98185-354-0	01	1	1111-1404
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98271-220-0	01	1	1405-1502
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98298-630-0	01	1	1503-
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98185-347-0	01	1	1111-1404
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98271-205-0	01	1	1405-1501
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98298-609-0	01	1	1502-
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98185-355-0	01	1	1111-1404
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98271-221-0	01	1	1405-1502
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98298-631-0	01	1	1503-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1111-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1111-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1111-1405
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1111-1405
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1111-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1111-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1111-
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1111-
110	03.330 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	03	1	1111-
110	03.330 NUT; CLIP EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1111-
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1111-
169	03.890 NUT; BRKT EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-
210	03.330 PIPE; INJ,C/R EURO2 SPECIFICATION(NT2)	8-97376-779-0	01	1	1111-
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5)	8-98087-940-0	01	1	1111-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-
282	03.163 BRACKET; COMMON RAIL EURO2 SPECIFICATION(NT2)	8-98157-115-0	01	1	1111-
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5)	8-98106-661-1	01	1	1111-
283	03.330 BOLT; COMMON RAIL EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1111-
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1111-
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1111-
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1111-
388	03.332 STUD; RAIL EURO5 SPECIFICATION(NT5) 03.278 M8X35 L=53	0-49140-835-0	02	1	1111-
392	03.330 NUT; RAIL ASM EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-

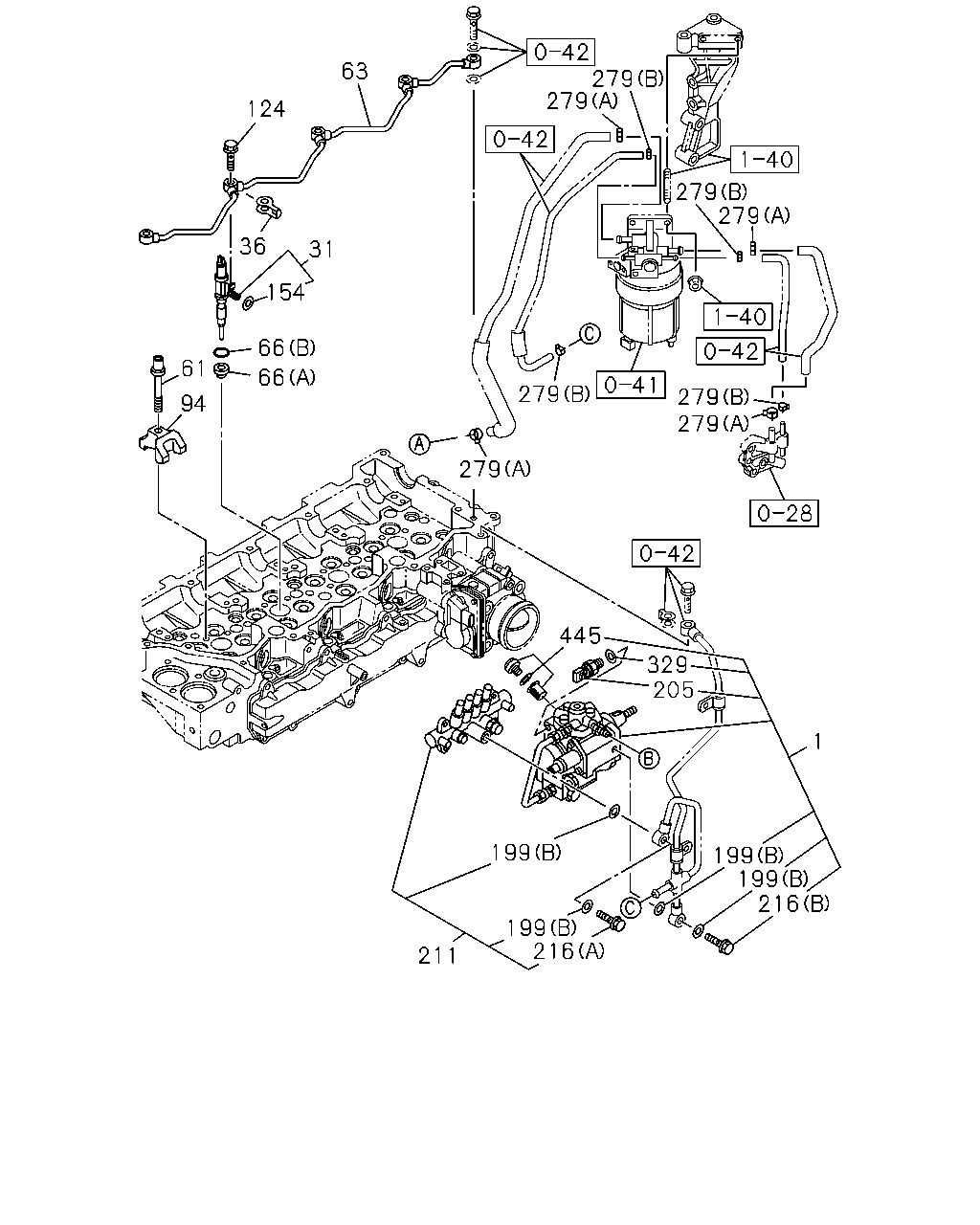

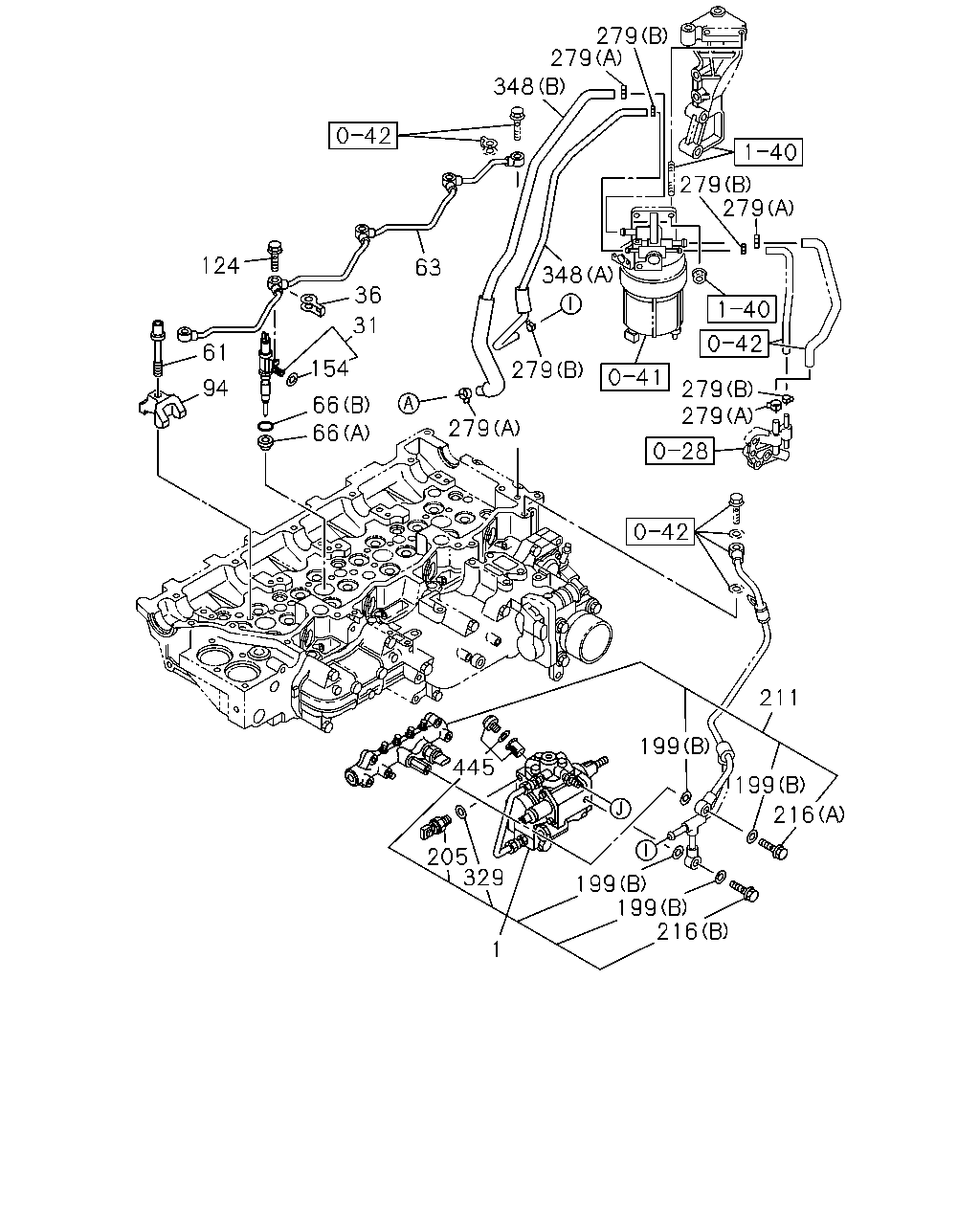

279 279 279 279 279 279 279 279 124 36 63 31 154 61 94 66 66 348 348 211 199 216 199 199 199 216 1 329 205 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1111-
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1111-
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1111-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1111-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1111-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1111-
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1111-
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1111-
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1111-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1111-
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	04	1	1111-
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1111-1201
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (A)	8-98173-967-1	01	1	1111-
348	03.163 HOSE; FUEL EURO5 SPECIFICATION(NT5) (B)	8-98173-968-1	01	1	1111-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-

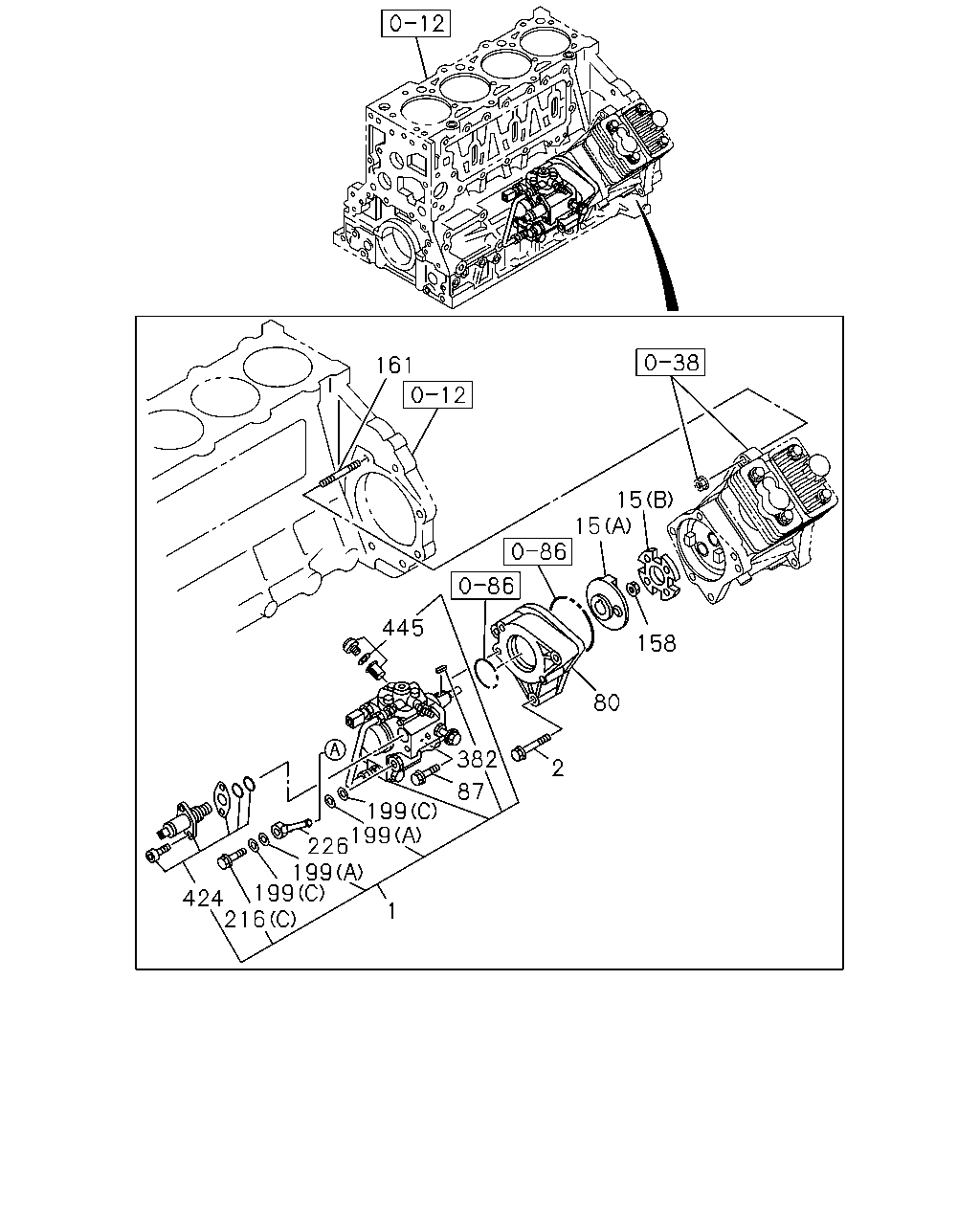

161 15 15 158 80 2 382 87 199 199 226 1 199 199 216 424 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-
2	03.330 BOLT; INJ PUMP 00.685 M10X60 FLANGE	0-28051-060-0	03	1	1111-
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1111-
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1111-
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1111-
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1111-
158	03.330 NUT; INJ PUMP 07.529 M14 FLANGE	0-91180-114-0	01	1	1111-
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-
226	03.163 PIPE; FUEL	8-98185-140-0	01	1	1111-
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1111-1201
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1111-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-

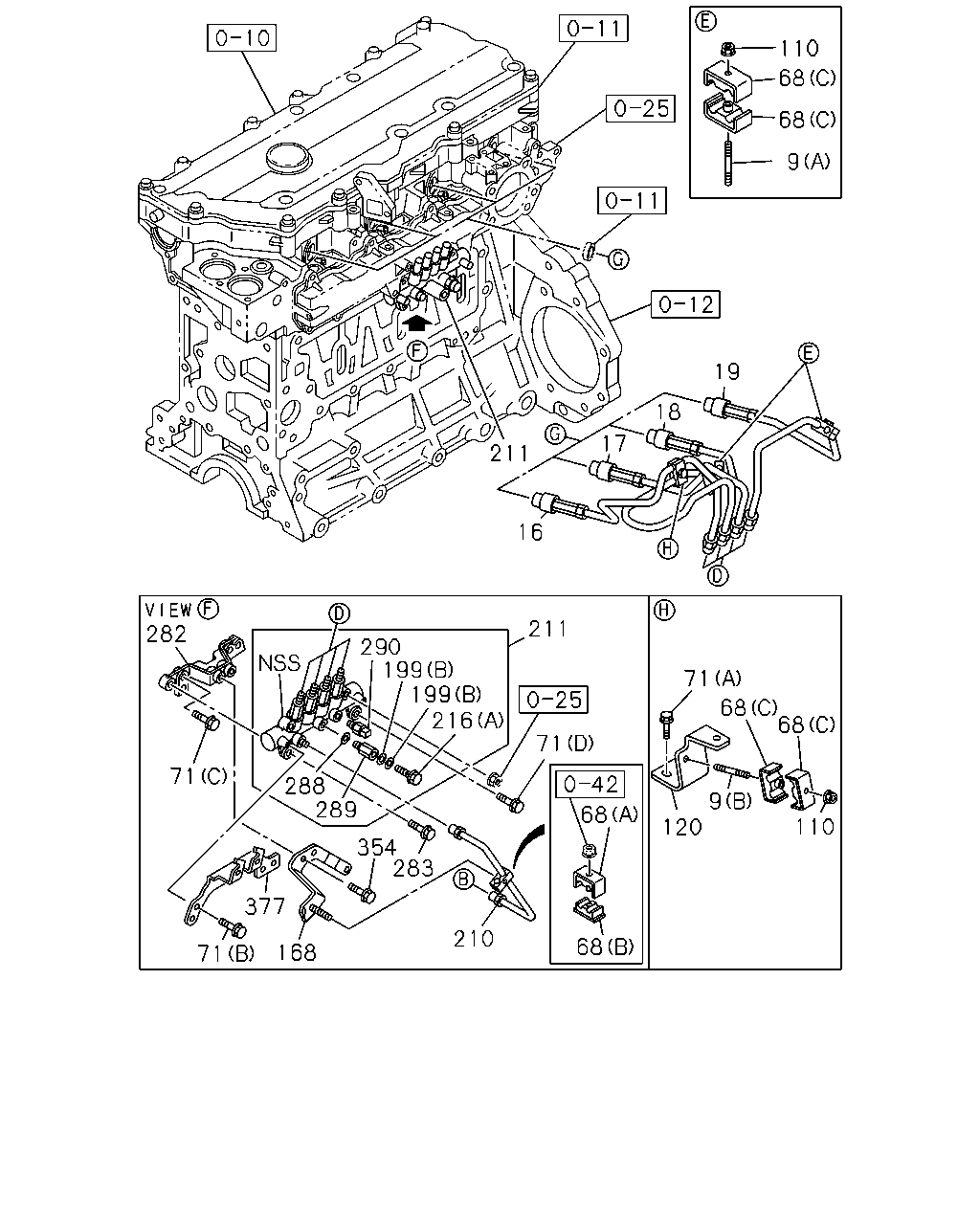

110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 288 289 71 9 120 68 110 354 283 377 210 68 168 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.340 STUD; CLIP EURO2 SPECIFICATION(NT2) 00.413 (A) M6X30 L=38	0-41010-630-0	02	1	1111-
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1111-
9	03.340 STUD; CLIP EURO5 SPECIFICATION(NT5) 00.413 (C) M6X30 L=38	0-41010-630-0	04	1	1111-
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98185-344-0	01	1	1111-1404
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98271-202-0	01	1	1405-1501
16	03.330 PIPE; INJ NO.1 EURO2 SPECIFICATION(NT2)	8-98298-606-0	01	1	1502-
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98185-352-0	01	1	1111-1404
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98271-218-0	01	1	1405-1502
16	03.330 PIPE; INJ NO.1 EURO5 SPECIFICATION(NT5)	8-98298-628-0	01	1	1503-
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98185-345-0	01	1	1111-1404
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98271-203-0	01	1	1405-1501
17	03.330 PIPE; INJ NO.2 EURO2 SPECIFICATION(NT2)	8-98298-607-0	01	1	1502-
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98185-353-0	01	1	1111-1404
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98271-219-0	01	1	1405-1502
17	03.330 PIPE; INJ NO.2 EURO5 SPECIFICATION(NT5)	8-98298-629-0	01	1	1503-
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98185-346-0	01	1	1111-1404
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98271-204-0	01	1	1405-1501
18	03.330 PIPE; INJ NO.3 EURO2 SPECIFICATION(NT2)	8-98298-608-0	01	1	1502-
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98185-354-0	01	1	1111-1404
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98271-220-0	01	1	1405-1502
18	03.330 PIPE; INJ NO.3 EURO5 SPECIFICATION(NT5)	8-98298-630-0	01	1	1503-
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98185-347-0	01	1	1111-1404
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98271-205-0	01	1	1405-1501
19	03.330 PIPE; INJ NO.4 EURO2 SPECIFICATION(NT2)	8-98298-609-0	01	1	1502-
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98185-355-0	01	1	1111-1404
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98271-221-0	01	1	1405-1502
19	03.330 PIPE; INJ NO.4 EURO5 SPECIFICATION(NT5)	8-98298-631-0	01	1	1503-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1111-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1111-
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1111-1405
68	03.162 CLIP; INJ PIPE EURO2 SPECIFICATION(NT2) (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1111-1405
68	03.162 CLIP; INJ PIPE EURO5 SPECIFICATION(NT5) (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1111-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	1111-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	1111-
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-
71	03.162 BOLT; BRKT EURO5 SPECIFICATION(NT5) 04.686 (E) M8X60 FLANGE	0-28050-860-0	02	1	1111-
110	03.330 NUT; CLIP EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	03	1	1111-
110	03.330 NUT; CLIP EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	05	1	1111-
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1111-
168	03.890 BRACKET; FUEL PIPE EURO2 SPECIFICATION(NT2)	8-98072-403-0	01	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-
210	03.330 PIPE; INJ,C/R EURO2 SPECIFICATION(NT2)	8-97376-779-0	01	1	1111-
210	03.330 PIPE; INJ,C/R EURO5 SPECIFICATION(NT5)	8-98087-940-0	01	1	1111-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-
282	03.163 BRACKET; COMMON RAIL EURO2 SPECIFICATION(NT2)	8-98157-115-0	01	1	1111-
282	03.163 BRACKET; COMMON RAIL EURO5 SPECIFICATION(NT5)	8-98106-661-1	01	1	1111-
283	03.330 BOLT; COMMON RAIL EURO2 SPECIFICATION(NT2) 03.275 M8X25 FLANGE	0-28050-825-0	01	1	1111-
283	03.330 BOLT; COMMON RAIL EURO5 SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1111-
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1111-
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1111-
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1111-
354	03.163 BOLT; FUEL PIPE EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-
377	03.332 BRACKET; HARNESS EURO2 SPECIFICATION(NT2)	8-98172-648-0	01	1	1111-

279 279 279 279 279 279 279 279 63 124 36 31 154 66 66 94 61 445 329 205 1 199 199 216 216 199 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1111-
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1111-
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1111-
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1111-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1111-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1111-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1111-
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1111-
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1111-
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1111-1312
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1111-
199	03.332 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1111-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1111-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1111-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1111-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1111-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1111-
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1111-
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	04	1	1111-
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1111-1201
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
