0-14 — CAMSHAFT AND VALVE (#80803) — 55 parça

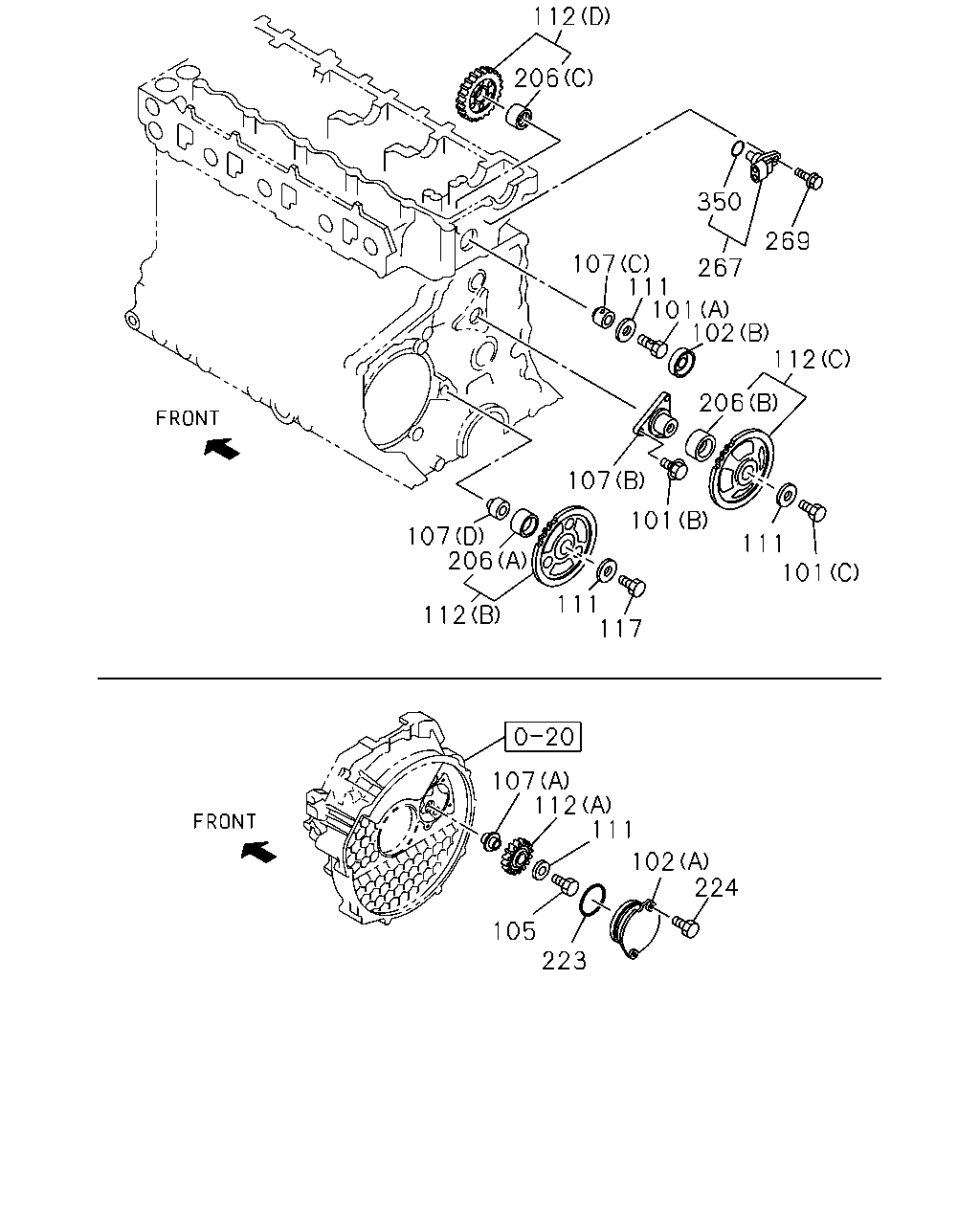

112 206 350 269 107 111 101 102 112 267 206 107 101 107 206 111 101 111 117 112 107 112 111 102 224 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1111-
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1111-
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1111-
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1111-
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1111-
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1111-
107	00.724 SHAFT; IDLE GEAR EURO2 SPECIFICATION(NT2) (C)	8-97186-398-1	01	1	1111-
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1111-
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1111-
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1111-
107	00.724 SHAFT; IDLE GEAR EURO5 SPECIFICATION(NT5) (C)	8-97606-990-1	01	1	1111-
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1111-
112	00.724 GEAR; IDLE EURO2 SPECIFICATION(NT2) (D) Z=41	8-97606-929-0	01	1	1111-
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1111-
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1111-1402
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-
112	00.724 GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	1111-
112	00.724 GEAR; IDLE EURO5 SPECIFICATION(NT5) (D) Z=41	8-98058-320-1	01	1	1111-
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1111-
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1111-1402
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1111-
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1111-
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1111-
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-
267	00.724 SENSOR; CAM ANGLE	8-98019-024-0	01	1	1111-
269	00.685 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1111-
350	00.724 GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	1111-

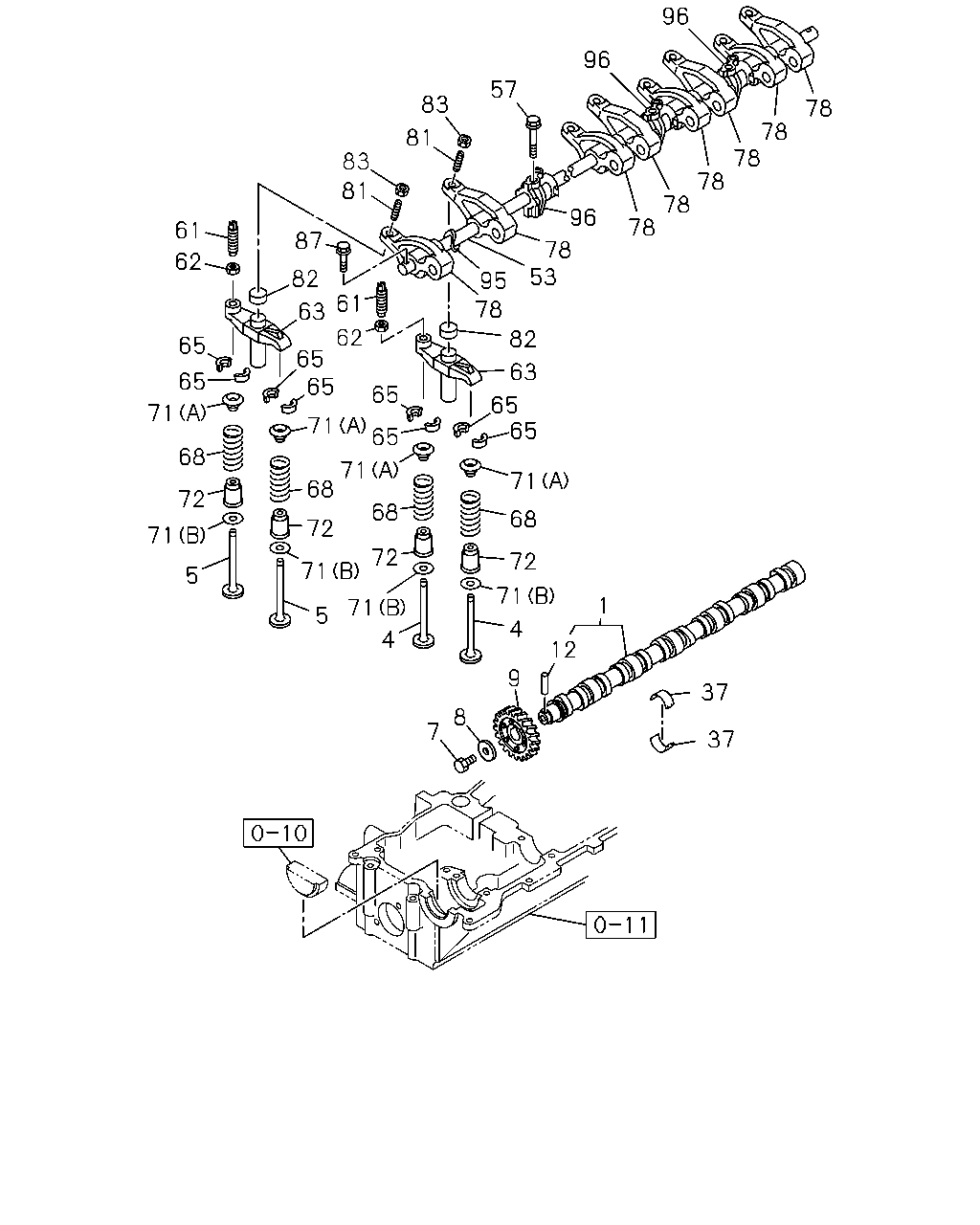

96 96 57 83 78 78 78 78 78 78 81 83 81 96 87 61 78 53 62 82 95 61 78 63 62 82 65 65 65 63 65 65 65 65 71 71 65 68 71 68 71 72 68 68 72 71 72 72 71 5 71 1 71 5 4 4 12 9 37 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.519 CAMSHAFT	8-97262-166-0	01	1	1111-
4	00.296 VALVE; INL	8-94395-882-2	08	1	1111-
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1111-
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1111-
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1111-
9	00.736 GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1111-
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1111-
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1111-
53	00.353 SHAFT; ROCKER ARM	8-97389-921-0	01	1	1111-
57	00.349 BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1111-
61	00.349 SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1111-
62	00.349 NUT; ADJ SCREW LK BRIDGE 00.429 M8 FLANGE	9-09844-574-0	08	1	1111-
63	00.349 BRIDGE	8-94392-002-3	08	1	1111-
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1111-
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1111-
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1111-
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1111-
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1111-
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1111-
78	00.333 ARM; ROCKER INLET	8-97306-421-3	04	1	1111-
78	00.333 ARM; ROCKER EXHAUST	8-97306-424-3	04	1	1111-
81	00.429 SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1111-
82	00.356 CAP; ROCKER SHAFT 00.303	8-94396-015-2	08	1	1111-
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1111-
87	00.349 BOLT; ROCKER SHAFT 02.277 M8X40 FLANGE	0-28050-840-0	02	1	1111-
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1111-
96	00.349 BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1111-
