0-12 — CYLINDER BLOCK (#80801) — 44 parça

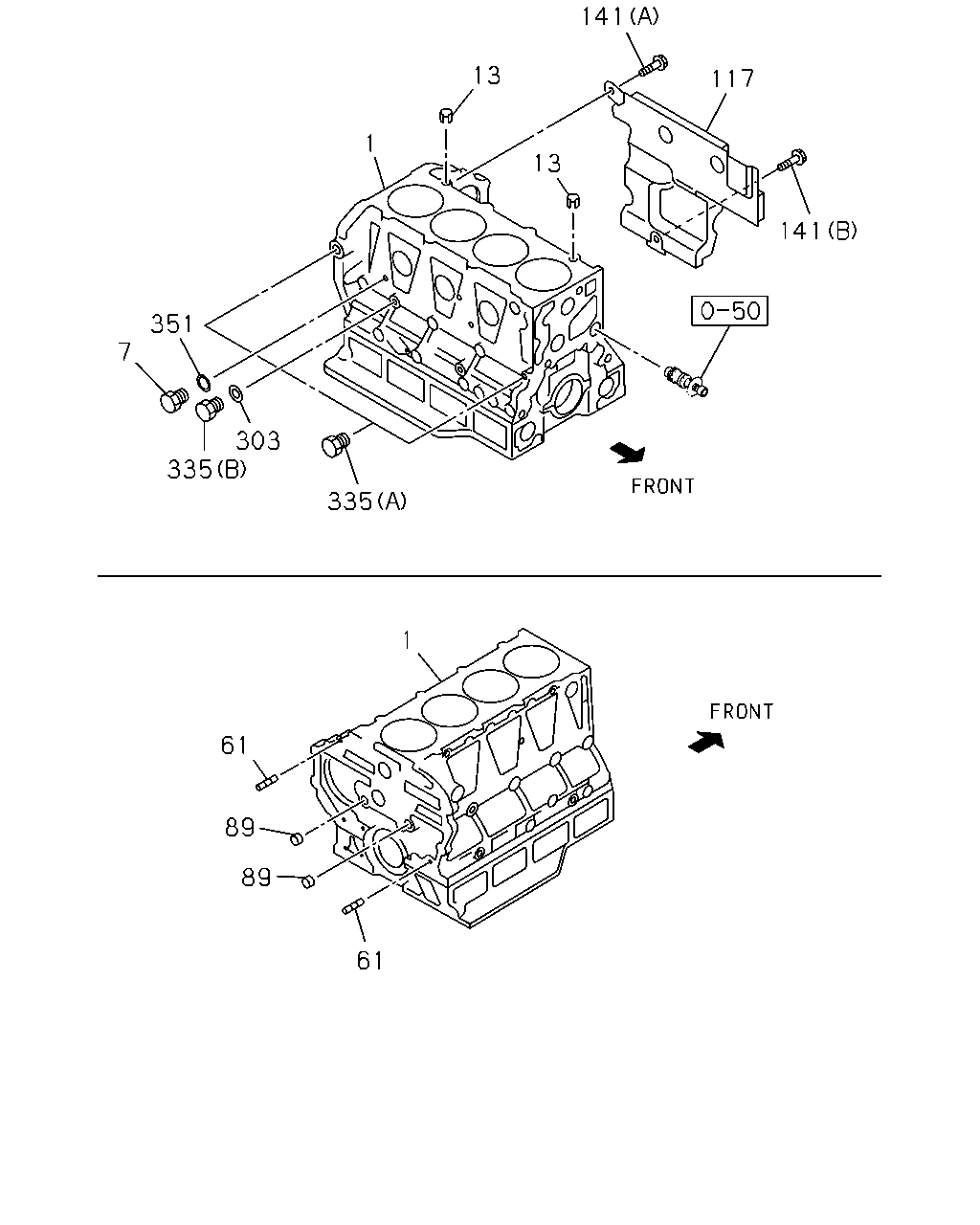

61 89 89 61 1 335 335 303 7 351 1 13 13 141 117 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	1111-1209
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1111-
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1111-
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1111-
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	1111-
117	00.030 COVER ASM; C/BL EURO5 SPECIFICATION(NT5)	8-98181-396-1	01	1	1111-
141	01.531 BOLT; COVER EURO5 SPECIFICATION(NT5) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-
141	01.531 BOLT; COVER EURO5 SPECIFICATION(NT5) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1111-
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	1201-1312
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-
335	01.531 PLUG; C/BL,SIDE 04.866 (B) M14X18	8-98038-403-0	01	1	1201-
335	01.531 PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1111-
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1111-

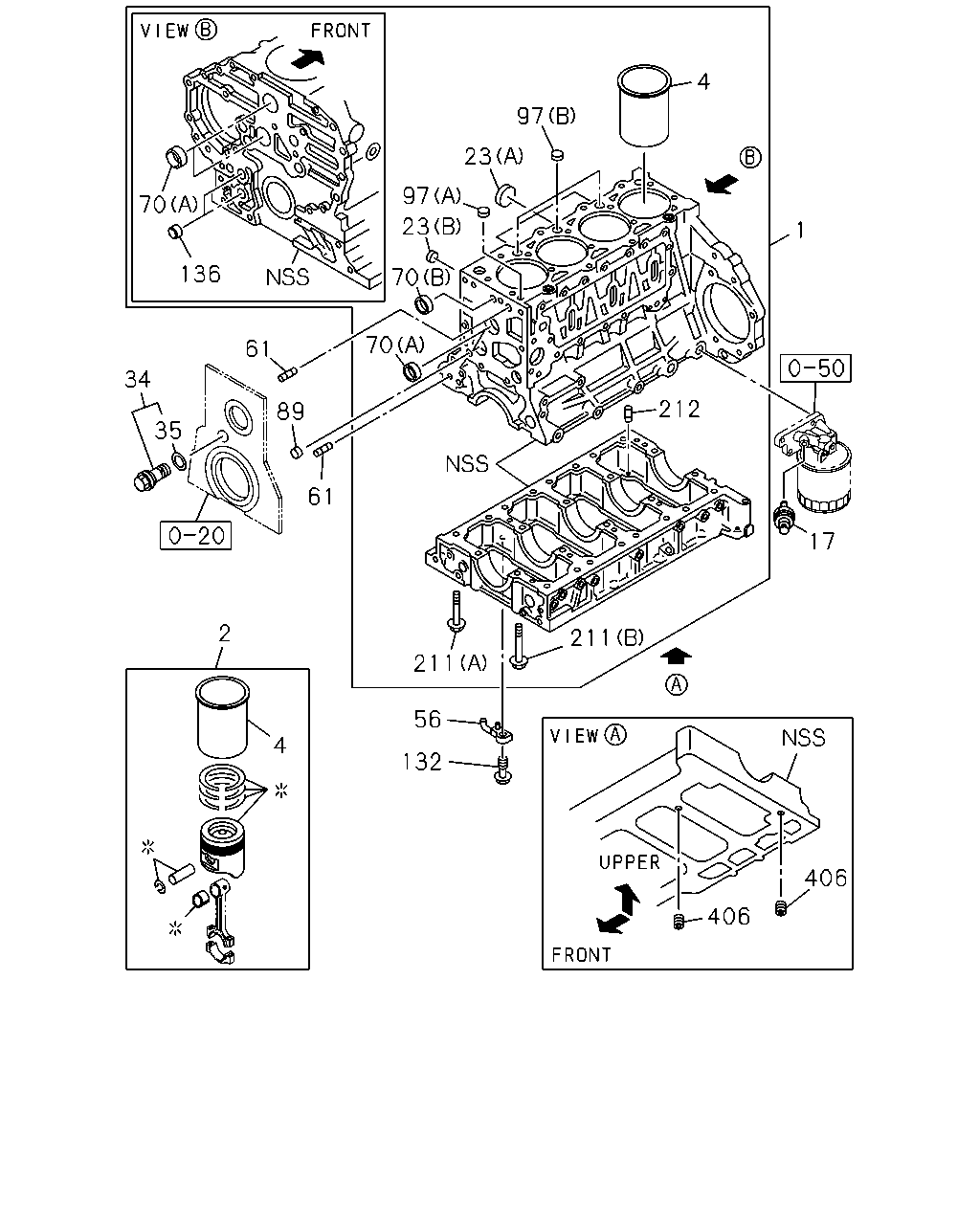

70 136 61 89 61 34 35 2 4 56 132 211 211 406 406 17 1 4 97 23 97 23 70 70 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	1111-1209
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1111-1405
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1111-1405
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1111-1405
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1111-1405
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1111-
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1111-
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1111-
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	1111-
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	1111-
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1111-
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1111-
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	1111-
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	1111-
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	1111-
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	1111-
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	1111-
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1111-
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1111-
211	01.428 BOLT; CRANKCASE (A) M10X82	8-94399-553-2	17	1	1111-
211	01.428 BOLT; CRANKCASE 00.293 (B) M14X115 W/FLANGE	8-97077-638-0	10	1	1111-
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1111-
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
