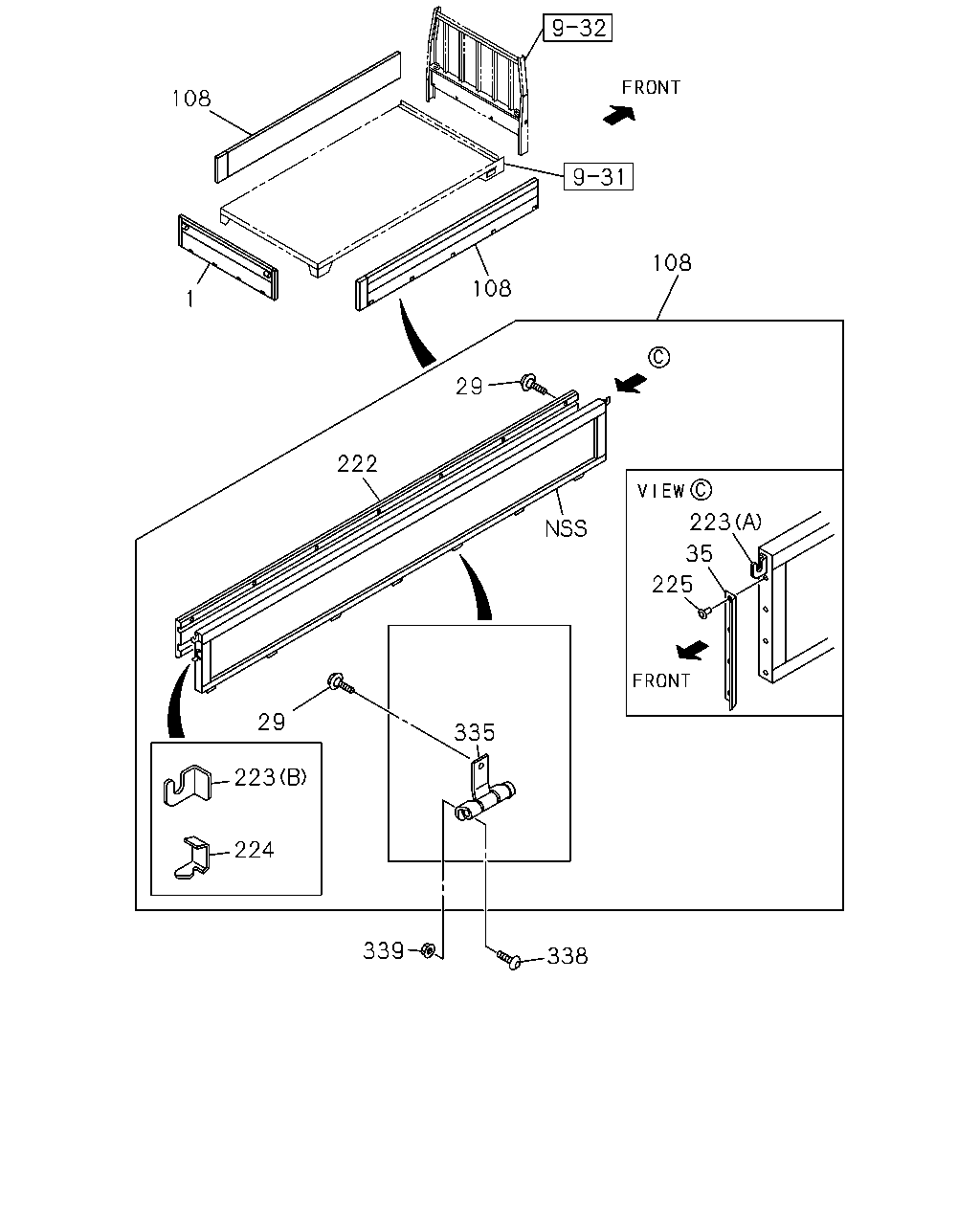

9-33 — REAR BODY; GATE AND SIDE GUARD (#80796) — 47 parça

108 108 108 1 29 222 223 35 225 29 335 223 224 339 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1111-
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 M8X25 PABCO	8-98045-183-0	32	1	1111-
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) PABCO	8-98045-209-0	02	1	1111-
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1111-
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1111-
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) PABCO	8-98045-238-1	02	1	1111-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) PABCO	5-87580-002-0	01	1	1111-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) PABCO	5-87580-003-0	01	1	1111-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) PABCO	5-87580-004-0	01	1	1111-
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) PABCO	5-87580-005-0	01	1	1111-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) PABCO	5-87580-007-0	01	1	1111-
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) PABCO	5-87580-008-0	01	1	1111-
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) PABCO	8-98045-207-0	08	1	1111-
335	17.208 HINGE ASM; SIDE GATE RR BODY FLAT BED(RS6) PABCO	5-87580-006-0	16	1	1111-
338	17.185 SCREW; HINGE,GATE RR BODY FLAT BED(RS6) M8X20 PABCO	8-98045-181-0	40	1	1111-
339	17.185 NUT; HINGE,GATE RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	22	1	1111-

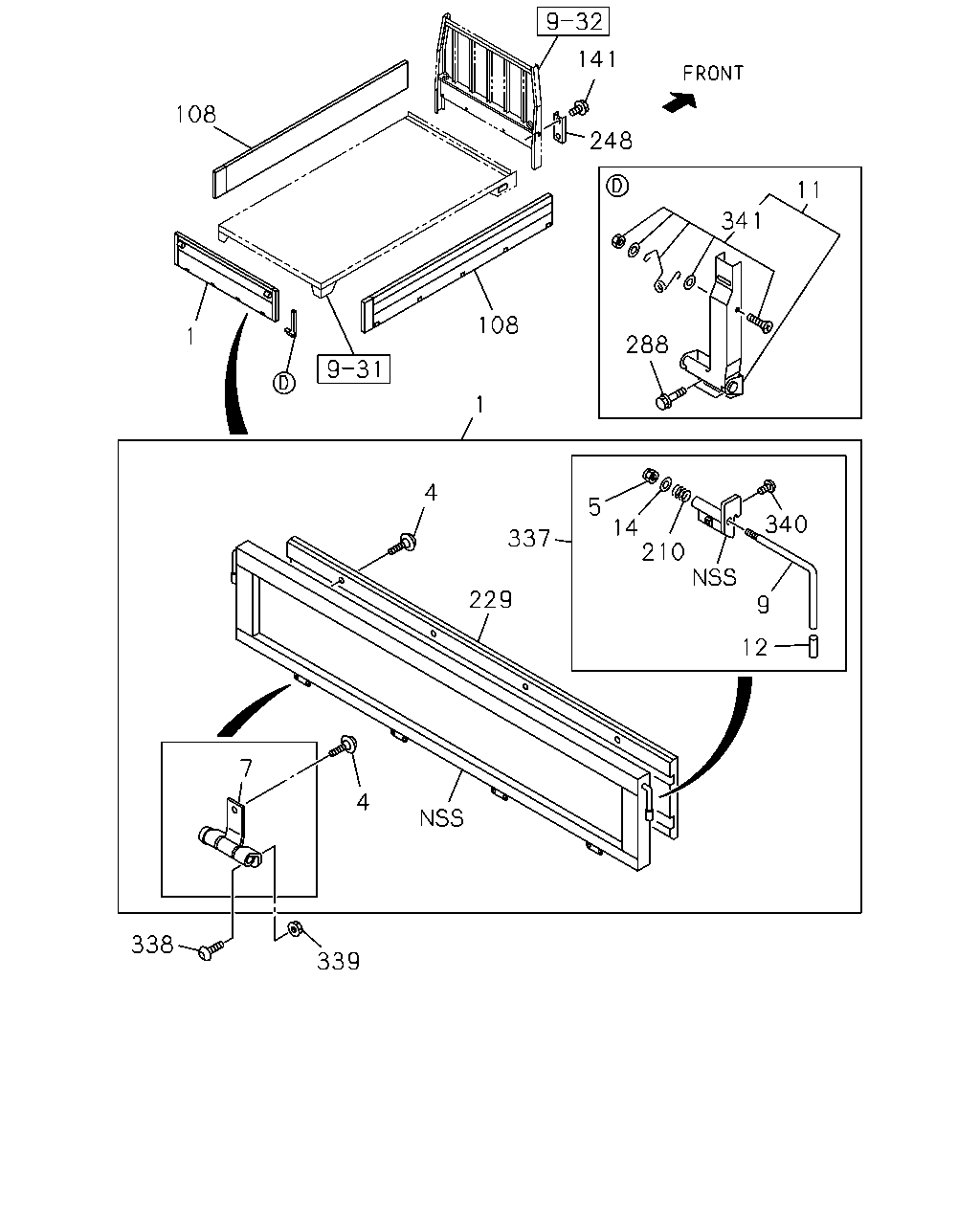

141 108 248 11 341 108 1 288 1 4 5 340 14 210 337 229 9 12 7 4 38 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1111-
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) M8X25 PABCO	8-98045-183-0	08	1	1111-
5	17.204 NUT; LATCH HANDLE RR BODY FLAT BED(RS6) M12 PABCO	8-98045-194-0	02	1	1111-
7	17.208 HINGE ASM; RR GATE RR BODY FLAT BED(RS6) PABCO	5-87580-016-0	04	1	1111-
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) PABCO	5-87580-104-0	02	1	1111-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) PABCO	8-98031-211-0	01	1	1111-
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) PABCO	8-98031-212-0	01	1	1111-
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) PABCO	8-98045-208-0	02	1	1111-
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) PABCO	8-98045-201-0	02	1	1111-
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED(RS6) (A) H=30 PABCO	8-98045-162-0	02	1	1111-
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED(RS6) (B) H=23 PABCO	8-98045-164-0	02	1	1111-
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1111-
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1111-
141	17.505 BOLT RR BODY FLAT BED(RS6) 00.724 M8X16 FLANGE	0-28060-816-0	02	1	1111-
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) PABCO	8-98045-213-0	02	1	1111-
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) PABCO	8-98045-115-2	01	1	1111-
248	17.442 PATCH; CARGO RR RR BODY FLAT BED(RS6) PABCO	8-98030-315-0	02	1	1111-
288	17.505 BOLT; LOCK ASM,VERTICAL RR BODY FLAT BED(RS6) 17.185 M8X20 PABCO	8-98045-181-0	04	1	1111-
337	17.208 HANDLE ASM; LATCH,RR GATE RR BODY FLAT BED(RS6) PABCO	8-98045-149-0	01	1	1111-
337	17.208 HANDLE ASM; LATCH,RR GATE RR BODY FLAT BED(RS6) PABCO	8-98045-150-0	01	1	1111-
339	17.185 NUT; HINGE,GATE RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	22	1	1111-
340	17.505 SCREW; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X17 PABCO	8-98045-185-0	04	1	1111-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) PABCO	8-98045-198-0	01	1	1111-
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) PABCO	8-98045-199-0	01	1	1111-

40 40 40 37 36 37 39 37 38 39 39 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) PABCO	8-98045-163-0	02	1	1111-
37	17.202 SCREW RR BODY FLAT BED(RS6) (A) M6X30 PABCO	8-98045-188-0	04	1	1111-
37	17.202 SCREW RR BODY FLAT BED(RS6) (B) M6X25 PABCO	8-98045-191-0	02	1	1111-
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED(RS6) (A) H=30 PABCO	8-98045-162-0	02	1	1111-
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED(RS6) (B) H=23 PABCO	8-98045-164-0	02	1	1111-
39	17.505 WASHER; STOPPER RUBBER RR BODY FLAT BED(RS6) PABCO	8-98045-202-0	06	1	1111-
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 M6 FLANGE	0-91180-106-0	06	1	1111-
