Isuzu WW
▶
TRUCKS
▶
NP
▶
51387 - NP/NQR AIR BRAKE LHD
▶
9 - Tools
▶
9-32 - REAR BODY; GUARD FRAME
▶

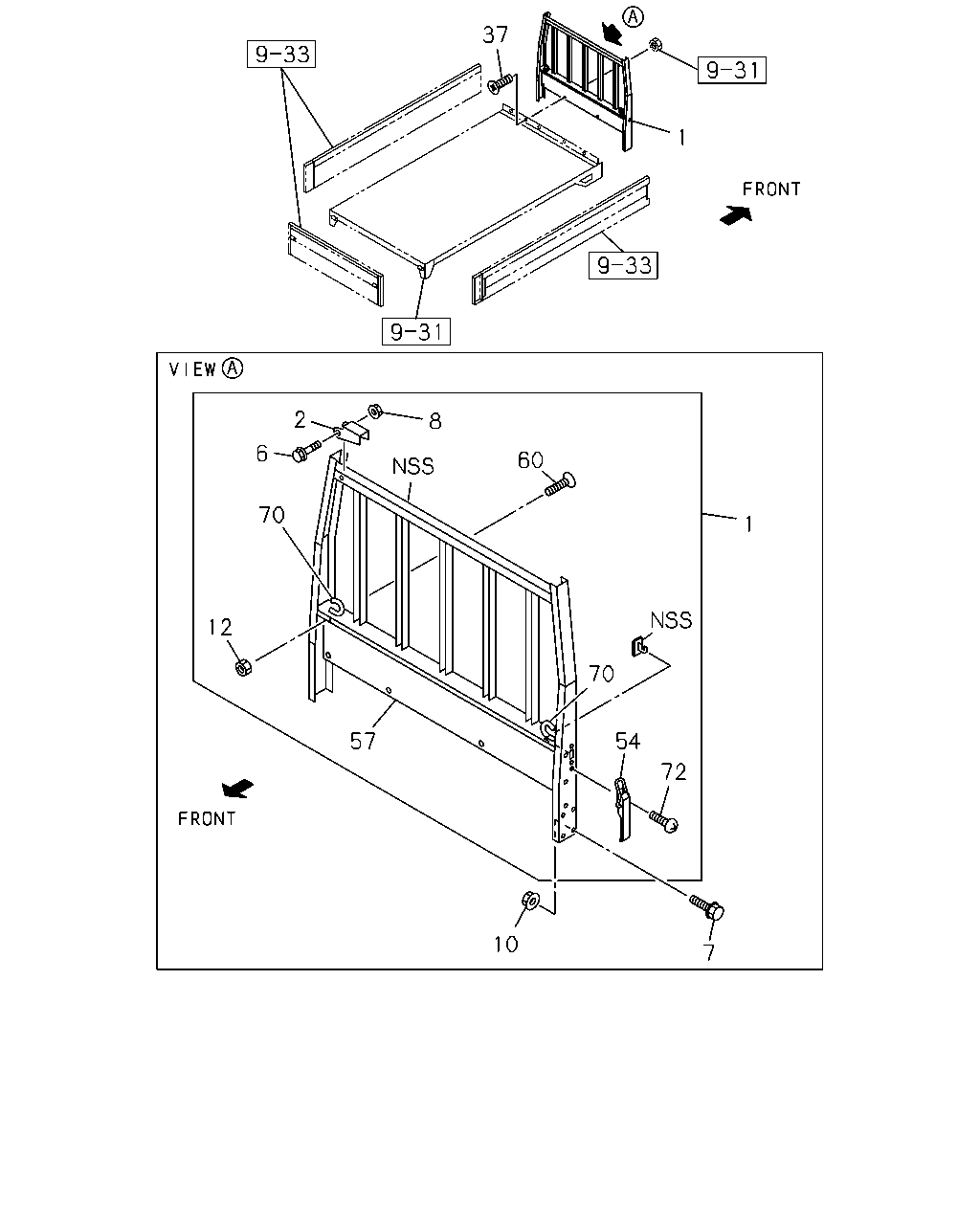

9-32 — REAR BODY; GUARD FRAME
(#80795) — 13 parça
37
1
2
8
6
60
70
1
12
70
54
57
72
10
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6) PABCO
8-98024-567-2
01
1
1111-
2
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
8-98045-225-0
02
1
1111-
6
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
8-98045-226-0
02
1
1111-
7
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6) M12X25 FLANGE
0-28661-225-0
08
1
1111-
8
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6) M10
8-98045-227-0
02
1
1111-
10
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6) 05.816 M12 FLANGE
0-91180-212-0
08
1
1111-
12
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6) 16.682 M8 LOCK NUT FLANGE
0-91380-008-0
05
1
1111-
37
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6) M8X25 PABCO
8-98030-412-0
05
1
1111-
54
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6) PABCO
8-98045-206-0
02
1
1111-
57
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6) PABCO
8-98045-229-2
01
1
1111-
60
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6) M8X25 PABCO
8-98030-412-0
05
1
1111-
70
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6) PABCO
5-87580-001-0
02
1
1111-
72
17.455 SCREW; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6) M8X13 PABCO
8-98045-180-0
04
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
