51387 - NP/NQR AIR BRAKE LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#80784) — 29 parça
Tümü
A - NPR6SN
B - NPR6SS
◀

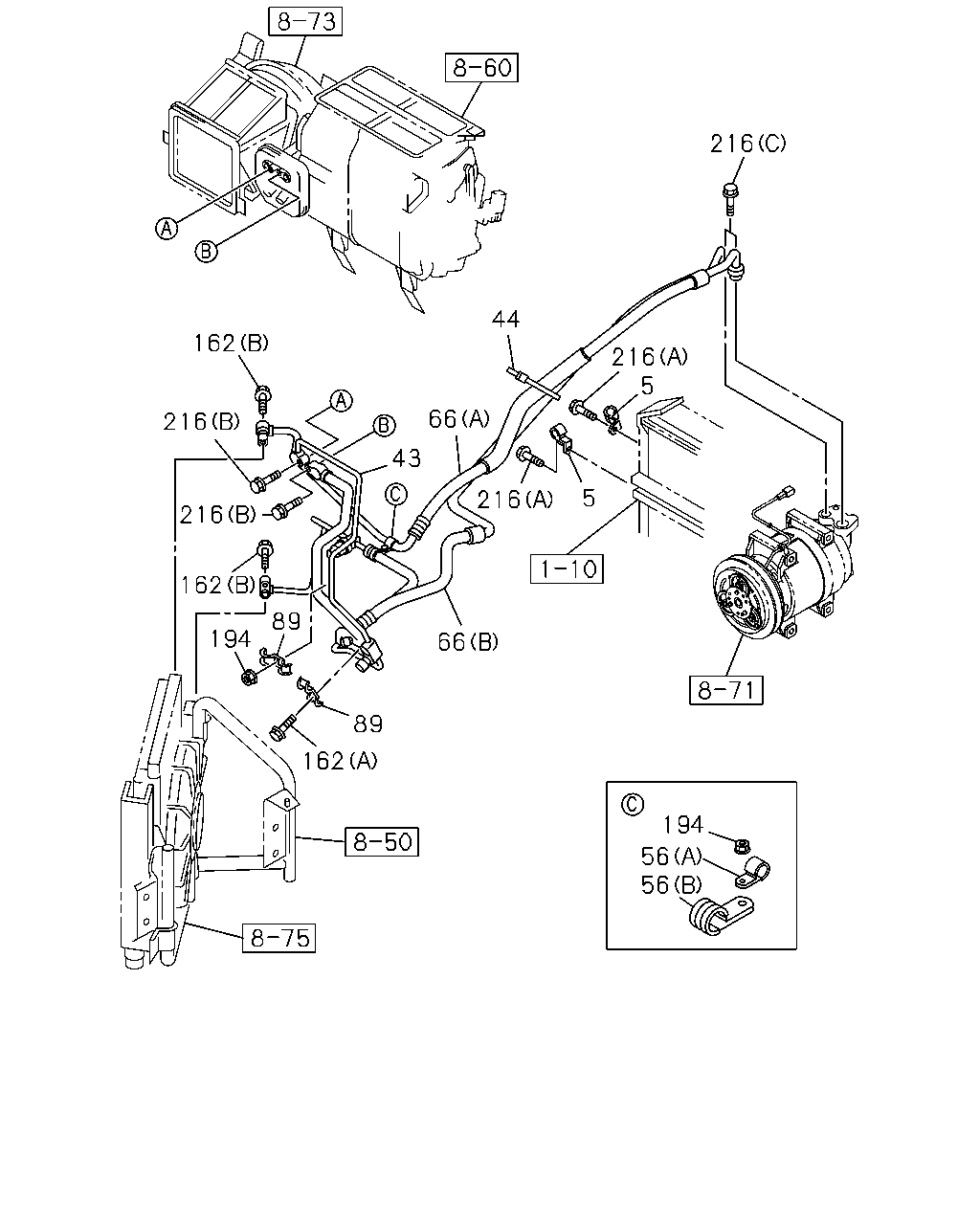

[852A] PIPING (16 parça)
[852A] COMPONENT (13 parça)
▶
216
44
162
216
5
66
216
43
5
216
216
162
89
194
66
89
162
194
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
09.242 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=16 H=24 L=20
0-95207-315-0
02
1
1111-1210
●
●
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE
8-98179-007-0
01
1
1111-
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250
5-09707-030-1
01
1
1111-
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350
8-94152-256-1
01
1
1111-
●
●
56
09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20
0-95235-232-0
01
1
1111-
●
●
56
09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98032-641-0
01
1
1111-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE
8-98006-103-2
01
1
1111-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE
8-98159-618-1
01
1
1111-1210
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE
8-98222-312-0
01
1
1211-
●
●
89
09.242 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60)
8-98151-264-0
02
1
1111-
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE
0-28650-620-0
01
1
1111-
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE
0-28650-625-0
02
1
1111-
●
●
194
09.242 NUT; HOSE
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE
0-91180-106-0
02
1
1111-
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE
0-28050-610-0
02
1
1111-
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE
0-28650-630-0
02
1
1111-
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1111-
●
●
147
148
67
66
66
43
50
202
50
147
148
67
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE
8-98179-007-0
01
1
1111-
●
●
50
09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=7.5
1-83539-316-0
02
1
1111-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE
8-98006-103-2
01
1
1111-
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE
8-98159-618-1
01
1
1111-1210
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE
8-98222-312-0
01
1
1211-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7
8-97095-907-0
02
1
1111-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5
8-97095-908-0
01
1
1111-
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6
8-98036-895-0
01
1
1111-
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L
1-83539-331-0
01
1
1111-
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H
8-97095-911-0
01
1
1111-
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97095-909-0
01
1
1111-
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98031-629-0
01
1
1111-
●
●
202
09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60)
1-83564-392-1
01
1
1111-
●
●
