8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#80778) — 118 parça

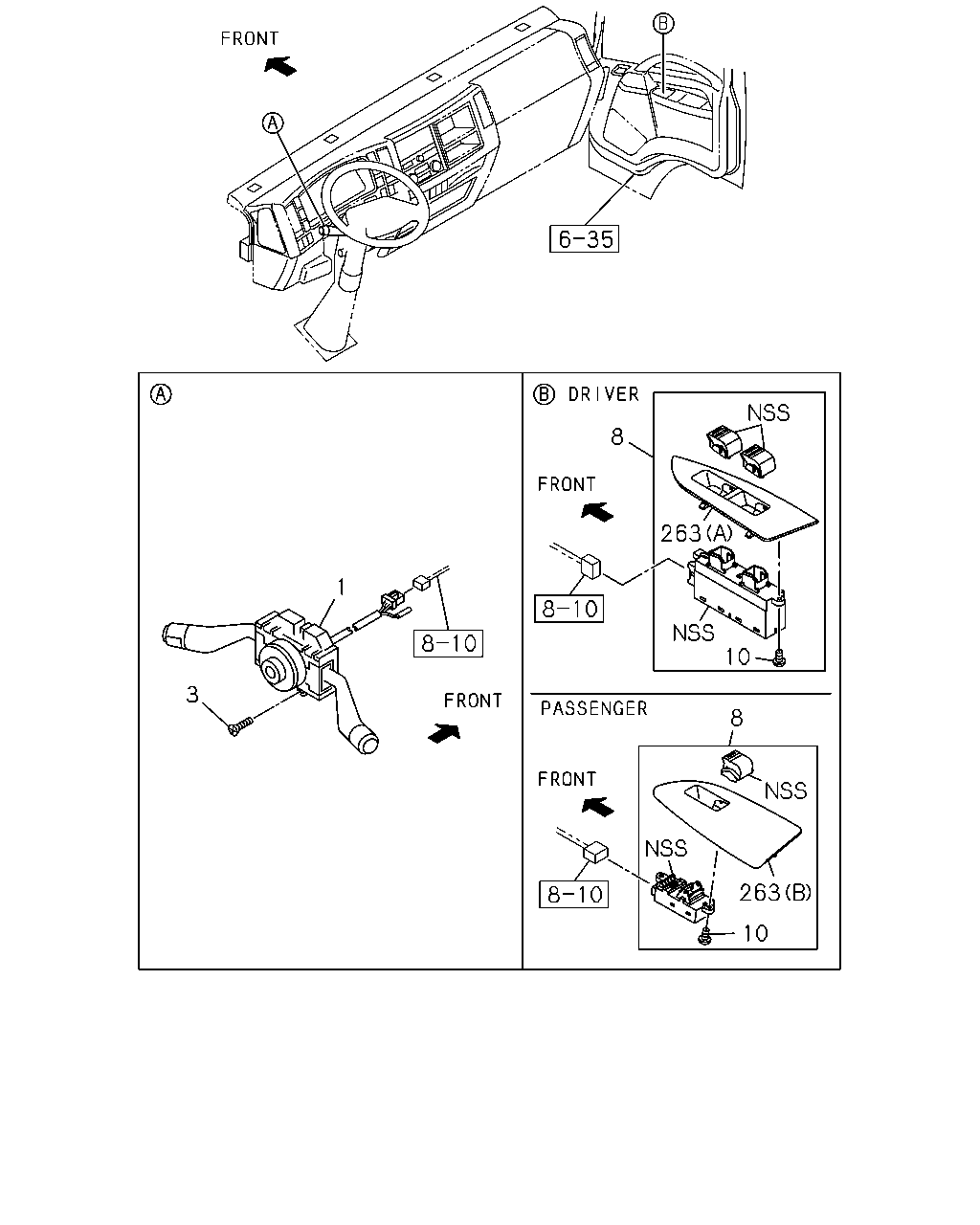

çizim 137287
8 263 1 10 3 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB 8-98073-850-1 01 1 1111-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98073-850-1 01 1 1111-1310 ●
1 02.895 SWITCH; COMB 8-98243-757-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-98243-757-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB 8-98243-757-0 01 1 1510- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> 		8-98243-757-0 01 1 1510- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98070-010-1 01 1 1111-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-98243-749-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. RR FOG LAMP<T79> 		8-98243-749-0 01 1 1510- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1111-1310 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1510- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 1111-1310 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1510- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1111- ● ●
8 16.263 SWITCH; POWER WINDOW
06.609 DRIVER SIDE 		8-98159-544-0 01 1 1111-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1111-1509 ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98001-737-2 01 1 1111-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1111-1509 ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1111- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1111- ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 1111- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1111- ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 1111- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1111- ●

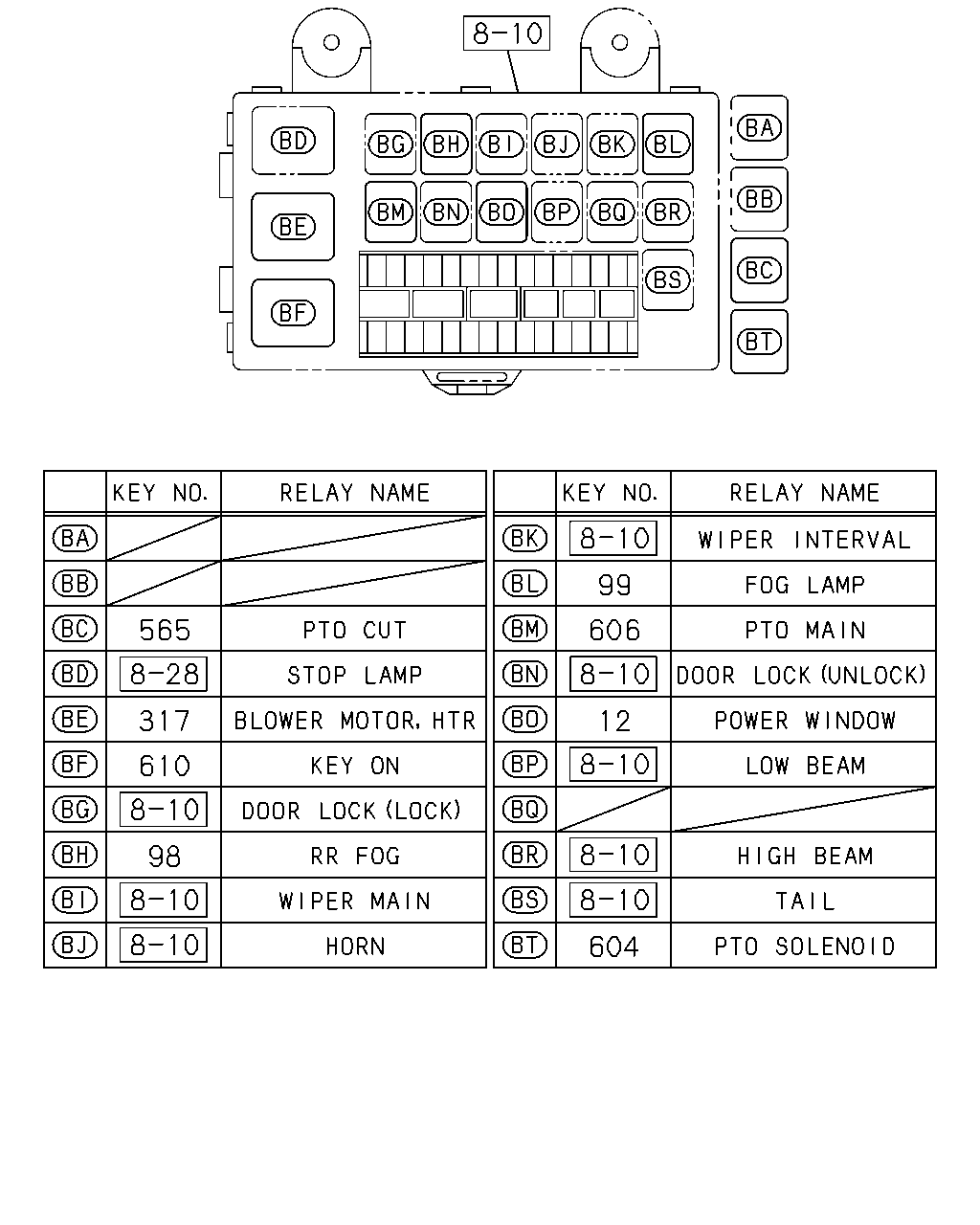

çizim 138216
565 317 610 98 99 606 12 604
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111- ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111-1205 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1206- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1206- ● ●
çizim 138463
674 151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
674 02.510 RELAY; BATTERY
FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●

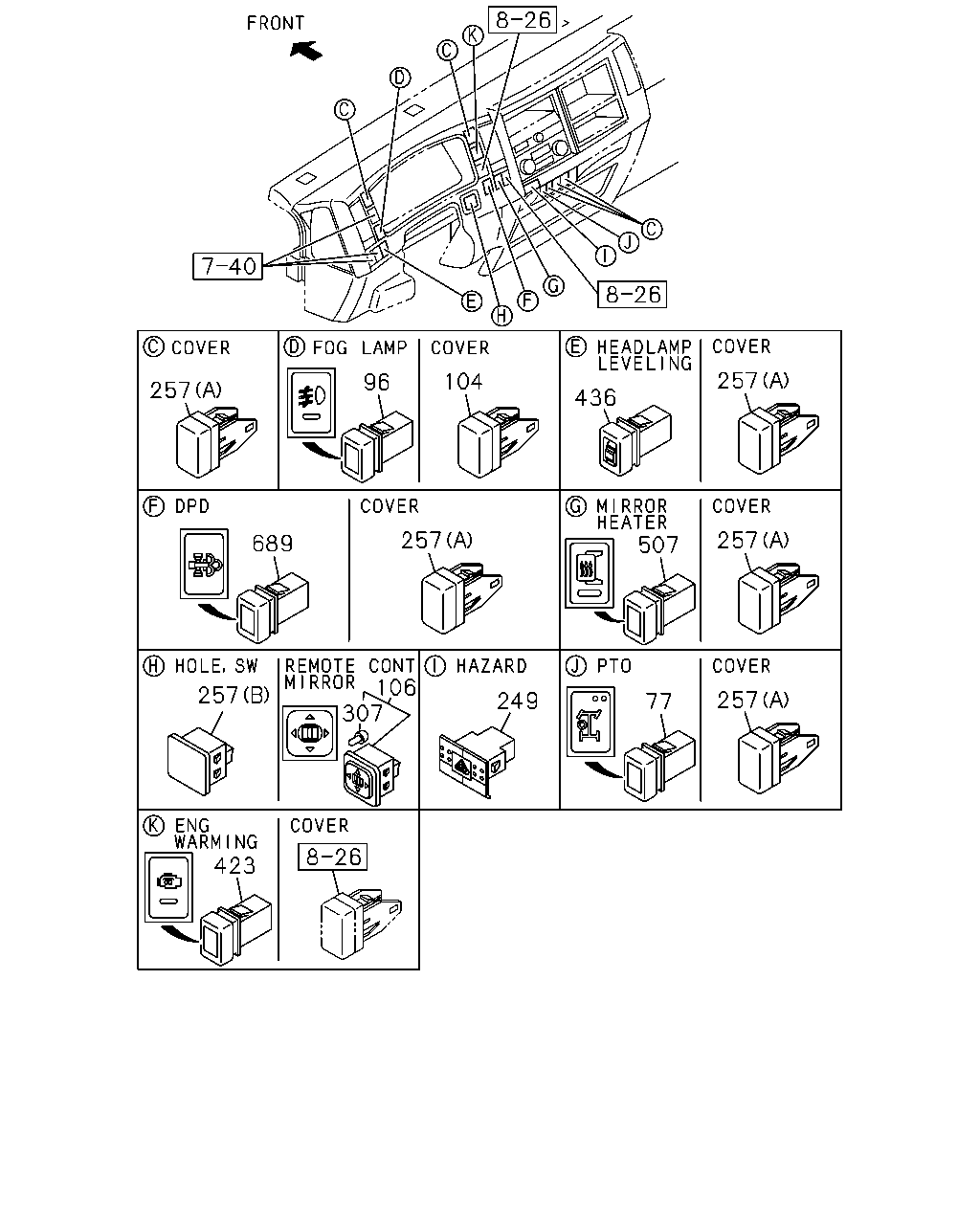

çizim 138497
257 104 96 257 436 507 257 257 689 106 307 257 257 249 77 423
BalonParca AdiParca NoAdetTipApplied Date A B
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1111- ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1111-1111 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1111-1111 ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1112- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1112- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1111-1111 ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112- ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1111- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1111- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1111- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1111- ● ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1111-1111 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1111-1111 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1111-1111 ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1111-1111 ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1112- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1111- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1111- ● ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) MINI BUS CHASSIS VAR.2(6GQ) 		8-97387-010-2 01 1 1111- ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-97387-010-2 01 1 1111- ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1111-1111 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1111-1111 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1112- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1111- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1111- ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1111- ●

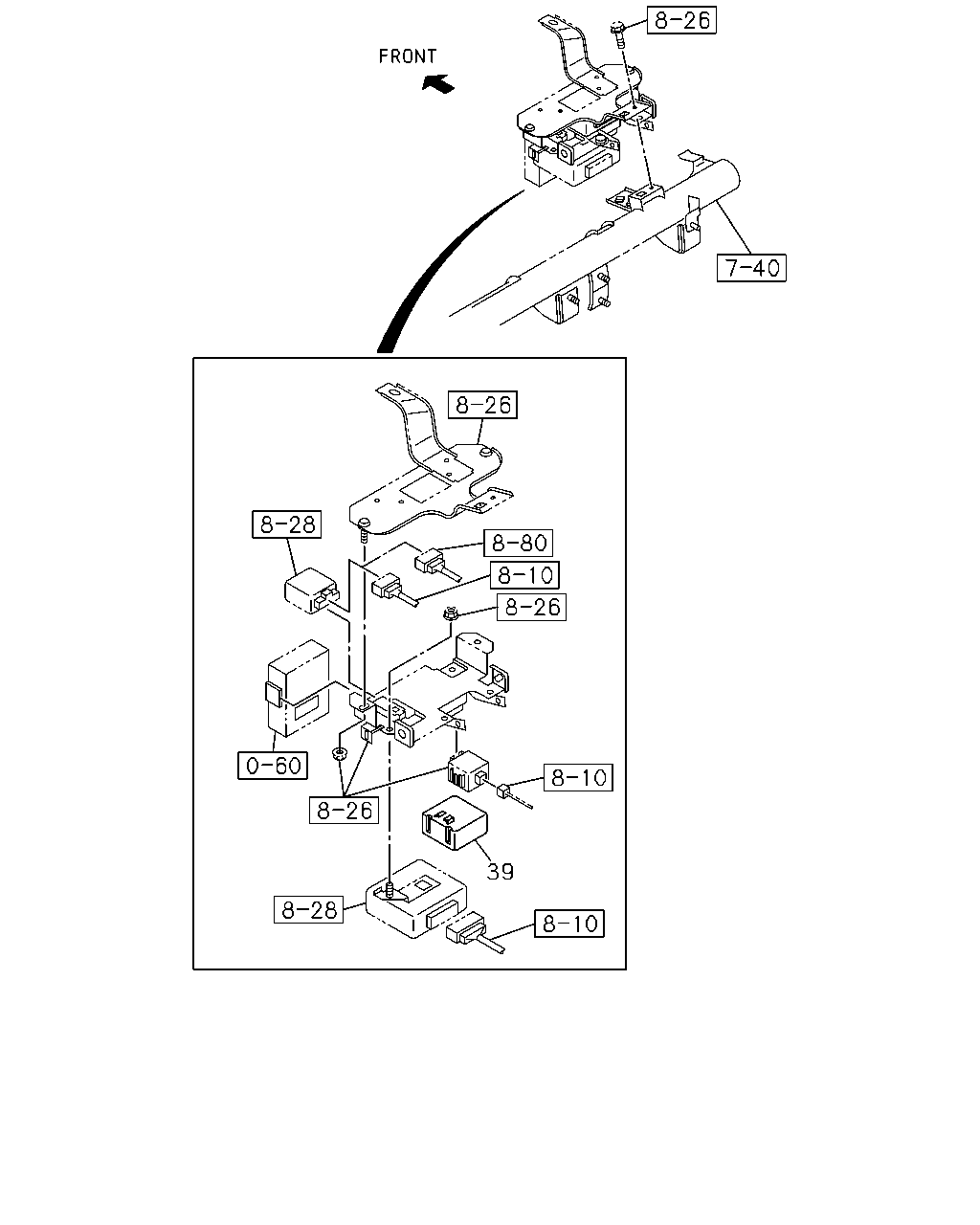

çizim 183233
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1111- ●
çizim 183235
30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1111- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1111- ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) BLACK 		8-98022-211-0 01 1 1111- ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1111- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1111- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X18 		8-98047-201-0 01 1 1111- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1111- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1111- ● ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1111-1111 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1111-1111 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1111-1111 ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1111-1111 ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1112- ● ●
257 16.081 COVER; HOLE,SW
EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1112- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C) 		8-98029-917-0 01 1 1111- ●

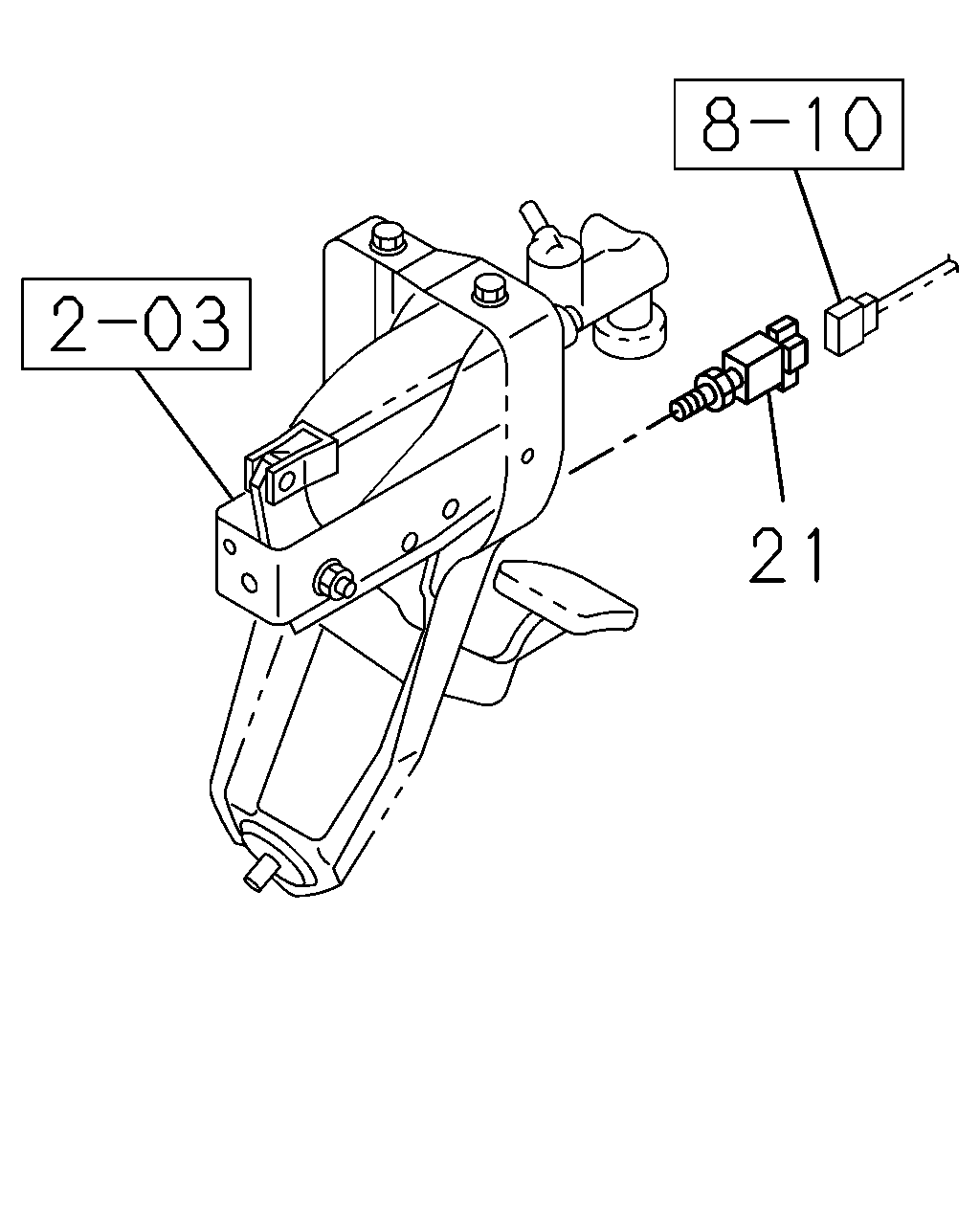

çizim 183240
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1111- ● ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1111- ● ●

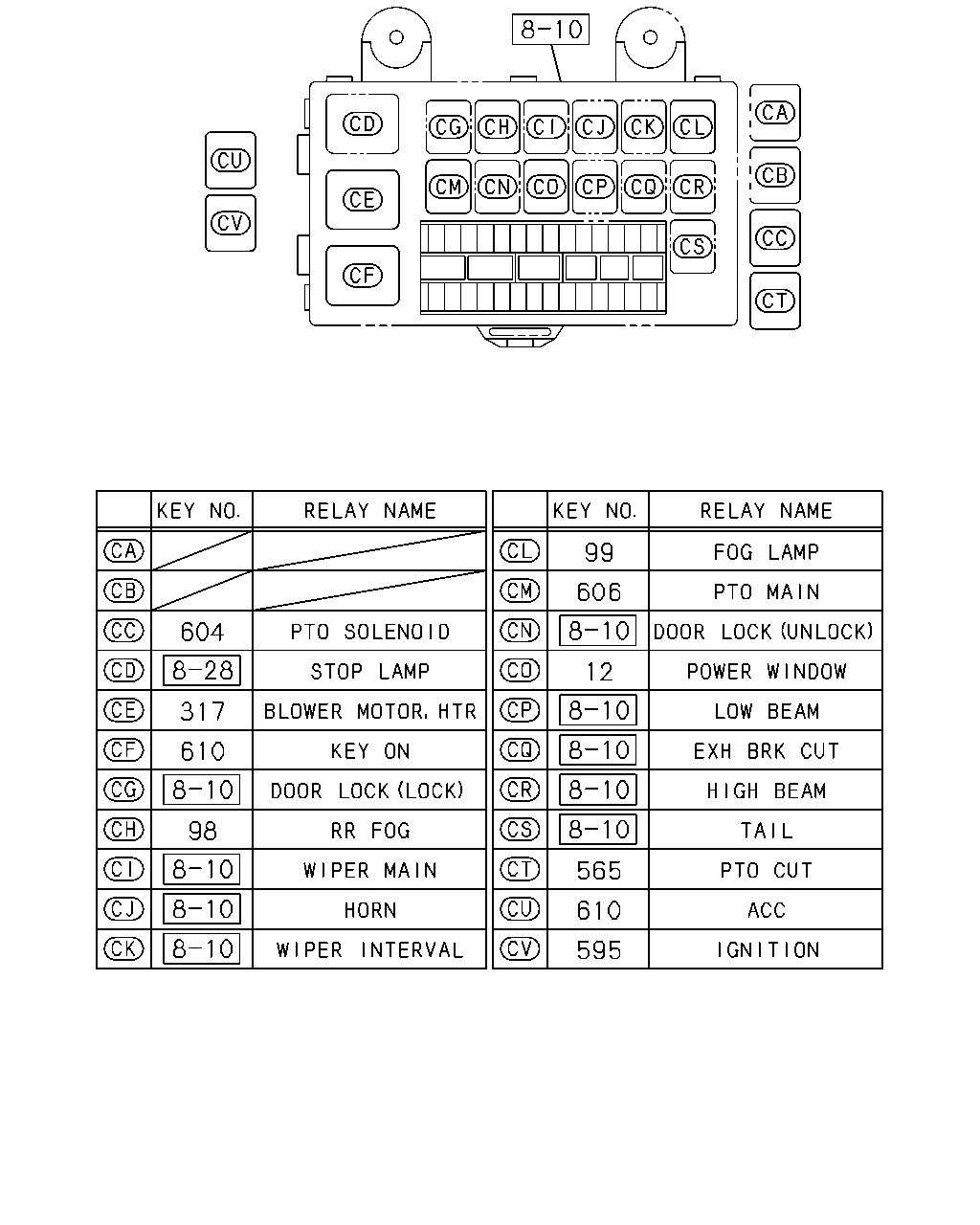

çizim 284265
604 317 610 98 99 606 12 565 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111-1111 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111- ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1206- ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1111- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1111-1205 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1206- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1206- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
