◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#80777) — 88 parça

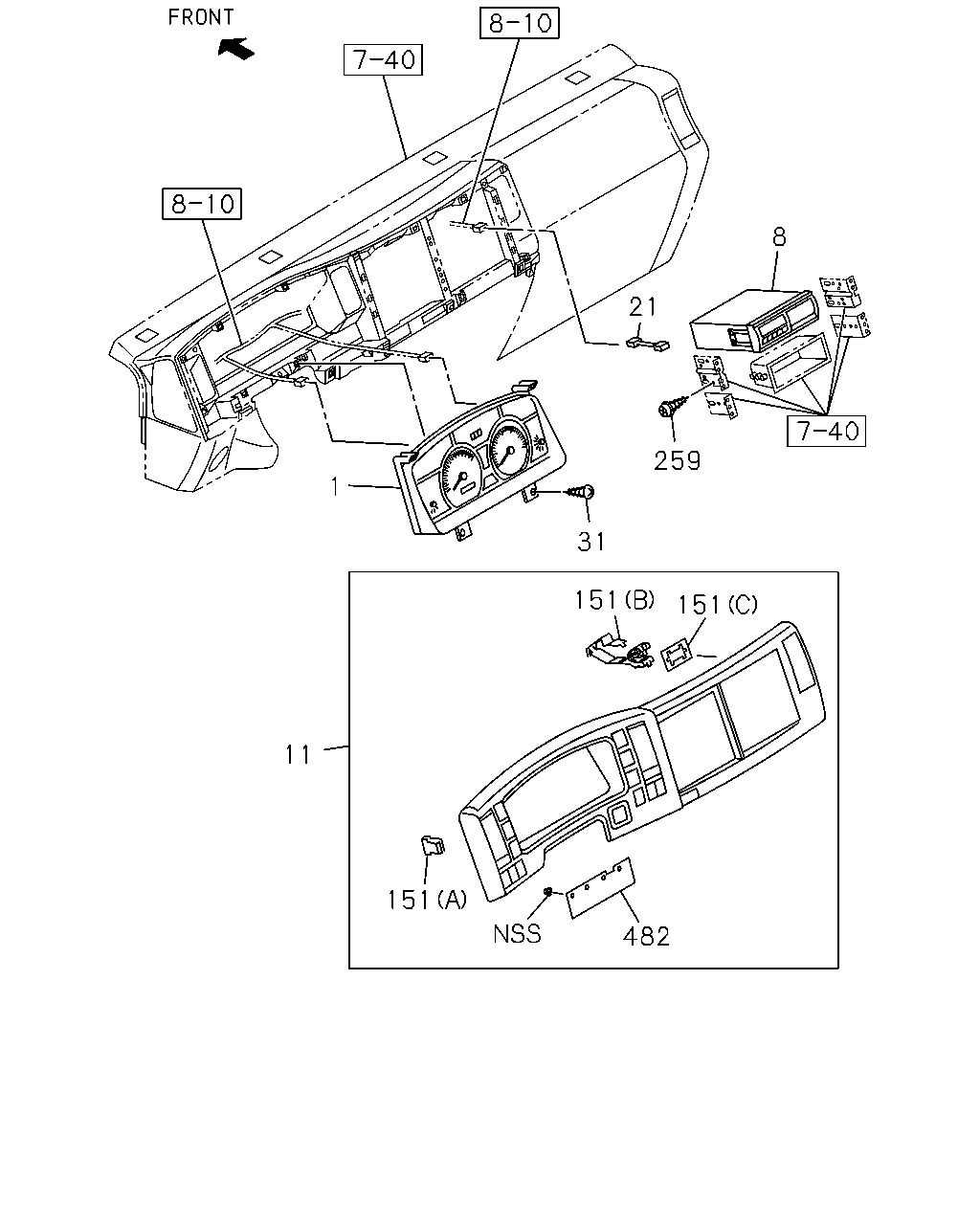

çizim 137854
8 21 259 1 31 151 151 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> 		8-98284-692-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO5 SPECIFICATION(NT5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98284-693-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-586-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-586-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> 		8-98171-929-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98171-929-0 01 1 1307- ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1111- ●
11 09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-534-1 01 1 1111- ● ●
11 09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97406-005-6 01 1 1111- ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		8-98201-154-0 01 1 1111- ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1111-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A) 		8-98021-271-0 12 1 1111- ● ●
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B) 		8-98152-030-0 01 1 1111- ● ●
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C) 		8-98152-031-0 01 1 1111- ● ●
151 09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A) 		8-98021-271-0 13 1 1111- ● ●
259 09.772 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1111- ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1111- ● ●

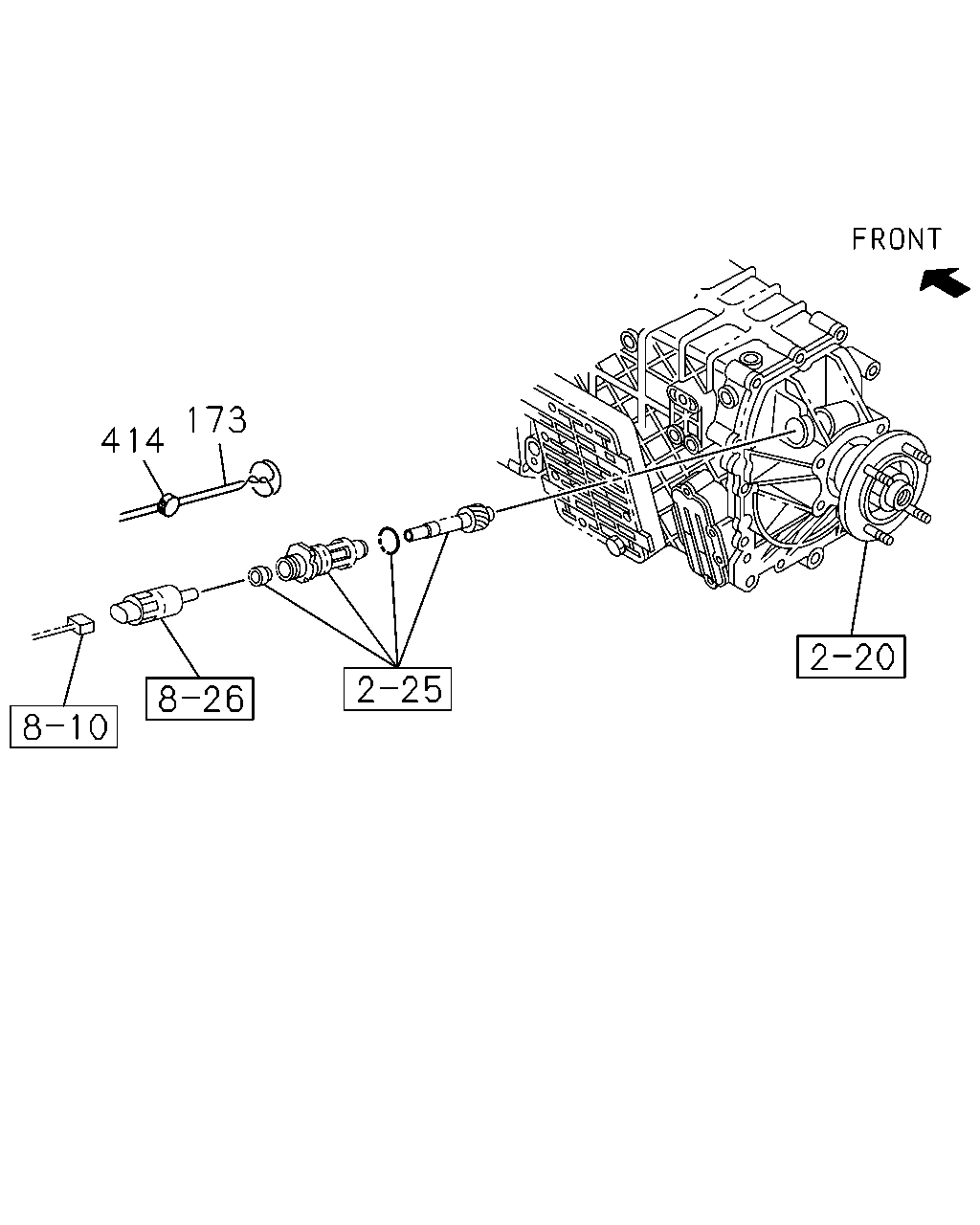

çizim 183229
173 414
BalonParca AdiParca NoAdetTipApplied Date A B
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM(NMJ) 		1-80249-010-0 01 1 1111-1305 ●
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM(NMJ) 		1-80249-010-0 01 1 1306-1309 ●
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		1-80249-010-0 01 1 1306-1309 ●
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM(NMJ) 		1-80249-010-0 01 1 1310- ●
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM(NMJ) 		1-15739-008-0 01 1 1111-1305 ●
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM(NMJ) 		1-15739-008-0 01 1 1306-1309 ●
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		1-15739-008-0 01 1 1306-1309 ●
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM(NMJ) 		1-15739-008-0 01 1 1310- ●

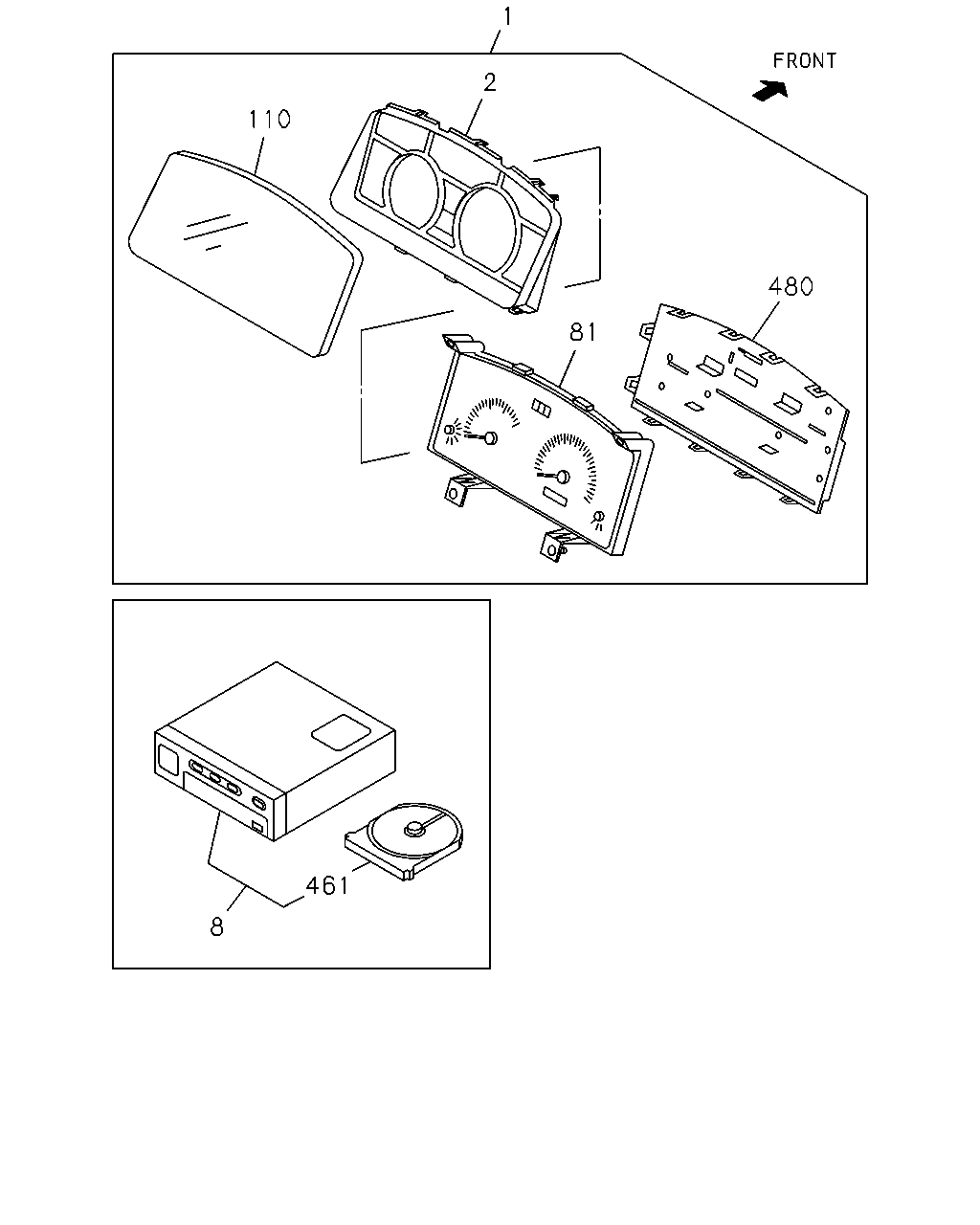

çizim 183230
1 2 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> 		8-98284-692-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO5 SPECIFICATION(NT5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98284-693-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-586-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-586-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1307-1507 ●
1 09.735 METER COMPL; CLUSTER 8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> 		8-98171-929-0 01 1 1111-1306 ●
1 09.735 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98171-929-0 01 1 1307- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1111-1306 ●
2 09.735 PANEL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98054-432-0 01 1 1111-1306 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1307-1507 ●
2 09.735 PANEL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98054-432-0 01 1 1307-1507 ●
2 09.735 PANEL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 1307-1507 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1508- ●
2 09.735 PANEL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98054-432-0 01 1 1508- ●
2 09.735 PANEL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> 		8-98054-432-0 01 1 1508- ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1111- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> 		8-98302-862-0 01 1 1508- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO5 SPECIFICATION(NT5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98302-863-0 01 1 1508- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-587-0 01 1 1307-1507 ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEEDOMETER MILE<UC1> 		8-98235-587-0 01 1 1508- ●
81 09.735 METER SUB ASM 8-98183-879-0 01 1 1111-1306 ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1111-1306 ●
81 09.735 METER SUB ASM 8-98183-879-0 01 1 1307-1507 ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1307-1507 ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),4 WHEEL ANTILOCK BRAKE<JE5>,SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1307-1507 ●
81 09.735 METER SUB ASM 8-98183-879-0 01 1 1508- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1508- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1508- ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> 		8-98183-881-0 01 1 1111-1306 ●
81 09.735 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98183-881-0 01 1 1307- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1111-1306 ●
110 09.748 GLASS; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98054-431-0 01 1 1111-1306 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1307-1507 ●
110 09.748 GLASS; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98054-431-0 01 1 1307-1507 ●
110 09.748 GLASS; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 1307-1507 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1508- ●
110 09.748 GLASS; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98054-431-0 01 1 1508- ●
110 09.748 GLASS; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 1508- ●
461 09.750 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		1-83129-433-0 01 1 1111- ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1111-1306 ●
480 09.748 COVER; METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BLACK 		8-98054-433-0 01 1 1111-1306 ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1307-1507 ●
480 09.748 COVER; METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SPEEDOMETER MILE<UC1> EXC. COLOMBIA EQUIPMENT(CB7) BLACK 		8-98054-433-0 01 1 1307-1507 ●
480 09.748 COVER; METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 1307-1507 ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1508- ●
480 09.748 COVER; METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7) BLACK 		8-98054-433-0 01 1 1508- ●
480 09.748 COVER; METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) EXC. SPEEDOMETER MILE<UC1> BLACK 		8-98054-433-0 01 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
