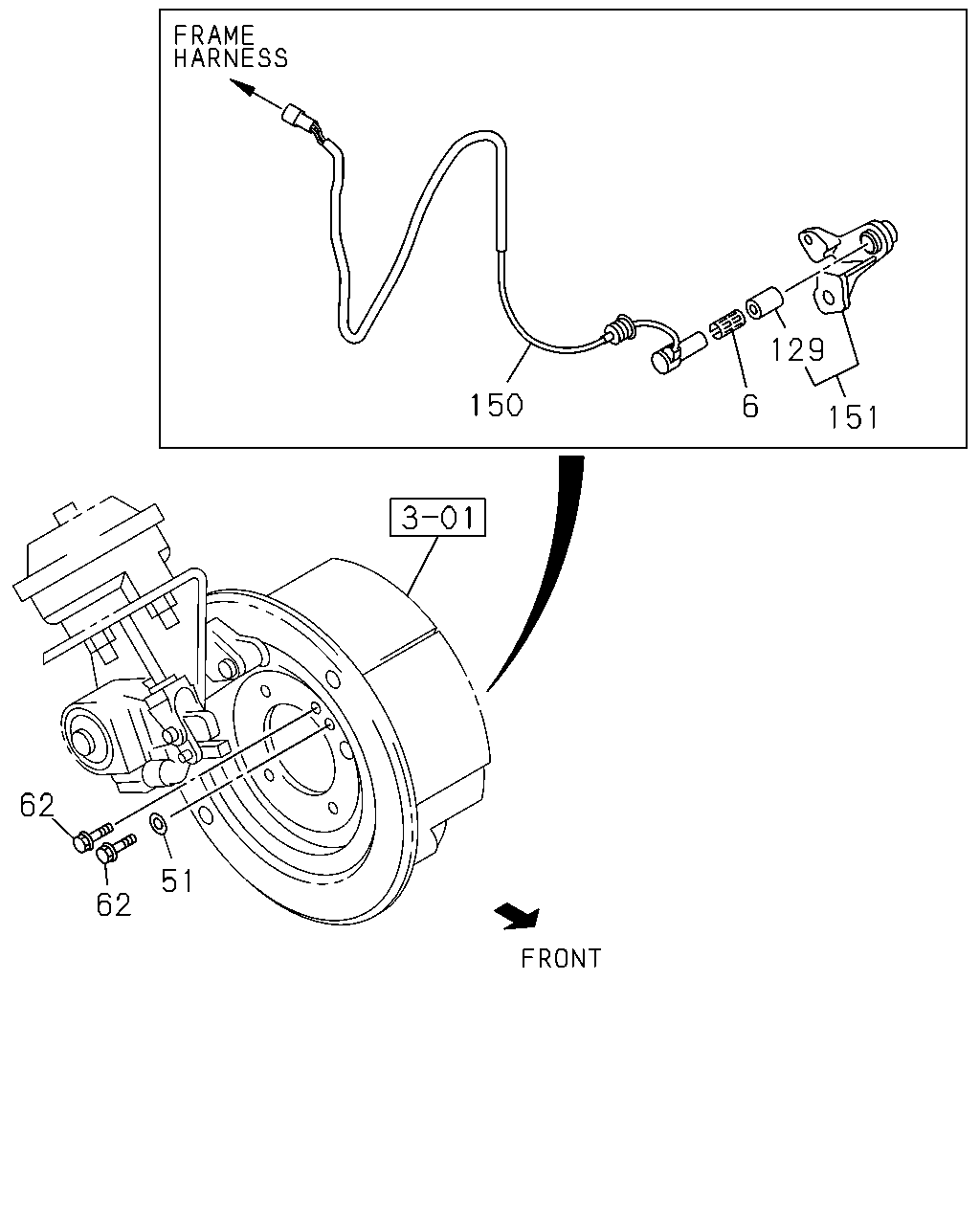

8-20 — METER CABLE (#80776) — 8 parça

6 150 129 151 62 62 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	04.337 HOLDER; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 04.710	1-83129-260-1	02	1	1111-	●	●
51	04.342 WASHER; PL 4 WHEEL ANTI LOCK BRAKE<JE5> 03.613 ID=8 OD=18 T=3	8-94174-537-0	02	1	1307-	●	●
62	04.342 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1111-	●	●
129	04.710 COLLAR 4 WHEEL ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1111-	●	●
150	04.337 SENSOR; SPEED,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV>	8-98171-296-1	02	1	1111-	●	●
150	04.337 SENSOR; SPEED,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV>	8-98171-295-1	02	1	1111-	●	●
151	04.337 BRACKET; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-117-2	01	1	1111-	●	●
151	04.337 BRACKET; SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-118-2	01	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
