Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#80775) — 341 parça

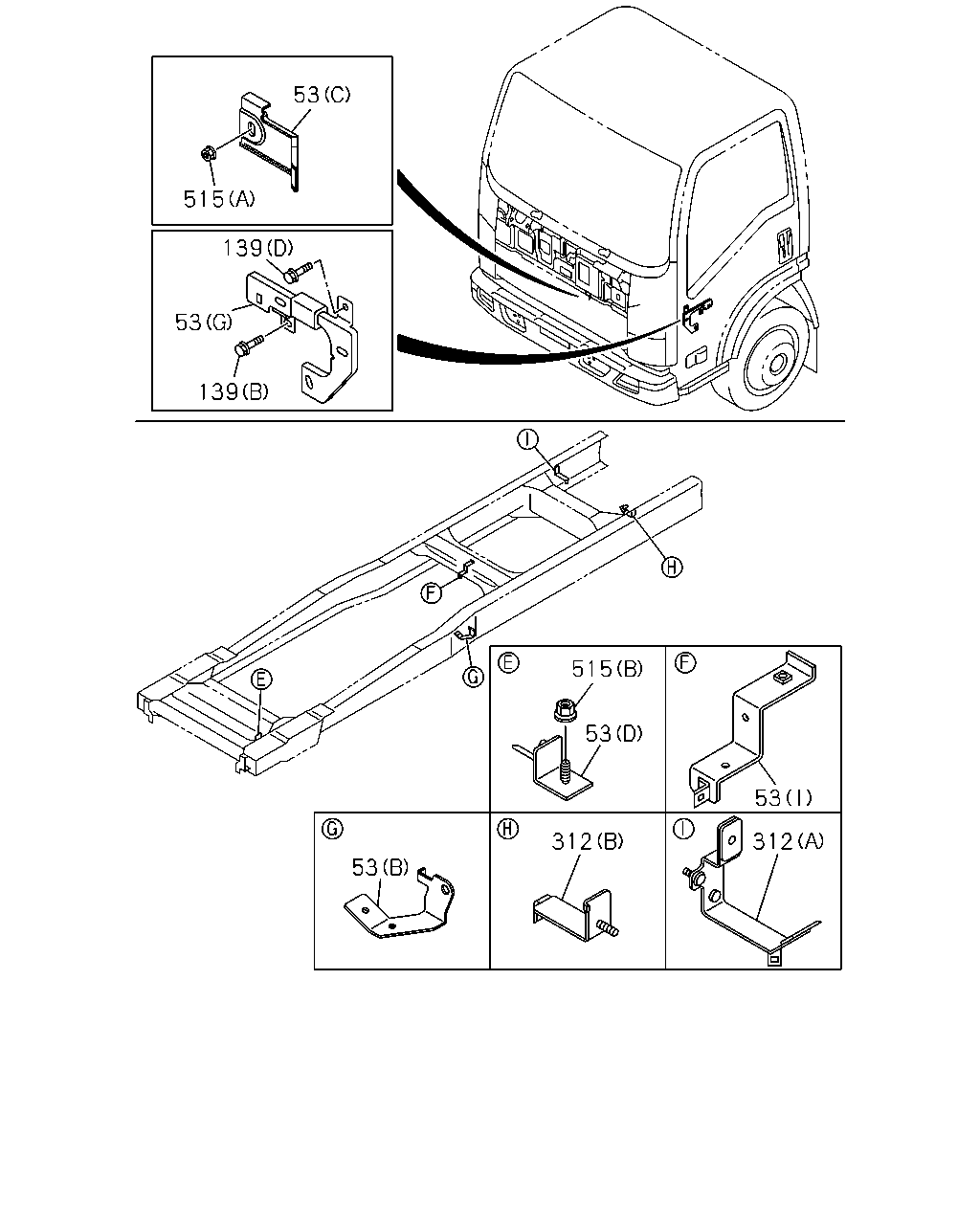

53 515 139 53 139 515 53 53 312 312 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (E)	8-98039-277-2	02	1	1111-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1111-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1111-		●
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1111-1112		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1201-1305		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1),REMOTE C ONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1510-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
312	02.559 BRACKET; CLIP HARNESS (A)	8-98202-866-0	01	1	1111-	●	●
312	02.559 BRACKET; CLIP HARNESS (B)	8-98202-865-0	01	1	1111-	●
312	02.559 BRACKET; CLIP HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98202-865-0	01	1	1111-		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1111-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1111-	●	●

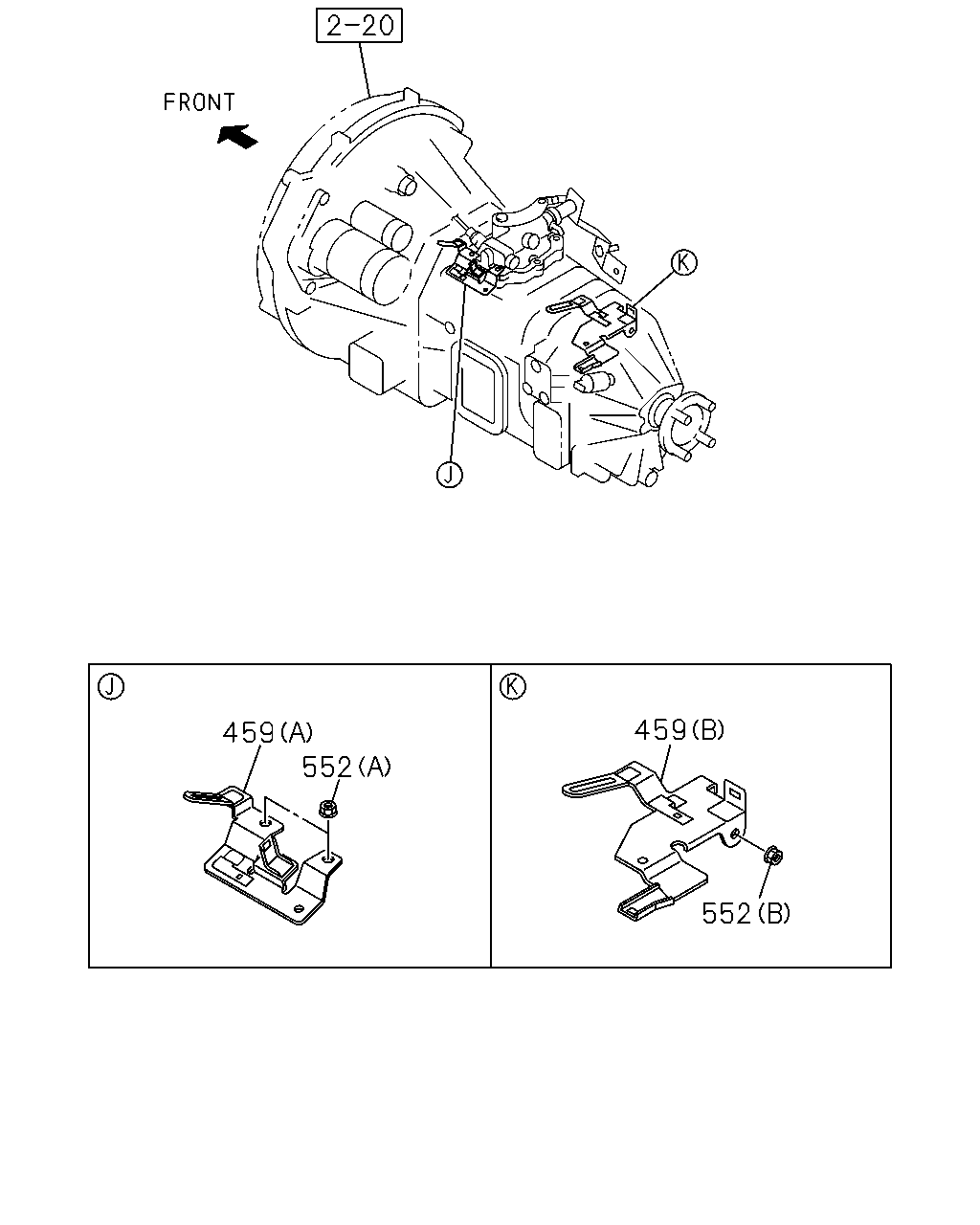

459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1111-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1111-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-	●
552	02.483 NUT; BRKT,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-	●
552	02.483 NUT; BRKT,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●

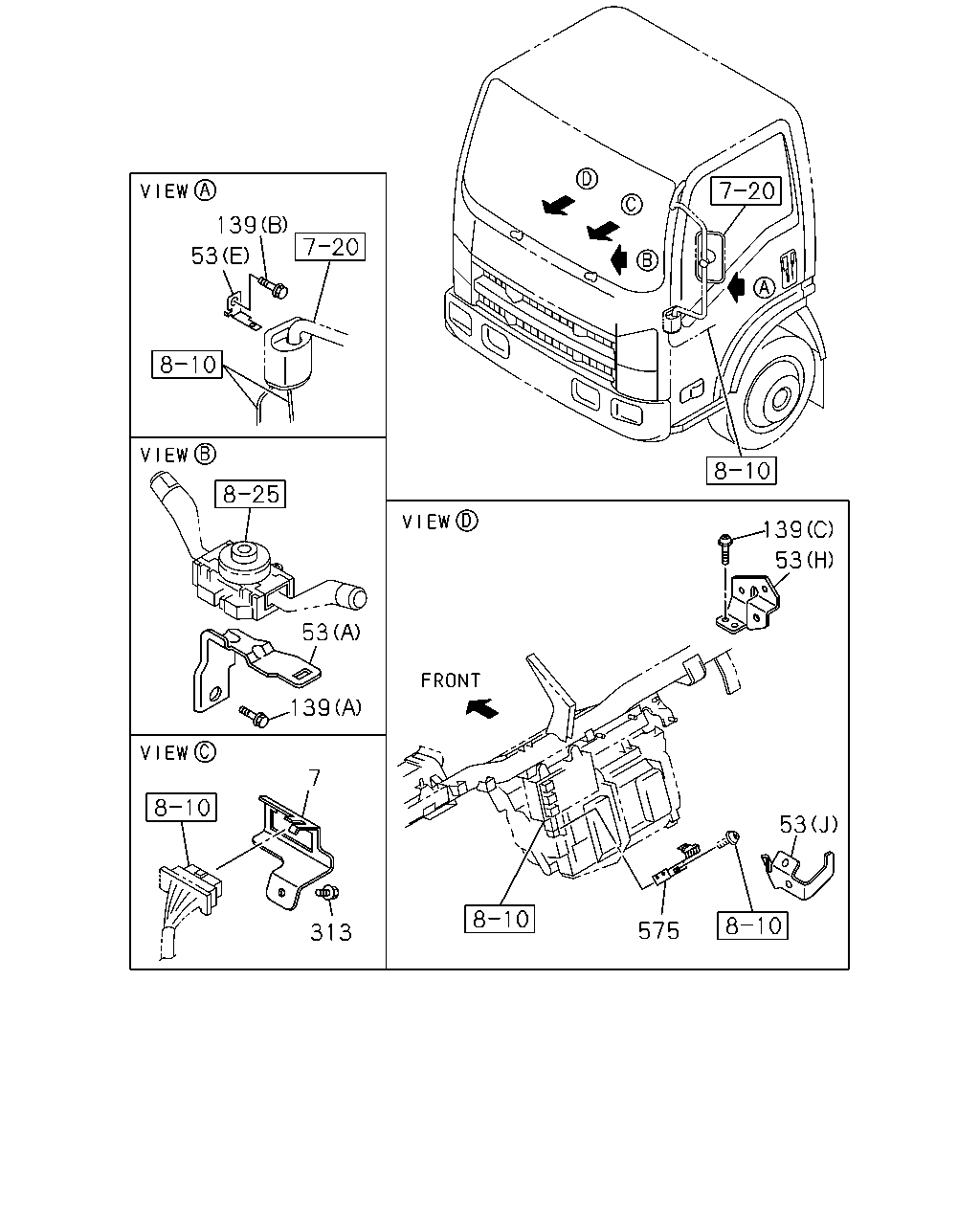

139 53 139 53 53 139 7 53 575 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (E)	8-98039-277-2	02	1	1111-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1111-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1111-		●
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1111-1112		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1201-1305		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1),REMOTE C ONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1510-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1111-	●	●
575	02.559 BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1111-	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1111-		●
575	02.559 BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1111-	●
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98132-932-1	01	1	1111-		●

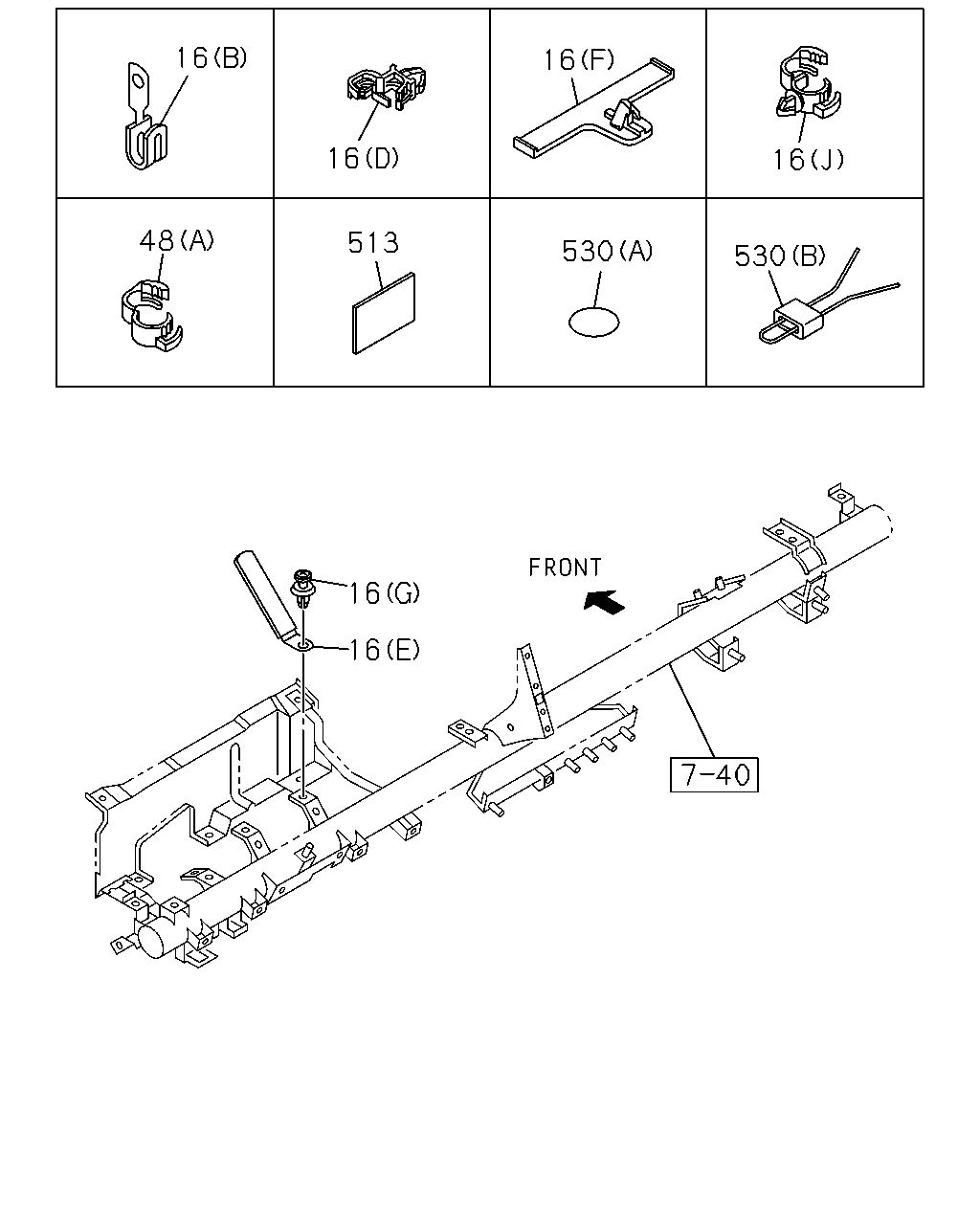

48 48 48 483 483 16 48 16 572 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (J) ID=7-10	8-94472-578-0	01	1	1111-1112	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1111-1402	●
16	02.559 CLIP; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1111-1402		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1403-1509	●
16	02.559 CLIP; HARNESS UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1403-1509		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1510-	●
16	02.559 CLIP; HARNESS ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1510-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1111-		●
16	02.559 CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1111-1402		●
16	02.559 CLIP; HARNESS EXC. UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1403-1509		●
16	02.559 CLIP; HARNESS EXC. ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1510-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (A) ID=20	8-94241-972-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=20	8-94241-972-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1111-1201	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) 03.483 (C) L=450	1-09707-142-1	01	1	1202-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1111-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	03	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	03	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (J) ID=21 L=47.5	8-94178-108-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (I) ID=21 L=24	8-98019-191-0	01	1	1302-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (C) ID=19 L=60	0-95235-896-0	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (B) ID=28 L=40	1-09701-261-0	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	03	1	1111-1301		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	02	1	1302-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (F) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.152 (E) L=36	8-94224-891-1	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.152 (E) L=36	8-94224-891-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 01.152 (E) L=36	8-94224-891-1	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (G) ID=33 L=30	8-97619-250-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (G) ID=33 L=30	8-97619-250-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (G) ID=33 L=30	8-97619-250-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (H) ID=12	8-98170-218-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (H) ID=12	8-98170-218-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (H) ID=12	8-98170-218-0	01	1	1508-		●
572	02.559 CLIP; HARNESS,SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1111-	●	●

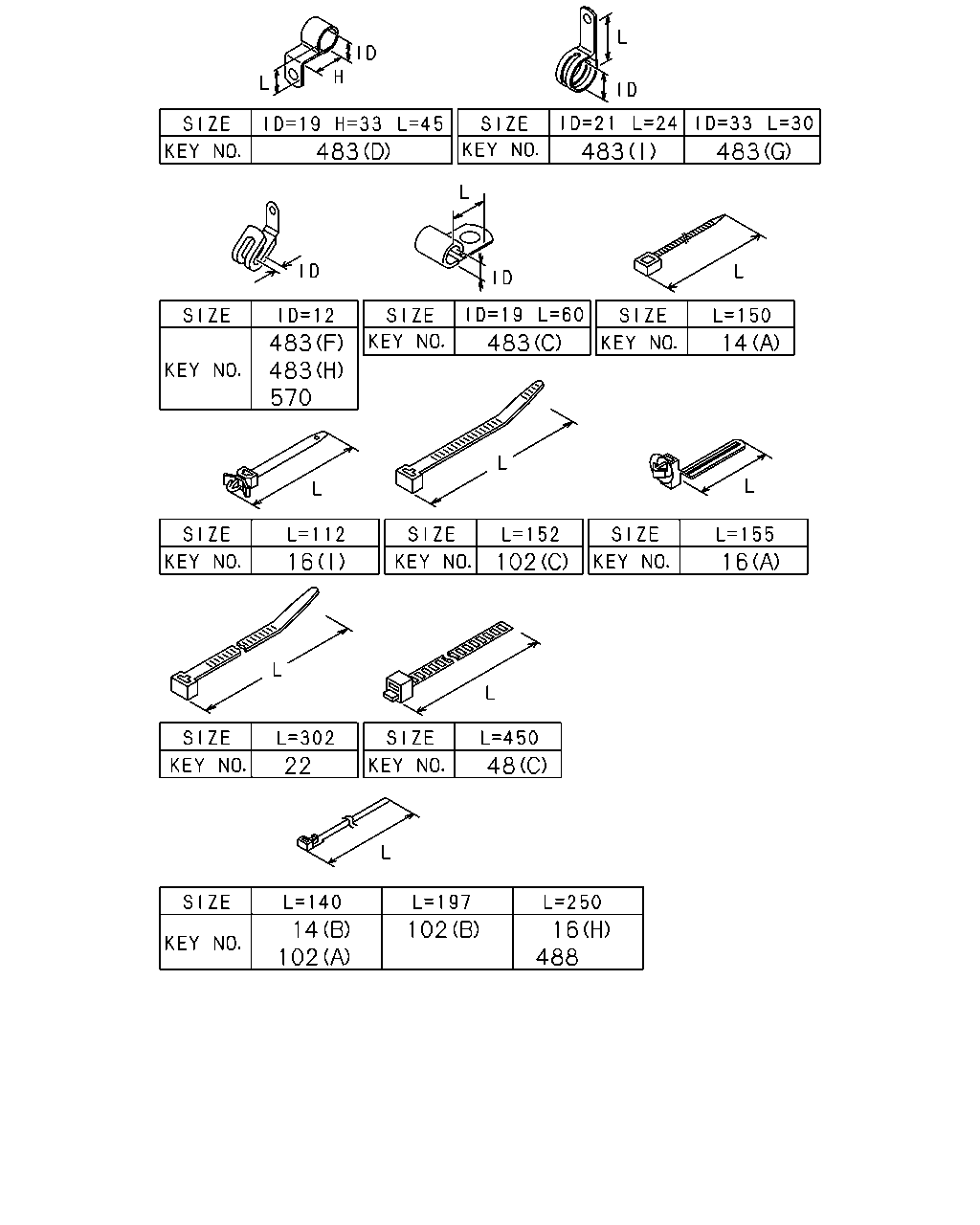

483 483 483 483 483 570 483 14 16 102 16 22 48 14 102 102 16 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.242 (A) L=150	8-97355-273-0	03	1	1508-	●	●
14	02.559 CLIP; BAND,HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 09.242 (A) L=150	8-97355-273-0	03	1	1508-		●
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-		●
14	02.559 CLIP; BAND,HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.242 (A) L=150	8-97355-273-0	03	1	1111-1507	●	●
14	02.559 CLIP; BAND,HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 03.162 (B) L=140	5-09707-031-1	03	1	1508-		●
16	02.559 CLIP; HARNESS (J) ID=7-10	8-94472-578-0	01	1	1111-1112	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1111-1402	●
16	02.559 CLIP; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1111-1402		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1403-1509	●
16	02.559 CLIP; HARNESS UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1403-1509		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1510-	●
16	02.559 CLIP; HARNESS ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1510-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1111-		●
16	02.559 CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1111-1402		●
16	02.559 CLIP; HARNESS EXC. UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1403-1509		●
16	02.559 CLIP; HARNESS EXC. ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1510-		●
22	02.559 CLIP; ENG HARNESS L=302	8-98205-948-0	01	1	1111-1203	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) L=302	8-98205-948-0	01	1	1111-1203		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (A) ID=20	8-94241-972-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=20	8-94241-972-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1111-1201	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) 03.483 (C) L=450	1-09707-142-1	01	1	1202-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1111-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	03	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	03	1	1508-		●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) L=152	8-98132-426-0	01	1	1510-	●	●
102	02.559 CLIP; BAND EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 03.162 (A) L=140	5-09707-031-1	02	1	1508-		●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 04.342 (B) L=197	1-83574-032-0	03	1	1111-		●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	03	1	1111-		●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.342 (B) L=197	1-83574-032-0	01	1	1111-1507	●	●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.342 (B) L=197	1-83574-032-0	01	1	1508-	●	●
102	02.559 CLIP; BAND EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 04.342 (B) L=197	1-83574-032-0	01	1	1508-		●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) L=140	5-09707-031-1	04	1	1111-	●	●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) L=152	8-98132-426-0	01	1	1111-1507	●	●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) L=152	8-98132-426-0	01	1	1508-1509	●	●
102	02.559 CLIP; BAND EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (C) L=152	8-98132-426-0	01	1	1508-1509		●
102	02.559 CLIP; BAND EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (C) L=152	8-98132-426-0	02	1	1510-		●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (J) ID=21 L=47.5	8-94178-108-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (I) ID=21 L=24	8-98019-191-0	01	1	1302-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (C) ID=19 L=60	0-95235-896-0	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (B) ID=28 L=40	1-09701-261-0	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	03	1	1111-1301		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	02	1	1302-		●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (F) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.152 (E) L=36	8-94224-891-1	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 01.152 (E) L=36	8-94224-891-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 01.152 (E) L=36	8-94224-891-1	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (G) ID=33 L=30	8-97619-250-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (G) ID=33 L=30	8-97619-250-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (G) ID=33 L=30	8-97619-250-0	01	1	1508-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (H) ID=12	8-98170-218-0	01	1	1111-1507	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (H) ID=12	8-98170-218-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (H) ID=12	8-98170-218-0	01	1	1508-		●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1111-	●	●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1111-	●	●

516 481 529 377 24 294 515 577 515 552 24 515 552 377 386 386 304 150 139 38 150 139 139 480 150 313 481 150 480 86 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1111-1409	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
38	02.559 BOLT; CLIP,HARNESS M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
86	02.559 BOLT; CLIP BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1111-	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1111-1212		●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
150	02.343 BOLT; CLIP EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-		●
150	02.343 BOLT; CLIP EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 00.413 (D) M6X20	8-97127-607-0	01	1	1508-		●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1111-		●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	03	1	1111-		●
150	02.343 BOLT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE	0-28050-816-0	01	1	1111-1507	●	●
150	02.343 BOLT; CLIP EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-	●	●
150	02.343 BOLT; CLIP EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> (A) M8X16 FLANGE	0-28050-816-0	01	1	1508-		●
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1111-	●	●
304	02.483 BOLT; ENG HARNESS CLIP EURO5 SPECIFICATION(NT5) ANTI EROSION SPEC<7XK> 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1508-		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1111-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1111-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1111-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1111-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1111-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-	●	●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-	●
481	13.090 BOLT; CABLE HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-		●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1111-	●
481	13.090 BOLT; CABLE HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1111-		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1111-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1111-	●	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1111-		●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1111-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-	●
552	02.483 NUT; BRKT,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1111-		●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-	●
552	02.483 NUT; BRKT,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1111-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1111-	●	●

16 16 16 16 48 513 530 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS (J) ID=7-10	8-94472-578-0	01	1	1111-1112	●	●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1111-1402	●
16	02.559 CLIP; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1111-1402		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1403-1509	●
16	02.559 CLIP; HARNESS UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1403-1509		●
16	02.559 CLIP; HARNESS (H) L=250	5-09707-030-1	04	1	1510-	●
16	02.559 CLIP; HARNESS ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW) EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	04	1	1510-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	1111-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1111-		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1111-	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	1111-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1111-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1111-		●
16	02.559 CLIP; HARNESS EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1111-1402		●
16	02.559 CLIP; HARNESS EXC. UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1403-1509		●
16	02.559 CLIP; HARNESS EXC. ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1510-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (A) ID=20	8-94241-972-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=20	8-94241-972-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1111-		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (D) T=4.5 & 9	8-97371-947-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (D) T=4.5 & 9	8-97371-947-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1111-1507	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	01	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS (E) T=5.5	8-97371-951-0	01	1	1508-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1508-		●
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1111-1201	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) 03.483 (C) L=450	1-09707-142-1	01	1	1202-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1111-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1111-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) (E) T=5.5	8-97371-951-0	03	1	1111-1507		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	03	1	1508-		●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1111-1205	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	1111-1205		●
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1206-	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1206-	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 130X80	8-97304-373-0	01	1	1206-		●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1111-1305	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1306-1309	●	●
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) 03.483 (B)	8-97382-876-0	01	1	1310-	●
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1111-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (E)	8-98039-277-2	02	1	1111-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1111-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1111-		●

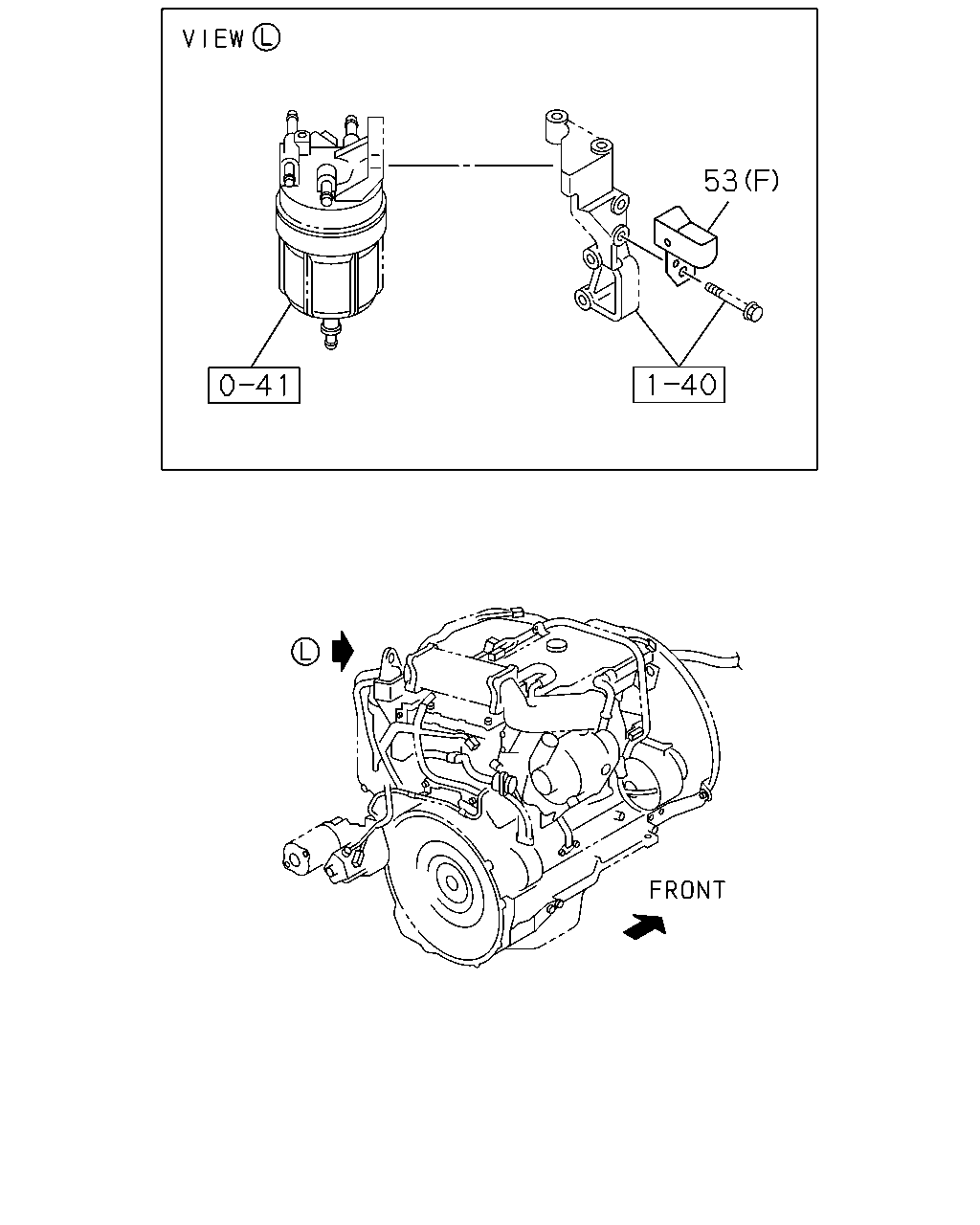

53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1111-	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1111-1112		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1201-1305		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MINI BUS CHASSIS VAR.2(6GQ),REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS VAR.2(6GQ) EXC. RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1),REMOTE C ONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1306-1509		●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REMOTE CONT DOOR LOCK<6NF> (J)	8-98074-502-0	01	1	1510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
