◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#80771) — 190 parça

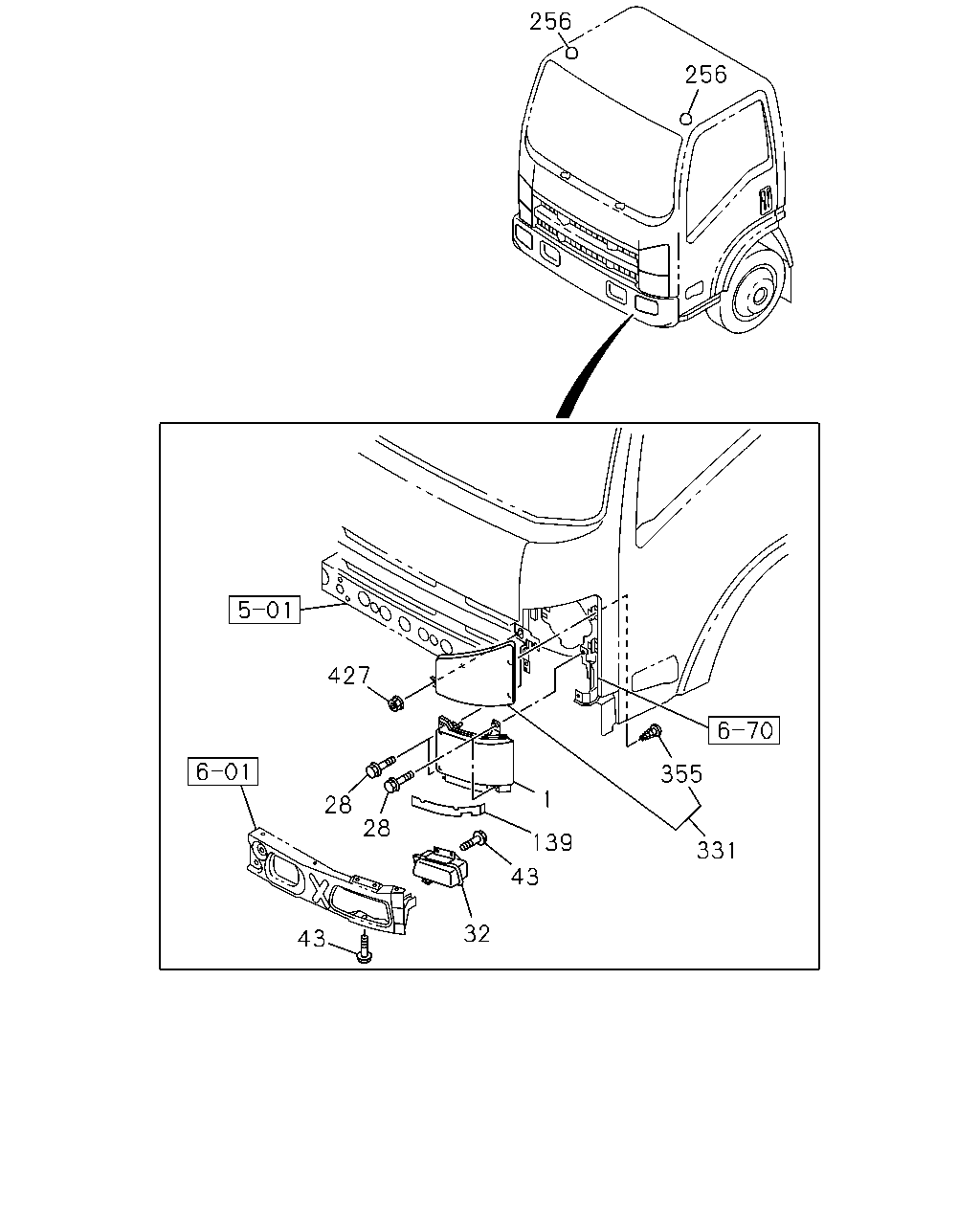

çizim 135713
256 256 427 28 28 32 43 1 139 355 331 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-597-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-638-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-323-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-598-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-639-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-324-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-601-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-642-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-327-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-602-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-643-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-328-0 01 1 1306- ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1111- ● ●
32 02.725 LAMP ASM; FOG 8-98186-094-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG 8-98232-070-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG 8-98186-095-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG 8-98232-071-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1111-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1111-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1111-1111 ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1112- ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 1111- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 1111- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 1111- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1111- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1111- ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1111- ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111- ● ●
çizim 136143
86 80 83 292 82 256 44 47 36 32 15 49 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1111-1111 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1112- ● ●
32 02.725 LAMP ASM; FOG 8-98186-094-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG 8-98232-070-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG 8-98186-095-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1112-1301 ●
32 02.725 LAMP ASM; FOG 8-98232-071-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-0 01 1 1302- ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 1111-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 1111-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1111-1111 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1112-1509 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1510- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1111-1111 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1112-1509 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1510- ● ●
44 02.737 NUT; FOG LAMP 8-98203-259-0 02 1 1112-1204 ●
44 02.737 NUT; FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-259-0 02 1 1112-1204 ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1205- ● ●
47 02.737 WASHER; PL,FOG LAMP 8-98203-258-0 02 1 1112-1204 ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP FRONT VAR2<X99> 		8-98203-258-0 02 1 1112-1204 ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1205- ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1111-1111 ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1112-1509 ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1510- ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1111-1111 ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1112-1509 ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1510- ● ●
80 08.991 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 1111- ● ●
82 02.587 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 1111- ● ●
83 02.589 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 1111- ● ●
86 02.587 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 01.062 M6 FLANGE 		0-91180-106-0 04 1 1111- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 1111- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 1111- ● ●
292 02.587 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 1111- ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1111-1111 ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1112- ● ●
çizim 136322
331 431 357 399 355 432 1 4 23 457 382 5 5 408 20 420 338 339
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-98098-481-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-481-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-597-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-638-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-323-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98098-482-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-482-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-598-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-639-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-324-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-483-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-601-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-642-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-327-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 1111-1111 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98098-484-2 01 1 1112-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-602-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98225-643-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98241-328-0 01 1 1306- ● ●
4 02.727 HEADLAMP UNIT 8-98051-404-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-404-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-404-0 01 1 1112-1301 ● ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-184-0 01 1 1302- ● ●
4 02.727 HEADLAMP UNIT 8-98051-405-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-405-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-405-0 01 1 1112-1301 ● ●
4 02.727 HEADLAMP UNIT
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-185-0 01 1 1302- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-406-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-406-0 01 1 1112-1301 ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-188-0 01 1 1302- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-407-0 01 1 1111-1111 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98051-407-0 01 1 1112-1301 ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98226-189-0 01 1 1302- ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1111- ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1111- ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 1111- ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1111- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1111- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1111- ● ●
338 02.727 LEVELING; HEADLAMP
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98010-256-0 02 1 1209- ● ●
339 02.587 GASKET; LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		1-86830-158-0 02 1 1209- ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1111- ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1111- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1111-1208 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1111- ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1111- ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1111-1301 ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1111- ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1111- ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

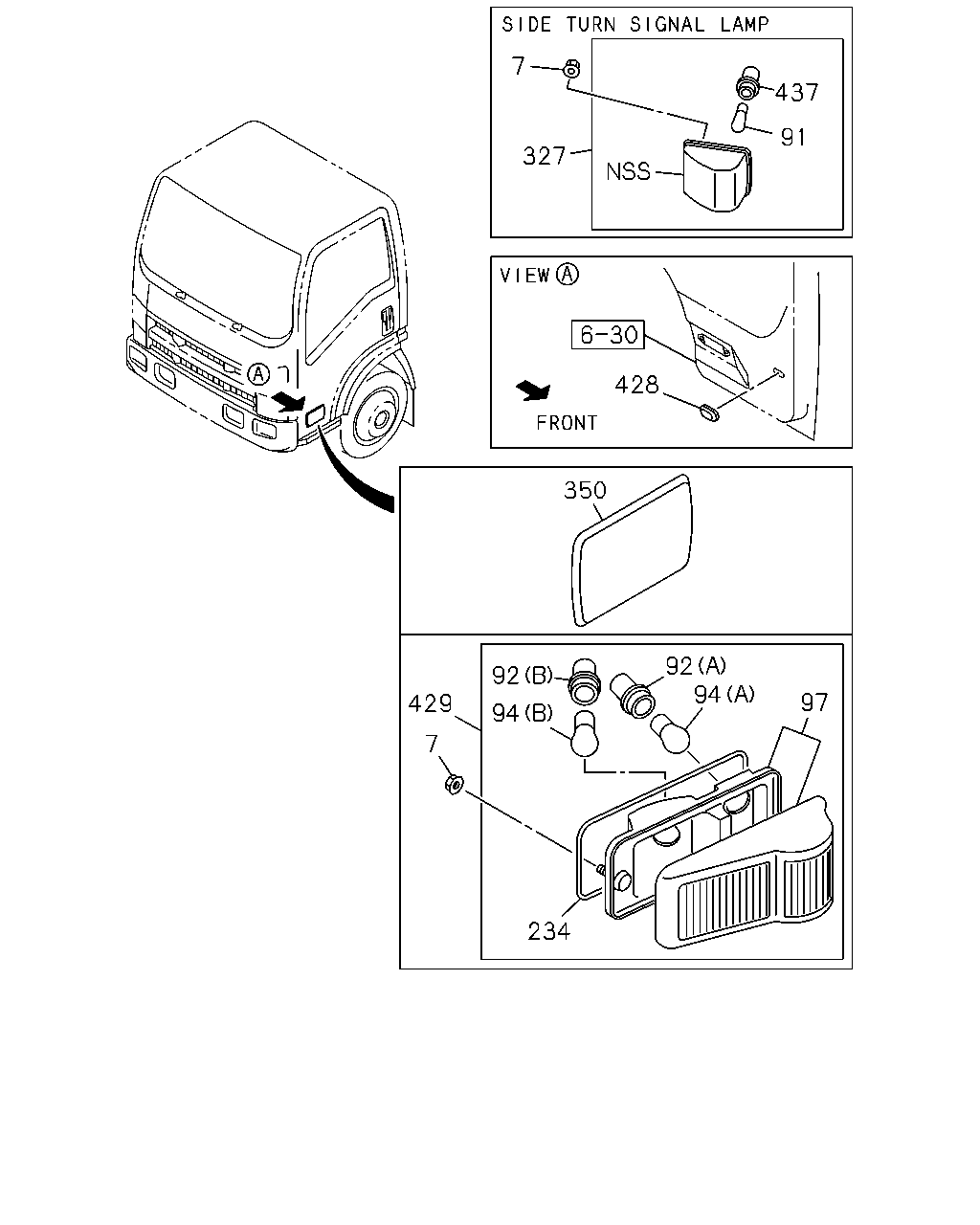

çizim 136365
7 437 91 327 428 350 92 94 92 97 429 94 7 234
BalonParca AdiParca NoAdetTipApplied Date A B
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1111- ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 1111- ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 1111- ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1111- ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1111- ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1111- ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1111- ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1111- ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 1111- ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1111-1508 ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98061-390-0 02 1 1111-1508 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1509-1509 ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1509-1509 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1510- ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1510- ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 1111- ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1111- ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1111- ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1111- ●
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 1111- ●

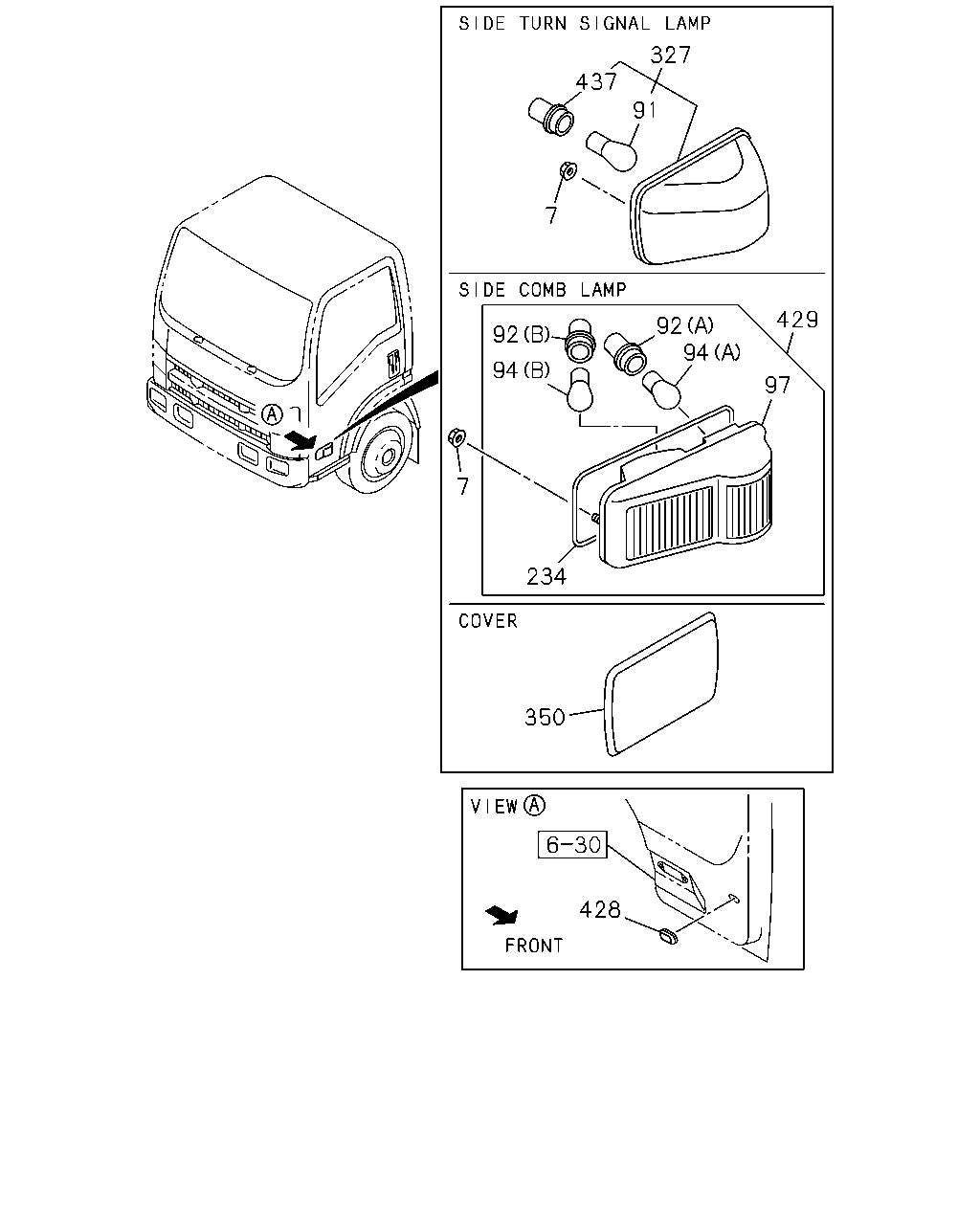

çizim 183225
327 437 91 7 94 92 7 234 92 94 97 429 350 428
BalonParca AdiParca NoAdetTipApplied Date A B
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1111- ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 1111- ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 1111- ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1111- ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1111- ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1111- ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1111- ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1111- ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1111- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 1111- ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1111-1508 ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) 		8-98061-390-0 02 1 1111-1508 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1509-1509 ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1509-1509 ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 1510- ●
350 02.596 COVER; SIDE TURN HOLE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1510- ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 1111- ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1111- ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1111- ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1111- ●
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 1111- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
