◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#80770) — 41 parça

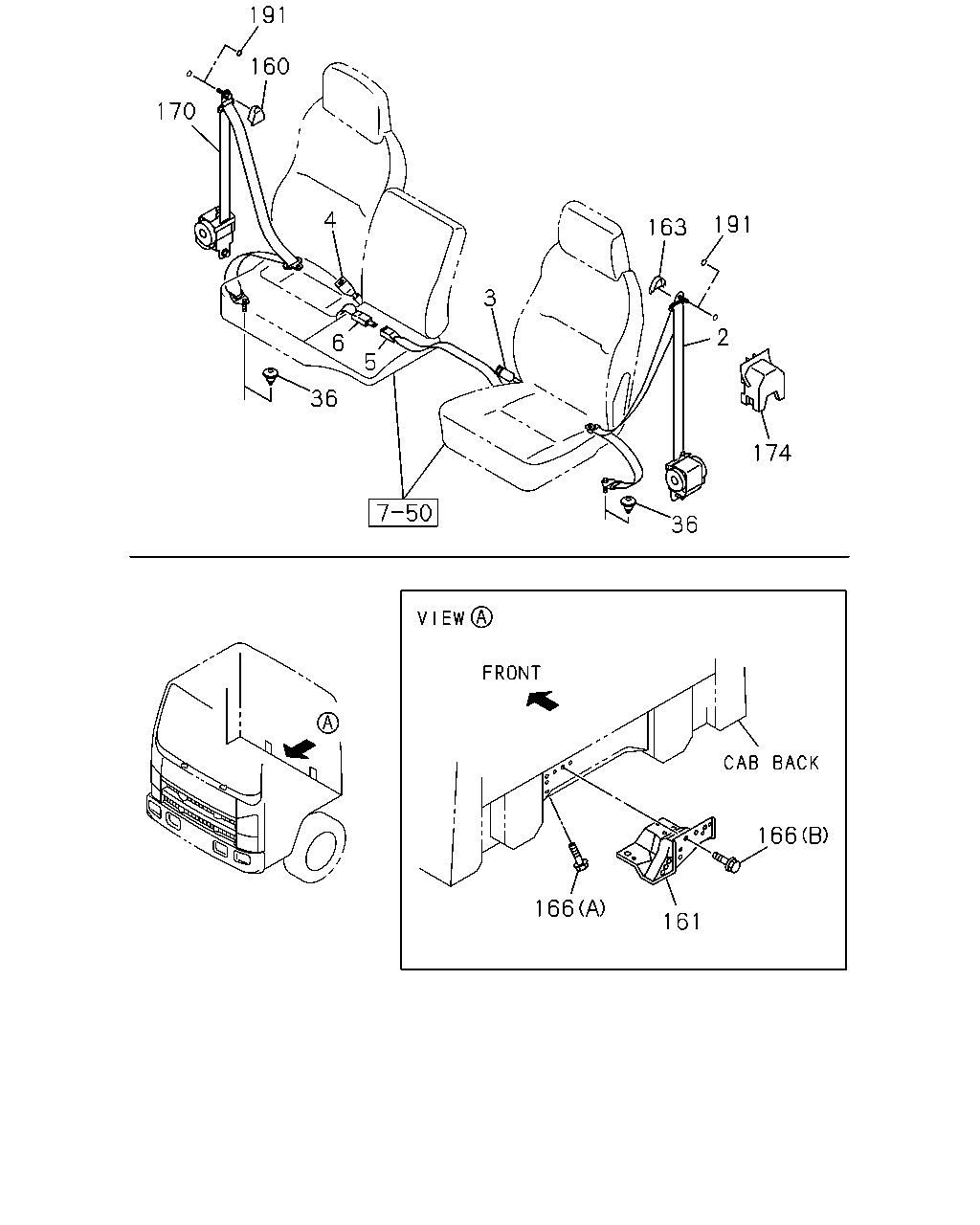

çizim 135962
191 160 170 4 191 163 3 2 6 5 36 174 36 166 166 161
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> TAIWAN EQUIPMENT(B04) GRAY 		8-97428-087-0 01 1 1311- ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1111-1310 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-180-7 01 1 1111-1310 ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 1311-1406 ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-457-1 01 1 1407- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1111- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-175-2 01 1 1111- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1111- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-178-0 01 1 1111- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1111- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-182-1 01 1 1111- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> TAIWAN EQUIPMENT(B04) GRAY 		8-97428-088-0 01 1 1311- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1111-1310 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97411-507-2 01 1 1111-1310 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1311- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97411-507-2 01 1 1311- ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.714 OD=22 		9-61168-535-0 02 1 1111- ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1111- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-991-0 01 1 1111- ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98017-005-2 01 1 1111- ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1111- ●
163 16.714 COVER; ADJUSTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-991-0 01 1 1111- ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 09 1 1111- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1111- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> TAIWAN EQUIPMENT(B04) GRAY 		8-97428-087-0 01 1 1311- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1111-1310 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97405-180-7 01 1 1111-1310 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97405-180-7 01 1 1311-1406 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-457-1 01 1 1407- ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1111- ● ●
191 16.650 SEAL; SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1111- ●

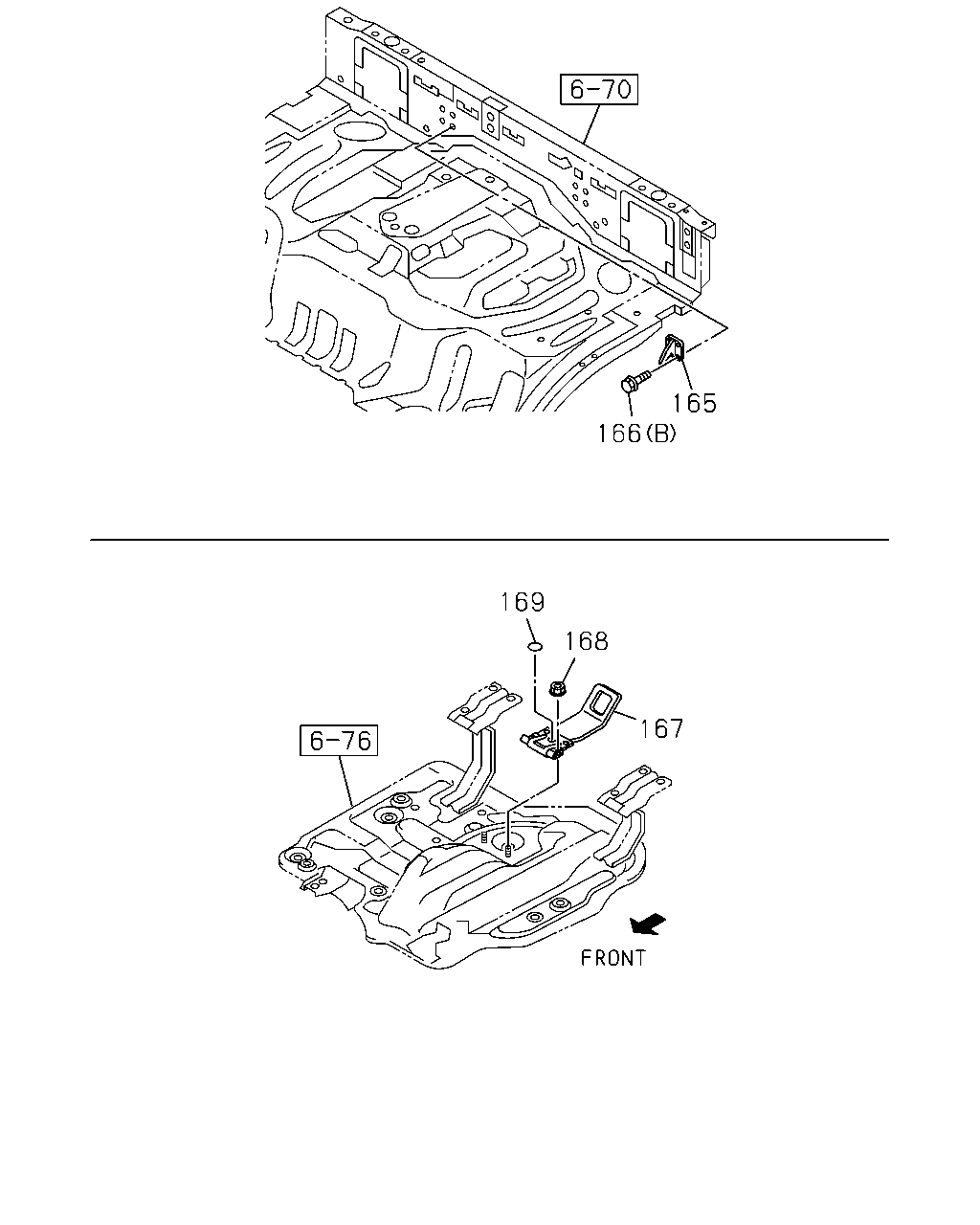

çizim 183224
165 166 169 168 167
BalonParca AdiParca NoAdetTipApplied Date A B
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1111- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 09 1 1111- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1111- ● ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1111- ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111- ● ●
169 16.650 SEAL
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 OD=32 BLACK 		8-98031-126-0 02 1 1111- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
