0-22 — ENGINE MOUNTING (#8077) — 111 parça

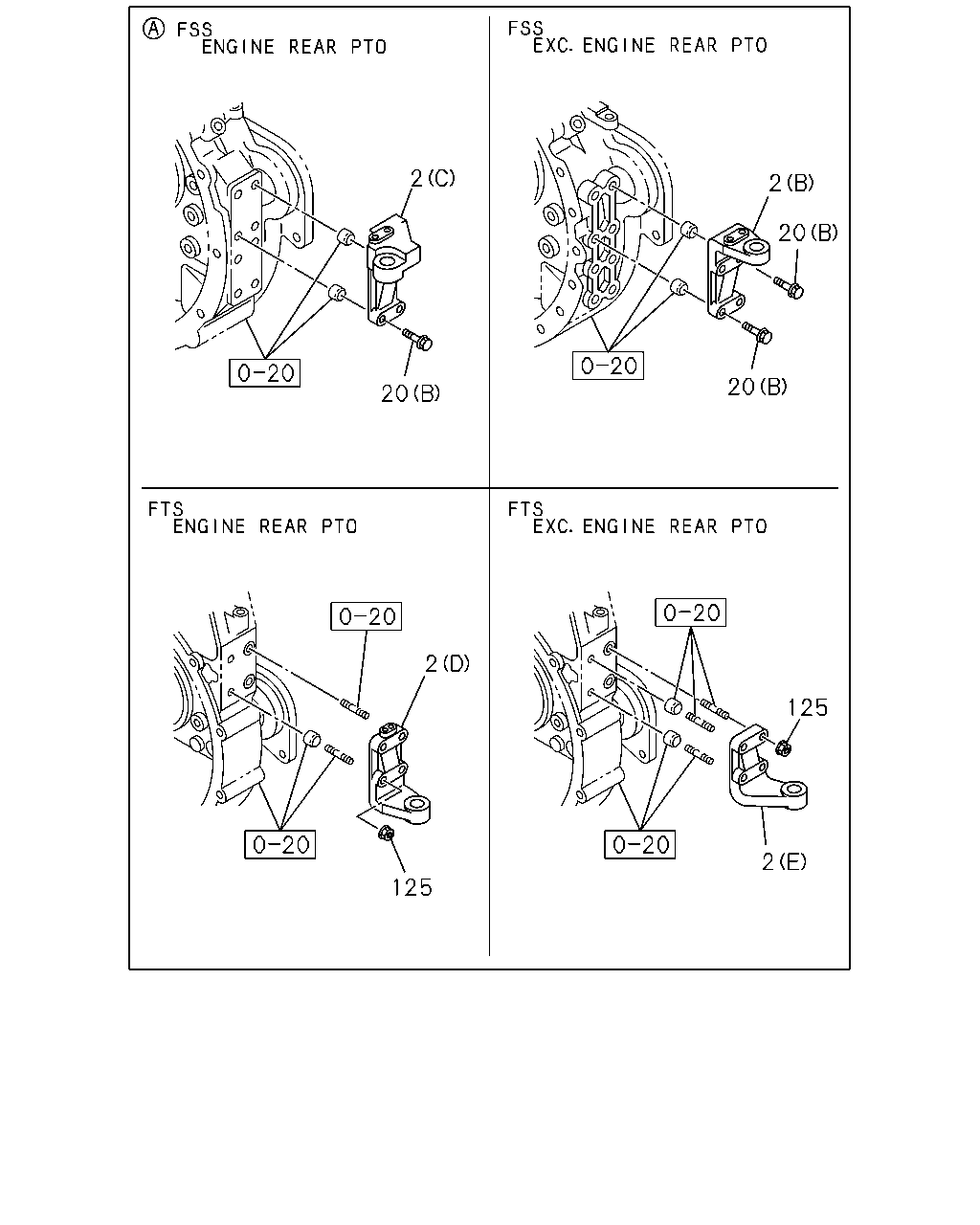

2 2 20 20 20 2 125 2 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0211-		●	●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-241-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (K)	8-94393-385-2	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-243-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (J)	8-97602-578-0	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (B)	8-94399-490-0	02	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (G)	8-94396-952-3	01	1	0211-			●
2	FOOT; ENG FTS ALL(FT****) ENGINE REAR PTO(SV1) (D)	8-94396-953-3	02	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (G)	8-94396-953-3	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-115-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (I)	8-94390-115-0	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-114-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (F)	8-97602-576-0	01	1	0211-			●
2	FOOT; ENG ENGINE REAR PTO(SV1) (F)	8-97602-577-0	01	1	0211-		●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (H)	8-97602-558-0	01	1	0211-		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0210	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0211-		●	●
20	BOLT; ENG FOOT FSS ALL(FS****) (B) M12X55	8-94399-884-1	08	1	0005-0210	●
125	NUT; ENG FOOT FTS ALL(FT****) M12 FLANGE	8-94394-704-0	08	1	0005-0210	●
125	NUT; ENG FOOT M12 FLANGE	8-94394-704-0	08	1	0211-		●	●

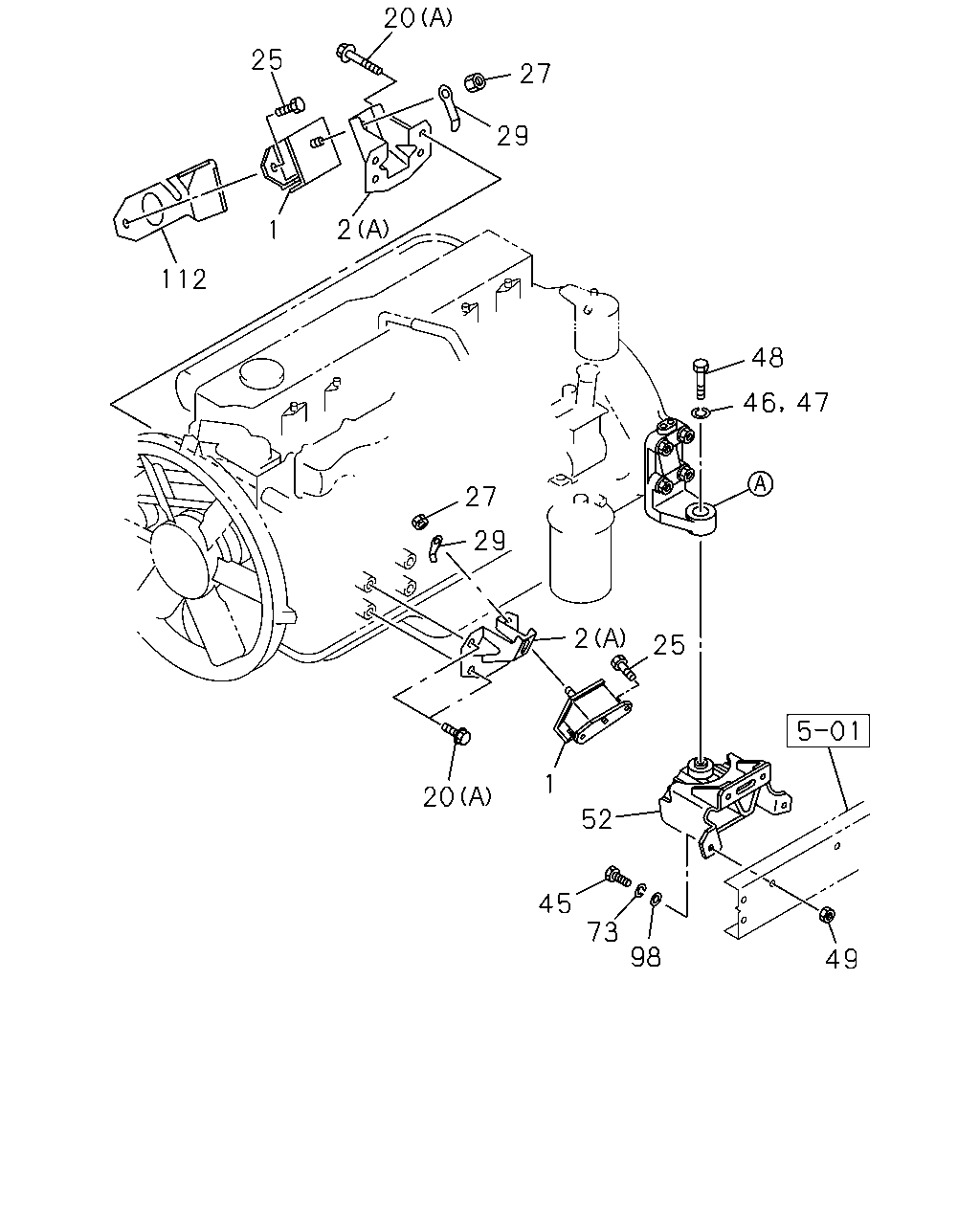

20 25 27 29 2 1 112 48 27 29 2 25 1 20 52 45 73 98 49 46 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-173-0	02	1	0005-0210	●
1	RUBBER; ENG FOOT,FRT	1-53215-173-0	02	1	0211-		●	●
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0211-		●	●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-241-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (K)	8-94393-385-2	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-243-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (J)	8-97602-578-0	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (B)	8-94399-490-0	02	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (G)	8-94396-952-3	01	1	0211-			●
2	FOOT; ENG FTS ALL(FT****) ENGINE REAR PTO(SV1) (D)	8-94396-953-3	02	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (G)	8-94396-953-3	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-115-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (I)	8-94390-115-0	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-114-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (F)	8-97602-576-0	01	1	0211-			●
2	FOOT; ENG ENGINE REAR PTO(SV1) (F)	8-97602-577-0	01	1	0211-		●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (H)	8-97602-558-0	01	1	0211-		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0005-0210	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	0211-		●	●
20	BOLT; ENG FOOT FSS ALL(FS****) (B) M12X55	8-94399-884-1	08	1	0005-0210	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	0005-0210	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-		●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0005-0210	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91150-212-0	02	1	0211-0602		●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0603-		●	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0005-0210	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-052-1	02	1	0211-		●	●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) LOWER M12X35	9-92061-235-0	04	1	0005-0210	●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) LOWER M12X35	9-92061-235-0	04	1	0211-0512			●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) M12X35	0-20951-235-0	04	1	0601-			●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) UPPER M12X40	9-92061-240-0	04	1	0005-0210	●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) UPPER M12X40	9-92061-240-0	04	1	0211-0512			●
45	BOLT; CUSHION RUBBER TO FRAME FSS ALL(FS****) M12X40	0-20951-240-0	04	1	0601-			●
45	BOLT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14X45	9-92061-445-0	08	1	0005-0210	●
45	BOLT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14X45	9-92061-445-0	04	1	0211-		●
45	BOLT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14X40	9-92061-440-0	04	1	0211-0512		●
45	BOLT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14X40	0-20951-440-0	04	1	0601-		●
46	WASHER; PL,CUSHION TO ENG,RR FSS ALL(FS****) ID=19	9-09160-518-0	02	1	0010-0210	●
46	WASHER; PL,CUSHION TO ENG,RR FSS ALL(FS****) ID=19	9-09160-518-0	02	1	0211-			●
46	WASHER; PL,CUSHION TO ENG,RR FTS ALL(FT****) ID=23	9-09164-522-0	02	1	0010-0210	●
46	WASHER; PL,CUSHION TO ENG,RR FTS ALL(FT****) ID=23	9-09164-522-0	02	1	0211-0605		●
46	WASHER; PL,CUSHION TO ENG,RR FTS ALL(FT****) ID=23	0-91614-522-0	02	1	0606-		●
47	WASHER; LK,CUSHION RUBBER FSS ALL(FS****) ID=18.2	9-09150-518-0	02	1	0005-0009	●
47	WASHER; LK,CUSHION RUBBER FTS ALL(FT****) ID=22.5	9-09150-622-0	02	1	0005-0009	●
48	BOLT; CUSHION RUBBER TO ENG FSS ALL(FS****) M18X65	8-94393-260-1	02	1	0005-0210	●
48	BOLT; CUSHION RUBBER TO ENG FSS ALL(FS****) M18X65	8-94393-260-1	02	1	0211-			●
48	BOLT; CUSHION RUBBER TO ENG FTS ALL(FT****) M22X75	1-09020-087-2	02	1	0005-0210	●
48	BOLT; CUSHION RUBBER TO ENG FTS ALL(FT****) M22X75	1-09020-087-2	02	1	0211-		●
49	NUT; CUSHION RUBBER TO FRAME FSS ALL(FS****) M12	9-99110-512-0	08	1	0005-0210	●
49	NUT; CUSHION RUBBER TO FRAME FSS ALL(FS****) M12	9-99110-512-0	08	1	0211-0512			●
49	NUT; CUSHION RUBBER TO FRAME FSS ALL(FS****) M12	0-91110-512-0	08	1	0601-			●
49	NUT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14	9-99110-514-0	08	1	0005-0210	●
49	NUT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14	9-99110-514-0	08	1	0211-0512		●
49	NUT; CUSHION RUBBER TO FRAME FTS ALL(FT****) M14	0-91110-514-0	08	1	0601-		●
52	RUBBER; CUSHION,ENG MTG,RR FSS ALL(FS****)	1-53225-228-1	02	1	0005-0210	●
52	RUBBER; CUSHION,ENG MTG,RR FSS ALL(FS****)	1-53225-173-3	02	1	0211-			●
52	RUBBER; CUSHION,ENG MTG,RR FTS ALL(FT****)	1-53225-193-1	02	1	0005-0210	●
52	RUBBER; CUSHION,ENG MTG,RR FTS ALL(FT****)	1-53225-193-1	02	1	0211-		●
73	WASHER; LK,CUSHION RUBBER TO FRAME FSS ALL(FS****) ID=12.2	9-09150-612-0	08	1	0005-0210	●
73	WASHER; LK,CUSHION RUBBER TO FRAME FSS ALL(FS****) ID=12.2	9-09150-612-0	08	1	0211-0603			●
73	WASHER; LK,CUSHION RUBBER TO FRAME FSS ALL(FS****) ID=12.2	0-91510-612-0	08	1	0604-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME FTS ALL(FT****) ID=14.2	9-09150-614-0	08	1	0005-0202	●
73	WASHER; LK,CUSHION RUBBER TO FRAME FTS ALL(FT****) ID=14.2	9-09150-814-0	08	1	0203-0210	●
73	WASHER; LK,CUSHION RUBBER TO FRAME FTS ALL(FT****) ID=14.2	9-09150-814-0	08	1	0211-0603		●
73	WASHER; LK,CUSHION RUBBER TO FRAME FTS ALL(FT****) ID=14.2	0-91510-814-0	08	1	0604-		●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR FTS ALL(FT****) ID=15	9-09651-069-0	16	1	0005-0210	●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR FTS ALL(FT****) ID=15	9-09651-069-0	16	1	0211-1201		●
98	WASHER; PL,CUSHION RUBBER TO FRAME,RR FTS ALL(FT****) ID=15	8-98010-627-1	16	1	1202-		●
112	PROTECTOR; HEAT	1-53219-629-4	01	1	0005-0210	●
112	PROTECTOR; HEAT	1-53219-629-4	01	1	0211-		●	●

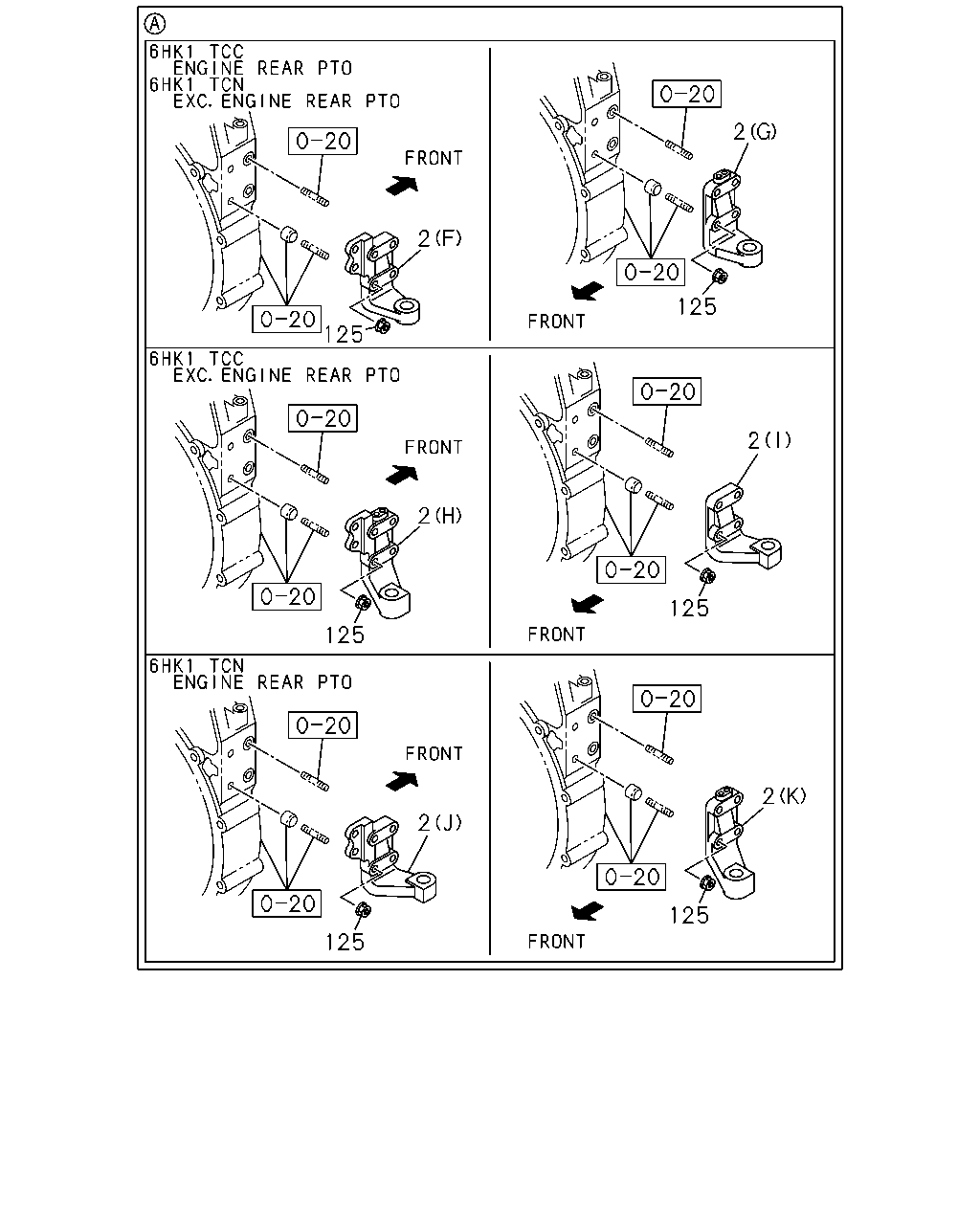

2 2 125 125 2 2 125 125 2 2 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	FOOT; ENG (A)	8-94393-491-0	02	1	0005-0210	●
2	FOOT; ENG (A)	8-94393-491-1	02	1	0211-		●	●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-241-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (K)	8-94393-385-2	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C)	8-94393-243-0	01	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (J)	8-97602-578-0	01	1	0211-			●
2	FOOT; ENG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (B)	8-94399-490-0	02	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (G)	8-94396-952-3	01	1	0211-			●
2	FOOT; ENG FTS ALL(FT****) ENGINE REAR PTO(SV1) (D)	8-94396-953-3	02	1	0005-0210	●
2	FOOT; ENG ENGINE REAR PTO(SV1) (G)	8-94396-953-3	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-115-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (I)	8-94390-115-0	01	1	0211-		●
2	FOOT; ENG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (E)	8-94390-114-0	01	1	0005-0210	●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (F)	8-97602-576-0	01	1	0211-			●
2	FOOT; ENG ENGINE REAR PTO(SV1) (F)	8-97602-577-0	01	1	0211-		●
2	FOOT; ENG EXC. ENGINE REAR PTO(SV1) (H)	8-97602-558-0	01	1	0211-		●
125	NUT; ENG FOOT FTS ALL(FT****) M12 FLANGE	8-94394-704-0	08	1	0005-0210	●
125	NUT; ENG FOOT M12 FLANGE	8-94394-704-0	08	1	0211-		●	●
