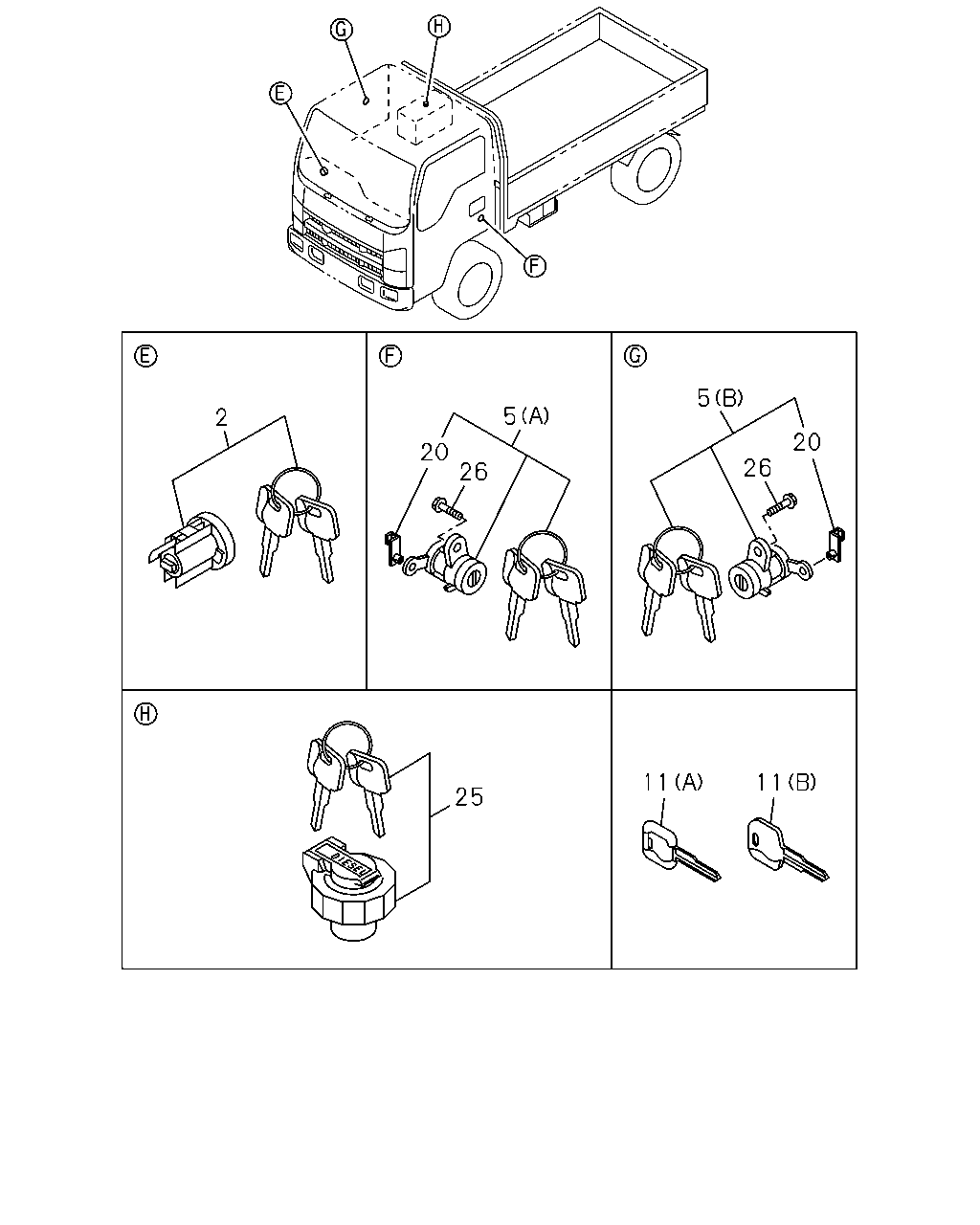

7-30 — LOCK CYLINDER SET (#80764) — 34 parça

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK	8-98145-977-0	01	1	1111-1203	●
1	02.188 CYLINDER SET; CAR LOCK	8-98201-214-0	01	1	1204-	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61>	8-98146-009-0	01	1	1111-1203		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61>	8-98201-230-0	01	1	1204-		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98145-979-0	01	1	1111-1203		●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98201-216-0	01	1	1204-		●
1	02.188 CYLINDER SET; CAR LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. FUEL TANK CAP W/LOCK<N05>	8-98031-807-1	01	1	1111-1203		●
1	02.188 CYLINDER SET; CAR LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-158-0	01	1	1204-		●
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>	8-98056-003-0	01	1	1111-1203		●
1	02.188 CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-161-0	01	1	1204-		●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1111-	●	●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1111-	●	●

5 5 2 20 20 26 26 11 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	1111-1203	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61>	8-98055-160-0	01	1	1111-1203		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61>	8-98201-352-0	01	1	1204-		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL>	8-98055-148-0	01	1	1111-1203		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL>	8-98201-342-0	01	1	1204-		●
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1111-	●
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (B)	8-98055-149-0	01	1	1111-		●
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1111-	●
5	16.328 CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (A)	8-98055-150-0	01	1	1111-		●
5	16.328 CYLINDER ASM; DOOR LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61> (B)	8-98055-161-0	01	1	1111-		●
5	16.328 CYLINDER ASM; DOOR LOCK CHEVROLET BRAND<RWE>,GM BRAND<X61> (A)	8-98055-162-0	01	1	1111-		●
11	02.187 KEY; BLANK (A) IMMOBILIZER	8-98055-168-0	AR	1	1111-	●
11	02.187 KEY; BLANK (B)	8-98055-170-0	AR	1	1111-	●
11	02.187 KEY; BLANK ISUZU BRAND<7WL> (B)	8-98055-170-0	AR	1	1111-		●
11	02.187 KEY; BLANK CHEVROLET BRAND<RWE>,GM BRAND<X61> (B)	8-98055-171-0	AR	1	1111-		●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1111-	●	●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1111-	●	●
25	03.028 CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1111-	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98146-010-0	01	1	1111-		●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61>	8-98146-014-0	01	1	1111-		●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1111-	●	●
