◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#80762) — 22 parça

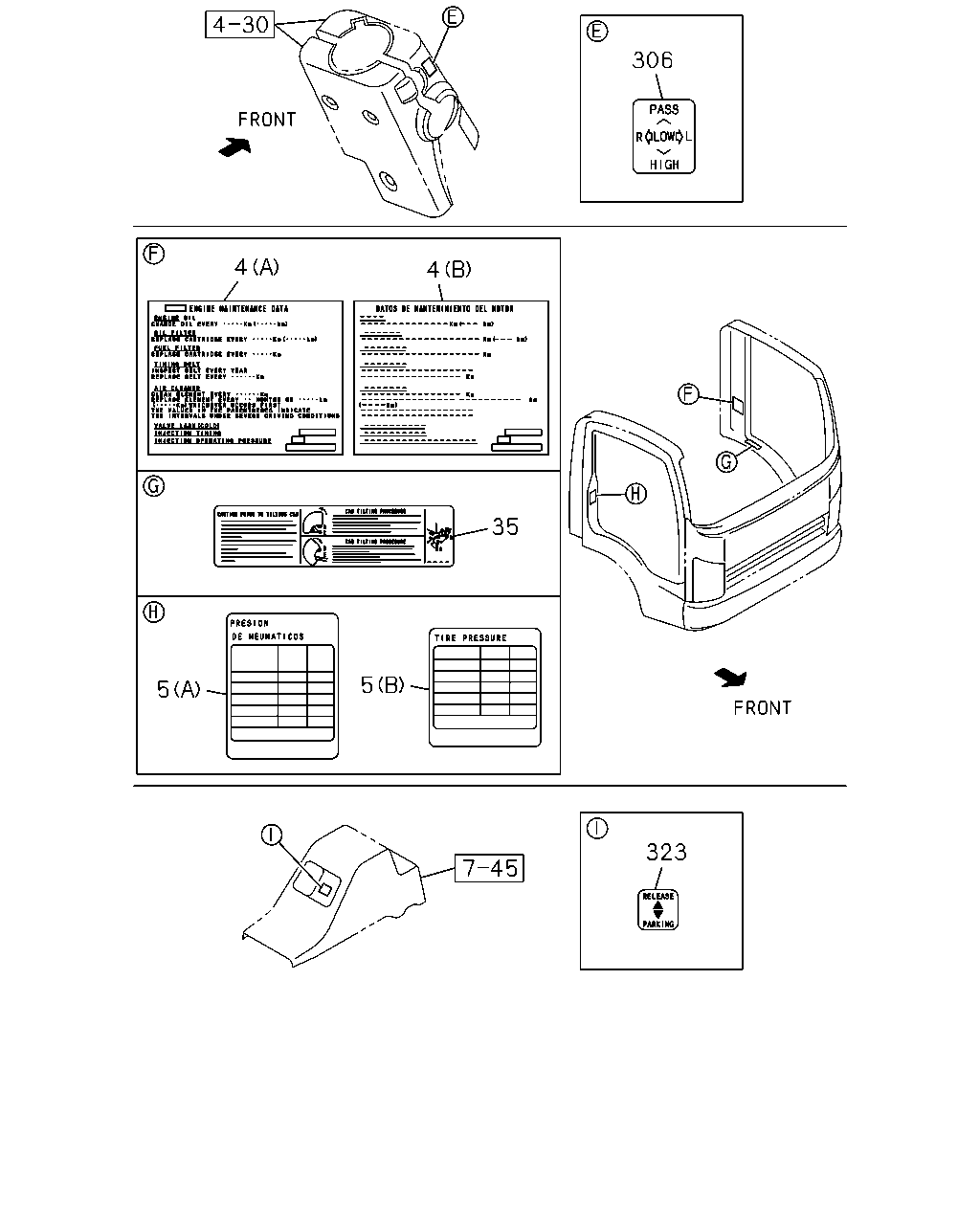

çizim 132652
306 4 4 35 5 5 323
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1111- ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1111- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1111- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) G.V.W. 8.0-8.5TON(RPZ) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1111- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1111- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) G.V.W. 8.0-8.5TON(RPZ) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1111- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1111- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1111- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1111- ● ●
323 05.610 LABEL; PARKING BRAKE
CAUTION SPANISH<YN1> 		1-85881-944-0 01 1 1111- ●
323 05.610 LABEL; PARKING BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAUTION SPANISH<YN1> 		1-85881-944-0 01 1 1111- ●
323 05.610 LABEL; PARKING BRAKE
EXC. CAUTION SPANISH<YN1> 		1-85881-759-0 01 1 1111- ●
323 05.610 LABEL; PARKING BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CAUTION SPANISH<YN1> 		1-85881-759-0 01 1 1111- ●
çizim 183215
49 234 48 9 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) SPEED LIMITER 90KM(NMJ) 		8-98116-687-2 01 1 1111- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SI LVER(CRV),F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ) SPEED LIMITER 90KM(NMJ) 		8-98095-254-2 01 1 1111- ●
10 08.808 PLATE; NAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98121-994-0 01 1 1111- ● ●
10 08.808 PLATE; NAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98121-995-0 01 1 1111- ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98017-873-0 01 1 1111- ● ●
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CAUTION SPANISH<YN1> 		8-98017-874-0 01 1 1111- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1111- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1111- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
