6-90 — REAR BUMPER (#80760) — 97 parça

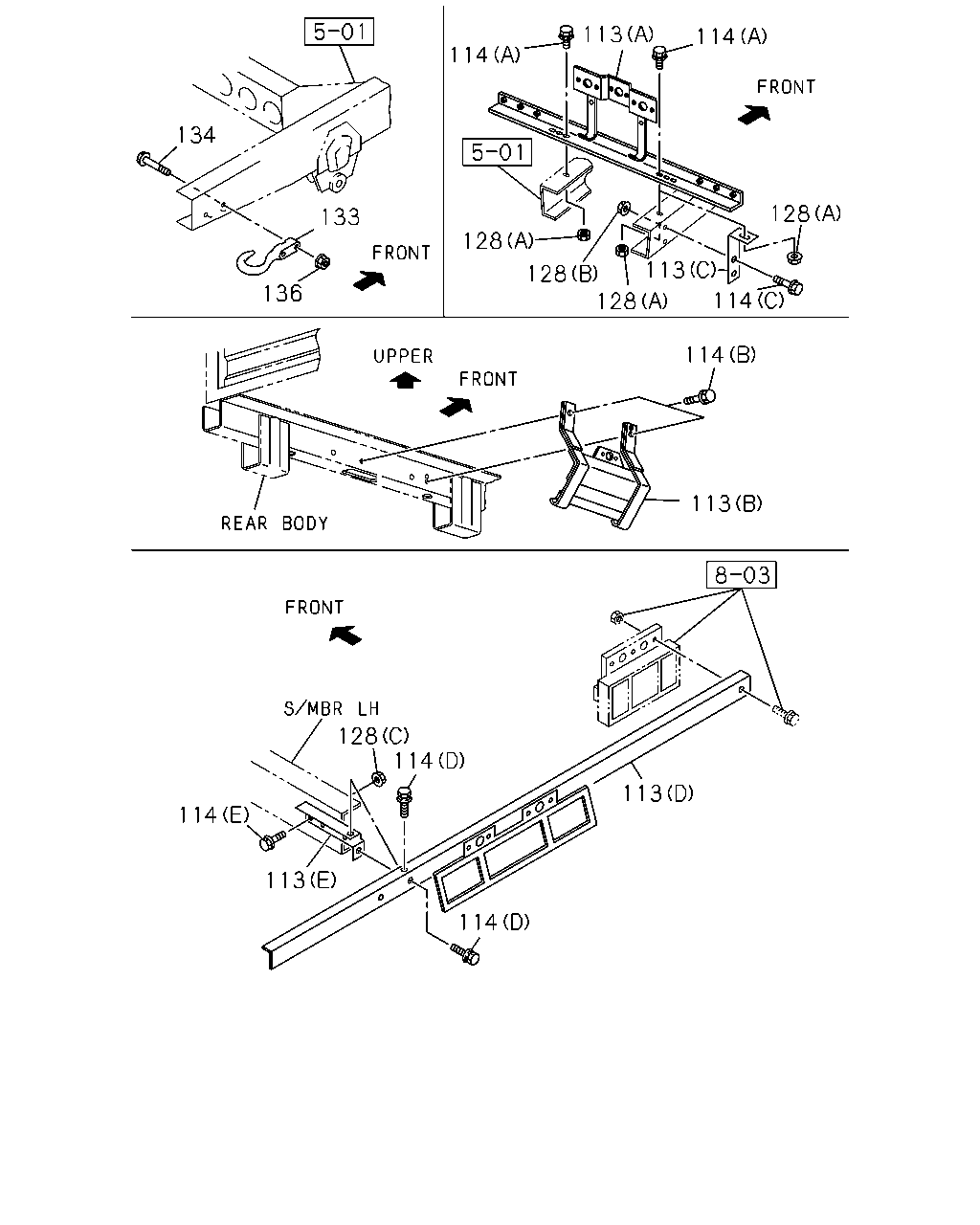

çizim 132015
114 113 114 128 128 114 113 128 128 133 136 134 114 113 128 114 114 113 114 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (D) 		8-98079-733-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
RUSSIA EQUIPMENT(B12) DOOR MIRROR<6VE> EXC. RR BODY FLAT BED(RS6) (D) 		8-98079-733-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
DOOR MIRROR<6VE> (D) 		8-98079-733-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98079-734-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
RUSSIA EQUIPMENT(B12) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. RR BODY FLAT BED(RS6) (D) 		8-98079-734-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98079-734-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
(E) 		8-98100-014-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
RUSSIA EQUIPMENT(B12) (E) 		8-98100-014-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
(E) 		8-98100-014-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
(E) 		8-98100-015-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
RUSSIA EQUIPMENT(B12) (E) 		8-98100-015-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
(E) 		8-98100-015-0 01 1 1403- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98070-523-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
RUSSIA EQUIPMENT(B12) EXC. RR BODY FLAT BED(RS6),DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98070-523-0 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98070-523-0 01 1 1403-1509 ●
113 07.800 BRACKET; LICENSE PLATE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (D) 		8-98070-523-0 01 1 1510- ●
113 07.800 BRACKET; LICENSE PLATE
ECUADOR EQUIPMENT(E46) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) (D) 		8-98070-523-0 01 1 1510- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 1111- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) (C) 		8-98091-681-0 02 1 1111-1509 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) (C) 		8-98091-681-0 02 1 1510- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6),O/SIDE MIRROR ASSIST SIDE MANUALLONG STAY<6TF> (C) 		8-98091-681-0 02 1 1510- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RUSSIA EQUIPMENT(B12),RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 1111-1402 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 1403-1509 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (E) M14X30 		0-20851-430-0 04 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RUSSIA EQUIPMENT(B12) 07.874 (E) M14X30 		0-20851-430-0 04 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (E) M14X30 		0-20851-430-0 04 1 1403- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 04 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RUSSIA EQUIPMENT(B12) EXC. RR BODY FLAT BED(RS6) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 04 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 04 1 1403-1509 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 04 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
ECUADOR EQUIPMENT(E46) EXC. RR BODY FLAT BED(RS6) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 04 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 02 1 1111- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RUSSIA EQUIPMENT(B12),RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1111-1402 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1403-1509 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1510-1510 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1510-1510 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6),O/SIDE MIRROR ASSIST SIDE MANUALLONG STAY<6TF> 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1510-1510 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) ECUADOR EQUIPMENT(E46) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 1111-1509 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 1510- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6),O/SIDE MIRROR ASSIST SIDE MANUALLONG STAY<6TF> 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 1510- ●
128 02.662 NUT; CROSS PLATE
00.429 (C) M14 FLANGE 		0-91180-214-0 04 1 1111-1402 ●
128 02.662 NUT; CROSS PLATE
RUSSIA EQUIPMENT(B12) 00.429 (C) M14 FLANGE 		0-91180-214-0 04 1 1111-1402 ●
128 02.662 NUT; CROSS PLATE
00.429 (C) M14 FLANGE 		0-91180-214-0 04 1 1403- ●
128 02.662 NUT; CROSS PLATE
EXC. RUSSIA EQUIPMENT(B12),RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-1402 ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1111-1402 ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1403-1509 ●
128 02.662 NUT; CROSS PLATE
EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1510-1510 ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1510-1510 ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6),O/SIDE MIRROR ASSIST SIDE MANUALLONG STAY<6TF> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1510-1510 ●
128 02.662 NUT; CROSS PLATE
EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) ECUADOR EQUIPMENT(E46) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 1111-1509 ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. RR BODY FLAT BED(RS6) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 1510- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. ECUADOR EQUIPMENT(E46),RR BODY FLAT BED(RS6),O/SIDE MIRROR ASSIST SIDE MANUALLONG STAY<6TF> 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 1510- ●
133 07.112 HOOK
VENEZUELA EQUIPMENT(E14) MINI BUS CHASSIS(V4B) 07.068 		8-97387-665-0 01 1 1111- ●
133 07.112 HOOK
EXC. MINI BUS CHASSIS(V4B) 07.068 		8-97387-665-0 01 1 1111- ●
134 07.068 BOLT; HOOK
VENEZUELA EQUIPMENT(E14) MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 1111- ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 1111- ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B), IDENTIFICATIONLABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1111- ●
136 07.068 NUT; HOOK
EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1111- ●
136 07.068 NUT; HOOK
VENEZUELA EQUIPMENT(E14) MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1111- ●

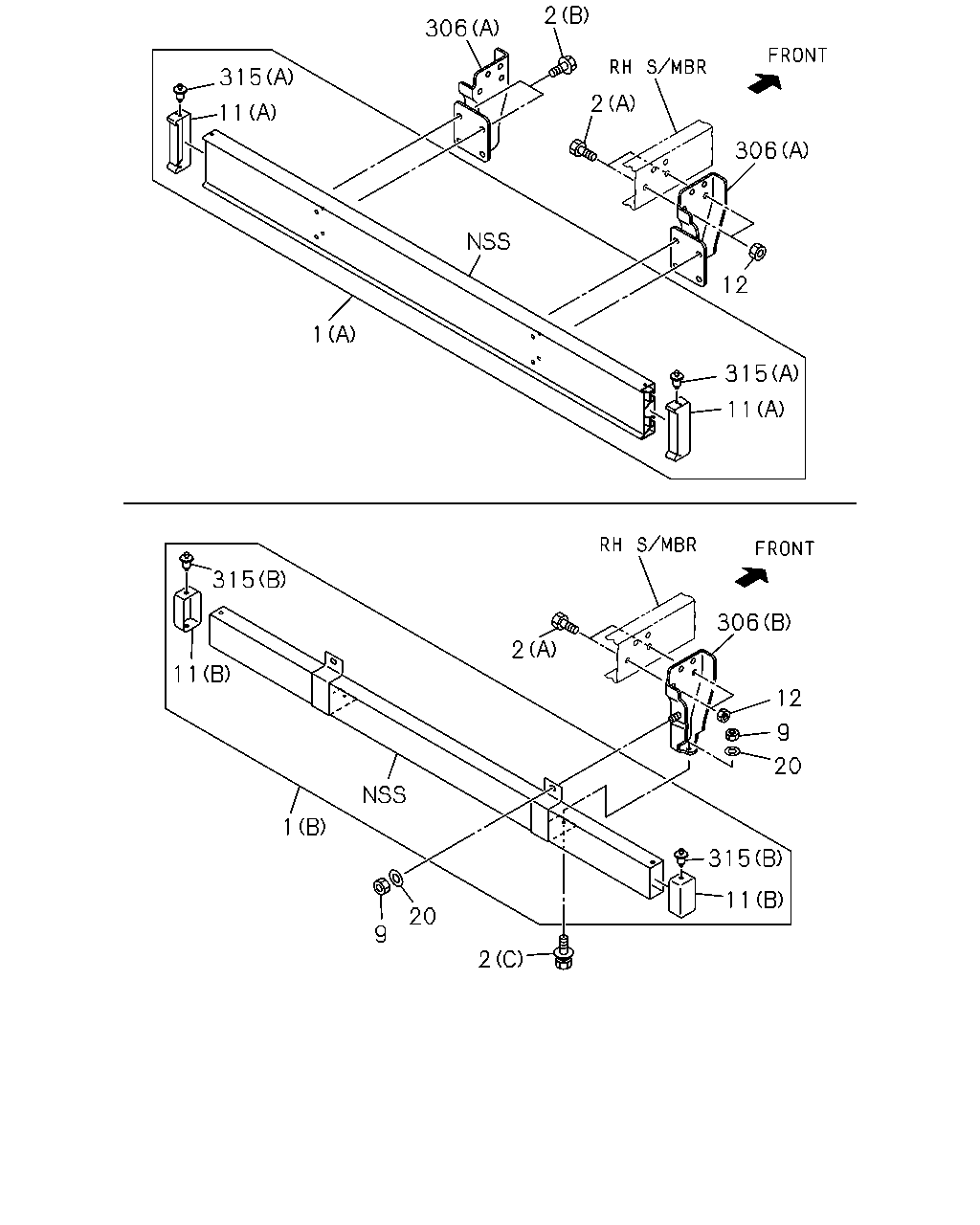

çizim 132493
1 315 11 2 306 306 315 11 12 9 20 315 11 2 9 20 1 11 315 2 2 306 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.070 BUMPER; RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IJ2Q 		8-98000-148-1 01 1 1510- ●
1 07.070 BUMPER; RR
(A) STAMP D8Q 		8-98088-675-0 01 1 1111- ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (A) STAMP D8Q 		8-98088-675-0 01 1 1111- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 02 1 1510- ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1111- ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1111- ●
2 07.874 BOLT; BACK BAR
(A) M14X30 		0-20851-430-0 08 1 1111-1509 ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> EXC. RUSSIA EQUIPMENT(B12) (A) M14X30 		0-20851-430-0 08 1 1111-1509 ●
2 07.874 BOLT; BACK BAR
(A) M14X30 		0-20851-430-0 08 1 1510- ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> EXC. RUSSIA EQUIPMENT(B12) (A) M14X30 		0-20851-430-0 08 1 1510- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> (A) M14X30 		0-20851-430-0 08 1 1510- ●
2 07.874 BOLT; BACK BAR
RUSSIA EQUIPMENT(B12) BUMPER REAR<7HZ> (A) M14X30 		0-20851-430-0 06 1 1111- ●
9 07.070 NUT; BUMPER
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1510- ●
11 07.829 CAP; RR BUMPER
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> (B) 		8-97174-008-0 02 1 1510- ●
11 07.829 CAP; RR BUMPER
(A) 		8-98070-331-0 02 1 1111- ●
11 07.829 CAP; RR BUMPER
BUMPER REAR<7HZ> (A) 		8-98070-331-0 02 1 1111- ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 1111-1509 ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> EXC. RUSSIA EQUIPMENT(B12) 00.429 M14 FLANGE 		0-91180-214-0 08 1 1111-1509 ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 1510- ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> EXC. RUSSIA EQUIPMENT(B12) 00.429 M14 FLANGE 		0-91180-214-0 08 1 1510- ●
12 07.833 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1510- ●
12 07.833 NUT; BRKT
RUSSIA EQUIPMENT(B12) BUMPER REAR<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 06 1 1111- ●
20 07.070 WASHER; PL,BUMPER
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1510- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-979-0 01 1 1510- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-980-0 01 1 1510- ●
306 07.836 BAR; BACK,RR
(A) STAMP IA3 		8-98039-408-0 01 1 1111- ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> (A) STAMP IA3 		8-98039-408-0 01 1 1111- ●
306 07.836 BAR; BACK,RR
(A) STAMP IA3 		8-98039-409-0 01 1 1111- ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> (A) STAMP IA3 		8-98039-409-0 01 1 1111- ●
315 07.829 RIVET; CAP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) ECUADOR EQUIPMENT(E46) WIDE STEEL REAR BUMPER<SMS> 08.155 (B) D8X13.5 		1-09987-248-1 04 1 1510- ●
315 07.829 RIVET; CAP
(A) 		1-71290-062-0 04 1 1111- ●
315 07.829 RIVET; CAP
BUMPER REAR<7HZ> (A) 		1-71290-062-0 04 1 1111- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
