Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#8076) — 393 parça

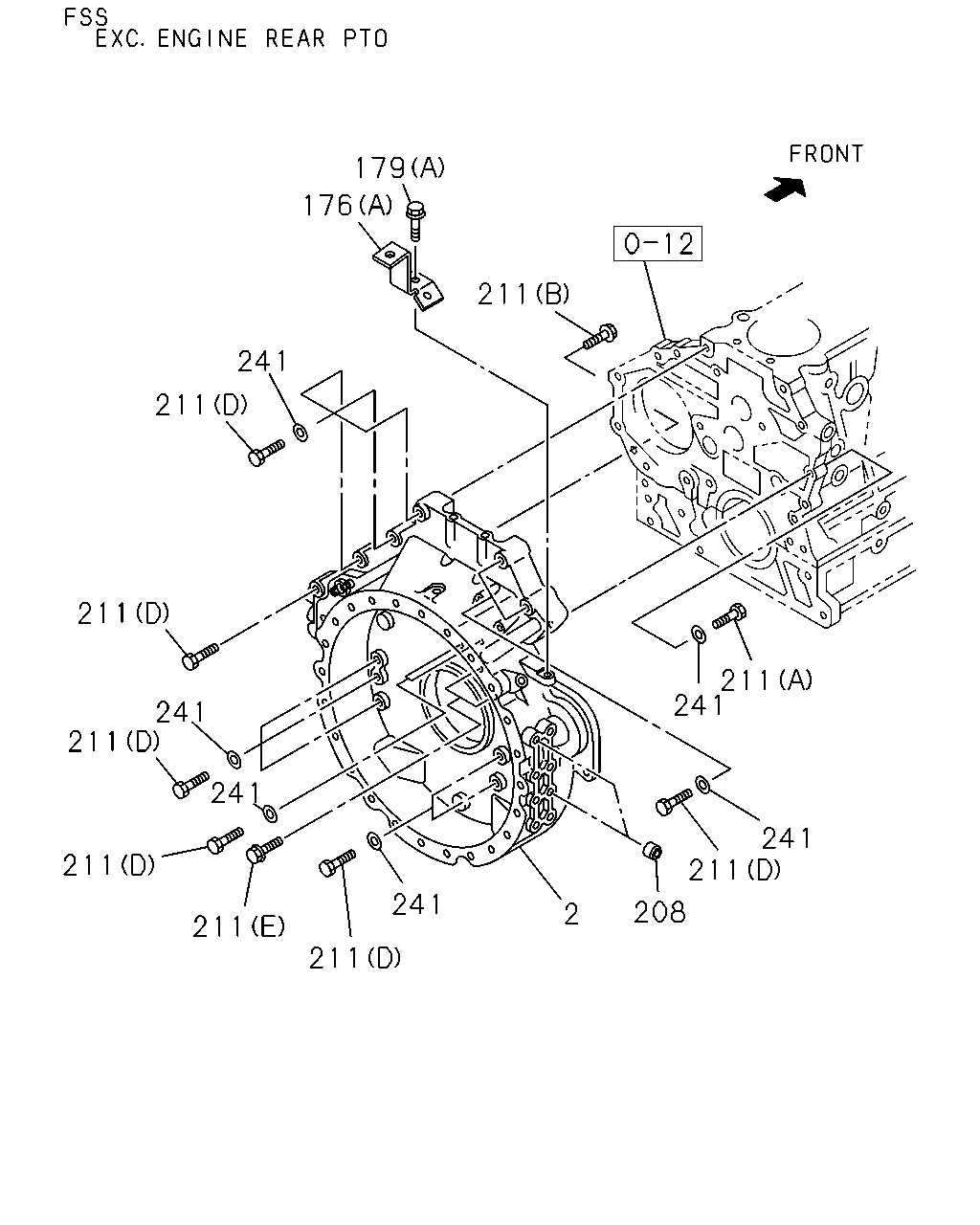

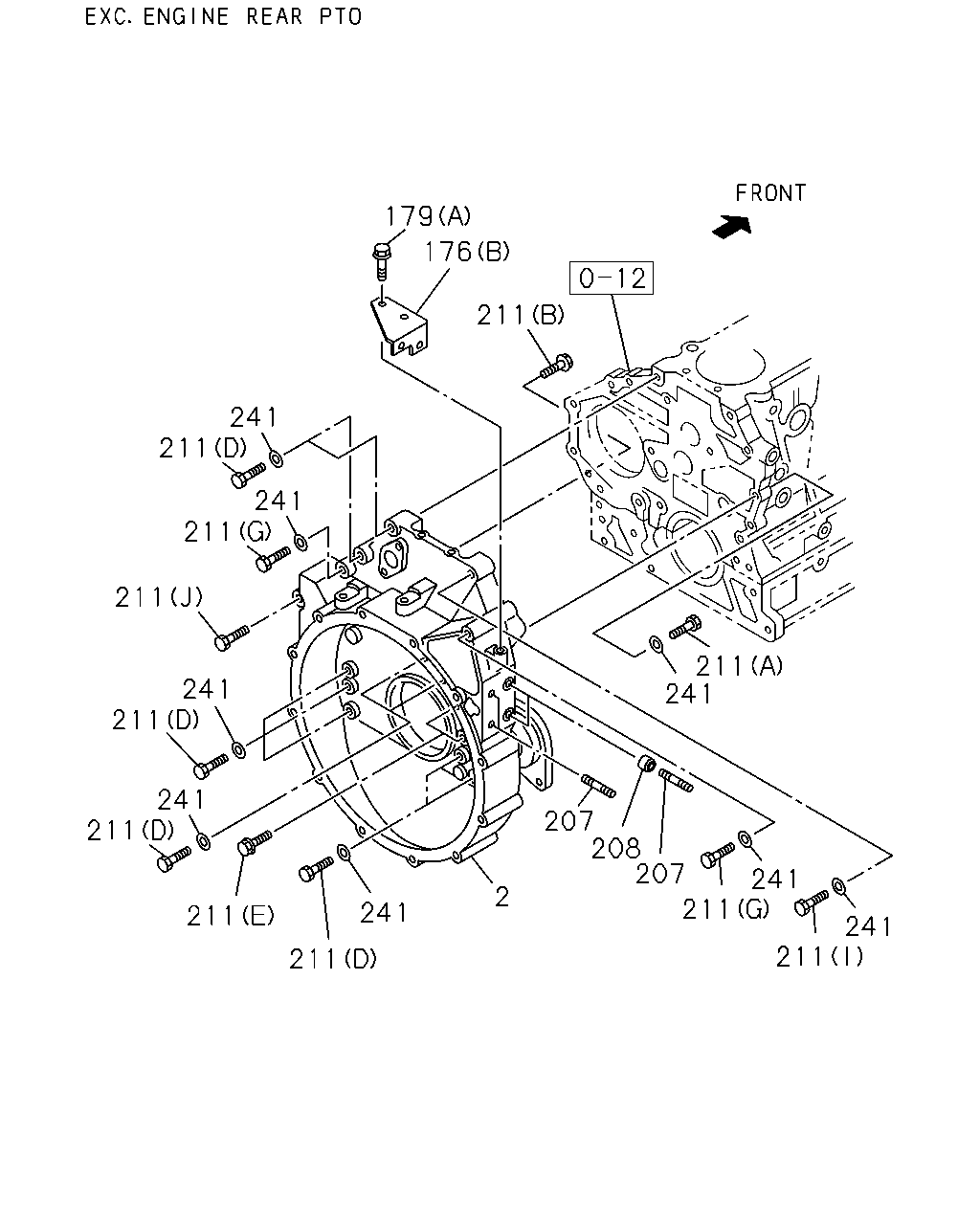

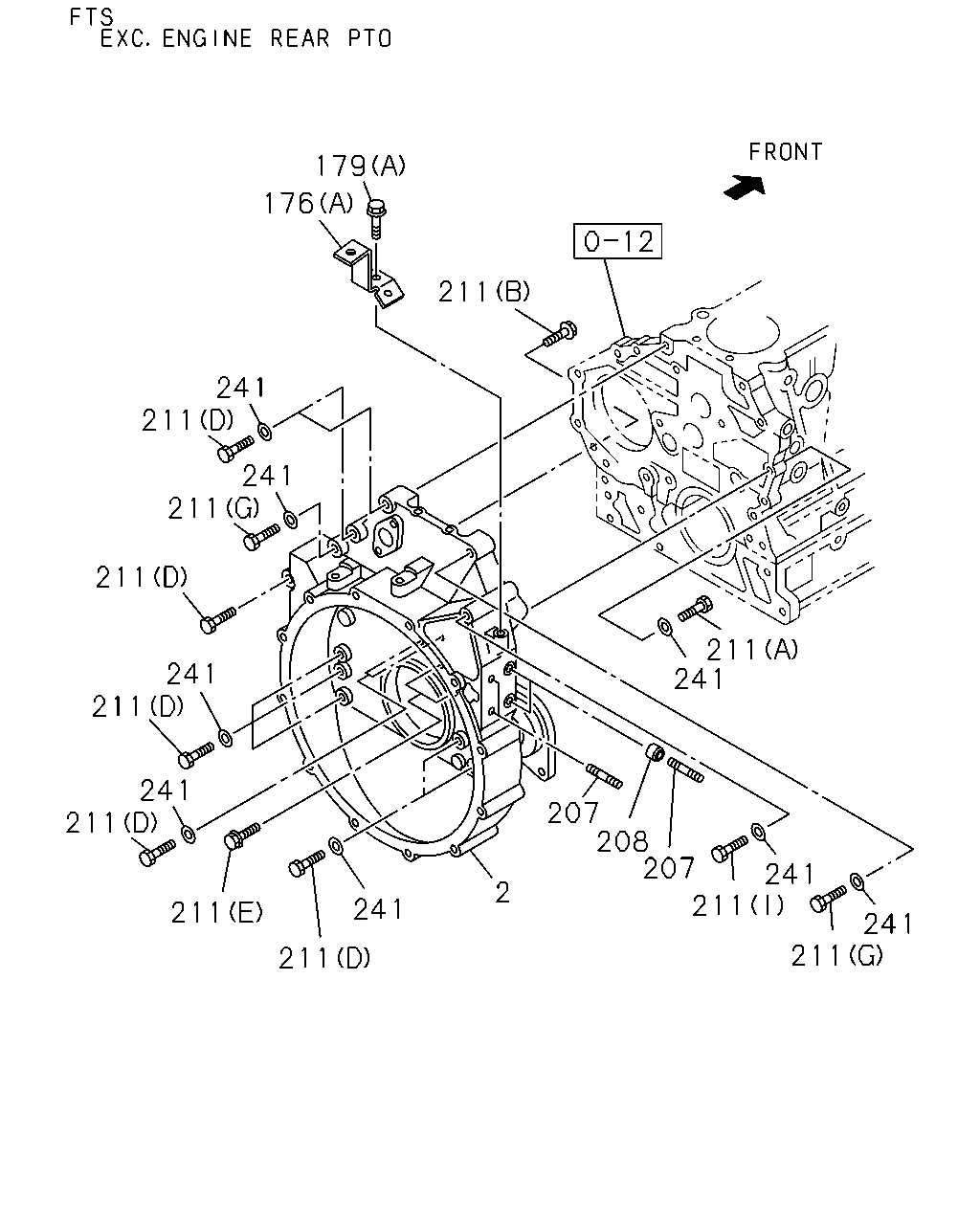

179 176 211 241 211 241 211 211 211 241 241 211 241 211 207 208 207 241 211 2 241 211 241 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
176	BRACKET; HARNESS ENGINE REAR PTO(SV1) (C)	1-82699-457-0	02	1	0005-0210	●
176	BRACKET; HARNESS FSS ALL(FS****) ENGINE REAR PTO(SV1) (B)	1-82698-126-1	01	1	0005-0210	●
176	BRACKET; HARNESS (D)	1-82698-449-0	01	1	0211-		●	●
176	BRACKET; HARNESS FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (A)	1-82699-412-1	01	1	0005-0210	●
176	BRACKET; HARNESS FTS ALL(FT****) (A)	1-82699-412-1	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
207	STUD; ENG FOOT FTS ALL(FT****) M12X10 L=55	9-94321-255-0	08	1	0005-0210	●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	08	1	0211-0604		●	●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	08	1	0605-		●	●
208	DOWEL; ENG FOOT FSS ALL(FS****)	8-94396-208-0	04	1	0005-0210	●
208	DOWEL; ENG FOOT FTS ALL(FT****)	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	11	1	0211-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0211-		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28181-050-0	02	1	0211-0512		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●	●
211	BOLT; HSG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C),(G) M12X128	8-94399-252-0	11	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	12	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	0-16956-270-0	09	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (J) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0005-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0210	●
241	WASHER; PL,HSG ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●	●

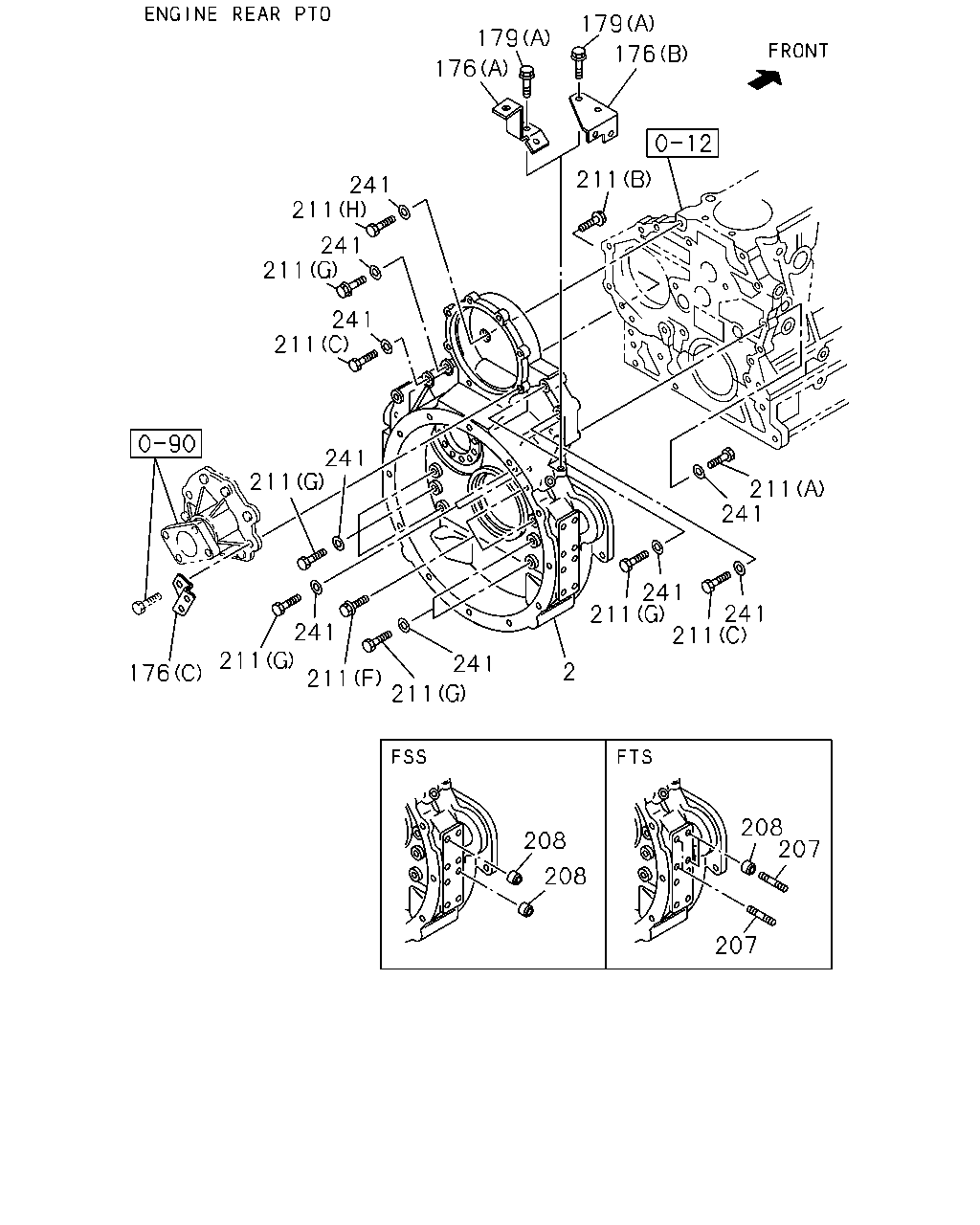

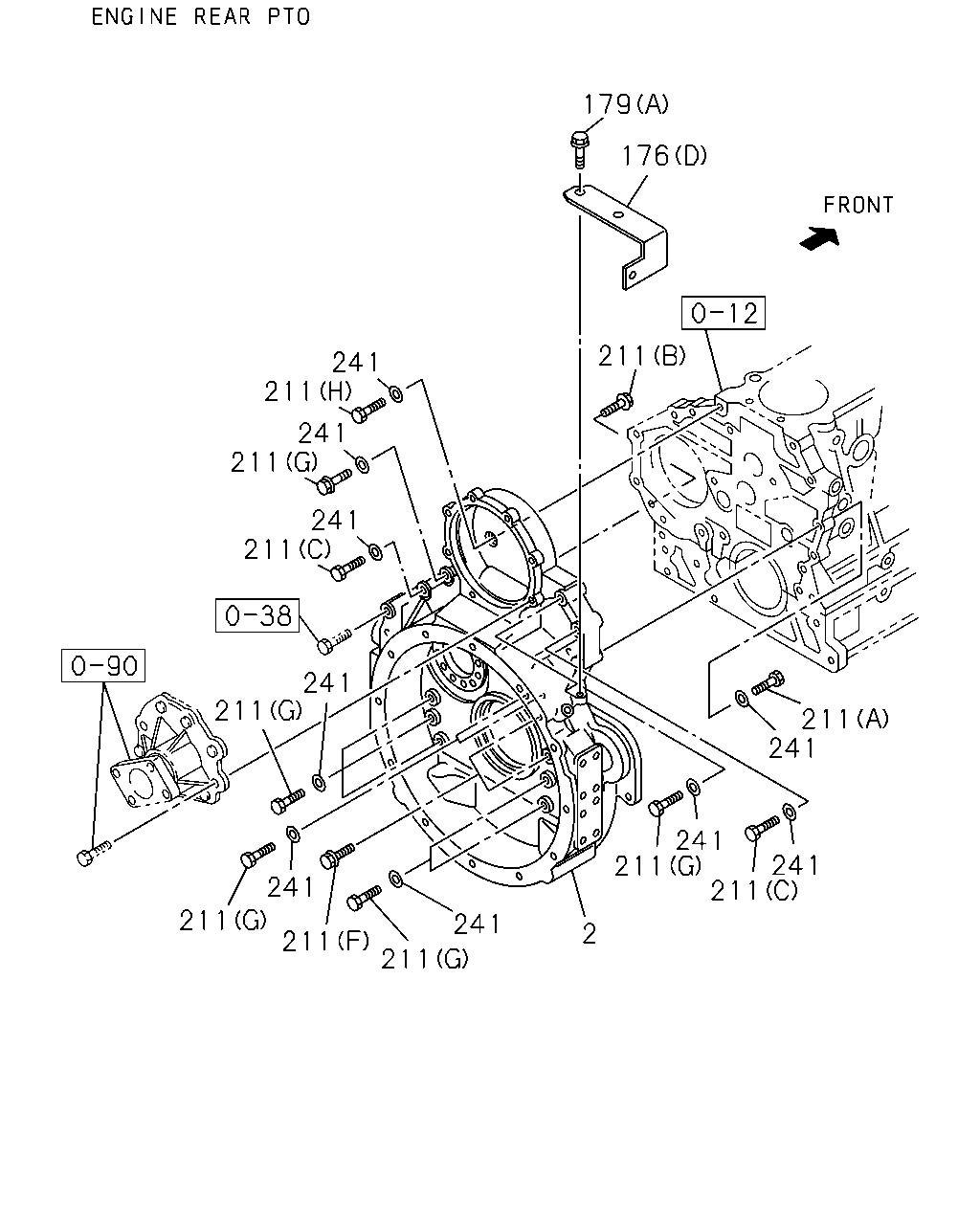

179 176 211 241 211 241 211 211 211 241 241 211 241 211 207 208 207 241 211 2 241 211 241 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
176	BRACKET; HARNESS ENGINE REAR PTO(SV1) (C)	1-82699-457-0	02	1	0005-0210	●
176	BRACKET; HARNESS FSS ALL(FS****) ENGINE REAR PTO(SV1) (B)	1-82698-126-1	01	1	0005-0210	●
176	BRACKET; HARNESS (D)	1-82698-449-0	01	1	0211-		●	●
176	BRACKET; HARNESS FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (A)	1-82699-412-1	01	1	0005-0210	●
176	BRACKET; HARNESS FTS ALL(FT****) (A)	1-82699-412-1	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
207	STUD; ENG FOOT FTS ALL(FT****) M12X10 L=55	9-94321-255-0	08	1	0005-0210	●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	08	1	0211-0604		●	●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	08	1	0605-		●	●
208	DOWEL; ENG FOOT FSS ALL(FS****)	8-94396-208-0	04	1	0005-0210	●
208	DOWEL; ENG FOOT FTS ALL(FT****)	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	11	1	0211-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0211-		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28181-050-0	02	1	0211-0512		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●	●
211	BOLT; HSG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C),(G) M12X128	8-94399-252-0	11	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	12	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	0-16956-270-0	09	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (J) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0005-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0210	●
241	WASHER; PL,HSG ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●	●

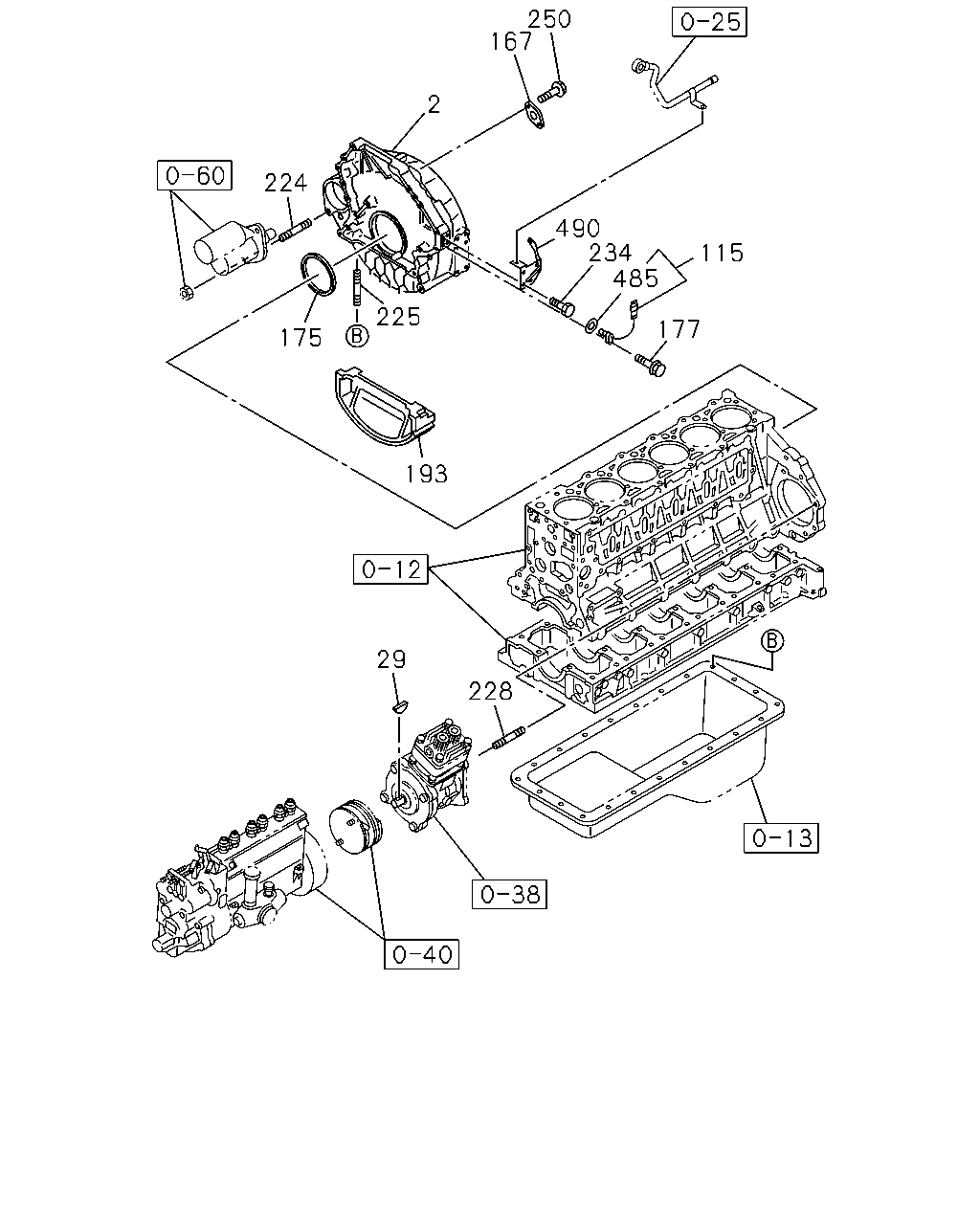

250 167 2 224 490 234 485 115 225 177 175 193 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0211-		●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0211-		●	●
167	COVER; OIL FSS ALL(FS****)	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL	1-11219-163-0	01	1	0211-0211		●	●
167	COVER; OIL EXC. ENGINE REAR PTO(SV1)	1-11219-163-0	01	1	0212-		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-		●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0211-0512		●	●
177	BOLT; SENSOR EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE	0-28080-616-0	01	1	0211-0512		●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●
177	BOLT; SENSOR EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●
193	SPACER; STAY TO OIL,PAN ENGINE REAR PTO(SV1)	8-94396-830-3	01	1	0005-0210	●
193	SPACER; STAY TO OIL,PAN EXC. ENGINE REAR PTO(SV1)	8-94395-674-0	01	1	0005-0210	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0210	●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0211-		●	●
234	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0005-0210	●
250	BOLT; COVER,OIL FSS ALL(FS****) M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-0211		●	●
250	BOLT; COVER,OIL EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE	0-28080-818-0	02	1	0212-		●	●
485	GASKET; SENSOR	9-09565-212-0	01	1	0005-0210	●
490	BRACKET; AIR PIPE,VSS	8-94390-362-0	01	1	0005-0210	●

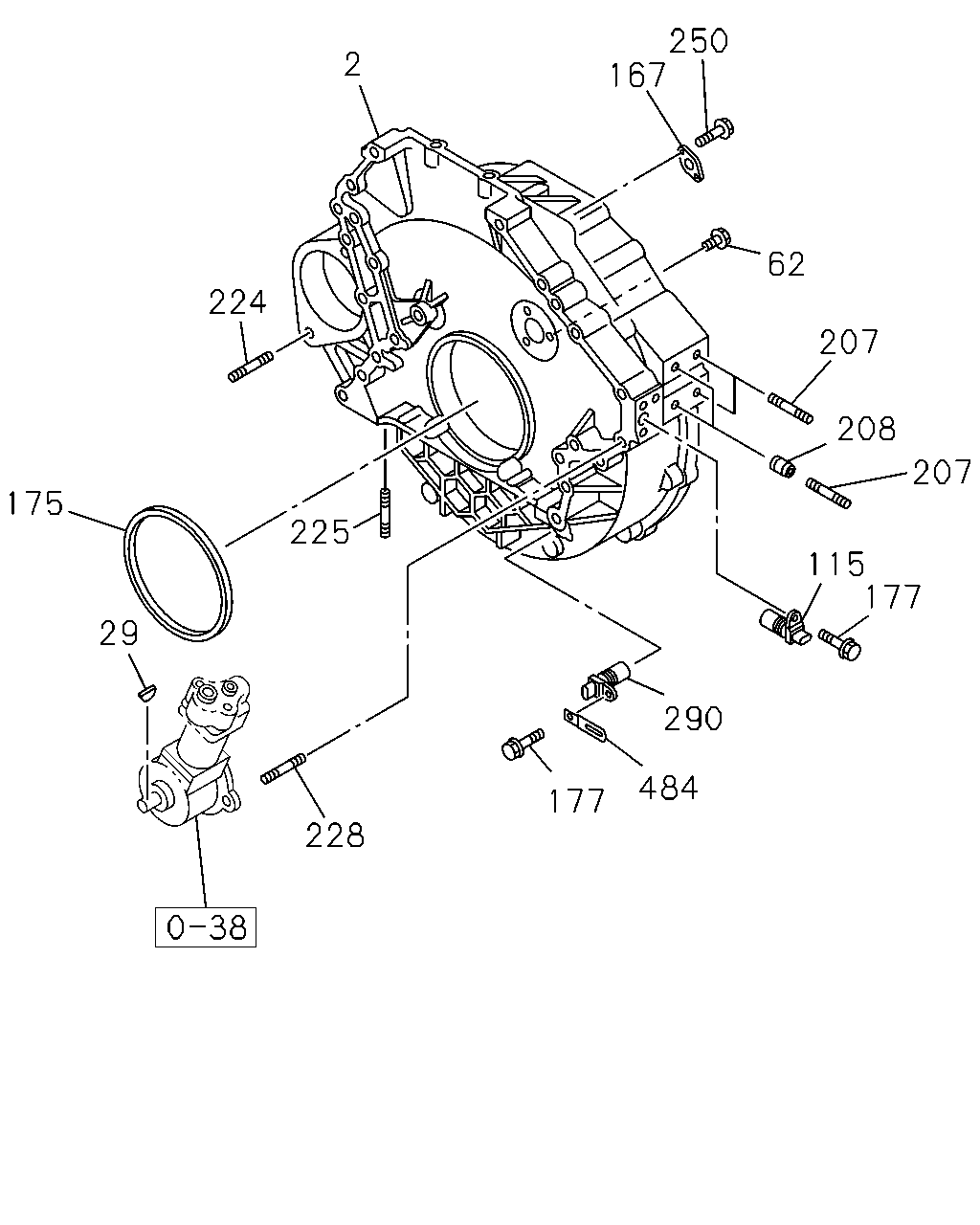

250 167 2 62 224 207 208 207 175 225 115 177 29 290 484 177 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-416-0	01	1	0005-0210	●
29	KEY; COUPLING	9-08055-516-0	01	1	0211-		●	●
62	BOLT; COVER M8X20 FLANGE	0-28080-820-0	03	1	0211-0512		●	●
62	BOLT; COVER M8X20 FLANGE	0-28050-820-0	03	1	0601-		●	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-561-0	01	1	0005-0210	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0211-		●	●
167	COVER; OIL FSS ALL(FS****)	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	1-11219-163-0	01	1	0005-0210	●
167	COVER; OIL	1-11219-163-0	01	1	0211-0211		●	●
167	COVER; OIL EXC. ENGINE REAR PTO(SV1)	1-11219-163-0	01	1	0212-		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	0005-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0201-0210	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0211-		●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0005-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0211-0512		●	●
177	BOLT; SENSOR EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE	0-28080-616-0	01	1	0211-0512		●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●
177	BOLT; SENSOR EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE	0-28050-616-0	01	1	0601-		●	●
207	STUD; ENG FOOT FTS ALL(FT****) M12X10 L=55	9-94321-255-0	08	1	0005-0210	●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	08	1	0211-0604		●	●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	08	1	0605-		●	●
208	DOWEL; ENG FOOT FSS ALL(FS****)	8-94396-208-0	04	1	0005-0210	●
208	DOWEL; ENG FOOT FTS ALL(FT****)	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0005-0210	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0005-0210	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0005-0210	●
228	STUD; AIR CMPR M12X77 L=95	9-09831-161-0	01	1	0211-		●	●
250	BOLT; COVER,OIL FSS ALL(FS****) M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-0211		●	●
250	BOLT; COVER,OIL EXC. ENGINE REAR PTO(SV1) M8X18 FLANGE	0-28080-818-0	02	1	0212-		●	●
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO(SV1)	8-97101-974-0	01	1	0211-		●	●
484	CLIP; BAND L=80	5-09700-307-1	01	1	0211-		●	●

179 176 211 241 211 211 211 241 241 211 241 241 211 211 241 208 2 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
176	BRACKET; HARNESS ENGINE REAR PTO(SV1) (C)	1-82699-457-0	02	1	0005-0210	●
176	BRACKET; HARNESS FSS ALL(FS****) ENGINE REAR PTO(SV1) (B)	1-82698-126-1	01	1	0005-0210	●
176	BRACKET; HARNESS (D)	1-82698-449-0	01	1	0211-		●	●
176	BRACKET; HARNESS FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (A)	1-82699-412-1	01	1	0005-0210	●
176	BRACKET; HARNESS FTS ALL(FT****) (A)	1-82699-412-1	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
208	DOWEL; ENG FOOT FSS ALL(FS****)	8-94396-208-0	04	1	0005-0210	●
208	DOWEL; ENG FOOT FTS ALL(FT****)	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	11	1	0211-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0211-		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28181-050-0	02	1	0211-0512		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●	●
211	BOLT; HSG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C),(G) M12X128	8-94399-252-0	11	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	12	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	0-16956-270-0	09	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (J) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0005-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0210	●
241	WASHER; PL,HSG ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●	●

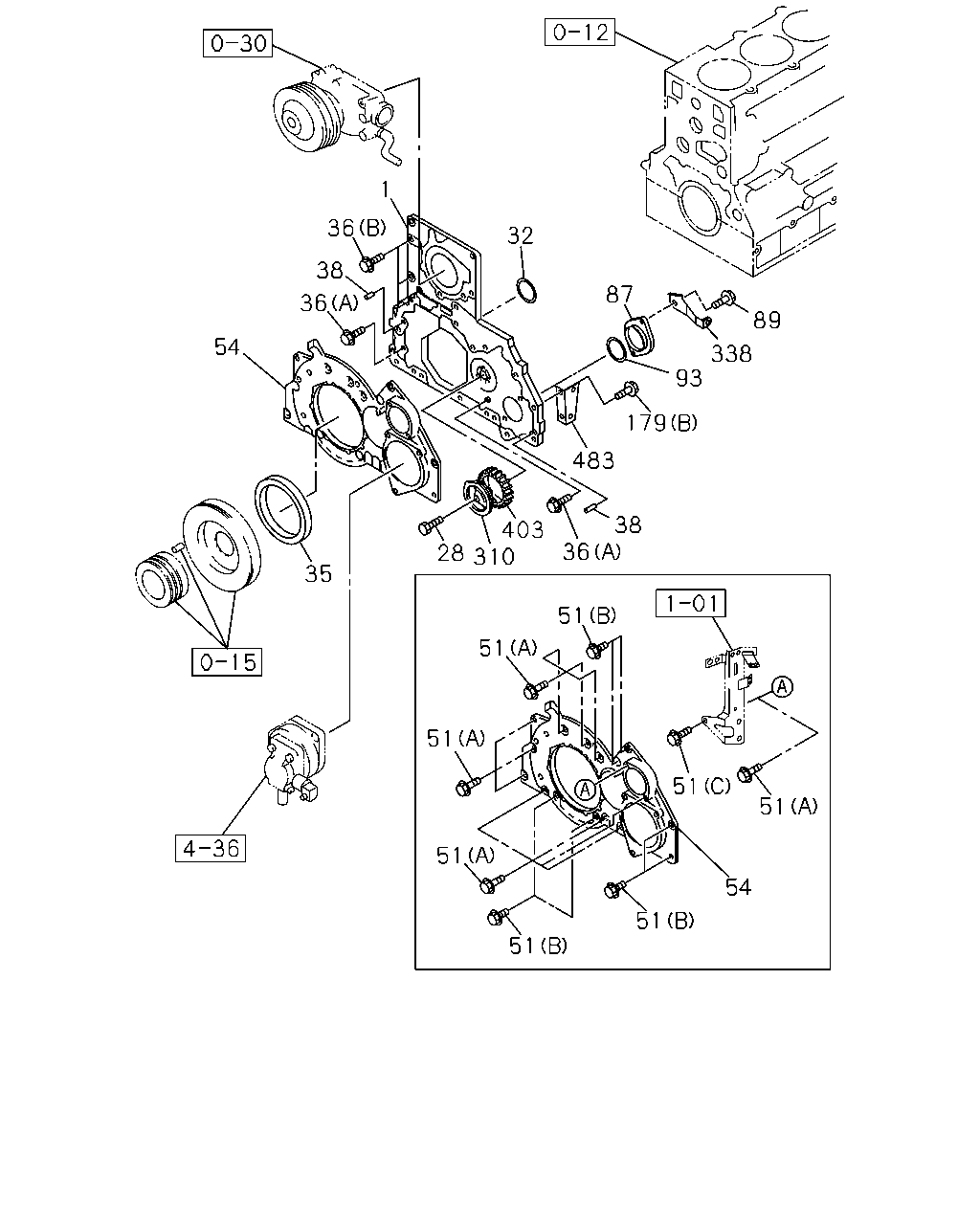

1 36 32 38 87 36 89 54 338 93 179 483 38 403 28 310 36 35 51 51 51 51 51 51 54 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0005-0210	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0211-		●	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0005-0210	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0211-		●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0005-0210	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0211-		●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	0005-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0211-		●	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0005-0210	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0211-0801		●	●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-		●	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0005-0210	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0211-0801		●	●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-		●	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0005-0210	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0211-		●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0005-0210	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	11	1	0211-0512		●	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0601-		●	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0005-0210	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0512		●	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0005-0210	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0211-		●	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0005-0210	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0211-		●	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0005-0210	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0211-		●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0005-0210	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0211-		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0005-0210	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0211-		●	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0005-0210	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0211-		●	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0005-0210	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0211-		●	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0005-0210	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0211-		●	●

179 176 211 241 211 241 211 241 211 241 211 211 241 241 211 241 211 241 211 241 2 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
176	BRACKET; HARNESS ENGINE REAR PTO(SV1) (C)	1-82699-457-0	02	1	0005-0210	●
176	BRACKET; HARNESS FSS ALL(FS****) ENGINE REAR PTO(SV1) (B)	1-82698-126-1	01	1	0005-0210	●
176	BRACKET; HARNESS (D)	1-82698-449-0	01	1	0211-		●	●
176	BRACKET; HARNESS FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (A)	1-82699-412-1	01	1	0005-0210	●
176	BRACKET; HARNESS FTS ALL(FT****) (A)	1-82699-412-1	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	11	1	0211-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0211-		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28181-050-0	02	1	0211-0512		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●	●
211	BOLT; HSG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C),(G) M12X128	8-94399-252-0	11	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	12	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	0-16956-270-0	09	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (J) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0005-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0210	●
241	WASHER; PL,HSG ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●	●

179 179 176 176 211 241 211 241 211 241 211 241 211 211 241 241 211 241 211 241 211 241 2 176 211 211 208 207 208 208 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL FSS ALL(FS****) ENGINE REAR PTO(SV1)	8-94394-939-3	01	1	0005-0210	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-97602-564-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1)	8-94394-757-4	01	1	0005-0210	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-97602-560-1	01	1	0211-		●	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) ENGINE REAR PTO(SV1)	8-94390-933-5	01	1	0005-0210	●
2	HOUSING; FLYWHEEL FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1)	8-94395-915-6	01	1	0005-0210	●
176	BRACKET; HARNESS ENGINE REAR PTO(SV1) (C)	1-82699-457-0	02	1	0005-0210	●
176	BRACKET; HARNESS FSS ALL(FS****) ENGINE REAR PTO(SV1) (B)	1-82698-126-1	01	1	0005-0210	●
176	BRACKET; HARNESS (D)	1-82698-449-0	01	1	0211-		●	●
176	BRACKET; HARNESS FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (A)	1-82699-412-1	01	1	0005-0210	●
176	BRACKET; HARNESS FTS ALL(FT****) (A)	1-82699-412-1	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●
207	STUD; ENG FOOT FTS ALL(FT****) M12X10 L=55	9-94321-255-0	08	1	0005-0210	●
207	STUD; ENG FOOT M12X10 L=55	9-94321-255-0	08	1	0211-0604		●	●
207	STUD; ENG FOOT M12X10 L=55	0-43211-255-0	08	1	0605-		●	●
208	DOWEL; ENG FOOT FSS ALL(FS****)	8-94396-208-0	04	1	0005-0210	●
208	DOWEL; ENG FOOT FTS ALL(FT****)	9-43269-009-1	04	1	0005-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0005-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●	●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (F) M14X127 FLANGE W/PL WASHER	8-94396-096-0	11	1	0211-		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (H) M12X75	9-01666-275-0	01	1	0211-		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) (B) M10X50 FLANGE	0-28181-050-0	01	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28181-050-0	02	1	0211-0512		●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●	●
211	BOLT; HSG FSS ALL(FS****) ENGINE REAR PTO(SV1) (C),(G) M12X128	8-94399-252-0	11	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0211-		●	●
211	BOLT; HSG FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	12	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X70	0-16956-270-0	09	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) (B) M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28791-440-0	01	1	0211-0512		●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	01	1	0601-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0005-0210	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	09	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (G) M12X128	8-94399-252-0	02	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (J) M12X95 FLANGE	8-94396-485-1	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0005-0210	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (I) M12X65	9-01666-265-0	01	1	0211-		●	●
211	BOLT; HSG FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) (D) M12X70	9-01666-270-0	09	1	0005-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0005-0210	●
241	WASHER; PL,HSG ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22	8-94393-140-1	12	1	0211-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
