◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#80759) — 17 parça

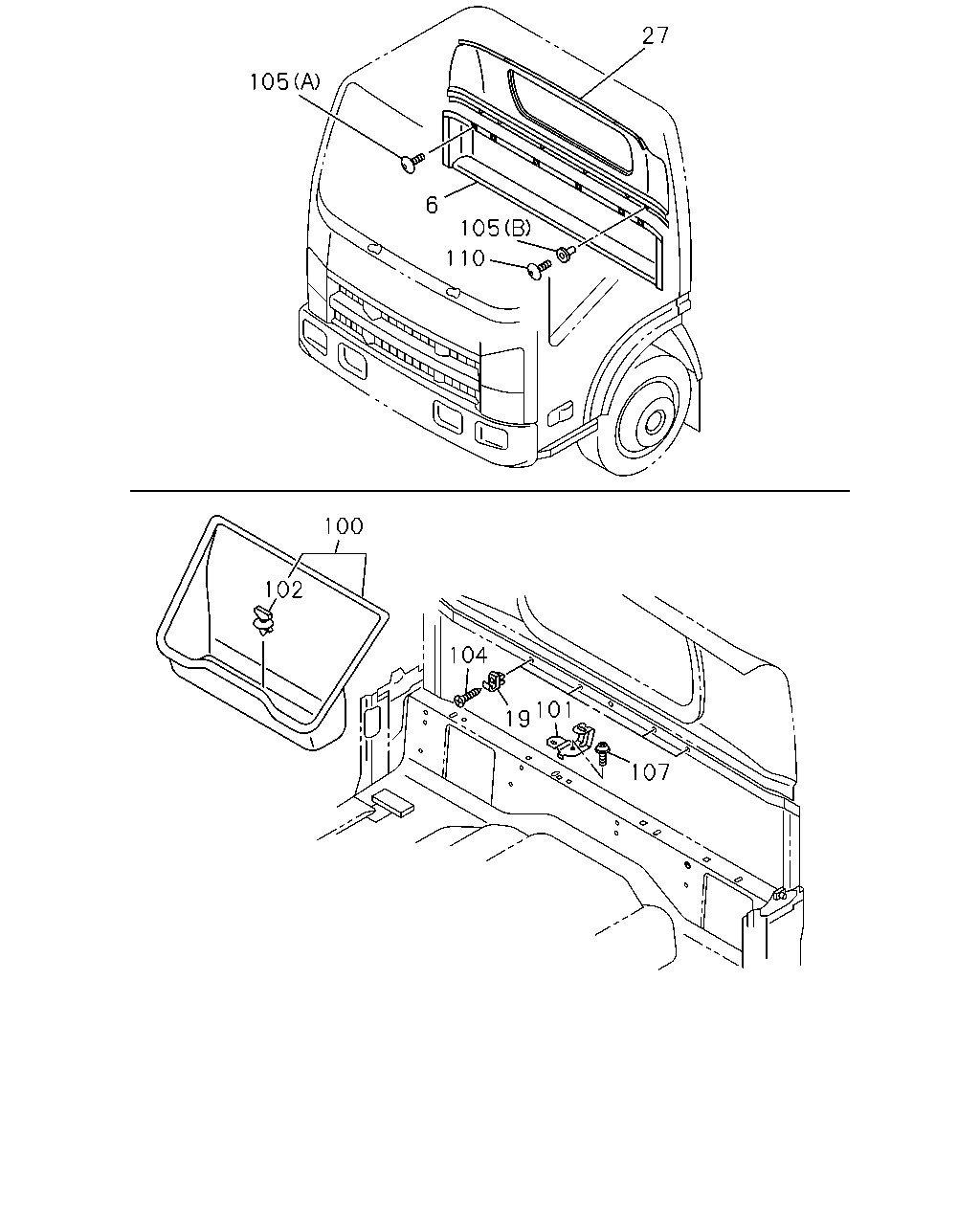

çizim 132484
27 105 6 105 110 100 102 104 101 19 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV> INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 1111- ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>, INTERIORTRIM-FULL TRIMMING<WM3> INSPECTION ENGINE COVER<8GA> GRAY 		8-97412-462-2 01 1 1111- ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1111- ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR TRIM-SEMI TRIMMING<SEV>, INTERIORTRIM-FULL TRIMMING<WM3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1111- ●
19 16.165 HOOK; RET
INTERIOR TRIM-SEMI TRIMMING<SEV> GRAY 		8-97406-042-0 04 1 1111- ●
19 16.165 HOOK; RET
INTERIOR TRIM-SEMI TRIMMING<SEV>, INTERIORTRIM-FULL TRIMMING<WM3> GRAY 		8-97406-042-0 04 1 1111- ●
27 16.587 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> DARK GRAY 		8-97417-129-1 01 1 1111- ●
27 16.587 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> EXC. WINDOW RR<8LF> DARK GRAY 		8-97417-130-1 01 1 1111- ●
100 16.587 TRAY; BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97405-174-1 01 1 1111- ● ●
101 17.225 BRACKET; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> 		8-98029-439-1 01 1 1111- ● ●
102 16.584 CLIP; TRAY,BACK PANEL
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> GRAY 		8-97406-996-0 01 1 1111- ● ●
104 17.225 SCREW; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1111- ●
104 17.225 SCREW; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV>, INTERIORTRIM-FULL TRIMMING<WM3> M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1111- ●
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> (A) GRAY 		8-97405-295-0 02 1 1111- ● ●
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> 16.587 (B) 		8-98033-680-0 02 1 1111- ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1111- ● ●
110 16.587 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> 16.166 GRAY 		8-97406-433-0 02 1 1111- ●
