◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#80757) — 45 parça

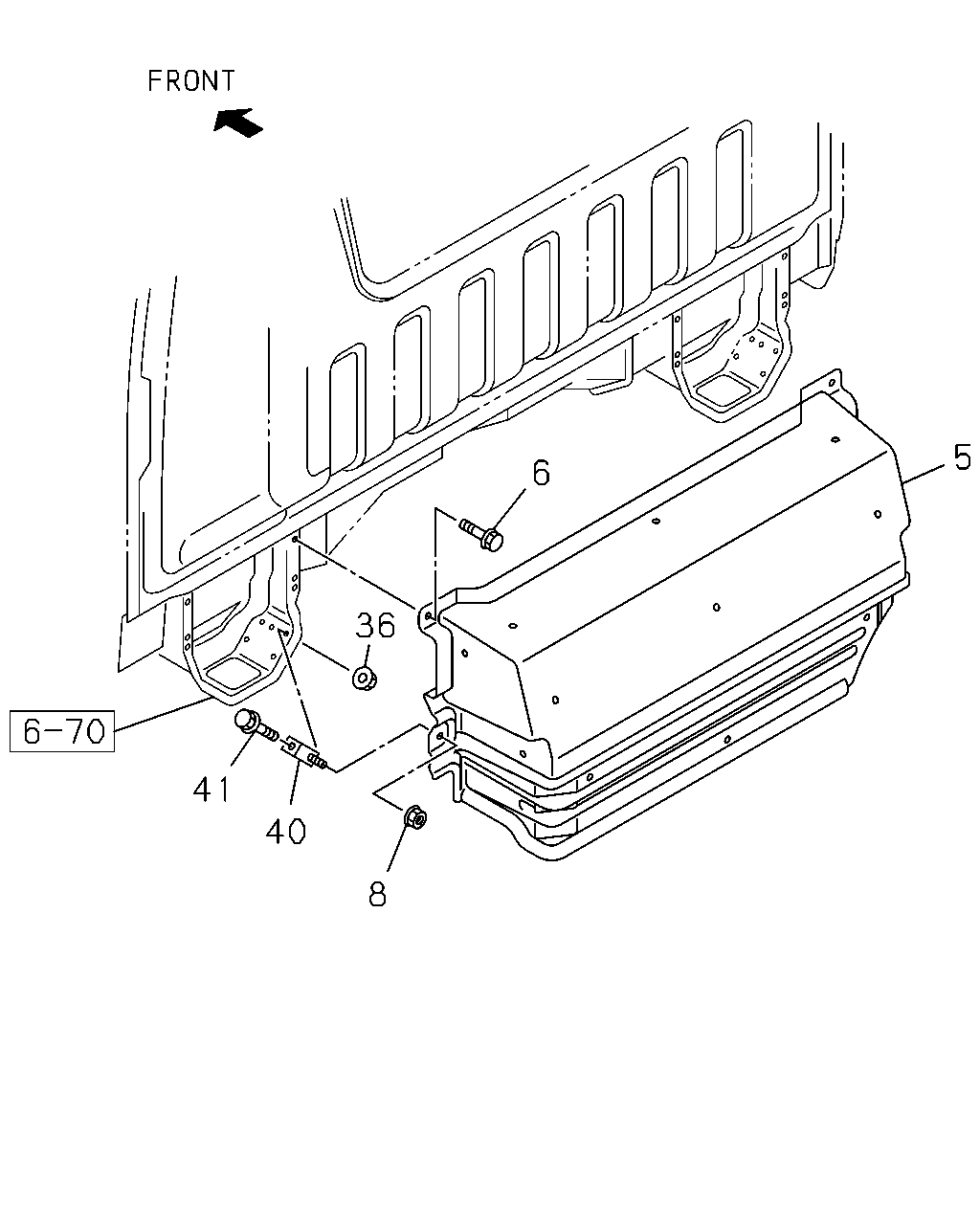

çizim 131907
5 6 36 41 40 8
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.587 PANEL; CAB BACK 8-98182-581-2 01 1 1111-1111 ●
5 16.587 PANEL; CAB BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98182-581-2 01 1 1111-1111 ●
5 16.587 PANEL; CAB BACK
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 		8-98182-581-2 01 1 1112- ●
5 16.587 PANEL; CAB BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98182-581-2 01 1 1112- ●
6 16.587 BOLT; BACK PANEL
08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1111-1111 ●
6 16.587 BOLT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1111-1111 ●
6 16.587 BOLT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1112- ●
6 16.587 BOLT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1112- ●
8 16.587 NUT; BACK PANEL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1111-1111 ●
8 16.587 NUT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1111-1111 ●
8 16.587 NUT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1112- ●
8 16.587 NUT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1112- ●
36 16.587 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-1111 ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1111-1111 ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1112-1509 ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1112-1509 ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),MIN I BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1510- ●
40 16.587 BRACKET; BACK PANEL 8-97322-264-0 02 1 1111-1111 ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1111-1111 ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 		8-97322-264-0 02 1 1112-1509 ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1112-1509 ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 		8-97322-264-0 02 1 1510- ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),MIN I BUS CHASSIS VAR.2(6GQ) 		8-97322-264-0 02 1 1510- ●
41 16.587 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1111-1111 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1111-1111 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1112-1509 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),UZBEKISTAN EQUIPMENT(JCW),MINI BU S CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1112-1509 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),UZBEKISTAN EQUIPMENT(JCW),MINI BUS CHASSIS(V4B),MIN I BUS CHASSIS VAR.2(6GQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●

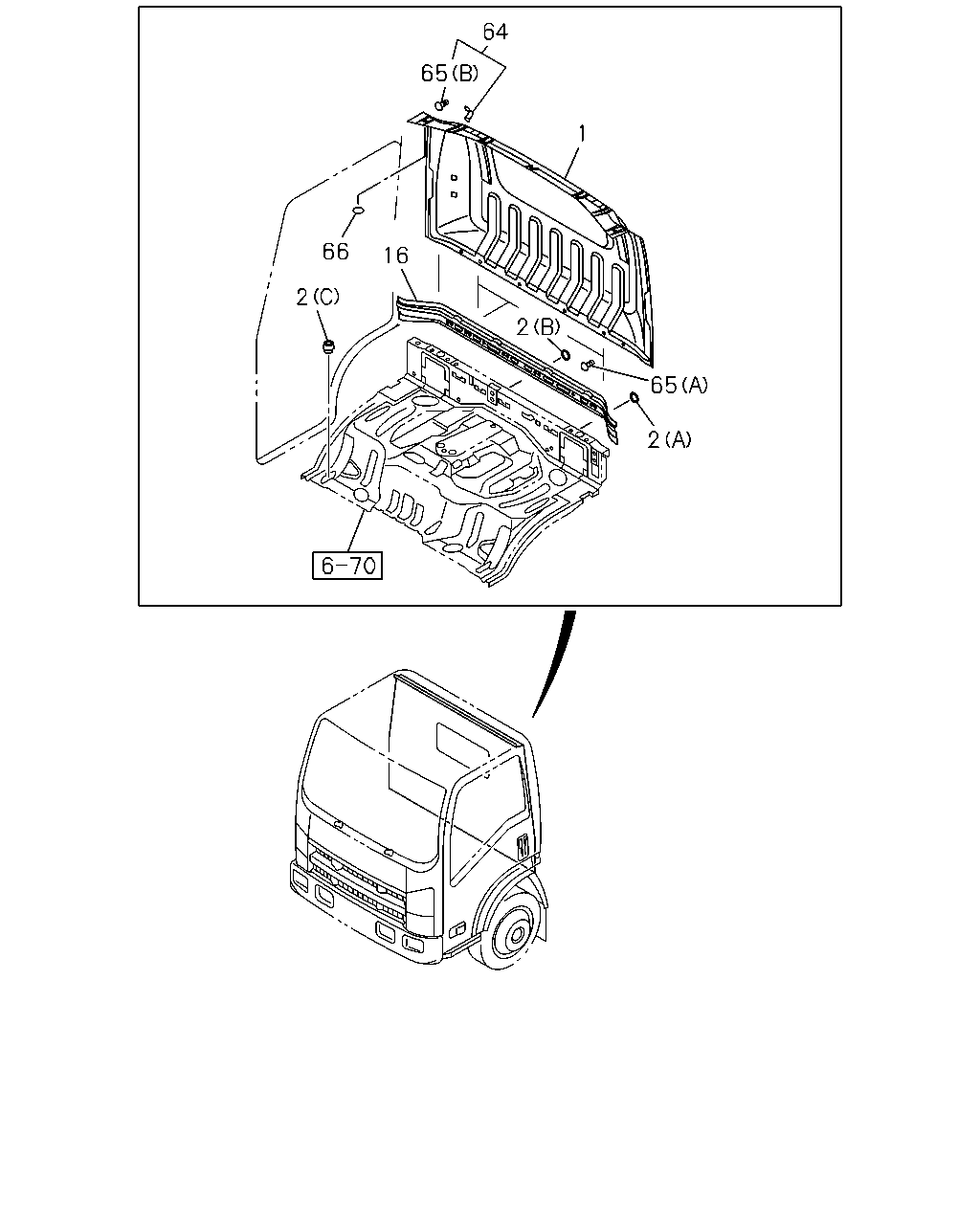

çizim 183220
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-311-4 01 1 1111- ● ●
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> 		8-97584-304-3 01 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 10 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 1111- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1111- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1111- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1111- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1111- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1111- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1111- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1111- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY YELLOW(916),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT G REEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1111- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY YELLOW(916),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT G REEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1111- ● ●
