◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#80753) — 58 parça

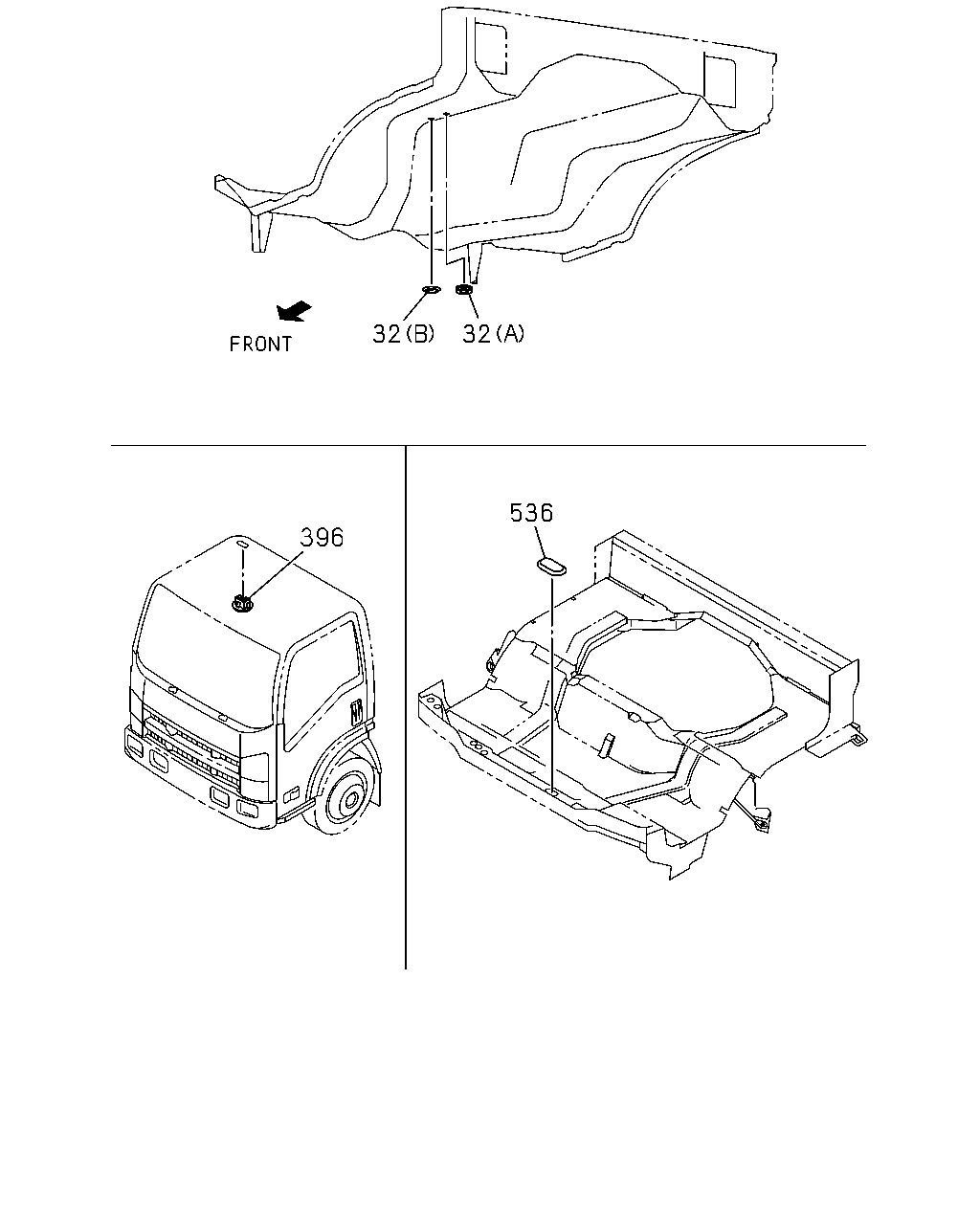

çizim 131839
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1111- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1111- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1111- ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1111- ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1111- ● ●

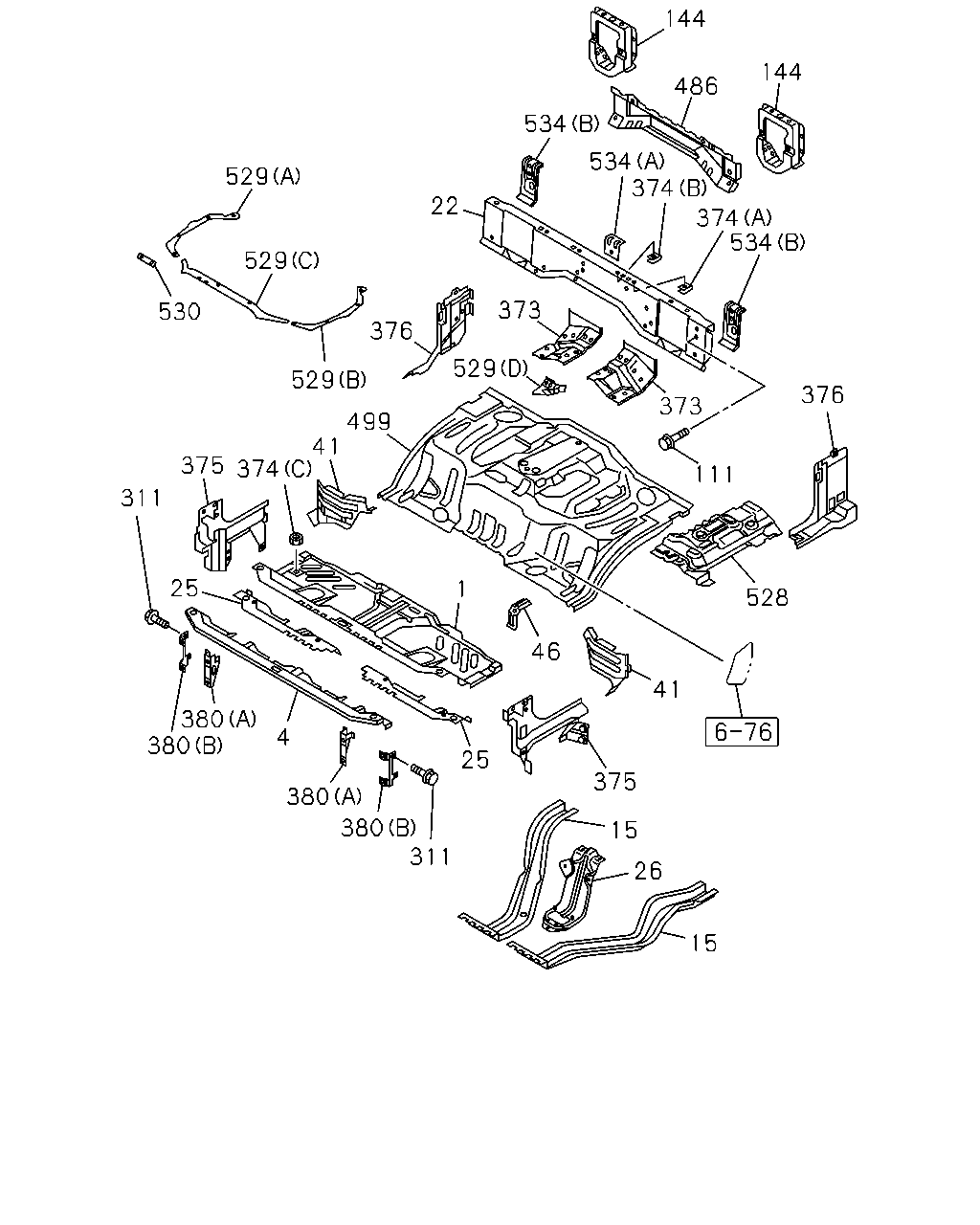

çizim 183217
144 144 486 534 534 374 529 22 374 534 529 373 530 376 529 529 376 373 499 41 374 375 111 311 25 1 528 46 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1111- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1111- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1111- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1111- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1111- ●
22 16.545 FRAME; FLOOR REAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-418-4 01 1 1111- ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-430-4 01 1 1111- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1111- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1111- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1111- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1111- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1111- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1111- ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1111- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1111- ●
144 16.545 BRACKET; MTG,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1111- ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-2 02 1 1111- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1111- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1111- ●
373 16.545 REINFORCEMENT; SEAT BELT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-525-2 01 1 1111- ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1111- ●
373 16.545 REINFORCEMENT; SEAT BELT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-526-2 01 1 1111- ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1111- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1111- ●
374 16.545 NUT; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1111- ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 04 1 1111- ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1111- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1111- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1111- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1111- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1111- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1111- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1111- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1111- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1111- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1111- ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1111- ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98030-615-2 01 1 1111- ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 1111-1207 ●
499 16.545 PANEL; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-409-5 01 1 1111-1207 ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1208- ●
499 16.545 PANEL; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98204-799-0 01 1 1208- ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-426-4 01 1 1111-1207 ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98207-188-0 01 1 1208- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1111- ●
528 16.545 REINFORCEMENT; PARKING BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-410-2 01 1 1111- ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97589-467-1 01 1 1111- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) 		8-97589-468-1 01 1 1111- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C) 		8-98006-715-0 01 1 1111- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (D) 		8-98031-663-0 01 1 1111- ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-255-0 01 1 1111- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1111- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1111- ● ●
