6-66 — HEAD LINING AND TRIM (#80752) — 72 parça

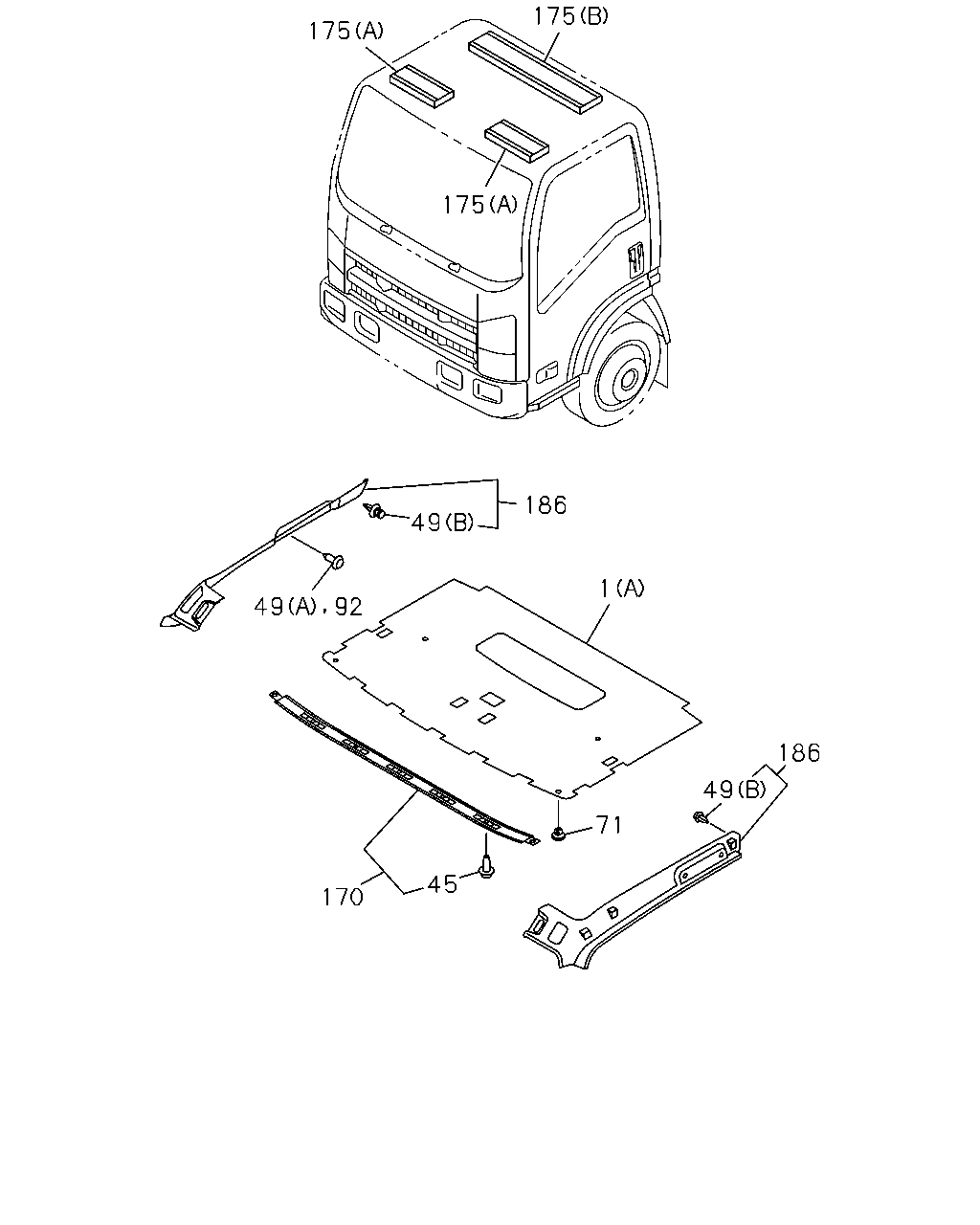

175 175 175 186 49 1 92 49 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97411-516-3	01	1	1111-	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97411-516-3	01	1	1111-		●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1111-	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	1111-		●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1111-	●
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1111-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97411-520-0	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-061-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-518-0	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-059-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97411-519-1	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-060-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-522-1	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-063-0	01	1	1212-		●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	1111-	●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1111-		●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1111-	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	1111-		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	1111-1410	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	1111-1410		●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	1111-1410		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1411-	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-		●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-		●
71	16.742 FASTENER; HD LINING D=8.7 L=16.5 DARK GRAY	8-97405-282-0	06	1	1111-	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7 L=16.5 DARK GRAY	8-97405-282-0	06	1	1111-		●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6 L=13.6 DARK GRAY	8-97405-301-2	04	1	1111-		●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7 L=16.5 DARK GRAY	8-97405-282-0	02	1	1111-		●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6 L=13.6 DARK GRAY	8-97405-301-2	05	1	1111-		●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1111-	●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>,INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97407-768-0	04	1	1111-		●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1111-	●
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	1111-		●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-298-3	01	1	1212-		●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98082-685-1	02	1	1212-		●
175	16.742 CUSHION; HEAD LINING (A)	8-98037-299-3	02	1	1111-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98037-299-3	02	1	1111-		●
175	16.742 CUSHION; HEAD LINING (B)	8-98037-300-3	01	1	1111-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-300-3	01	1	1111-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1111-	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	1111-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1111-	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	1111-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1111-	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1111-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1111-	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1111-		●

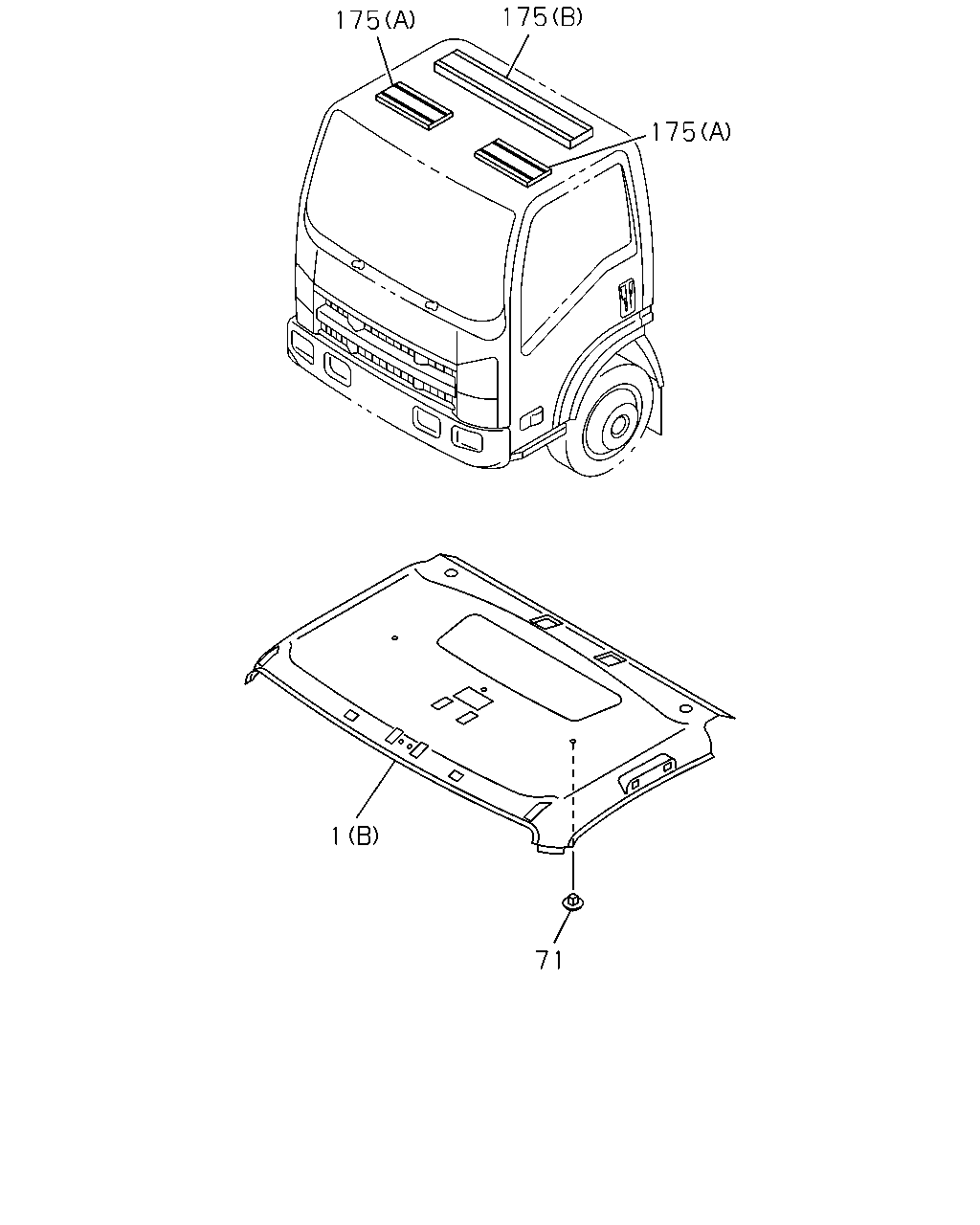

71 1 175 175 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97411-516-3	01	1	1111-	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97411-516-3	01	1	1111-		●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1111-	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97405-270-8	01	1	1111-		●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1111-	●
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1111-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97411-520-0	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> WINDOW RR<8LF> (B) DARK GRAY	8-97425-061-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-518-0	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-059-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97411-519-1	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-060-0	01	1	1212-		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97411-522-1	01	1	1111-1211		●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> EXC. WINDOW RR<8LF> (B) DARK GRAY	8-97425-063-0	01	1	1212-		●
71	16.742 FASTENER; HD LINING D=8.7 L=16.5 DARK GRAY	8-97405-282-0	06	1	1111-	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7 L=16.5 DARK GRAY	8-97405-282-0	06	1	1111-		●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6 L=13.6 DARK GRAY	8-97405-301-2	04	1	1111-		●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7 L=16.5 DARK GRAY	8-97405-282-0	02	1	1111-		●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6 L=13.6 DARK GRAY	8-97405-301-2	05	1	1111-		●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-298-3	01	1	1212-		●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98082-685-1	02	1	1212-		●
175	16.742 CUSHION; HEAD LINING (A)	8-98037-299-3	02	1	1111-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A)	8-98037-299-3	02	1	1111-		●
175	16.742 CUSHION; HEAD LINING (B)	8-98037-300-3	01	1	1111-	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-300-3	01	1	1111-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
