Sayfa 6-60 - Isuzu EPC

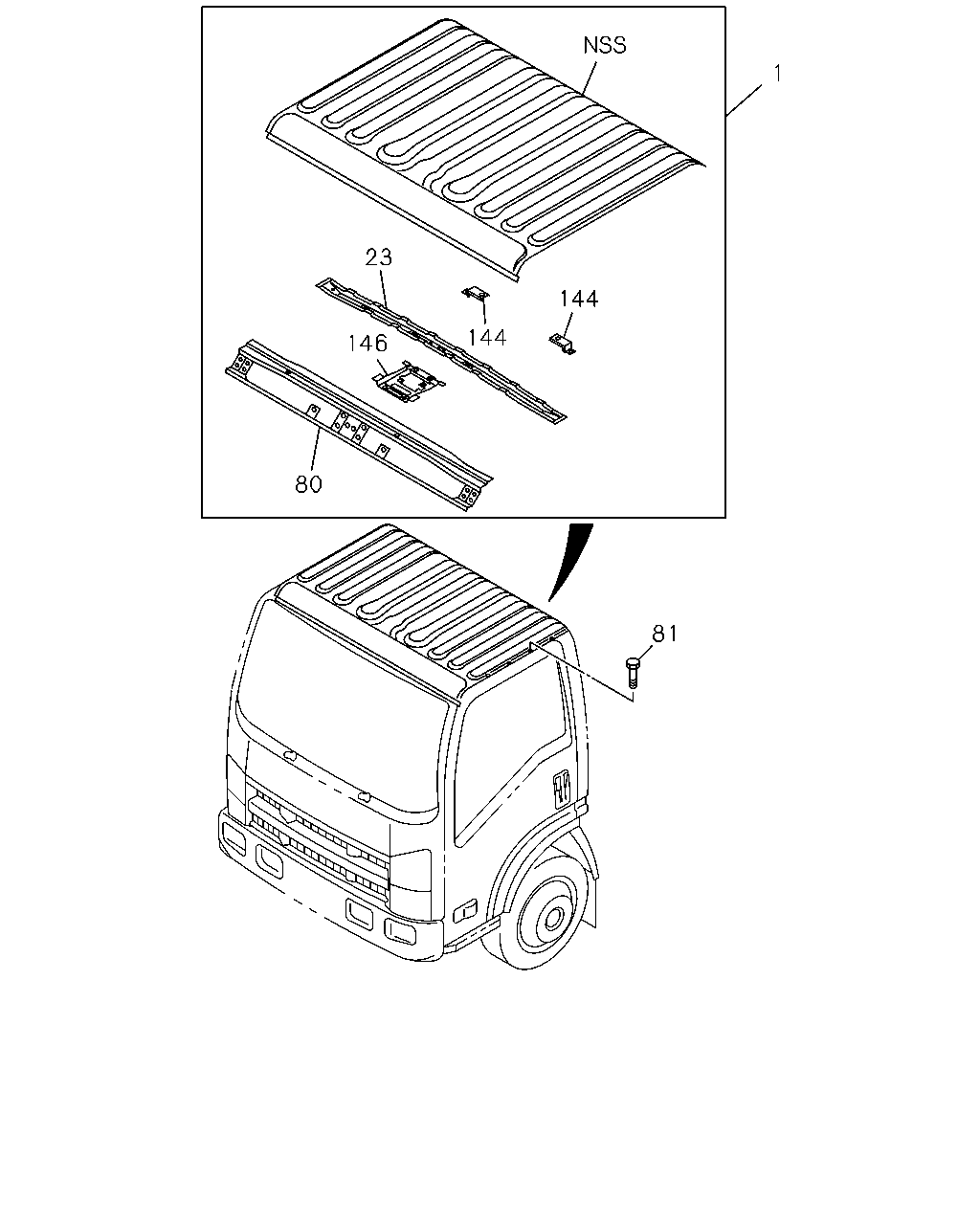

6-60 — ROOF PANEL (#80751) — 9 parça

1 23 144 144 146 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.585 PANEL; ROOF	8-98024-941-6	01	1	1111-1503	●	●
1	16.585 PANEL; ROOF	8-98287-347-0	01	1	1504-	●	●
23	16.570 REINFORCEMENT; ROOF PANEL,FRT	8-98013-502-0	01	1	1111-1503	●	●
23	16.570 REINFORCEMENT; ROOF PANEL,FRT	8-98287-359-0	01	1	1504-	●	●
80	16.585 PANEL; HEADER,ROOF	8-97584-190-4	01	1	1111-1503	●	●
80	16.585 PANEL; HEADER,ROOF	8-98287-354-0	01	1	1504-	●	●
81	16.585 BOLT; ROOF M8X15.5 HEXALOBULAR	8-98141-874-0	08	1	1111-	●	●
144	16.585 BRACKET; ROOF	8-98013-931-1	02	1	1111-	●	●
146	16.570 REINFORCEMENT; ROOM LAMP	8-98075-827-0	01	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
