Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#80750) — 157 parça

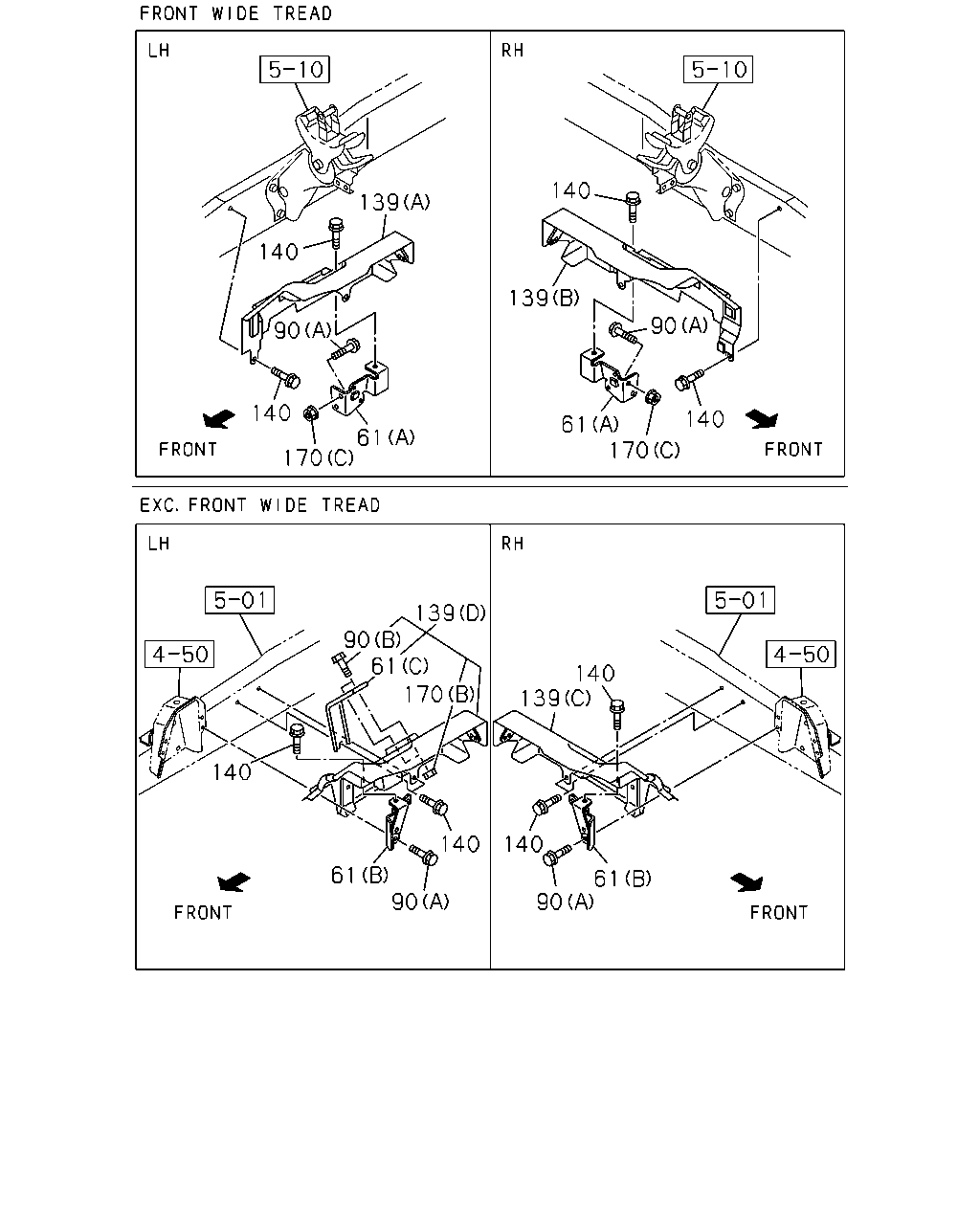

140 139 140 139 90 90 140 140 61 170 61 170 139 90 61 170 140 139 140 140 140 61 90 61 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (A)	8-98135-993-0	01	1	1111-	●	●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (A)	8-98135-994-0	01	1	1111-	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (C)	8-98173-655-0	01	1	1111-	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (B)	8-98203-072-1	01	1	1111-	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (B)	8-98203-073-1	01	1	1111-	●	●
90	08.153 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1111-	●	●
90	08.153 BOLT; COVER EXC. FRONT WIDE TREAD<7GV> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1111-	●	●
139	08.153 PANEL; SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) FRONT WIDE TREAD<7GV> (B)	8-98278-068-0	01	1	1508-		●
139	08.153 PANEL; SIDE FRONT WIDE TREAD<7GV> (B)	8-98043-920-2	01	1	1111-1507	●	●
139	08.153 PANEL; SIDE FRONT WIDE TREAD<7GV> (B)	8-98043-920-2	01	1	1508-	●
139	08.153 PANEL; SIDE EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRONT WIDE TREAD<7GV> (B)	8-98043-920-2	01	1	1508-		●
139	08.153 PANEL; SIDE EURO5 SPECIFICATION(NT5) FRONT WIDE TREAD<7GV> CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98043-920-2	01	1	1508-		●
139	08.153 PANEL; SIDE FRONT WIDE TREAD<7GV> (A)	8-98115-458-1	01	1	1111-	●	●
139	08.153 PANEL; SIDE EXC. FRONT WIDE TREAD<7GV> (C)	8-98172-773-2	01	1	1111-	●	●
139	08.153 PANEL; SIDE EXC. FRONT WIDE TREAD<7GV> (D)	8-98176-088-2	01	1	1111-	●	●
140	08.155 BOLT; SIDE PANEL FRONT WIDE TREAD<7GV> M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1111-	●	●
140	08.155 BOLT; SIDE PANEL EXC. FRONT WIDE TREAD<7GV> M8X35 W/LK&PL WASHER	1-09030-094-0	05	1	1111-	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1111-1111	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1111-1111		●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1112-	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1112-		●
170	08.155 NUT; COVER EXC. FRONT WIDE TREAD<7GV> 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1111-	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (C) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●

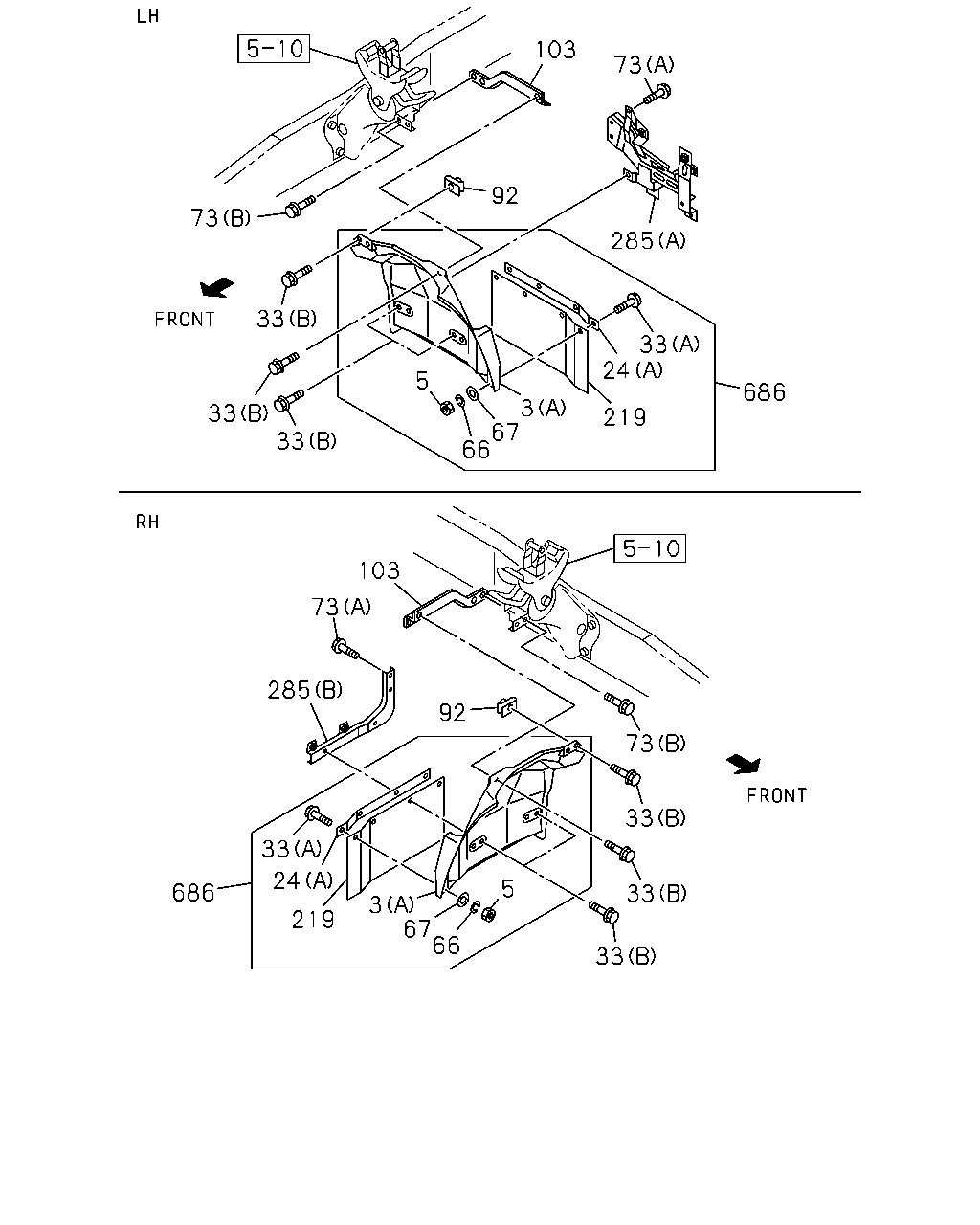

103 73 92 73 285 33 33 24 5 686 3 67 66 33 33 219 103 73 285 92 73 33 33 24 5 686 33 3 67 66 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	1111-	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1111-	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1111-		●
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	1111-1209	●	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1111-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1111-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1111-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1111-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1111-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1111-1209	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1111-1209	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1111-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1111-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1111-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1111-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1111-	●	●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	1111-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1111-	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1111-	●	●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	1111-	●	●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	1111-	●	●

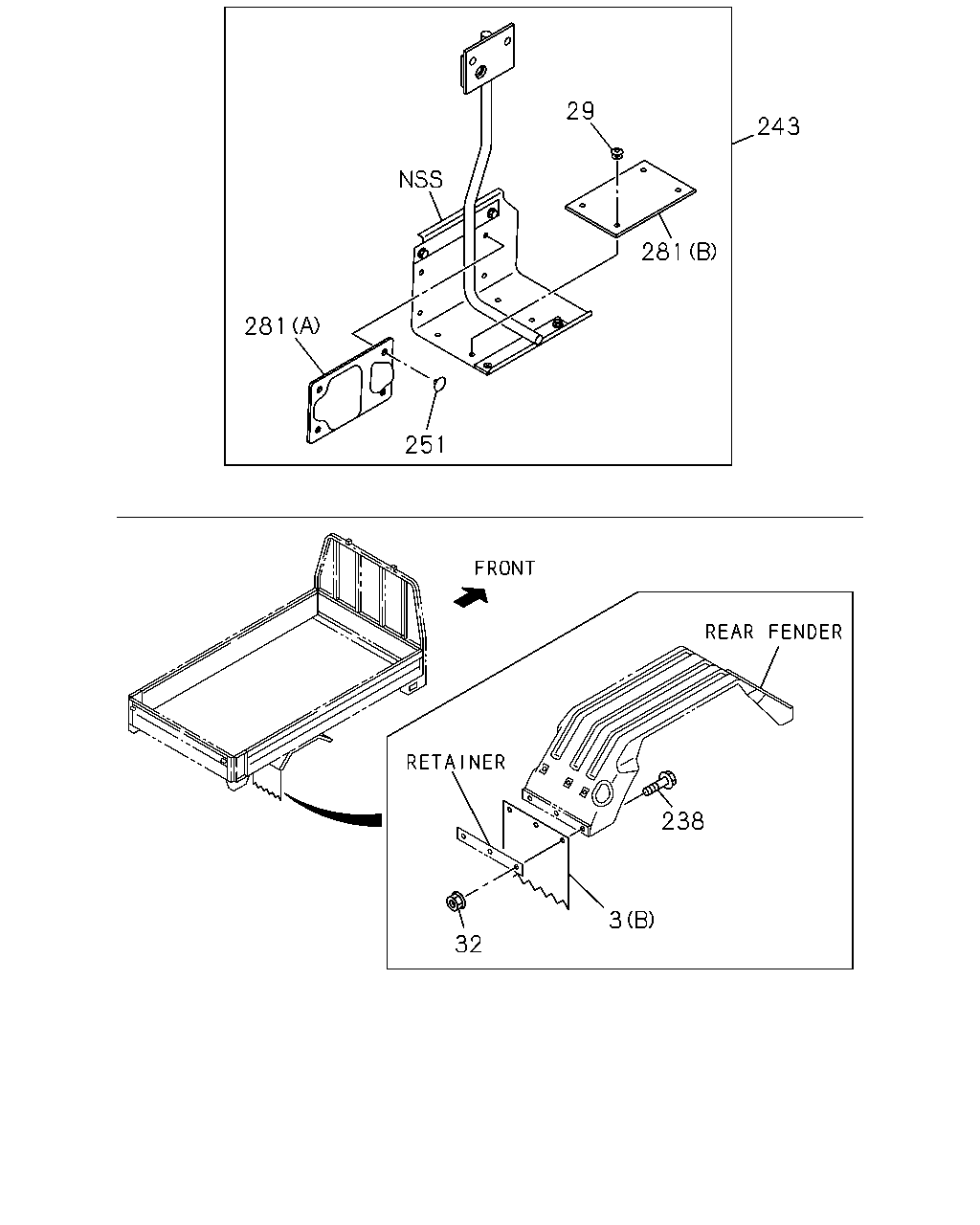

29 243 281 281 251 238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	1111-	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1111-	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1111-		●
29	08.155 RIVET 4HK1-TCS ENG(RJS)	8-98134-642-0	04	1	1111-1111	●
29	08.155 RIVET 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98134-642-0	04	1	1111-1111		●
29	08.155 RIVET 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B)	8-98134-642-0	04	1	1112-	●
29	08.155 RIVET 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98134-642-0	04	1	1112-		●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	1111-		●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1111-		●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS)	8-98188-814-2	01	1	1111-1111	●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98188-814-2	01	1	1111-1111		●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B)	8-98188-814-2	01	1	1112-	●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98188-814-2	01	1	1112-		●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS)	8-98134-641-0	04	1	1111-1111	●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98134-641-0	04	1	1111-1111		●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B)	8-98134-641-0	04	1	1112-	●
251	08.155 CLIP; NOISE INSULATOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98134-641-0	04	1	1112-		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) (A)	8-98188-864-0	01	1	1111-1111	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98188-864-0	01	1	1111-1111		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (A)	8-98188-864-0	01	1	1112-	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98188-864-0	01	1	1112-		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) (B)	8-98196-740-0	01	1	1111-1111	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98196-740-0	01	1	1111-1111		●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98196-740-0	01	1	1112-	●
281	08.155 INSULATOR; NOISE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98196-740-0	01	1	1112-		●

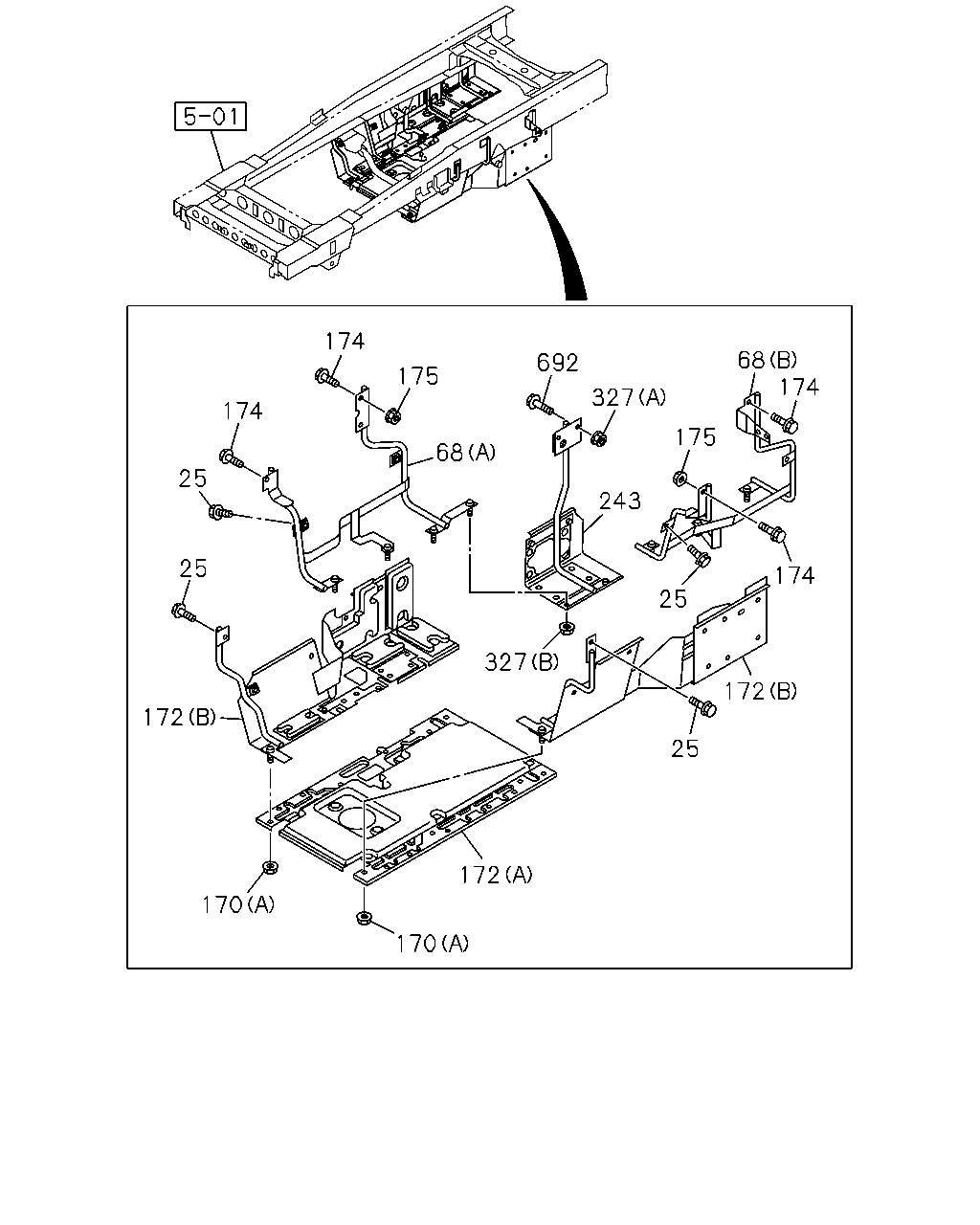

174 68 174 692 175 327 174 175 68 25 243 25 174 25 327 172 172 25 172 170 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1111-1111	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1111-1111		●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1112-	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1112-		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98276-236-0	01	1	1405-1409		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98276-236-0	01	1	1410-		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) (A)	8-98188-816-0	01	1	1111-1111	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98188-816-0	01	1	1111-1111		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (A)	8-98188-816-0	01	1	1112-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98188-816-0	01	1	1112-		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98150-453-0	01	1	1111-1111	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98150-453-0	01	1	1111-1111		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98150-453-0	01	1	1112-1404	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98150-453-0	01	1	1112-1404		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98150-453-0	01	1	1405-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (B)	8-98150-453-0	01	1	1405-		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98201-755-0	01	1	1111-1111	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98201-755-0	01	1	1111-1111		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B) (B)	8-98201-755-0	01	1	1112-1404	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98201-755-0	01	1	1112-1404		●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B) (B)	8-98201-755-0	01	1	1405-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPAC ITY<8NK> (B)	8-98201-755-0	01	1	1405-		●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1111-1111	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1111-1111		●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1112-	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (A) M8 W/DISHED WASHER	8-97329-625-0	08	1	1112-		●
170	08.155 NUT; COVER EXC. FRONT WIDE TREAD<7GV> 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1111-	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (C) M8 FLANGE	0-91180-108-0	04	1	1205-	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (A)	8-98024-942-1	01	1	1111-1111	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98024-942-1	01	1	1111-1111		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (A)	8-98024-942-1	01	1	1112-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (A)	8-98024-942-1	01	1	1112-		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (B)	8-98079-016-3	01	1	1111-1111	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-016-3	01	1	1111-1111		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98079-016-3	01	1	1112-1312	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-016-3	01	1	1112-1312		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98225-680-0	01	1	1401-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98225-680-0	01	1	1401-		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (B)	8-98079-017-4	01	1	1111-1111	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-017-4	01	1	1111-1111		●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) (B)	8-98079-017-4	01	1	1112-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98079-017-4	01	1	1112-		●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1111-1111	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1111-1111		●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1112-	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1112-		●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	03	1	1405-		●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1111	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1111		●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-1404	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1112-1404		●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1405-		●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS)	8-98188-814-2	01	1	1111-1111	●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98188-814-2	01	1	1111-1111		●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B)	8-98188-814-2	01	1	1112-	●
243	08.155 PROTECTOR; NOISE SHUT PANEL 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ)	8-98188-814-2	01	1	1112-		●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1111-1111	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1111-1111		●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1112-	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1112-		●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1111-1111	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1111-1111		●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1112-	●
327	08.155 NUT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	01	1	1112-		●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-1111	●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-1111		●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1112-	●
692	03.602 BOLT; PROTECTOR 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1112-		●

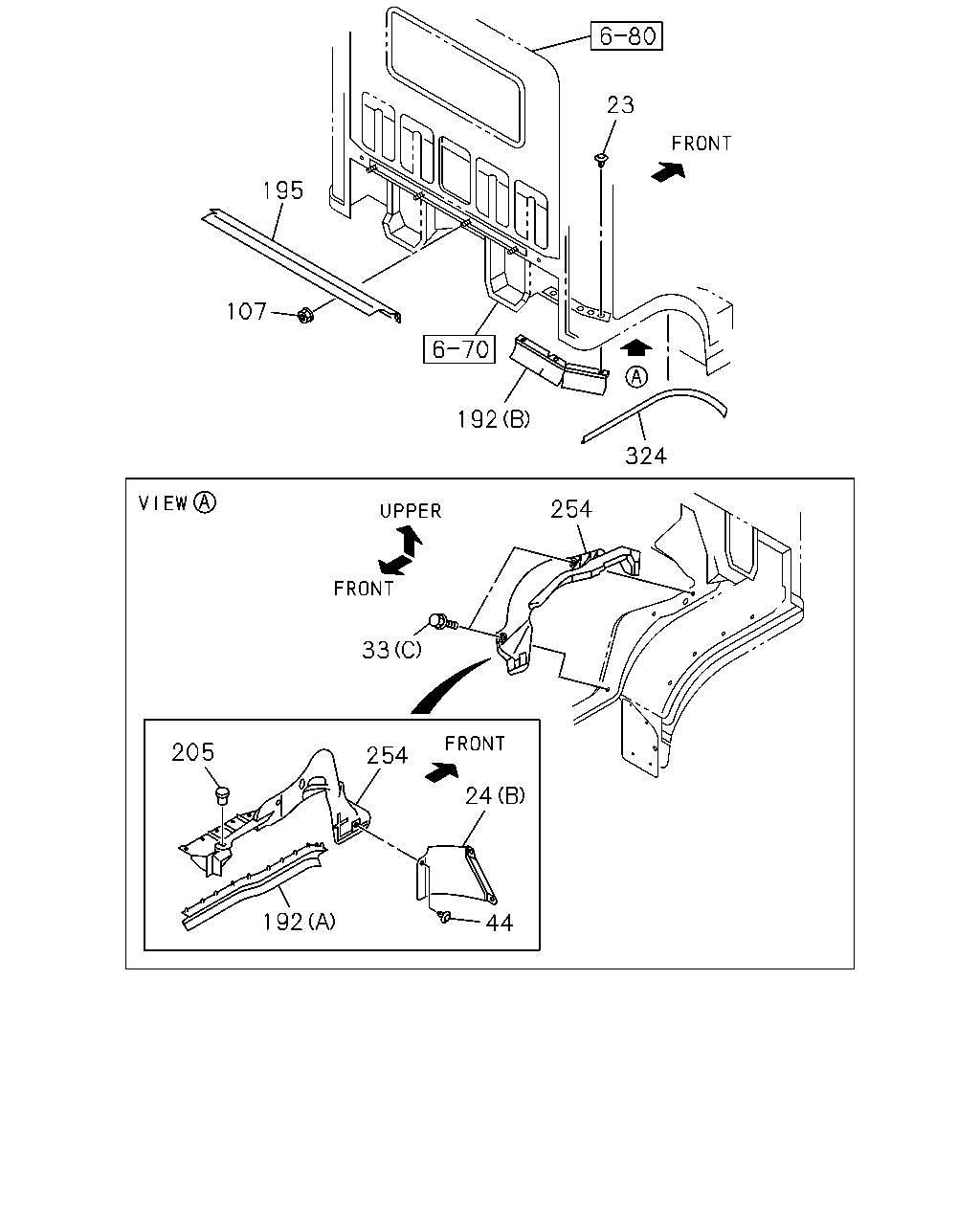

23 195 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1111-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1111-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1111-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1111-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1111-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1111-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1111-	●	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED(RS6) 03.417 M6 FLANGE	8-94279-514-0	04	1	1111-		●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1111-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1111-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1111-	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-98028-224-1	01	1	1111-		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1111-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1111-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1111-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1111-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
