0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#8075) — 172 parça

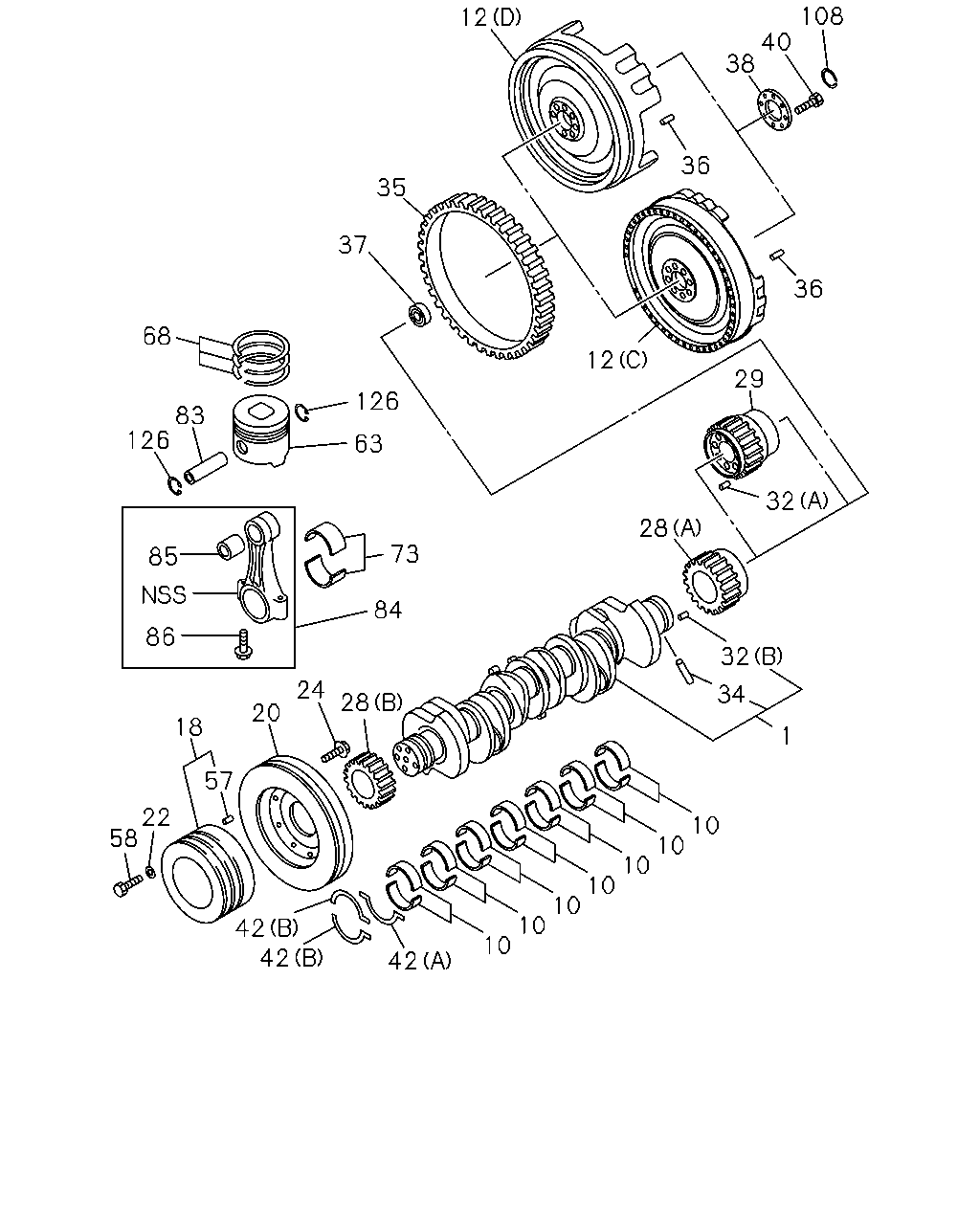

108 40 38 35 36 37 68 126 29 63 83 126 32 28 73 85 84 86 32 34 20 28 18 24 1 10 57 10 22 10 42 10 58 10 10 10 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0305	●	●	●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-		●	●
20	DAMPER; CR/SHF	8-94394-354-4	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0211-1110		●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0512		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0211-		●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0005-0210	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0211-0304		●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-97365-949-0	01	1	0305-		●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0005-0210	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0211-		●	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0005-0210	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0211-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-		●	●
35	GEAR; RING FSS ALL(FS****) ID=361 Z=129	8-94393-132-0	01	1	0005-0210	●
35	GEAR; RING FTS ALL(FT****) Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0211-		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0211-		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-		●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0211-		●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0211-		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0703		●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0703		●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0512		●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0701		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0701		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-		●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706		●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-1004		●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0211-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-		●	●

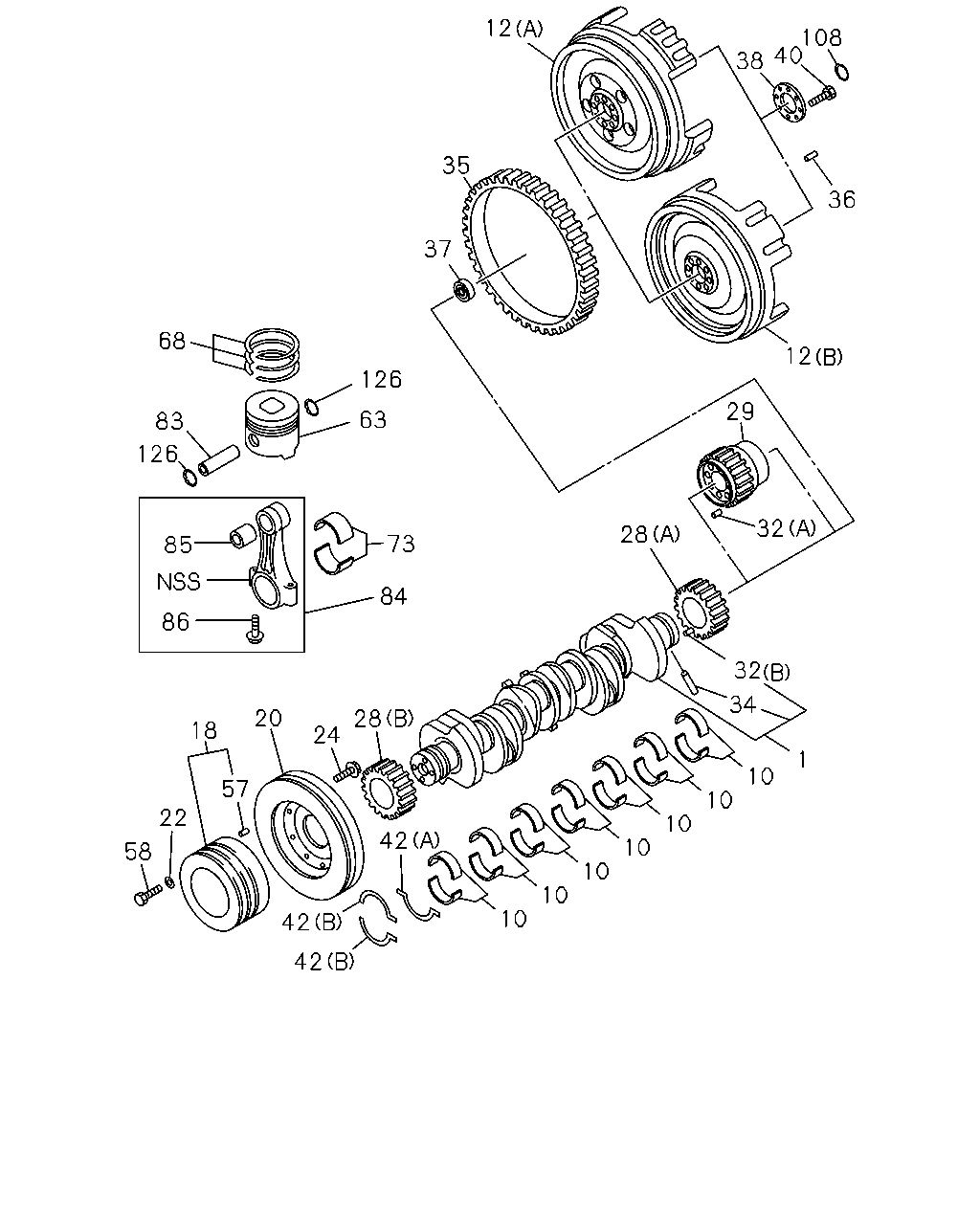

108 12 40 38 36 35 37 36 68 12 29 126 83 126 63 32 28 73 85 84 86 32 24 34 28 20 18 1 57 22 58 10 10 10 10 10 10 10 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-94393-291-4	01	1	0005-0210	●
1	CRANKSHAFT	8-94396-737-4	01	1	0211-0305		●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-		●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	0005-0305	●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	0005-0305	●	●	●
12	FLYWHEEL FSS ALL(FS****) (A)	8-94390-131-0	01	1	0005-0210	●
12	FLYWHEEL (D)	8-94390-941-2	01	1	0211-			●
12	FLYWHEEL FTS ALL(FT****) (B)	8-94393-849-1	01	1	0005-0210	●
12	FLYWHEEL (C)	8-94390-943-1	01	1	0211-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0005-0210	●
18	PULLEY; CR/SHF 3-GROOVE	8-94390-166-2	01	1	0211-		●	●
20	DAMPER; CR/SHF	8-94394-354-4	01	1	0005-0210	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0211-1110		●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0005-0210	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0005-0210	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0512		●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0005-0210	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0005-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0211-		●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0005-0210	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-94396-882-0	01	1	0211-0304		●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=42	8-97365-949-0	01	1	0305-		●	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0005-0210	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0211-		●	●
32	PIN; FLYWHEEL ENGINE REAR PTO(SV1) (A) OD=8 L=16	9-08150-816-0	01	1	0005-0210	●
32	PIN; FLYWHEEL (B) OD=8 L=16	9-08150-816-0	02	1	0211-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0005-0210	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-		●	●
35	GEAR; RING FSS ALL(FS****) ID=361 Z=129	8-94393-132-0	01	1	0005-0210	●
35	GEAR; RING FTS ALL(FT****) Z=140	8-94396-784-0	01	1	0005-0210	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	0211-		●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-0210	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0005-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0211-		●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0005-0210	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-		●	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) M16X119	8-94393-071-2	08	1	0211-		●	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0005-0210	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO(SV1) M16X62	8-94393-070-2	08	1	0211-		●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0703		●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0005-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0703		●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0005-0210	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-		●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0005-0210	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0512		●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0005-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-895-1	06	1	0211-		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0005-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94391-502-4	06	1	0211-		●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0005-0210	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	0211-0701		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	0211-0701		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706		●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0005-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	0211-		●	●
84	ROD ASM; CONN	8-94396-394-3	06	1	0005-0210	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0211-0305		●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706		●	●
84	ROD ASM; CONN	8-98018-425-2	06	1	0707-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0005-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0211-0305		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-		●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0005-0210	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-1004		●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-0210	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0211-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0005-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	0211-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
