◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#80745) — 43 parça

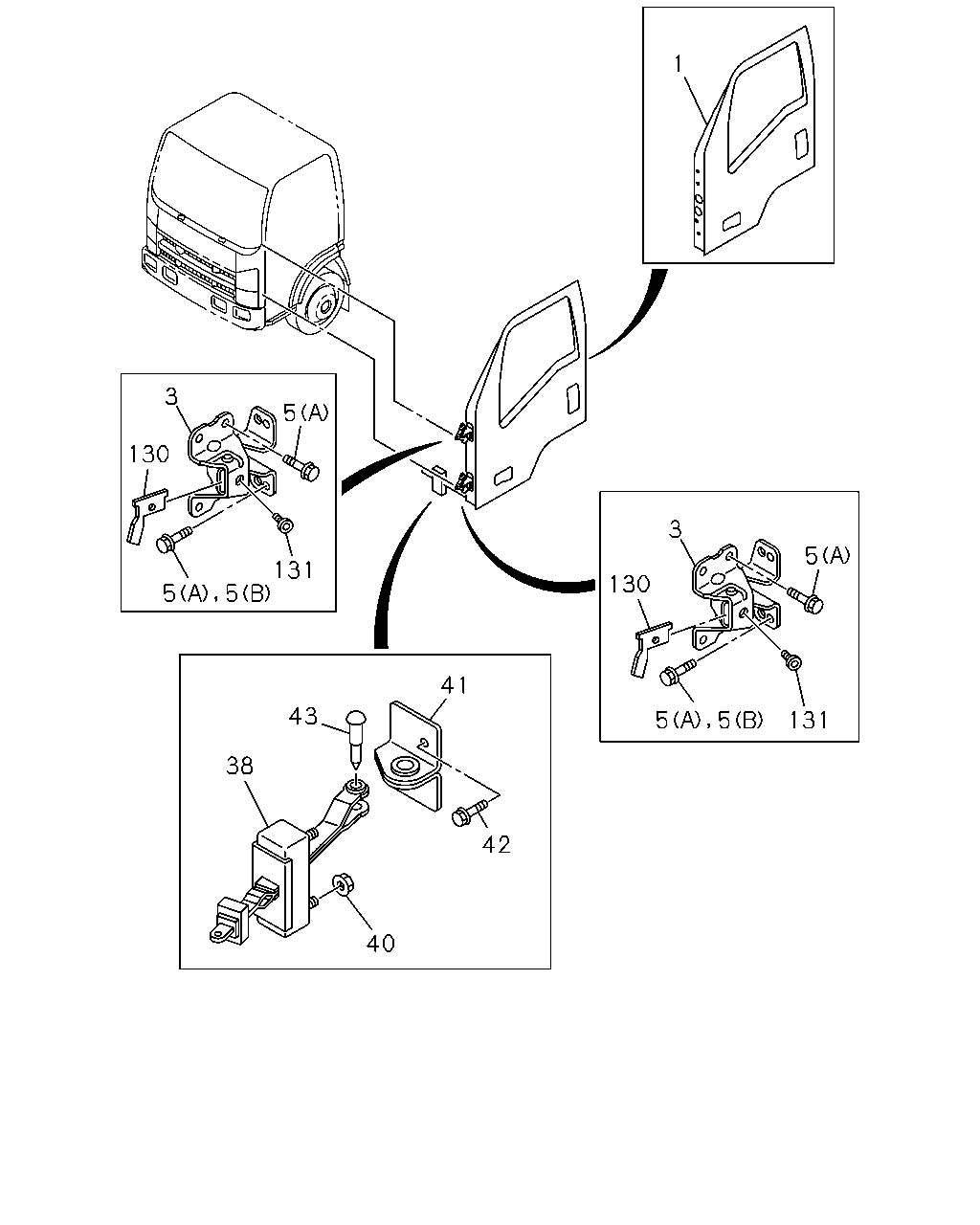

çizim 131015
1 3 5 130 3 5 131 5 130 5 41 43 5 5 131 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98171-225-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. CORNERING LAMP<T87> 		8-98171-225-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98260-601-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. CORNERING LAMP<T87> 		8-98260-601-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98171-233-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. CORNERING LAMP<T87> 		8-98171-233-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98260-602-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. CORNERING LAMP<T87> 		8-98260-602-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98171-226-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, CORNERING LAMP<T87>,DOOR MIRROR<6VE>, O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98171-226-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98260-603-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, CORNERING LAMP<T87>,DOOR MIRROR<6VE>, O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98260-603-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98171-234-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, CORNERING LAMP<T87>,DOOR MIRROR<6VE>, O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98171-234-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98260-604-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, CORNERING LAMP<T87>,DOOR MIRROR<6VE>, O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98260-604-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> CORNERING LAMP<T87> 		8-98171-227-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> CORNERING LAMP<T87> 		8-98260-605-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> CORNERING LAMP<T87> 		8-98171-236-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> CORNERING LAMP<T87> 		8-98260-606-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98171-220-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98260-593-0 01 1 1412- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98171-228-0 01 1 1111-1411 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LO NG ARM<8MV> 		8-98260-594-0 01 1 1412- ●
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1111- ● ●
5 16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 1111- ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1111-1408 ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1111-1408 ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 16 1 1409- ● ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1111- ● ●
38 16.320 CHECKER ASM; DOOR 8-98031-730-6 02 1 1111-1508 ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> 		8-98031-730-6 02 1 1111-1508 ●
38 16.320 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509- ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> 		8-98296-602-0 02 1 1509- ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98029-417-5 02 1 1111-1203 ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98208-189-1 02 1 1204-1508 ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98296-601-0 02 1 1509- ●
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1111- ● ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 1111- ● ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1111- ● ●
43 16.320 PIN 8-98037-152-2 02 1 1111- ● ●
130 16.320 STOPPER; HINGE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98038-299-1 04 1 1111- ●
131 16.350 BOLT; DOOR STOPPER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M10X11 		8-98039-593-1 04 1 1111- ●
