51387 - NP/NQR AIR BRAKE LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

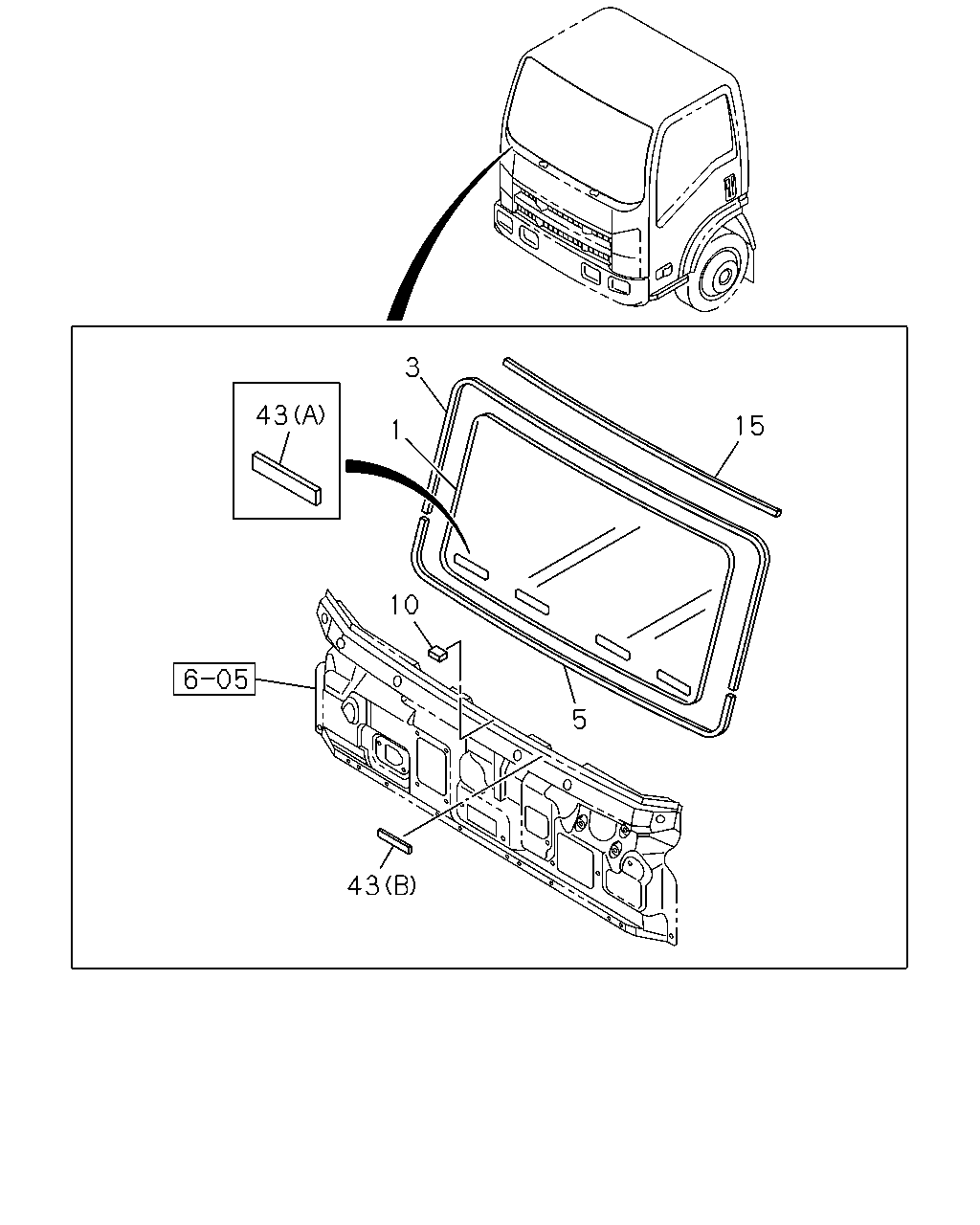

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#80743) — 12 parça
Tümü
A - NPR6SN
B - NPR6SS
3
43
15
1
10
5
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.005 GLASS; WINDSHIELD
8-98029-063-1
01
1
1111-
●
●
3
16.470 MOLDING; WINDSHIELD
8-98029-079-1
01
1
1111-
●
●
5
16.041 MOLDING; WINDSHIELD,LWR
8-98083-542-1
01
1
1111-
●
●
10
08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5
8-98095-044-0
02
1
1111-
●
●
15
16.041 FINISHER; WINDSHIELD
DARK GRAY
8-97412-958-0
01
1
1111-
●
15
16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY
8-97412-958-0
01
1
1111-
●
43
16.041 TAPE; WINDSHIELD
(A) L=100 B=8
8-98029-086-1
04
1
1111-
●
43
16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8
8-98029-086-1
04
1
1111-
●
43
16.041 TAPE; WINDSHIELD
(B) L=100 B=10
8-98083-198-1
04
1
1111-
●
43
16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10
8-98083-198-1
04
1
1111-
●
43
16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8
8-98029-086-1
09
1
1111-
●
43
16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10
8-98083-198-1
09
1
1111-
●
