6-01 — FRONT BUMPER (#80739) — 44 parça

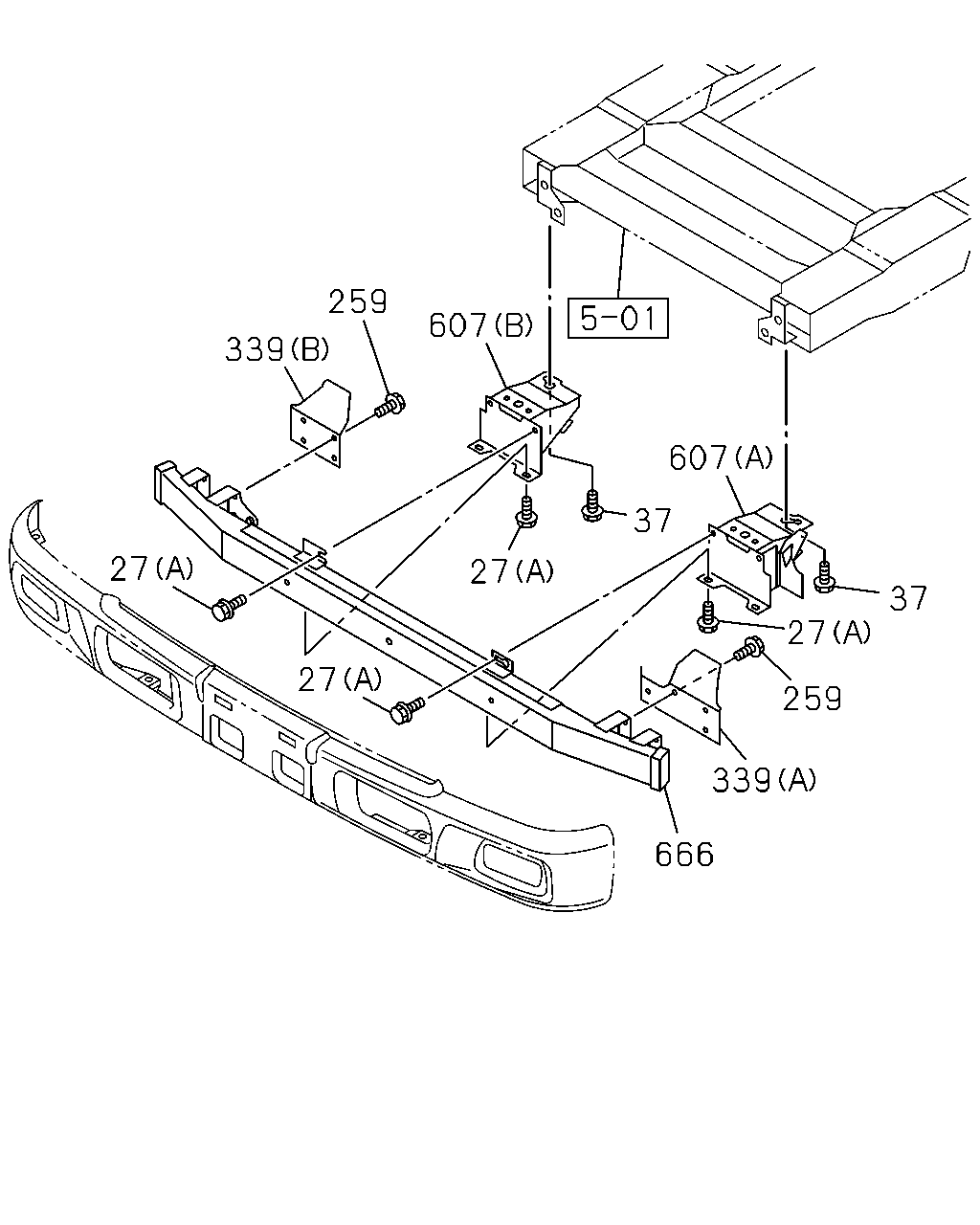

çizim 126358
259 607 339 607 37 27 27 37 27 27 259 339 666
BalonParca AdiParca NoAdetTipApplied Date A B
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1111- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 06 1 1111-1408 ●
27 07.833 BOLT; BUMPER TO BACK BAR
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 06 1 1409- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
FRONT UNDER RUN PROTECTOR<EBE> 09.003 M12X35 FLANGE 		0-28651-235-0 06 1 1111-1408 ●
37 01.263 BOLT; BRKT TO BUMPER LWR
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> 09.003 M12X35 FLANGE 		0-28651-235-0 06 1 1409- ●
259 07.833 BOLT; COVER
FRONT UNDER RUN PROTECTOR<EBE> 01.531 M8X20 FLANGE 		0-28650-820-0 08 1 1111-1408 ●
259 07.833 BOLT; COVER
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> 01.531 M8X20 FLANGE 		0-28650-820-0 08 1 1409- ●
339 07.831 COVER; SNOW GUARD
FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98126-477-0 01 1 1111-1408 ●
339 07.831 COVER; SNOW GUARD
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> (B) 		8-98126-477-0 01 1 1409- ●
339 07.831 COVER; SNOW GUARD
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98200-449-1 01 1 1111-1408 ●
339 07.831 COVER; SNOW GUARD
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> (A) 		8-98200-449-1 01 1 1409- ●
607 07.869 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98199-135-0 01 1 1111-1408 ●
607 07.869 BRACKET
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> (B) 		8-98199-135-0 01 1 1409- ●
607 07.869 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98199-136-0 01 1 1111-1408 ●
607 07.869 BRACKET
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> (A) 		8-98199-136-0 01 1 1409- ●
666 07.831 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> 		8-98199-128-0 01 1 1111-1408 ●
666 07.831 PROTECTOR; UNDER
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> 		8-98199-128-0 01 1 1409- ●

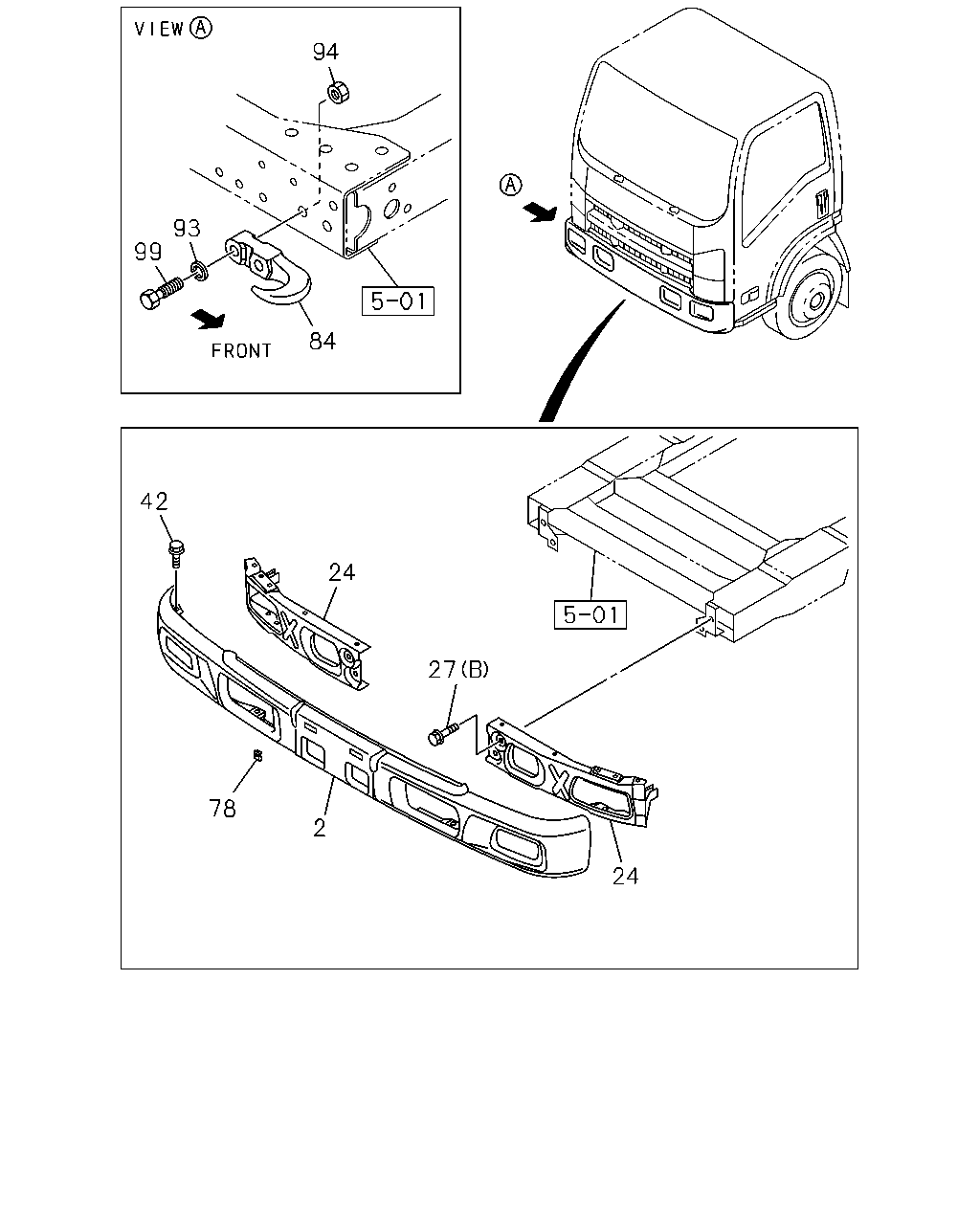

çizim 126394
94 93 99 84 42 24 27 78 2 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-080-2 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> PRIMER 		8-98055-080-2 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97405-634-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> DARK GRAY 		8-97405-634-5 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-635-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5>,FOG LAMP FR ONT VAR2<X99> WHITE 		8-97405-635-5 01 1 1112- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-636-5 01 1 1111-1111 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5>,FOG LAMP FR ONT VAR2<X99> BLUE 		8-97405-636-5 01 1 1112- ● ●
24 07.869 BAR; FRT BUMPER 8-98025-184-5 01 1 1111- ● ●
24 07.869 BAR; FRT BUMPER 8-98025-185-5 01 1 1111- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1111- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 06 1 1111-1408 ●
27 07.833 BOLT; BUMPER TO BACK BAR
RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> EXC. ECUADOR EQUIPMENT<CX3> 00.029 (A) M10X30 FLANGE 		0-28651-030-0 06 1 1409- ●
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1111- ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1111- ● ●
84 07.068 HOOK 8-97387-665-0 01 1 1111- ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1111- ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1111- ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1111- ● ●
