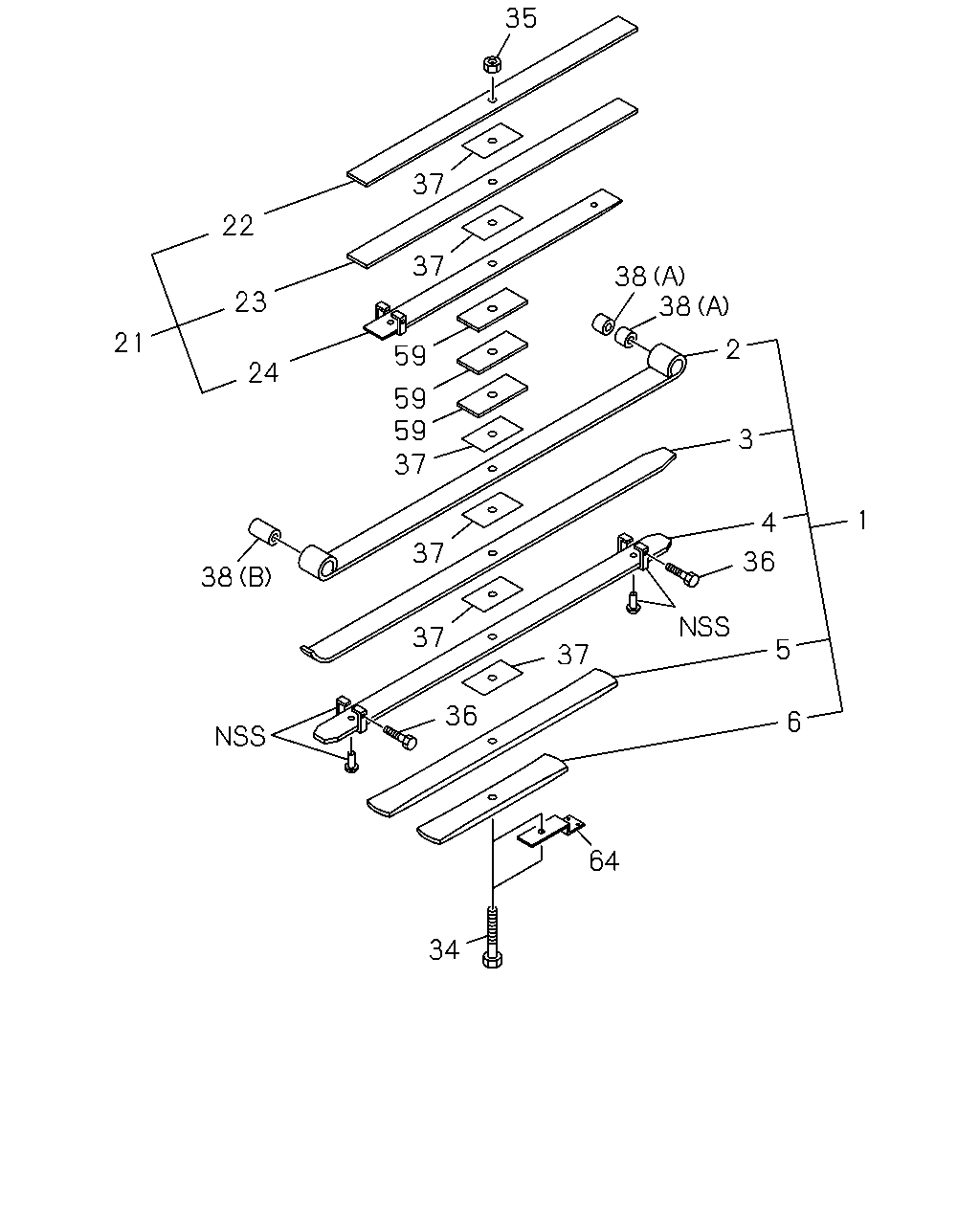

4-65A — REAR LEAF SPRING (#80731) — 30 parça

35 37 22 37 38 38 23 21 2 59 24 59 59 37 3 1 4 37 36 38 37 5 37 36 6 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-930-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-529-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-931-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-531-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-932-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-532-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-933-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-533-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-934-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-534-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98079-904-0, 98079904	8-98101-935-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98202-891-0, 98202891	8-98203-535-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98079-904-0, 98079904	8-98101-936-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98202-891-0, 98202891	8-98203-530-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98079-904-0, 98079904	8-98101-937-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98202-891-0, 98202891	8-98203-536-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98079-904-0, 98079904	8-98101-938-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98202-891-0, 98202891	8-98203-537-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98079-904-0, 98079904	8-98101-939-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-98202-891-0, 98202891	8-98203-538-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: A = 8-98079-904-0, 98079904	8-98040-308-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=160 ASM PART: B = 8-98202-891-0, 98202891	8-98041-357-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	8-98040-333-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	8-97084-102-0	06	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-98079-904-0, 98079904, B = 8-98202-891-0, 98202891	8-98040-779-0	03	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-98202-891-0, 98202891	8-97225-579-0	01	1	-
