◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#80730) — 24 parça

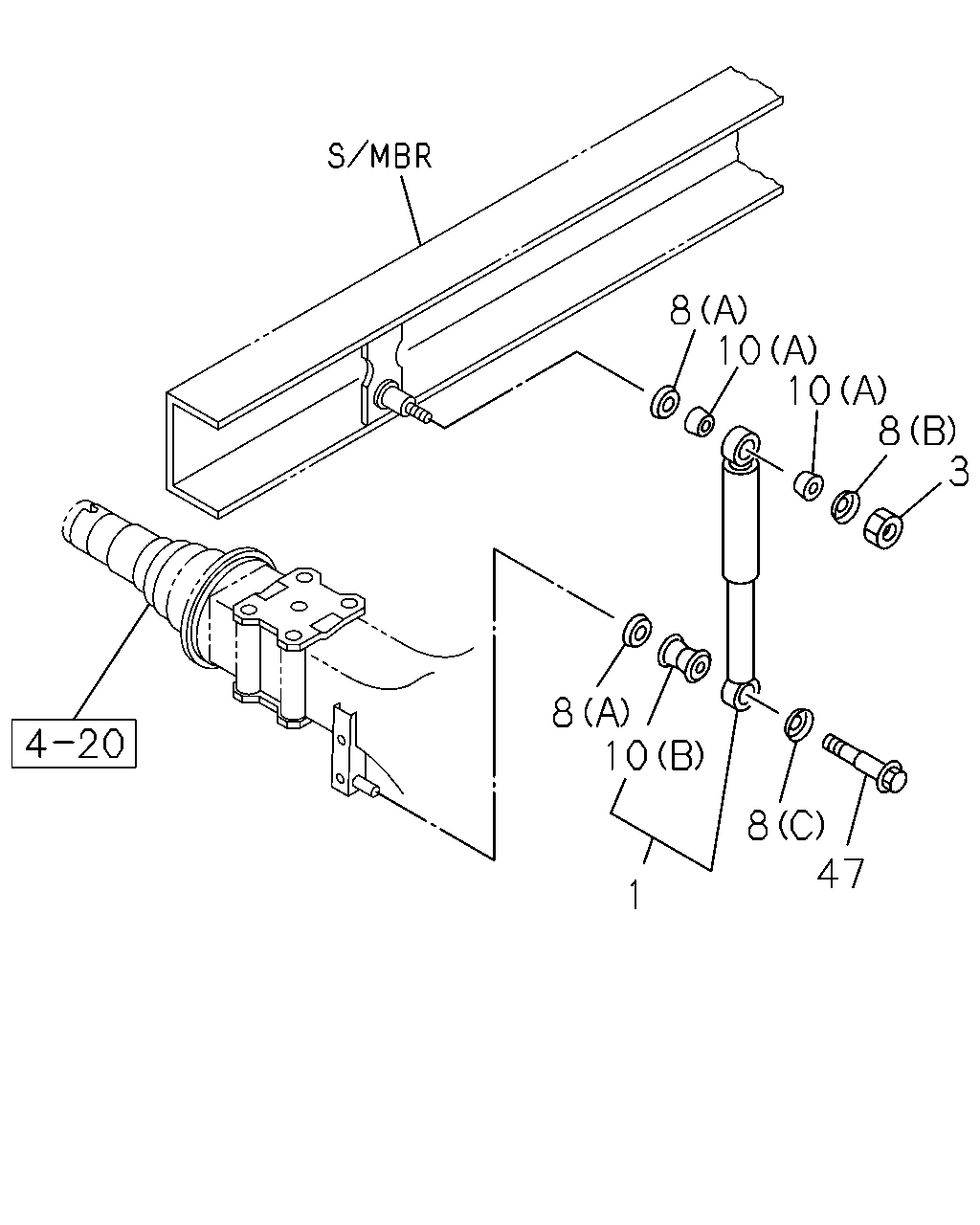

çizim 183206
8 10 10 8 3 8 10 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS VAR.3(8NX) 		8-98202-796-0 02 1 1111-1111 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98202-796-0 02 1 1111-1111 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) 		8-98202-796-0 02 1 1112-1112 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98202-796-0 02 1 1112-1112 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) 		8-98181-898-0 02 1 1112-1305 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98181-898-0 02 1 1112-1305 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) 		8-98181-898-0 02 1 1306- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-98181-898-0 02 1 1306- ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS VAR.3(8NX) 		8-98181-898-0 02 1 1111-1111 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98181-898-0 02 1 1111-1111 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) 		8-98181-898-0 02 1 1112-1112 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98181-898-0 02 1 1112-1112 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98181-898-0 02 1 1112-1112 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98202-796-0 02 1 1112-1305 ●
1 07.395 ABSORBER ASM; SHOCK,RR
ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98202-796-0 02 1 1306- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98202-796-0 02 1 1306- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-98202-796-0 02 1 1306- ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 1111- ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1111- ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1111- ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 1111- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1111- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1111- ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
