◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#80729) — 129 parça

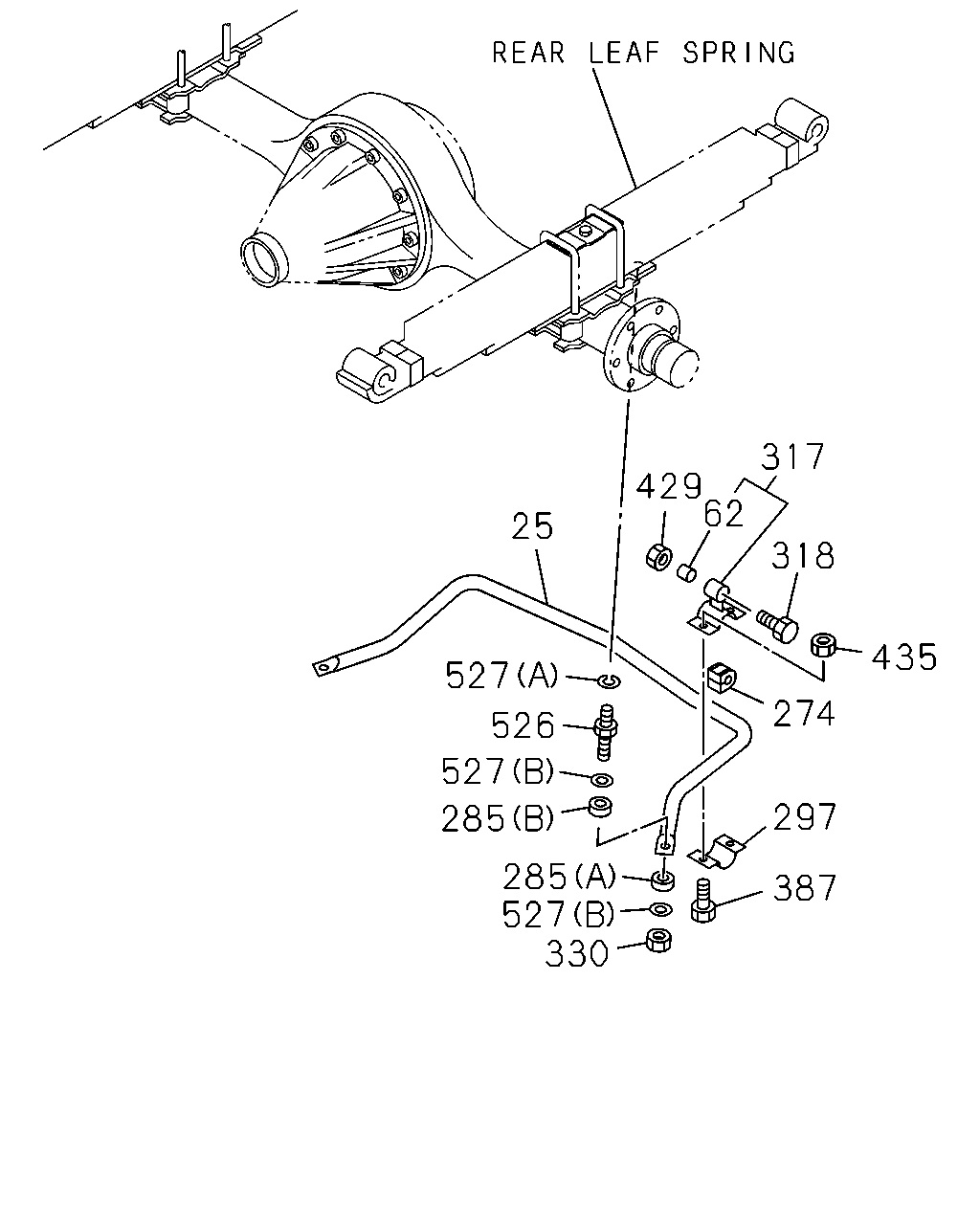

çizim 124740
317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387
BalonParca AdiParca NoAdetTipApplied Date A B
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1111- ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1111- ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1111- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1111- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1111- ● ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1111- ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1111- ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1111- ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1111- ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1111- ● ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1111- ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1111- ● ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1111- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 06.174 (A) ID=14.2 		0-91510-814-0 02 1 1111- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1111- ● ●

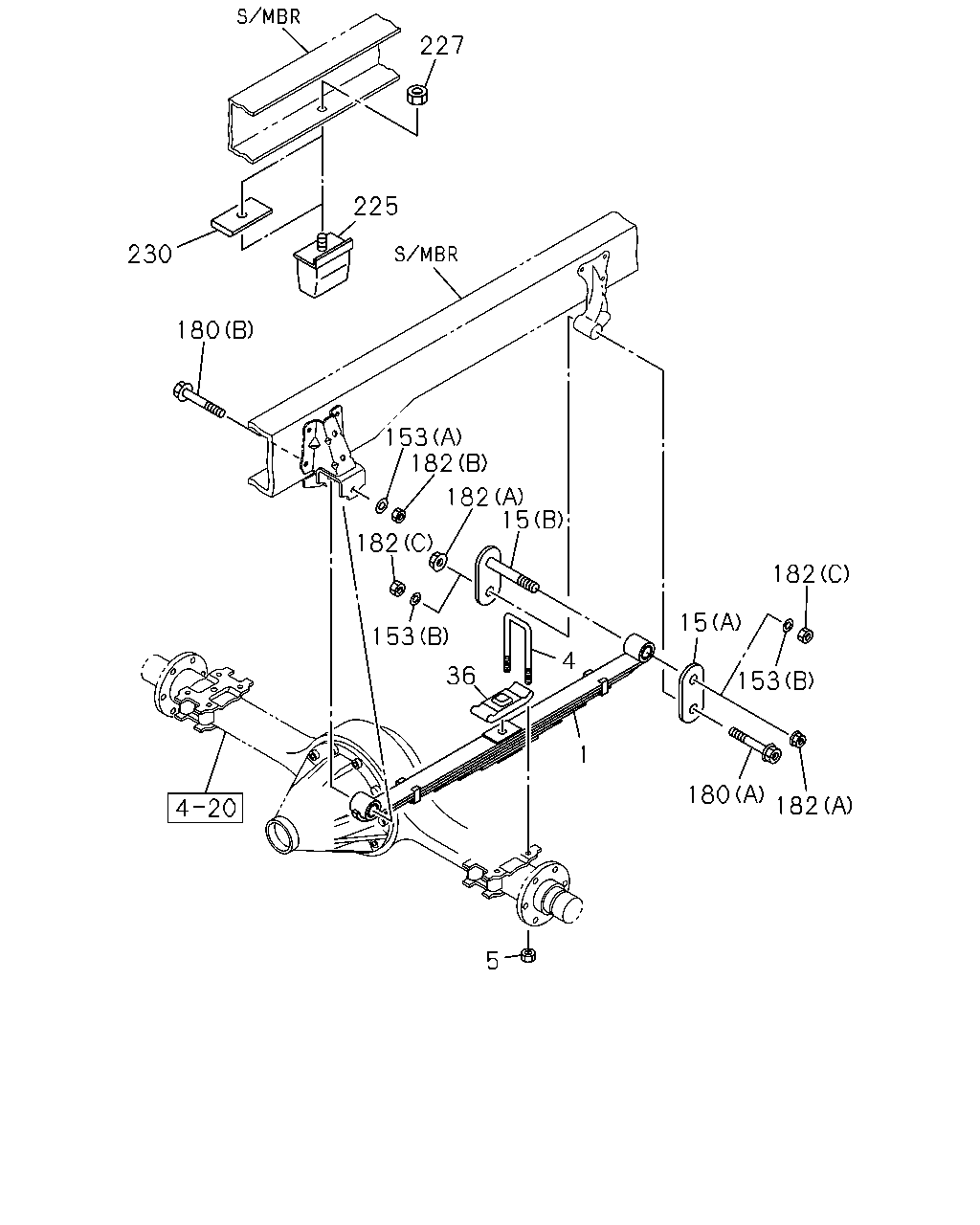

çizim 124989
227 225 230 180 153 182 182 15 182 182 15 153 4 36 153 1 180 182 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.3(8NX) 8-LEAF 		8-98079-904-0 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 8-LEAF 		8-98079-904-0 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-98079-904-0 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 8-LEAF 		8-98079-904-0 02 1 1112-1112 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 8-LEAF 		8-98079-904-0 02 1 1112-1112 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-98079-904-0 02 1 1112-1112 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 8-LEAF 		8-98079-904-0 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-98079-904-0 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 8-LEAF 		8-98079-904-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CH ASSIS VAR.2(6GQ) 8-LEAF 		8-98079-904-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1> 8-LEAF 		8-98079-904-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1111-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1111-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),IDENTI FICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1111-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1111-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) 8-LEAF 		8-98202-891-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CH ASSIS VAR.2(6GQ),IDENTIFICATION LABEL FORKD<6UT> 8-LEAF 		8-98202-891-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> 8-LEAF 		8-98202-891-0 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS VAR.3(8NX) 9-LEAF 		8-98181-940-2 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> 9-LEAF 		8-98181-940-2 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 9-LEAF 		8-98181-940-2 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 9-LEAF 		8-98181-940-2 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> 9-LEAF 		8-98181-940-2 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 9-LEAF 		8-98181-940-2 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 9-LEAF 		8-98181-940-2 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. ECUADOR EQUIPMENT<CX3> 9-LEAF 		8-98181-940-2 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3>, IDENTIFICATION LABEL FOR KD<6UT> 9-LEAF 		8-98181-940-2 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS VAR.3(8NX) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1111-1111 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1112-1305 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1306- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1> 9-LEAF 		8-98182-048-2 02 1 1306- ●
4 07.516 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.3(8NX) L=345 		8-98128-783-0 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		8-98128-783-0 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		8-98128-783-0 04 1 1112-1112 ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1112 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1112 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1112 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		8-98128-783-0 04 1 1112-1112 ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=345 		8-98128-783-0 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1>,IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) IDENTIFICATION LABEL FOR KD<6UT> L=345 		8-98128-783-0 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. STABILIZER REAR<GN1> L=345 		8-98128-783-0 04 1 1306- ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 8.0-11.0TON(RQZ) L=345 		8-98128-783-0 04 1 1306- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),MINI BUS CH ASSIS VAR.2(6GQ) L=345 		8-98128-783-0 04 1 1306- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3>,STABILIZER REAR<GN1> L=345 		8-98128-783-0 04 1 1306- ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS VAR.3(8NX) L=315 		1-51371-194-2 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=315 		1-51371-194-2 04 1 1111-1111 ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS(V4B) L=315 		1-51371-194-2 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) L=315 		1-51371-194-2 04 1 1112-1305 ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS(V4B) L=315 		1-51371-194-2 04 1 1306- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> L=315 		1-51371-194-2 04 1 1306- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1111- ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1111- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1111- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. MINI BUS CHASSIS VAR.3(8NX) 		8-98050-059-1 02 1 1111-1111 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1111-1111 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1111-1111 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. MINI BUS CHASSIS(V4B) 		8-98050-059-1 02 1 1112-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1112-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1112-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1112-1305 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1112-1305 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1306- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98050-059-1 02 1 1306- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-98050-059-1 02 1 1306- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
MINI BUS CHASSIS VAR.3(8NX) 07.518 		1-51372-059-0 02 1 1111-1111 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 07.518 		1-51372-059-0 02 1 1111-1111 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
MINI BUS CHASSIS(V4B) 07.518 		1-51372-059-0 02 1 1112-1305 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 07.518 		1-51372-059-0 02 1 1112-1305 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
MINI BUS CHASSIS(V4B) 07.518 		1-51372-059-0 02 1 1306- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 07.518 		1-51372-059-0 02 1 1306- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1111- ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1111- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1111- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1111- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1111- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1111- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1111- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1111- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1111- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS VAR.3(8NX) 		8-98021-554-0 02 1 1111-1111 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98021-554-0 02 1 1111-1111 ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS(V4B) 		8-98021-554-0 02 1 1112-1305 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98021-554-0 02 1 1112-1305 ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS(V4B) 		8-98021-554-0 02 1 1306- ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-98021-554-0 02 1 1306- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. MINI BUS CHASSIS VAR.3(8NX) 		8-98187-342-0 02 1 1111-1111 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1111-1111 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1111-1111 ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. MINI BUS CHASSIS(V4B) 		8-98187-342-0 02 1 1112-1112 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1112-1112 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1112-1112 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1112-1305 ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1112-1305 ●
225 07.535 RUBBER; CUSHION,RR SPR
ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1306- ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-98187-342-0 02 1 1306- ●
225 07.535 RUBBER; CUSHION,RR SPR
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-98187-342-0 02 1 1306- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1111- ● ●
230 07.518 SPACER; CUSHION RUBBER
EXC. MINI BUS CHASSIS VAR.3(8NX) 		8-97136-852-0 02 1 1111-1111 ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1111-1111 ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1111-1111 ●
230 07.518 SPACER; CUSHION RUBBER
EXC. MINI BUS CHASSIS(V4B) 		8-97136-852-0 02 1 1112-1305 ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1112-1305 ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1112-1305 ●
230 07.518 SPACER; CUSHION RUBBER
ECUADOR EQUIPMENT<CX3> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1306- ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 		8-97136-852-0 02 1 1306- ●
230 07.518 SPACER; CUSHION RUBBER
G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. ECUADOR EQUIPMENT<CX3> 		8-97136-852-0 02 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
