◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51387 - NP/NQR AIR BRAKE LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#80727) — 185 parça

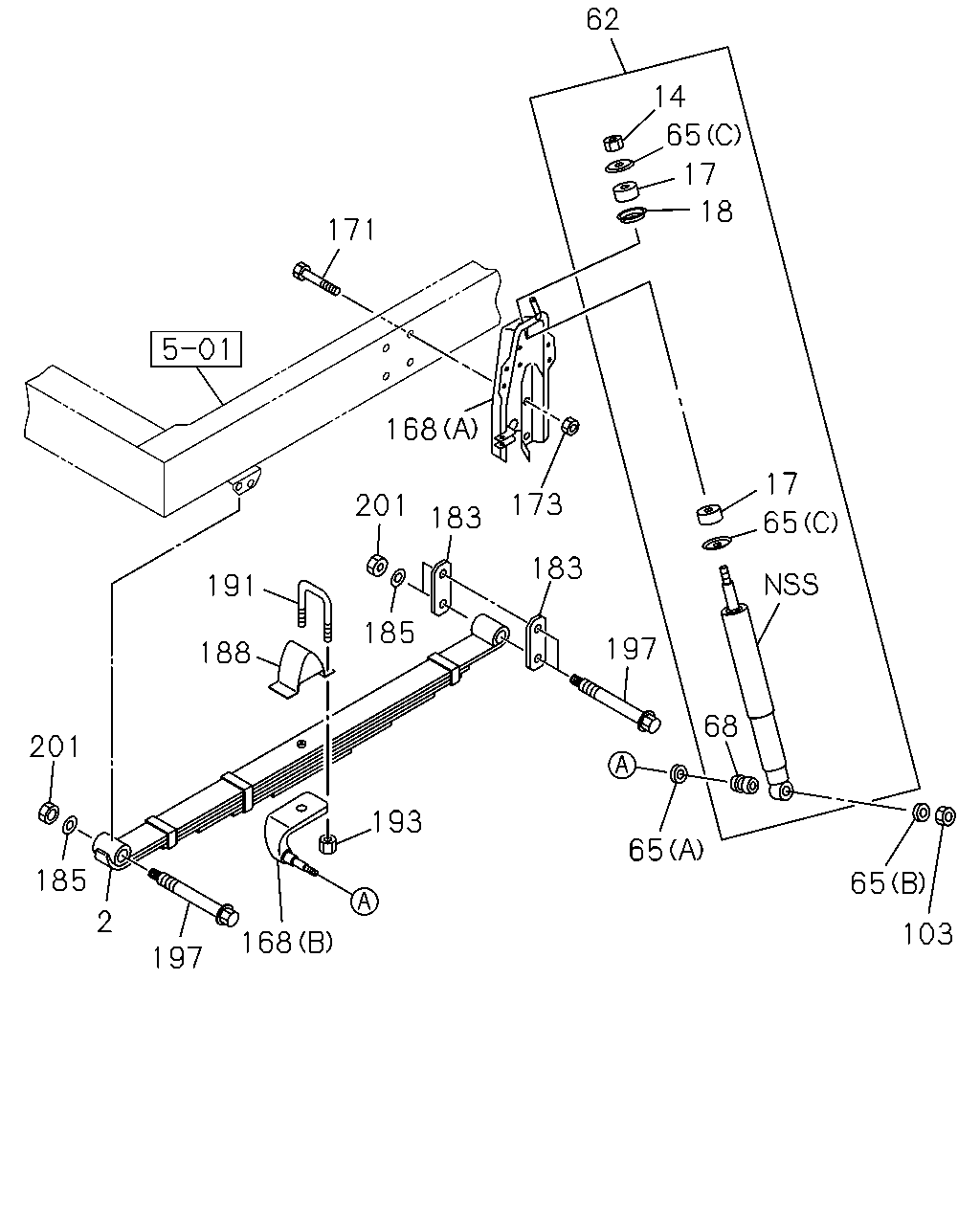

çizim 124083
62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98154-915-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. MINI BUS CHASSIS(V4B) 6-LEAF 		8-98154-915-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98154-916-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. MINI BUS CHASSIS(V4B) 6-LEAF 		8-98154-916-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98141-456-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B) 6-LEAF 		8-98141-456-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98141-457-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B) 6-LEAF 		8-98141-457-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-939-0 01 1 1111- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-943-0 01 1 1111- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1508- ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1111- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1111- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1111- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98202-858-0 02 1 1111-1301 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98232-673-1 02 1 1302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV> 		8-98154-636-0 02 1 1111- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1111- ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1111- ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1111- ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1111- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-665-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-666-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-556-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-557-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98180-782-2 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98180-784-2 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98181-880-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98181-881-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-553-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-554-0 01 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
EXC. FRONT WIDE TREAD<7GV> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111- ● ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111- ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1111- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1111- ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1111- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1111- ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1112- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) L=165 		9-51171-075-1 04 1 1112- ●
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1111- ● ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1111- ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1111- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1111- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1111- ● ●

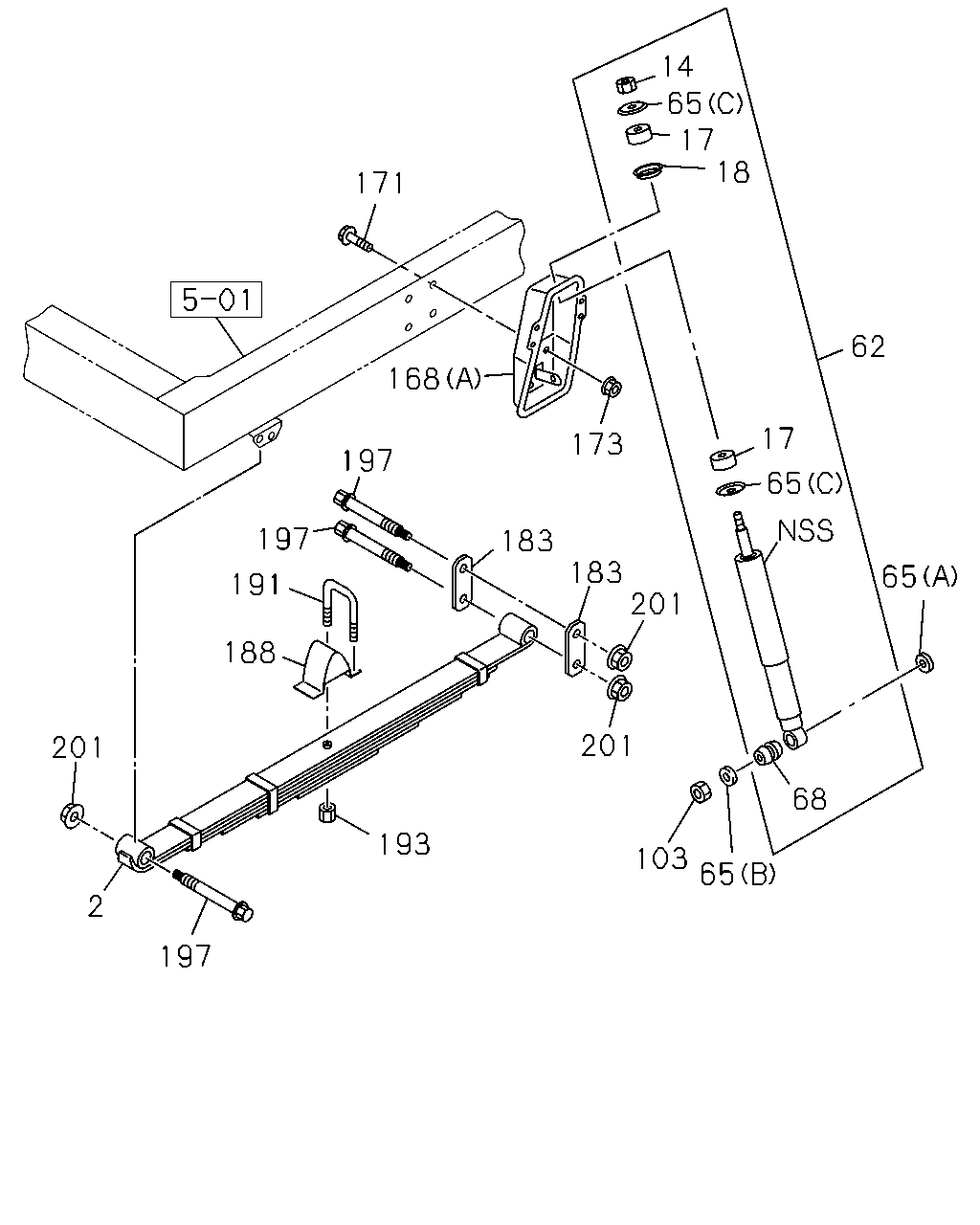

çizim 124316
14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 193 103 65 2 197
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98154-915-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. MINI BUS CHASSIS(V4B) 6-LEAF 		8-98154-915-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98154-916-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> EXC. MINI BUS CHASSIS(V4B) 6-LEAF 		8-98154-916-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98141-456-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B) 6-LEAF 		8-98141-456-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98141-457-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B) 6-LEAF 		8-98141-457-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-941-0 01 1 1112- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112-1112 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59>,MINI BUSCHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) ,FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-942-0 01 1 1112- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-1 01 1 1306- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-939-0 01 1 1111- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),FRONT WIDE TREAD<7GV> 6-LEAF 		8-98181-943-0 01 1 1111- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-543-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1111-1111 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-0 01 1 1112-1305 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1306-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98190-544-1 01 1 1508- ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1111- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1111- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1111- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98202-858-0 02 1 1111-1301 ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV> 		8-98232-673-1 02 1 1302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV> 		8-98154-636-0 02 1 1111- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1111- ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1111- ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1111- ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1111- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-665-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98208-666-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> (A) 		8-98180-785-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111-1111 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
4 WHEEL ANTI LOCK BRAKE<JE5> IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> (A) 		8-98180-786-1 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-556-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-557-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98180-782-2 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98180-784-2 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98181-880-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98181-881-0 01 1 1111- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-553-0 01 1 1111- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98202-554-0 01 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> 00.685 LOWER M12X35 FLANGE 		0-28051-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
IDENTIFICATION LABEL FOR KD<6UT> FRONT WIDE TREAD<7GV> 09.003 UPPER M12X35 FLANGE 		0-28651-235-0 04 1 1111- ●
171 07.395 BOLT; S/ABS BRKT
EXC. FRONT WIDE TREAD<7GV> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111- ● ●
171 07.395 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1111- ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1111- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1111- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1111- ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) L=165 		9-51171-075-1 04 1 1111-1111 ●
191 07.417 U-BOLT; FRT SPR
FRONT WIDE TREAD<7GV> L=165 		9-51171-075-1 04 1 1112- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON(RPZ),G.V.W. 8.0-11.0TON(RQZ) L=165 		9-51171-075-1 04 1 1112- ●
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1111- ● ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1111- ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1111- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1111- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
